Standard Series
ACIQ 18,000 BTU ACIQ Standard 24 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V
$1,404.99
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.
A smart, reliable choice for year-round comfort.
Best for 9K-18K room setups:
- Large bedrooms
- Living rooms
- Garages
- Additions
- 18,000 BTU
- Cooling
- 18,000 BTU
- Heating
- See specs
- Quiet Inside
- High
- High Efficiency
Recommended Add-Ons
Compatible accessories for this system
Must haves for best Installation
Loading recommended accessories…
Brand Information
ACIQ
- Support Number
- 1-877-909-ACiQ
- Official Site
- ACIQ Official Site
Product Overview Full product description Read the longer product copy, features, and application notes. +
ACIQ

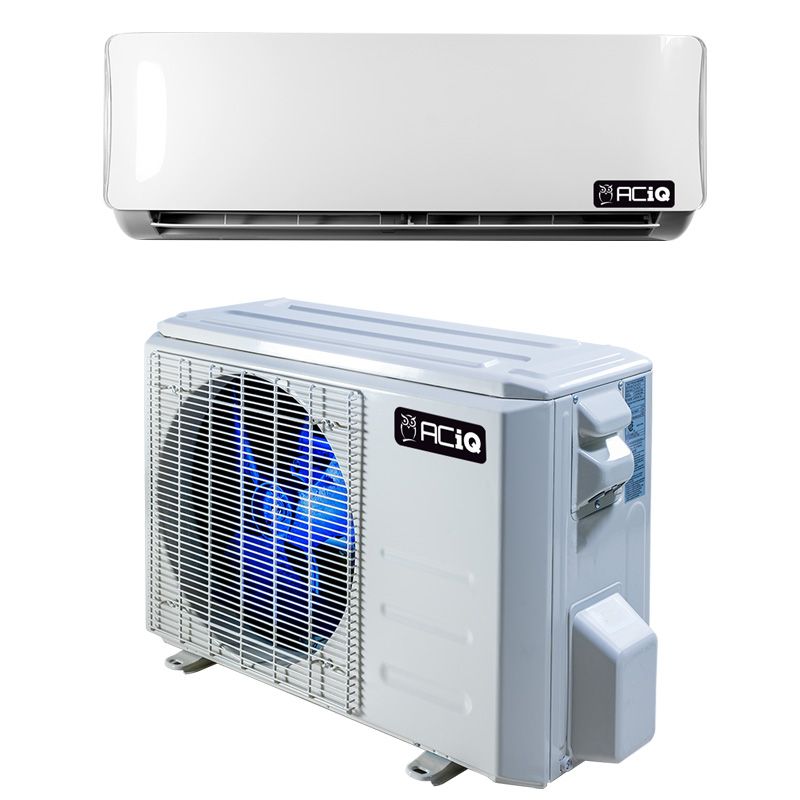

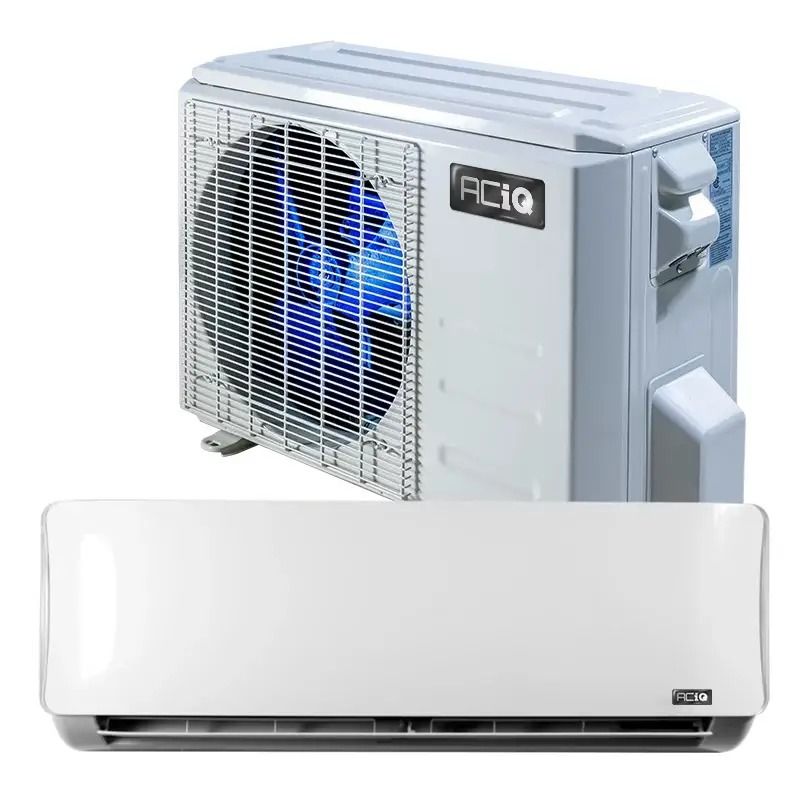

ACIQ 18,000 BTU ACIQ Standard 24 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V
Product Overview

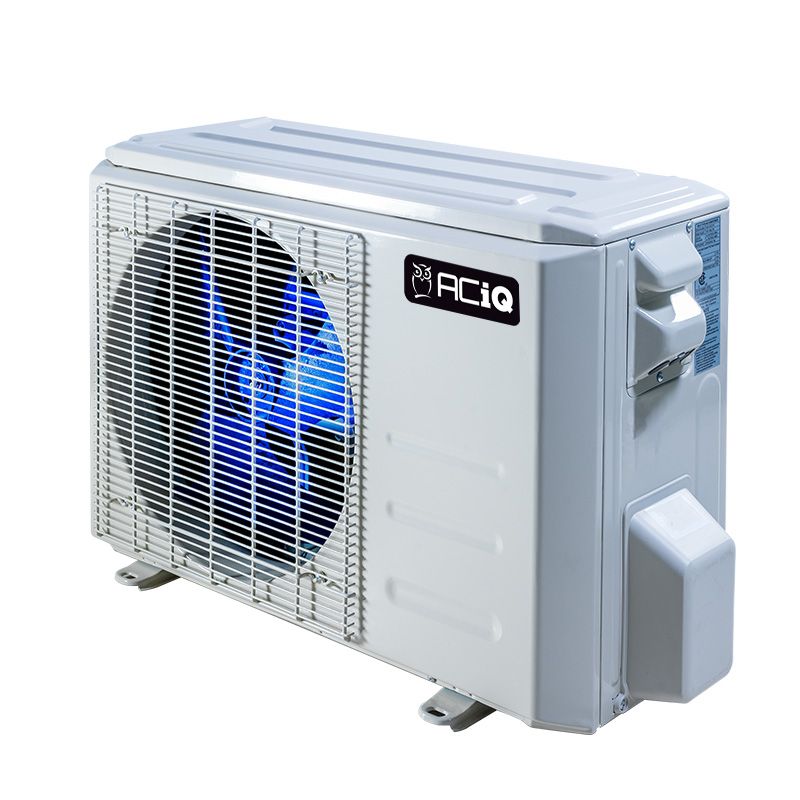

18,000 BTU ACIQ Standard Single Zone Mini Split Heat Pump Condenser - R454B | 230V
OVERVIEW
The ACIQ Single Zone series ACIQ-18ZS-HP230C heat pump condenser features inverter technology allowing for superior, adaptive performance. Whether you are in cooling or heat mode, the ACIQ-18ZS-HP230C uses as little power as possible without sacrificing comfort. That's why we say that ACIQ brings intelligence to your heating and cooling needs. NEW REFRIGERANT: R454B Model.
QUICK FACTS
- Intelligent comfort at an affordable cost
- Ideal for up to an average sized room (depending on climate)
- 18,000 BTU, 24 SEER2 wall mounted mini split
- Efficient cooling from 5 F to 122 F outdoor temperatures
- Efficient heating from 5 F to 86 F outdoor temperatures
- Gold Fin full-protection coating
- Quiet operation at even the highest workloads for a truly Stealth experience
18,000 BTU, 24 SEER2
At a rated capacity of 18,000 BTU, the output of the ACIQ-18ZS-HP230C when paired with a matching air handler can easily cover a smaller room in ideal climates. Thanks to the unit's high-efficiency rotary compressor and an inverter-integrated motor, the ACIQ-18ZS-HP230C has an efficiency of 24 SEER2. With such a high system SEER2 rating, the system can heat and cool almost any space suitable for its output much more efficiently than most standard central split systems.
Please note that this model of equipment does not have quick connect line set connectors and is not a DIY unit. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section on this page. You will need a professional to add more refrigerant and vacuum the lines as needed. The automated cleaning function will clean your system, but it is recommended to periodically clean the unit's filters manually.
Quality Construction
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.
Highest Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
Longer life, longer warranty
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.
Self Cleaning Condenser
ACiQ condensers stay clean and efficient with self-cleaning technology built right in. At the end of each cycle, the fan reverses direction and blows air out the back of the unit — helping remove leaves, dirt, and debris before buildup can begin.

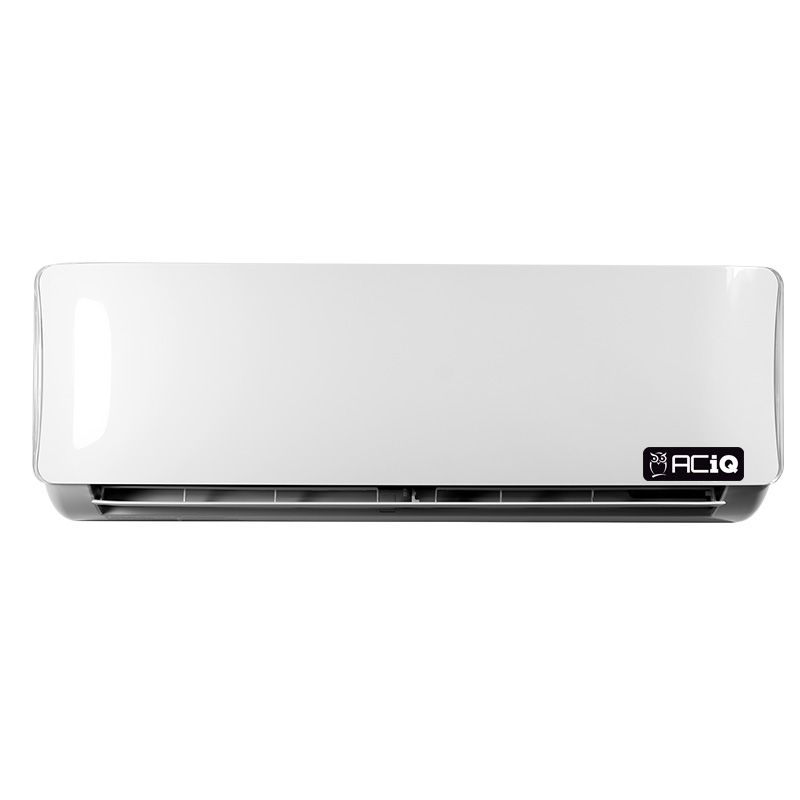

18,000 BTU ACIQ Standard Single Zone Wall Mount Mini Split Air Handler - R454B | 230V
Enhanced Comfort
ACIQ is a brand designed to bring intelligence to purchasing, installing, and maintaining your home's comfort. The ACIQ-18WS-HP230C single zone air handler can handle medium spaces using adaptive technology to constantly monitor and maintain your setpoint temperature as weather conditions change through day and night. NEW REFRIGERANT: R454B Model.
- Able to cover up to an average sized room in ideal conditions
- 18,000 BTU wall-mounted air handler with remote
- Intelligent comfort at an affordable cost
Intelligent Heating and Cooling
The ACIQ-18WS-HP230C air handler is designed with a soft LED display on the front of the unit giving you information at a glance. The display shows room temperature by default but can also show temperature setpoint changes and mode changes. To ensure your unit runs properly throughout its lifetime, this display will also show any error codes from its self-diagnosing control board. The display can be switched off if desired, and the included smart remote has a built-in LCD display to show these notifications as well.
WiFi Options
ACIQ is WiFi ready! The wall mounted air handlers come with everything you need to control your home's heating and cooling via smart device (iOS or Android) from anywhere in the world. ACIQ is also compatible with Amazon Alexa and Google Assistant.
Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle.
Wall Mounted

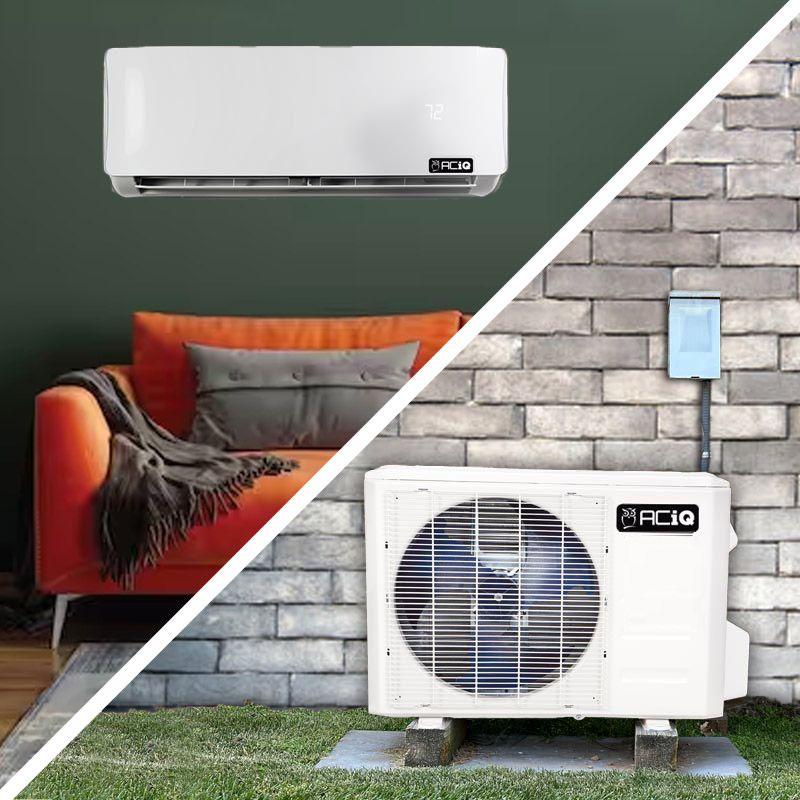

Traditional wall-mounted air handlers are the most popular ductless choice due to low cost and ease of installation. Wall mounted units are located high on an outside wall, with refrigerant lines and condensation drain hose exiting the back through a 3" wall penetration. Return air is brought in through vents in the top of the unit, and cooled or heated air exits the lower front through a sweepable louver. Wall mounted air handlers are WiFi compatible and can be controlled by the free NetHome Plus app or by voice assistants such as Alexa or Google Home.

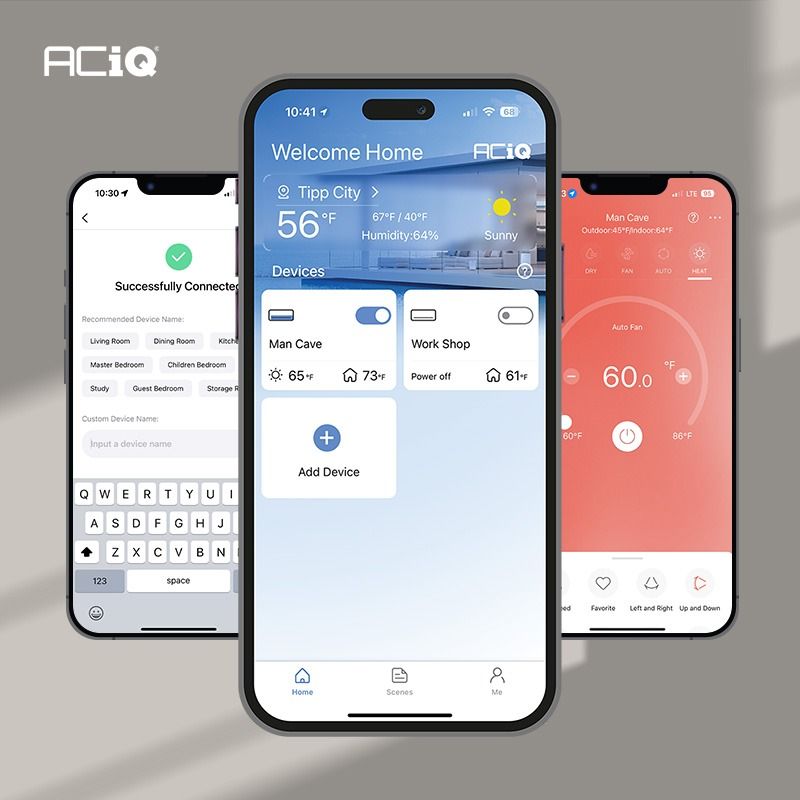

Smartphone App
In addition to the handheld or wired remote that is already included, wall mounted units are WiFi ready, and can be controlled from anywhere with a free app on your tablet or smartphone.
Quiet Comfort
Every ACiQ system is precision engineered to quickly achieve set temperature and hold it there, no matter what the weather is outside. With whisper quiet indoor and outdoor units, ACiQ never intrudes on your peace and quiet.
Technical Specifications — ACIQ-18ZS-HP230C
| sku | ACIQ-18ZS-HP230C |
|---|---|
| refrigerant charge | 47.97 oz. |
| weight | 100.310000 |
| ahri certificate number | 216980869 |
| manufacturer | ACiQ |
| hspf2 | 11.1 |
| cooling btu | 18,000 BTU |
| heating btu | 18,000 BTU |
| decibel level (dba) | 59 |
| electric heat | Heat Pump |
| energy star | Yes |
| refrigerant | R454B |
| seer2 | 24 |
| compressor type | Rotary |
| liquid line | 1/4" |
| suction line | 1/2" |
| electrical | 208/230V, 1 Phase, 60 Hz |
| electric phase filter | Single Phase |
| max breaker size | 20 Amps |
| min. breaker size | 18 Amps |
| tonnage | 1.5 Ton |
| btu/tonnage | 18,000 BTU/1.5 Ton |
| mini split type | Wall Mounted |
| zone compatibility | Single Zone |
| height | 26.5" |
| width | 35.04" |
| depth | 13.46" |
| warranty | 12 year compressor, 7 year parts with online registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications — ACIQ-18WS-HP230C
| sku | ACIQ-18WS-HP230C |
|---|---|
| refrigerant charge | 47.97 oz. |
| weight | 39.680000 |
| ahri certificate number | 216980869 |
| manufacturer | ACiQ |
| hspf2 | 11.1 |
| cooling btu | 18,000 BTU |
| heating btu | 18,000 BTU |
| maximum cfm | 759.3 |
| decibel level (dba) | Up to 54 Decibels |
| electric heat | Heat Pump |
| energy star | Yes |
| refrigerant | R454B |
| seer2 | 24 |
| compressor type | Rotary |
| liquid line | 1/4" |
| suction line | 1/2" |
| electrical | 208/230V, 1 Phase, 60 Hz |
| electric phase filter | Single Phase |
| tonnage | 1.5 Ton |
| btu/tonnage | 18,000 BTU/1.5 Ton |
| mini split type | Wall Mounted |
| zone compatibility | Single Zone |
| height | 13.27" |
| width | 42.60" |
| depth | 9.21" |
| warranty | 12 year compressor, 7 year parts with online registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Warranty
Specs & Documents Product details Open technical specs, manuals, videos, and product documents. +
Product FAQs
Product FAQs
Helpful answers matched to this product, brand, specs, and configuration.What types of products does ACiQ offer?
ACiQ offers a broad range of heating, cooling, ventilation, thermostat, and water-heating products. Its catalog includes mini splits, central air conditioners and heat pumps, furnaces, air handlers, PTAC systems, mobile-home HVAC equipment, commercial systems, thermostats, ventilation products, and hybrid water heaters. Availability and specifications vary by model.
How can I contact ACiQ technical support or customer service?
ACiQ provides support through its official contact form and by phone at 1-877-909-ACiQ. The published support hours are Monday through Friday, 8:00 a.m. to 5:00 p.m. Have the model number, serial number, and a clear description of the question or problem ready.
What information is needed to register an ACiQ product?
ACiQ’s registration form requests the part number, serial number, purchase date, installation date, customer contact and address information, and installer details, including the installer name, license number, and phone number or other identifying information.
How can I request a replacement part for an ACiQ product?
Submit a request through the official ACiQ Parts Quote form or contact ACiQ parts support. Include the SKU or model number and a clear description of the part needed so the parts team can identify the correct component.
Where can I find manuals and technical documents for an ACiQ product?
Use the official ACiQ Tech Center and select the appropriate product category. ACiQ organizes installation manuals, owner manuals, specification sheets, wiring diagrams, troubleshooting guides, warranty documents, and other technical resources by product family and model.
How do I start an ACiQ warranty claim?
Start with ACiQ’s official warranty claim form. Be prepared to provide the owner’s contact information, the equipment model number, a description of the issue, and any supporting files requested. Additional diagnosis and equipment documentation may be required before the claim is approved.
What diagnosis is required for an ACiQ warranty issue?
ACiQ states that a factory-authorized, EPA-certified contractor must diagnose the equipment. The submission should include the diagnostic procedure, the required part number or part description, and the model and serial numbers. ACiQ may also request the original installation invoice.
Does an ACiQ warranty claim cover labor and shipping costs?
ACiQ’s published warranty-resolution process states that round-trip shipping and labor associated with diagnosis and part replacement are not reimbursed. Coverage can vary by product and jurisdiction, so review the exact warranty certificate for the equipment before proceeding.
How do I register an ACiQ product for warranty coverage?
Register the equipment through ACiQ’s official online warranty registration form. Add each unit being registered and submit the requested equipment, customer, purchase, installation, and installer information. Keep a copy of the completed registration and related purchase and installation records.
How can I check an ACiQ warranty registration or coverage status?
Use ACiQ’s Warranty Finder to look up a registration, check its status, or provide missing information. Have the equipment and owner details available so the record can be matched accurately.
Does every ACiQ product have the same warranty coverage?
No. ACiQ warranty periods and conditions vary by product type and model. Review the warranty certificate listed for the exact equipment and use ACiQ’s warranty resources to confirm the applicable parts, compressor, replacement, registration, and eligibility terms.
