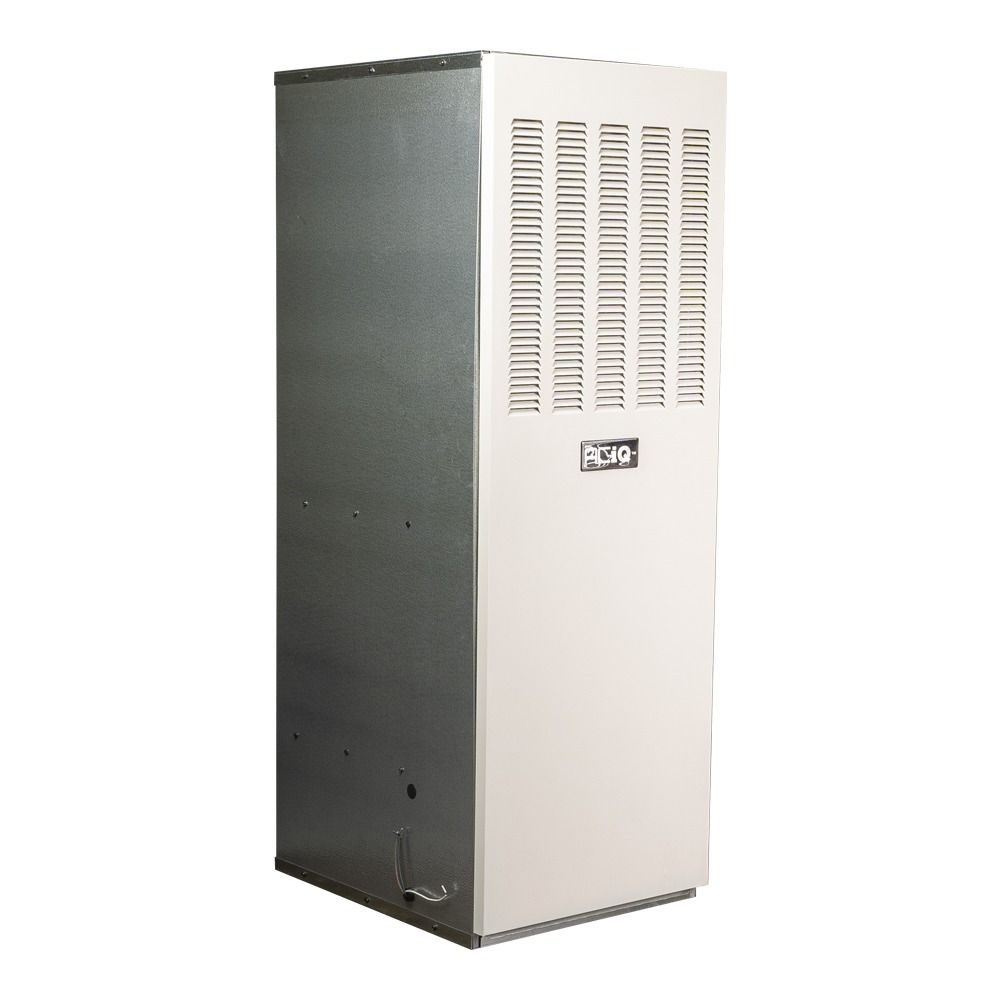

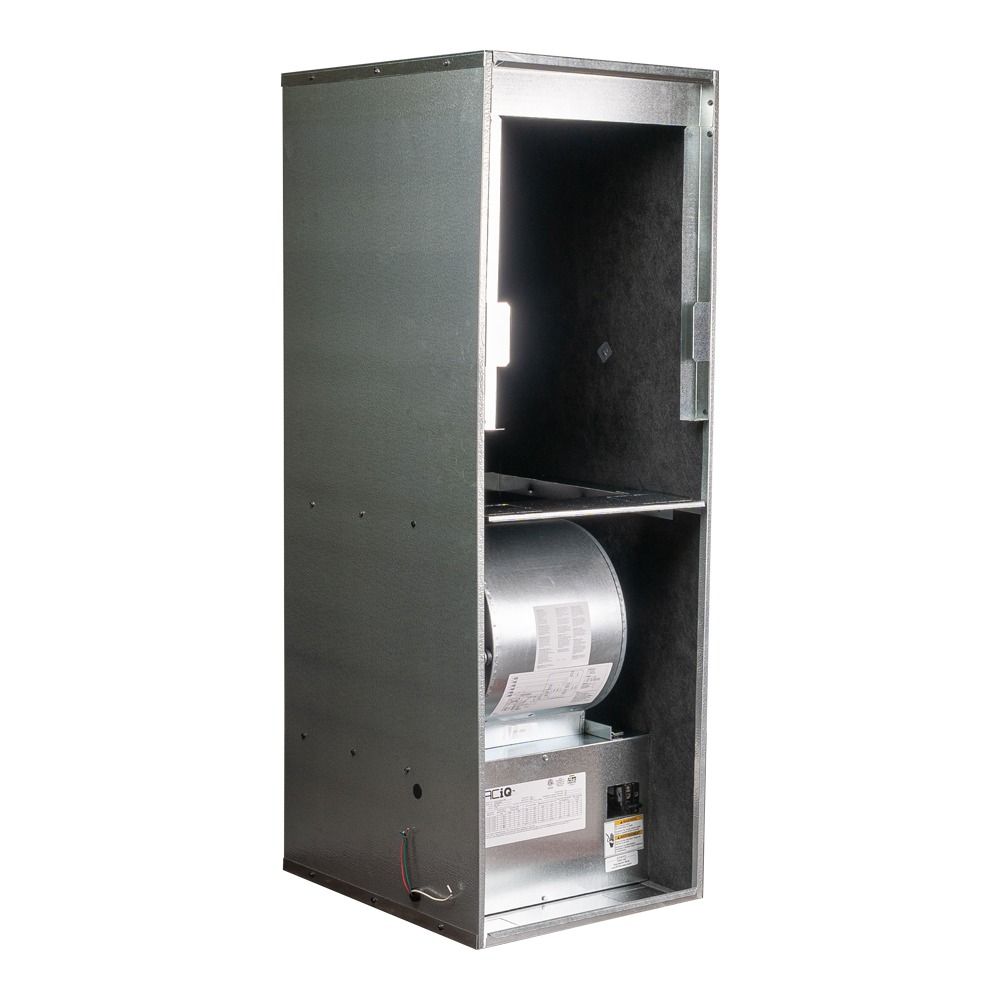

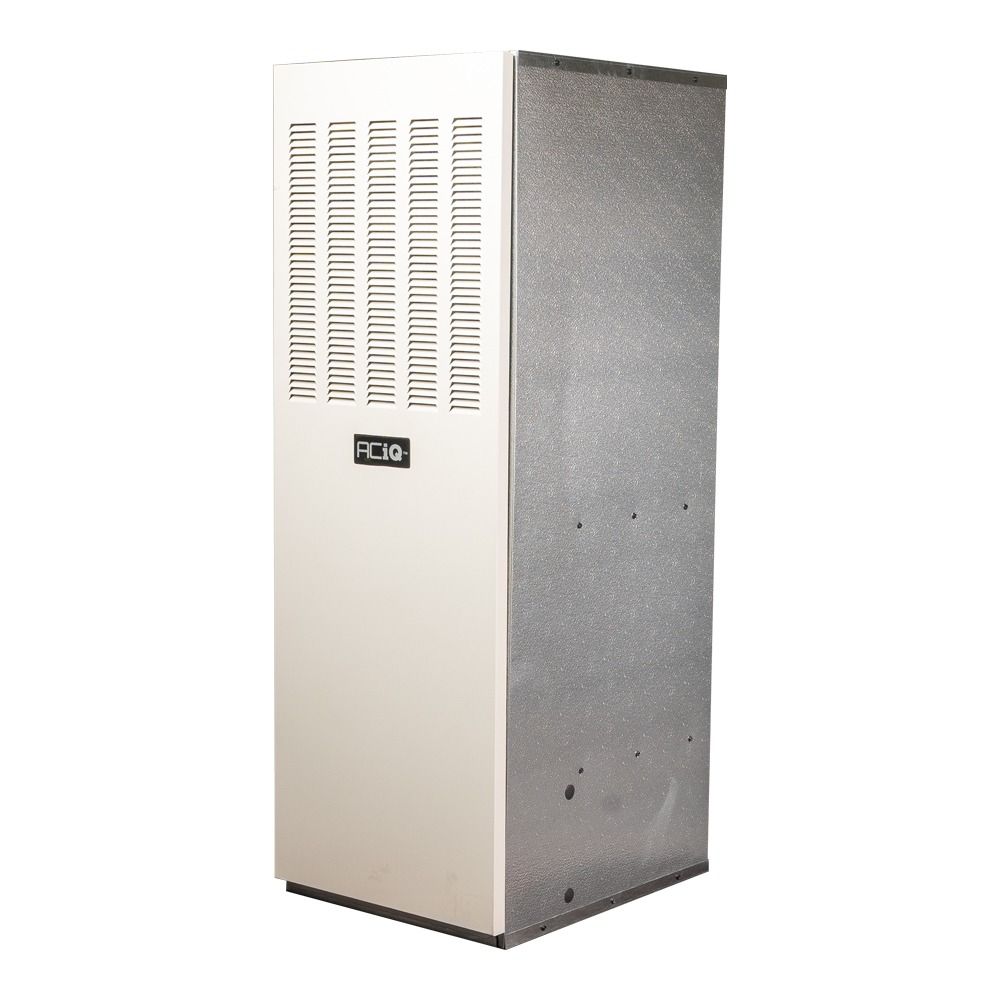

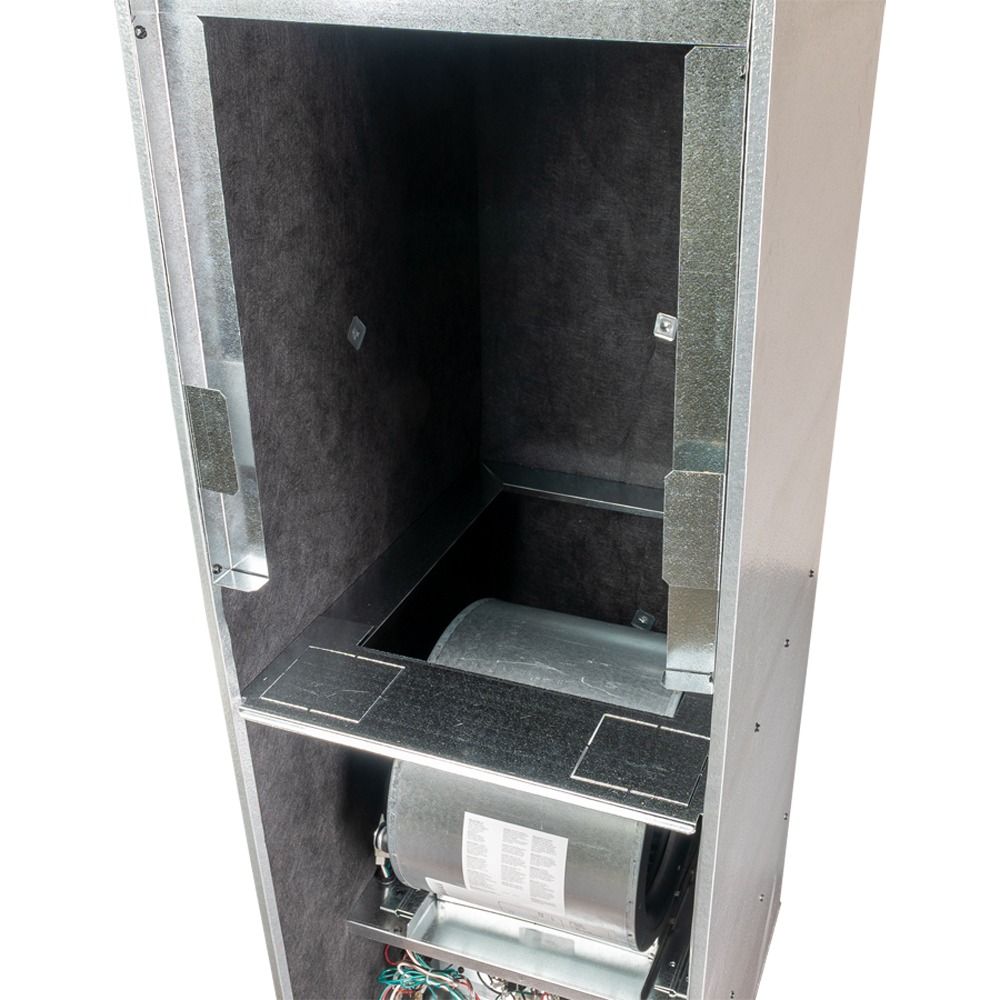

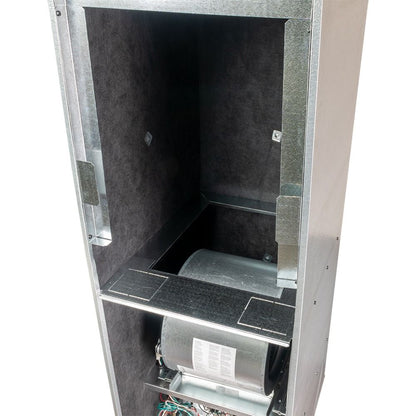

ACiQ 10kw Mobile Home Electric Downflow Furnace - R454B/R32 Compatible

SKU ACiQ-EFS1020FD-MH Mobile Home Furnaces240V
$1,299.00
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.

A smart, reliable choice for year-round comfort.

Best for:
  • Bedrooms
  • Home Offices
  • Additions
  • Garages
See specs
Cooling
See specs
Heating
See specs
Quiet Inside
See specs
High Efficiency

Brand Information

ACIQ
Support Number
1-877-909-ACiQ
Official Site
ACIQ Official Site
Product Overview Full product description Read the longer product copy, features, and application notes.
ACiQ
ACiQ 10kw Mobile Home Electric Downflow Furnace - R454B/R32 Compatible

Product Overview

OVERVIEW

The ACiQ-EFS1020FD-MH electric furnace is a reliable heat source for almost any mobile home application. With its easy installation and maintenance, this unit will provide comfort to your home in all-electric system setups.

QUICK FACTS

  • 10 kW electric furnace
  • R454B and R32 refrigerant compatible
  • Can generally heat a small mobile home in ideal applications
  • Low maintenance requirements

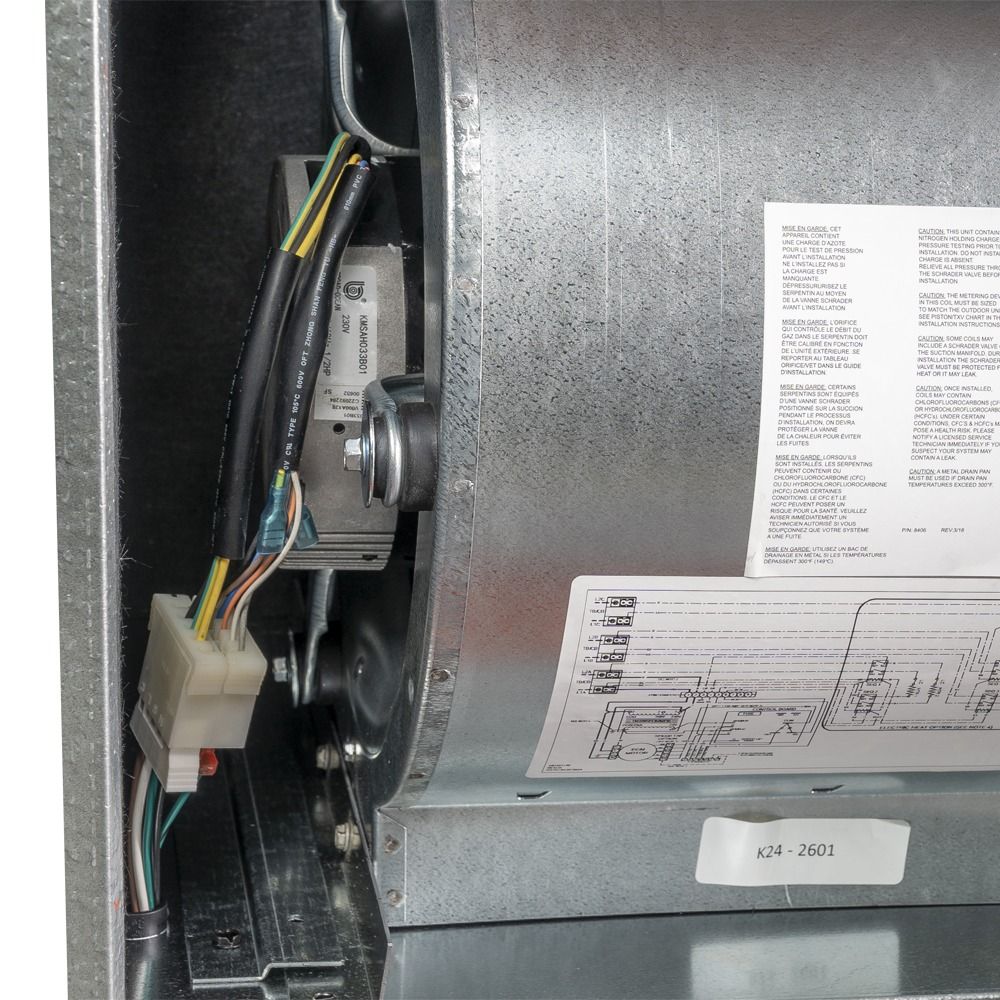

  • Efficient multi-speed ECM blower motor

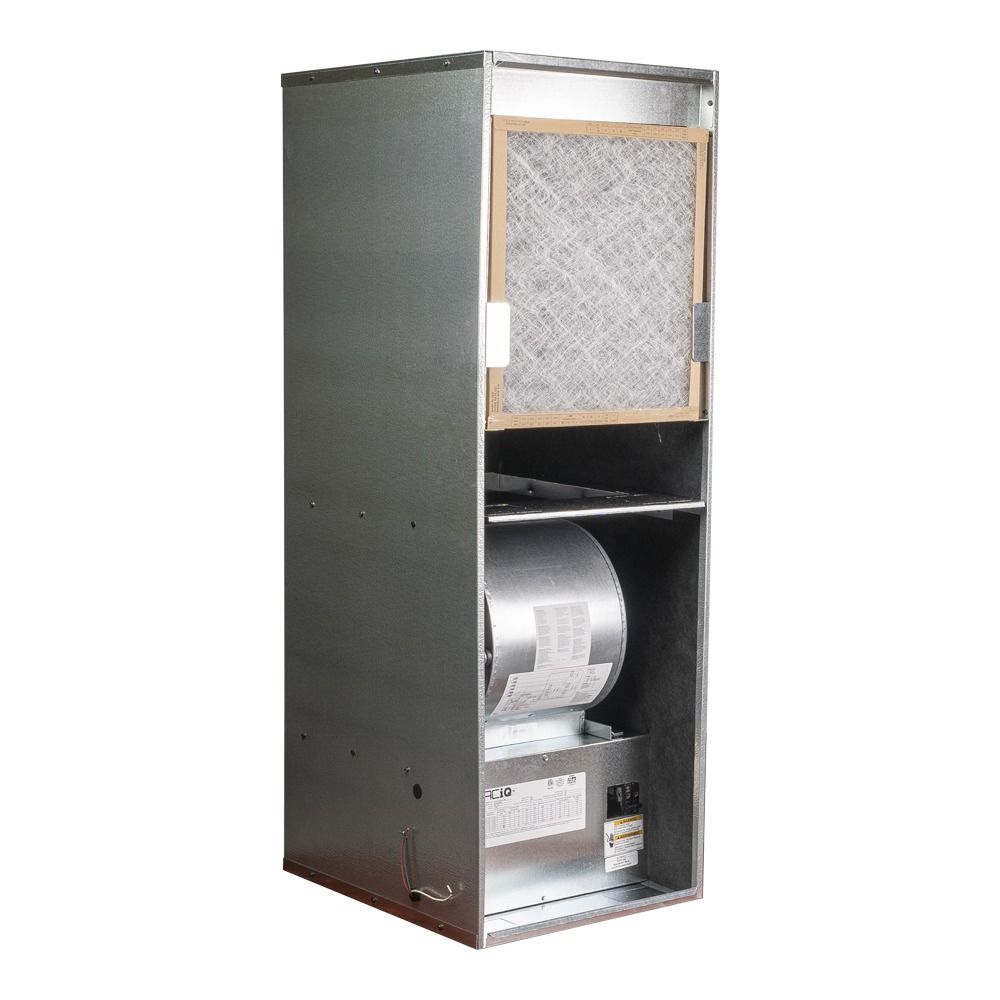

  • Effective air filter to improve air quality

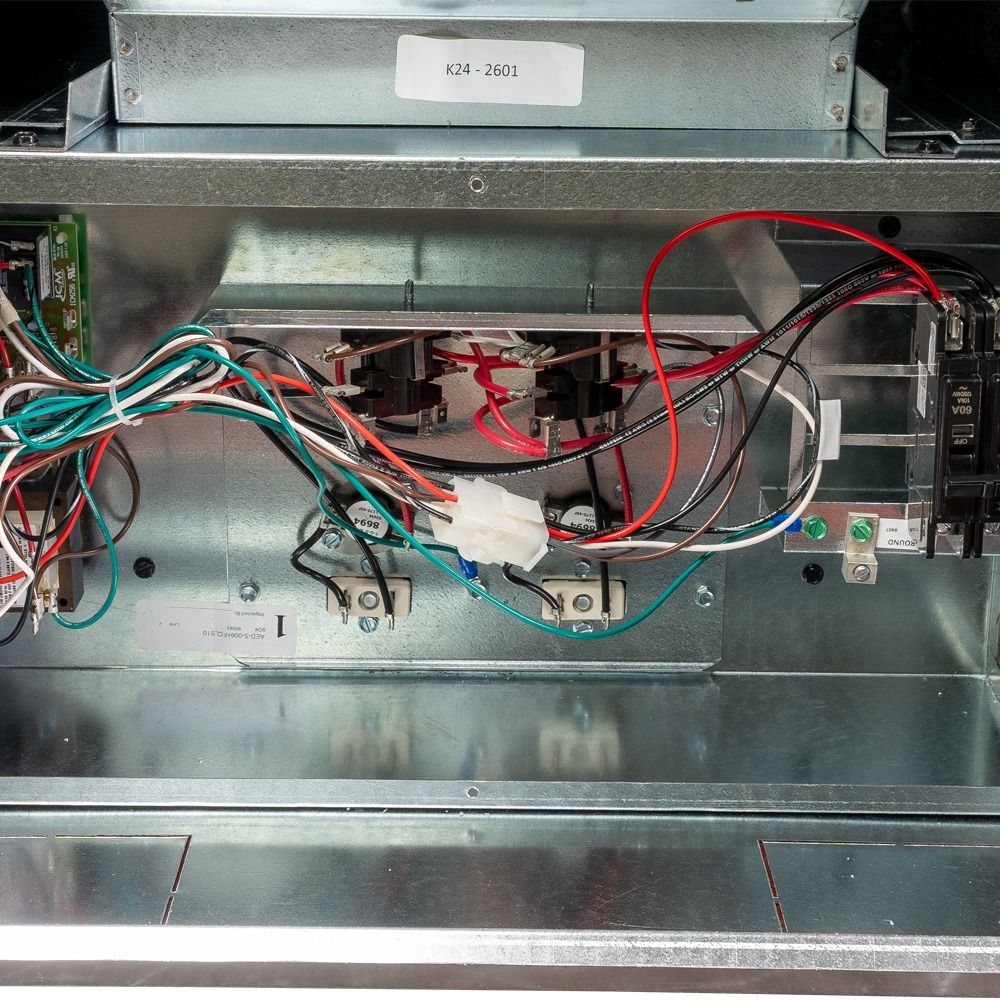

  • Built-in circuit breakers for safety and dependability
  • Sturdy, galvanized steel cabinet
  • AC coil cabinet included with purchase (condenser and coil sold separately)

Modular Electric Heat Kit

The ACiQ-EFS1020FD-MH is generally able to heat up to a small mobile home in average installations. Models with electric heat include sequencers and temperature limit switches for safe, efficient operation. Modules are easily installed in the field using molex plugs or can be ordered factory-installed. Controls are accessible from the front for easy service. Disconnect does not protrude through the wall panel.

Warranty

Hassle-free five-year limited parts warranty.

Installation and Maintenance

The ACiQ-EFS1020FD-MH electric furnace is designed to be easily installed for a faster process, lowering labor costs. The filter is also easy to wash or replace, lowering maintenance costs.

Mobile Home Buying & Sizing Guide

  • Mobile home approved product types
  • Product differences
  • Figuring out the right size unit for your needs
  • Determining factors
  • Repair vs. replace

Technical Specifications — ACiQ-EFS1020FD-MH

sku ACiQ-EFS1020FD-MH
weight (in lbs) 115.000000
brand/manufacturer ACiQ
product features New Refrigerant Compliant
heating btu 32,800 BTU
blower motor ECM Multi Speed
drive type Direct
maximum cfm 1760
horsepower 3/4 HP
electric heat 10 Kilowatts
configuration Downflow
electrical 240v 1 Phase
phase Single Phase
max breaker size 60 Amp
fuel type Electric
height 57"
width 19 3/4"
depth 24 1/2"
warranty 5 Year Limited Parts Warranty
safety information PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here.
Specs & Documents Product details Open technical specs, manuals, videos, and product documents.

Technical Data

Specs, manuals, videos, and product documents

Loading technical data…

Product FAQs

Product FAQs

Helpful answers matched to this product, brand, specs, and configuration.
What types of products does ACiQ offer?

ACiQ offers a broad range of heating, cooling, ventilation, thermostat, and water-heating products. Its catalog includes mini splits, central air conditioners and heat pumps, furnaces, air handlers, PTAC systems, mobile-home HVAC equipment, commercial systems, thermostats, ventilation products, and hybrid water heaters. Availability and specifications vary by model.

How can I contact ACiQ technical support or customer service?

ACiQ provides support through its official contact form and by phone at 1-877-909-ACiQ. The published support hours are Monday through Friday, 8:00 a.m. to 5:00 p.m. Have the model number, serial number, and a clear description of the question or problem ready.

What information is needed to register an ACiQ product?

ACiQ’s registration form requests the part number, serial number, purchase date, installation date, customer contact and address information, and installer details, including the installer name, license number, and phone number or other identifying information.

How can I request a replacement part for an ACiQ product?

Submit a request through the official ACiQ Parts Quote form or contact ACiQ parts support. Include the SKU or model number and a clear description of the part needed so the parts team can identify the correct component.

Where can I find manuals and technical documents for an ACiQ product?

Use the official ACiQ Tech Center and select the appropriate product category. ACiQ organizes installation manuals, owner manuals, specification sheets, wiring diagrams, troubleshooting guides, warranty documents, and other technical resources by product family and model.

How do I start an ACiQ warranty claim?

Start with ACiQ’s official warranty claim form. Be prepared to provide the owner’s contact information, the equipment model number, a description of the issue, and any supporting files requested. Additional diagnosis and equipment documentation may be required before the claim is approved.

What diagnosis is required for an ACiQ warranty issue?

ACiQ states that a factory-authorized, EPA-certified contractor must diagnose the equipment. The submission should include the diagnostic procedure, the required part number or part description, and the model and serial numbers. ACiQ may also request the original installation invoice.

Does an ACiQ warranty claim cover labor and shipping costs?

ACiQ’s published warranty-resolution process states that round-trip shipping and labor associated with diagnosis and part replacement are not reimbursed. Coverage can vary by product and jurisdiction, so review the exact warranty certificate for the equipment before proceeding.

How do I register an ACiQ product for warranty coverage?

Register the equipment through ACiQ’s official online warranty registration form. Add each unit being registered and submit the requested equipment, customer, purchase, installation, and installer information. Keep a copy of the completed registration and related purchase and installation records.

How can I check an ACiQ warranty registration or coverage status?

Use ACiQ’s Warranty Finder to look up a registration, check its status, or provide missing information. Have the equipment and owner details available so the record can be matched accurately.

Does every ACiQ product have the same warranty coverage?

No. ACiQ warranty periods and conditions vary by product type and model. Review the warranty certificate listed for the exact equipment and use ACiQ’s warranty resources to confirm the applicable parts, compressor, replacement, registration, and eligibility terms.
