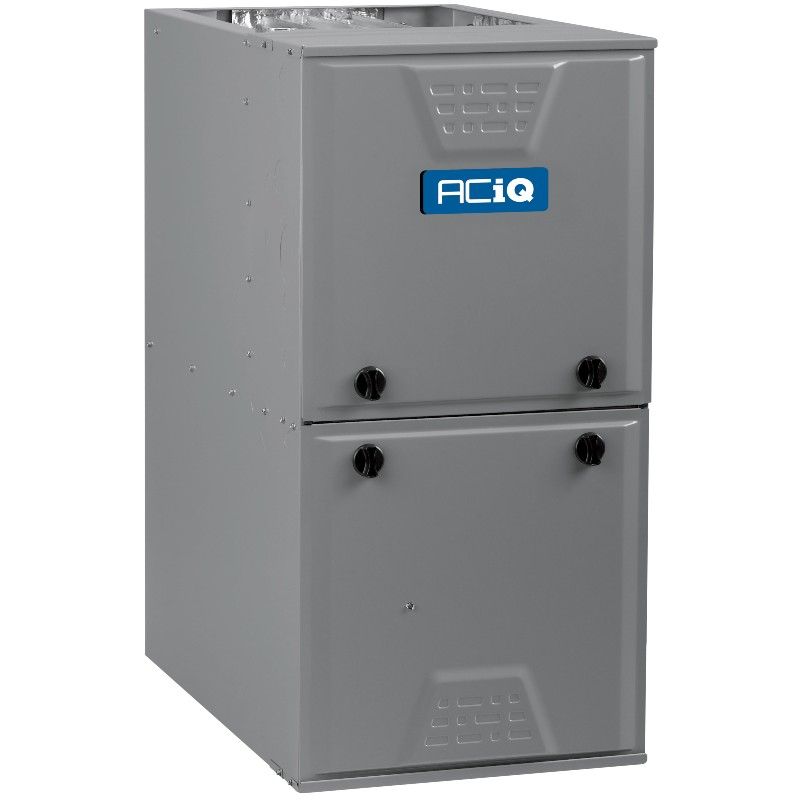

ACiQ 100,000 BTU 97% AFUE Variable Speed Communicating Modulating Multi-Positional ACiQ Gas Furnace
$3,108.00
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.
A smart, reliable choice for year-round comfort.
Best for:
- Bedrooms
- Home Offices
- Additions
- Garages
- See specs
- Cooling
- See specs
- Heating
- See specs
- Quiet Inside
- High
- High Efficiency
Recommended Add-Ons
Compatible accessories for this system
Must haves for best Installation
Loading recommended accessories…
Brand Information
ACIQ
- Support Number
- 1-877-909-ACiQ
- Official Site
- ACIQ Official Site
Product Overview Full product description Read the longer product copy, features, and application notes. +
ACiQ
ACiQ 100,000 BTU 97% AFUE Variable Speed Communicating Modulating Multi-Positional ACiQ Gas Furnace
Product Overview
OVERVIEW
With its variable speed blower motor and modulating gas valve, the ACiQ G97CMN1002122A can provide a consistently superior comfort to almost any application. Considered one of the best furnaces offered by ACiQ, the G97CMN1002122A is a great choice to keep you comfortable while saving you money in energy bills year-round.
QUICK FACTS
- 100,000 BTU, 98% AFUE natural gas furnace
- Generally suitable for up to a medium to large house in ideal applications
- Variable speed blower with a modulating gas valve
- Multi-positional design-can be installed in the upflow, downflow, or horizontal orientations
- Field-convertible to propane with an optional LP kit
- On board self-diagnostics
100,000 BTU, 98% AFUE
The ACiQ G97CMN1002122A has an input of 100,000 BTU. With an efficiency of 98%, this means that the furnace has an output of 98,000 BTU, meaning that it is generally suitable for medium to large house in ideal climates. The 98% AFUE also means that for the gas going into the furnace, 98% of it is used to heat your home while the remaining 2% is lost out the flue piping and lost to normal furnace operations. All 90% and above furnaces require plastic/PVC flue venting, and if you need it to be metal flue venting to match your current setup, you would need to get an 80% efficient furnace. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost.
Warranty
ACiQ offers standard 10 year parts warranty and lifetime (20 year) heat exchanger limited warranty. Please note that in order for these warranties to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.
With its ability to be installed in any configuration-upflow, downflow, or horizontal-the ACiQ G97CMN1002122A is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round. Please note that this furnace is not designed to be suitable for a mobile home on its own.
All ACiQ-brand equipment is manufactured, one of the leaders of superior comfort in the industry. The ACiQ G97CMN1002122A lives up to the name thanks in part to its variable speed blower motor and its modulating gas valve. Moreover, the furnace is communicating, meaning that with the proper equipment, the furnace will constantly adjust to the needs of your home so that you never go uncomfortable in your home, regardless if it is in Autumn or in the worst part of winter. Considered one of ACiQ's best furnaces, both prominent features provide the most precise temperature and airflow output possible, making you as comfortable as possible in your home year-round.
Quiet Comfort
Every ACiQ furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and
more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.
High Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.
Longer life, longer warranty
Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. Every furnace is backed by ACiQ’s 10 year, 20 year or lifetime (depending on model) heat exchanger extended warranty with online registration.
Technical Specifications — G97CMN1002122
| sku | G97CMN1002122 |
|---|---|
| weight | 179.000000 |
| ahri certificate number | 213148471 |
| exhaust flue requirement | Plastic / PVC |
| manufacturer | ACiQ |
| product features | New Refrigerant Compliant |
| furnace efficiency / afue | 97% |
| heating btu | 100,000 |
| blower motor | Variable Speed-ECM |
| maximum cfm | 2160 |
| configuration | Upflow/Downflow/Horizontal |
| energy star | Yes |
| electrical | 120 V. 1 Phase 60 Hz |
| burner stages | Modulating |
| fuel type | Propane, Natural Gas |
| height | "35\"" |
| width | "21\"" |
| depth | "29-1/2\"" |
| warranty | 10 Year No Hassle / 20 Year Heat Exchanger / 10 Year Parts with Online Registration |
| safety information | PROPOSITION 65 WARNING |
