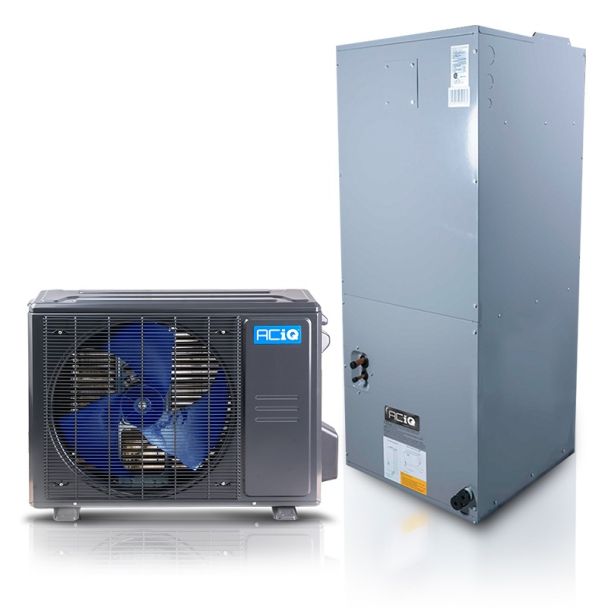

ACiQ 1 Ton 18.7 SEER2 High Efficiency Central Heat Pump | Inverter - R454B & ACiQ 1 Ton Central Ducted Air Handler -Â
Overview
ACiQ's High-Efficiency 1 Ton Heat Pump System, featuring the ACIQ-12-EHPD inverter condenser and ACIQ-12-AHD air handler, offers the perfect balance of smart inverter technology and seamless integration with your existing ductwork.
How is it different from a traditional heat pump?
- Variable BTU Inverter: Automatically adjusts output to match demand.
- Smart system with soft startups: Maximizes efficiency and reduces energy waste.
- Sized for heating: Allows you to size for heat without worrying about short cycling in cooling mode.
- Rated for efficient heating: Operates down to 5°F outdoor temperatures.
Quick Facts
- Variable output based on demand: Up to 12,000 BTU for heating and cooling
- Refrigerant: R454B
- Inverter heat pump system for ducted applications
- Efficient cooling from -13°F to 122°F outdoor temperatures
- Reliable heating from -13°F to 75°F outdoor temperatures
- Durable gold fin condenser coil coating for longevity
- Quiet operation, even under high workloads
- 1 Ton, 18.7 SEER2
Included in Your Order:
ACiQ 1 Ton Inverter Condenser – Model: ACIQ-12-EHPD
ACiQ 1 Ton Central Ducted Air Handler – Model: ACIQ-12-AHD
Installation Kit (sold separately; includes refrigerant lineset, communication cable, mounting hardware)
Compatible with any 24 V thermostat
Installation Manual
Service Manual
Owner's Manual
Key Features:
- Inverter Technology for Variable Speed Operation
- Learning Condenser with Advanced Sensors
- Adaptive Sizing for Optimal Cooling & Heating
- Variable Speed DC Blower in Air Handler
- Multi-Positional Air Handler (Upflow/Downflow/Horizontal)
- Compatible with Any 24 V Thermostat
- Durable Gold Fin Coil Coating
- Quiet Operation (34 dBA condenser, up to 44 dBA air handler)
- Soft Start Technology
- Self-Diagnostic Control Board with Fault Code Display
- Optional Supplemental Electric Heat Kit Available
Technical Specifications
ACIQ-12-EHPD (Condenser)
| Specification | Details |
|---|---|
| Model Number | ACIQ-12-EHPD |
| Cooling BTU | 12,000 BTU |
| Heating BTU | 13,000 BTU |
| SEER2 | 18.7 |
| HSPF2 | 9.1 |
| Refrigerant | R454B |
| Compressor Type | Variable Inverter Twin Rotary |
| Electrical | 208/230 V, 1-Phase, 60 Hz |
| Max Breaker Size | 20 Amps |
| Min Breaker Size | 16 Amps |
| Operating Temp (Cooling) | -13°F to 122°F |
| Operating Temp (Heating) | -13°F to 75°F |
| Liquid Valve Size | 3/8″ |
| Suction Valve Size | 3/4″ |
| Refrigerant Charge | 25′ |
| Weight | 83.77 lbs |
ACIQ-12-AHD (Air Handler)
| Specification | Details |
|---|---|
| Model Number | ACIQ-12-AHD |
| Airflow | Up to 618 CFM |
| Decibel Level | Up to 44 dBA |
| Refrigerant | R454B |
| Configuration | Multi-Positional (Upflow/Downflow/Horizontal) |
| Electrical | 208/230 V, 1-Phase, 60 Hz |
| Max Breaker Size | 15 Amps |
| Min Breaker Size | 4 – 5.5 Amps |
| Dimensions (HxWxD) | 45″ x 17.5″ x 21″ |
| Weight | 126.76 lbs |
Warranty Information
- 12 Years Compressor Limited Warranty (with online registration)
- 7 Years Parts Limited Warranty (with online registration)
Manuals & Downloads
- EHPD Installation Manual
- EHPD Service Manual
- EHPD Heating/Cooling Performance
- AHD Installation Manual
- AHD Owner's Manual
- 1 Ton EHPD / AHD Submittal
Please note: The air handler must be installed with a compatible condenser and installation equipment. Optional electric heat kit available separately.
