Home 18,000 BTU Olivia Series
Olivia Series

55,000 BTU 5 Zone 9k+9k+9k+9k+18k Ductless Mini Split with Installation Kits, Olivia Series, R410A, 21.3 SEER 4 1/2 Ton Penta Zone Five Zone Air Conditioner System

SKU CH-55MES-230VO + 4X CH-09MOLVWM-230VI + CH-18MOLVWM-230VI Wall Mount208-230V
$3,599.31 $5,554.00 Save $1,954.69 (35%)
Currently unavailableContact us for lead time

Brand Information

Cooper&Hunter
Support Number
1 888-293-9252
Product Overview Full product description Read the longer product copy, features, and application notes.

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

Cooper & Hunter Olivia Series 55,000 BTU 5-Zone Mini Split System (4x9k + 1x18k BTU), R410A, 21.3 SEER Inverter Heat Pump, Includes Wi-Fi Adapter


Summary

The Cooper & Hunter Olivia Series system features a 55,000 BTU outdoor unit paired with four 9,000 BTU and one 18,000 BTU wall-mounted indoor units. This high-efficiency model with auto swing louvers will both heat and cool your space effectively down to -13°F. The DC inverter heat pump provides energy-efficient operation while allowing independent temperature control in 5 zones.

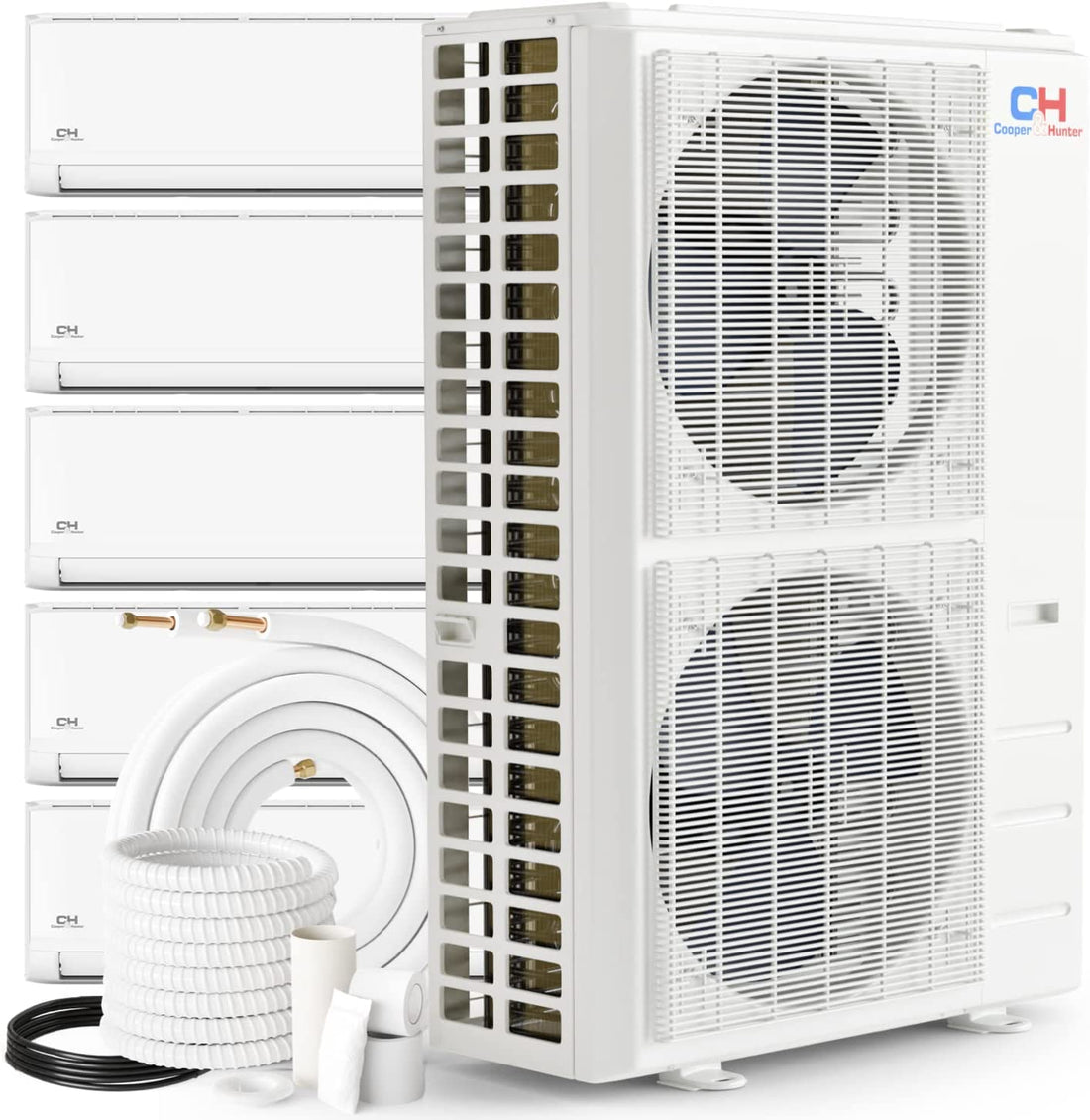

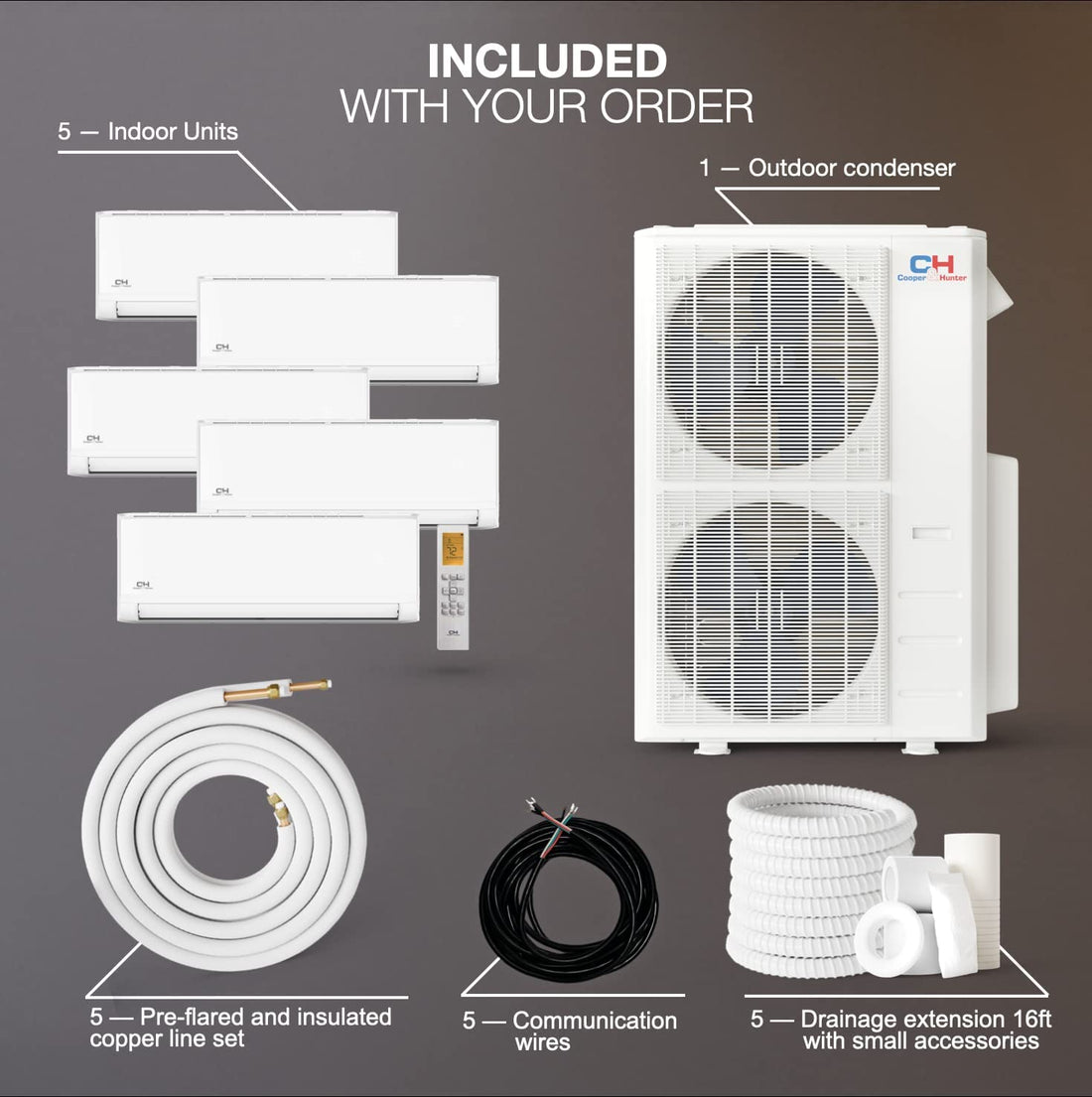

Included in Your Order:

Cooper & Hunter Olivia Series Ductless Mini Split System (55,000 BTU Inverter with Heat Pump)

Outdoor Unit: 55,000 BTU (1pc) – Model: CH-55MES-230VO

Indoor Units:

- 9,000 BTU (4pcs with remotes) – Model: CH-09MOLVWM-230VI

- 18,000 BTU (1pc with remote) – Model: CH-18M0LVWM-230VI



Installation Kits (25ft for each zone - 5 kits included)

Wireless Remote Controls (5 remotes)

Wi-Fi Adapter

Installation Manual

User's Manual

Manufacturer Warranty


Key Features:

  • 5-zone independent temperature control
  • High efficiency operation (21.3 SEER2)
  • Heats down to -13°F ambient temperature
  • Auto-Swing horizontal/vertical louvers
  • Turbo Mode for rapid cooling/heating
  • Self-Clean Function
  • Wi-Fi ready (adapter included)
  • Quiet operation (as low as 23.5 dB)
  • Energy saving modes
  • 2022 model with latest technology

Important Notes

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kits are necessary for the system to function - included are five 25ft kits (one per zone).


Complete Technical Specifications

Indoor Unit: CH-09MOLVWM-230VI (9,000 BTU)

Specification Details
System Type Wall-mounted unit
BTU Rated 9,000
Power Supply 208/230V, 1Ph, 60Hz
Voltage Range 187-253V
Rated Capacity 9,000 Btu/h
Minimum Circuit Ampacity (MCA) 3A
Max Fuse 15A
Air Flow (Turbo/Hi/Mi/Lo) 341/291/194/152 CFM
Noise Level (Hi/Mi/Lo) 40/35/23.5 dB(A)
Dimensions (WxDxH) 31.57x7.87x11.61 inches
Packing Dimensions 34.45x11.22x14.96 inches
Net/Gross Weight 18.96/24.25 lbs
Room Temperature (Cooling) 60-90°F
Room Temperature (Heating) 32-86°F
Refrigerant Piping 1/4" (liquid) / 3/8" (gas)

Indoor Unit: CH-18M0LVWM-230VI (18,000 BTU)

Specification Details
System Type Wall-mounted unit
BTU Rated 18,000
Power Supply 208/230V, 1Ph, 60Hz
Voltage Range 187-253V
Rated Capacity 18,000 Btu/h
Minimum Circuit Ampacity (MCA) 3A
Max Fuse 15A
Air Flow (Turbo/Hi/Mi/Lo) 760/530/458/382 CFM
Noise Level (Hi/Mi/Lo) 46/40/25 dB(A)
Dimensions (WxDxH) 42.64x9.61x13.23 inches
Packing Dimensions 45.47x16.34x12.40 inches
Net/Gross Weight 29.54/37.48 lbs
Room Temperature (Cooling) 60-90°F
Room Temperature (Heating) 32-86°F
Refrigerant Piping 1/4" (liquid) / 1/2" (gas)

Outdoor Unit: CH-55MES-230VO (55,000 BTU)

Specification Details
Model Number CH-55MES-230VO
Series ES Series (Regular)
Cooling Capacity 55,000 BTU/h (19,000-57,300 range)
Heating Capacity 55,000 BTU/h (12,500-60,000 range)
Power Supply 208-230V, 1Ph, 60Hz
Voltage Range 187-253V
Cooling Current 40A
Heating Current 40A
EER2 10.5
SEER2 21.3
COP 3.2
HSPF2-4 9.1
HSPF2-5 6.8
Minimum Circuit Ampacity 40A
Max Fuse 60A
Refrigerant R410A (Up to 125 oz)
Additional Charge 0.32 oz/ft (3/8"), 0.16 oz/ft (1/4")
Max Pipe Length 262 ft
Max Height Difference 49.21 ft
Air Flow (Max) 4,500 CFM
Noise Level 62 dB(A)
Dimensions (WxDxH) 37.48×16.34×52.48 inches
Packing Dimensions 43.11x19.49x58.27 inches
Weight (Net/Gross) 224.21/257.28 lbs
Refrigerant Lines 5x1/4" (liquid) / 3x3/8"+2x1/2" (gas)
Operating Temp (Cooling) 5-122°F
Operating Temp (Heating) -13-75°F

Warranty Information

  • 7-Year Compressor Warranty - Covers defects in materials/workmanship
  • 5-Year Parts Warranty - Covers all other components
  • 1-Year Remote Control Warranty

Note: Warranty valid only when installed by licensed HVAC technician and registered within 60 days of installation.


Manuals & Downloads

Specs & Documents Product details Open technical specs, manuals, videos, and product documents.

Technical Data

Specs, manuals, videos, and product documents

Loading technical data…

Product FAQs

Product FAQs

Helpful answers matched to this product, brand, specs, and configuration.
What can the Cooper & Hunter Remote app control?

On compatible systems, the app can provide remote on and off control, temperature adjustment, operating-mode selection, fan-speed control, daily or weekly scheduling, customized sleep settings, and an error-code check function. Available features can vary by model and app version.

Can multiple people control compatible Cooper & Hunter systems through the app?

Yes. Cooper & Hunter states that multiple users can connect and share control of compatible zones or units through the Cooper & Hunter Remote app, which can be useful for households, offices, and multi-zone installations.

How do I find the correct Cooper & Hunter manual or submittal for my unit?

Use the exact model number from the equipment label to search Cooper & Hunter’s website or support center. Confirm that the indoor unit, outdoor unit, voltage, capacity, and series shown in the result match the equipment before relying on the manual, submittal, leaflet, or troubleshooting material.

Does Cooper & Hunter provide dedicated troubleshooting resources for installers?

Yes. Cooper & Hunter’s support center allows installers to sign in or register for a personal account to access troubleshooting resources. Warranty diagnosis may still require direct troubleshooting with a Cooper & Hunter Technical Support agent while the technician is on site.

Does Cooper & Hunter require licensed HVAC installation for warranty coverage?

Yes. Cooper & Hunter’s Limited Warranty states that qualifying equipment must be properly installed by a state-certified or licensed HVAC contractor in accordance with applicable codes, permits, manufacturer instructions, and accepted trade practices.

What Cooper & Hunter support resources are available online?

Cooper & Hunter provides product manuals, troubleshooting guides, warranty information, product-specific documents, and selected troubleshooting videos through its official support center. Search using the exact model number to avoid using instructions for a different system.

Does Cooper & Hunter provide a product-selection or dealer-locator tool?

Yes. Cooper & Hunter’s official website includes a Find Solution tool for selecting a system by application and climate zone, along with a dealer locator. Final equipment selection should still be confirmed against the project load, electrical requirements, installation conditions, and the exact product documentation.

How can I check whether a Cooper & Hunter system qualifies for rebates or incentives?

Use Cooper & Hunter’s official Rebates & Incentives portal and enter the requested location and equipment information. Eligibility depends on the exact model, efficiency requirements, installation details, utility program, tax rules, and customer location.

Is a rebate guaranteed when purchasing a Cooper & Hunter system?

No. Cooper & Hunter states that its systems meet guidelines in many regions and may qualify for rebates or other incentives, but availability and approval depend on the local program and the exact equipment. Verify eligibility before treating an incentive as part of the final project cost.

Which mobile app is used with compatible Cooper & Hunter systems?

Compatible systems use the Cooper & Hunter Remote app, available through the Apple App Store and Google Play. The exact system must support Wi-Fi control and may require the manufacturer’s compatible wireless module or smart kit.

Can any wireless adapter be used with a Cooper & Hunter system?

No. Cooper & Hunter’s Smart Kit instructions state that the reserved interface is intended for the manufacturer-provided compatible wireless module. Power should be disconnected before installation, and access, replacement, and maintenance of the wireless module should be handled by qualified personnel.

What standard warranty periods does Cooper & Hunter publish?

For the eligible product categories listed on its warranty page, Cooper & Hunter publishes one year of coverage for the original remote control, five years on parts, and seven years on the compressor for the original registered end user. Exact coverage can vary by product, purchase channel, registration status, and program eligibility, so confirm the warranty for the exact model.

How is a Cooper & Hunter warranty claim started?

The product owner or servicing technician should contact Cooper & Hunter Technical Support. For warranty troubleshooting, Cooper & Hunter instructs that the technician should be on site so the support agent can review error codes, symptoms, electrical readings, mechanical measurements, and other diagnostic information.

What information should be ready when contacting Cooper & Hunter Technical Support?

Have the unit model and serial number, installation date, installer’s EPA or HVAC license information, and the place of purchase available. Cooper & Hunter may also request photographs, error codes, measurements, or other diagnostic details before processing warranty support.

Does Cooper & Hunter offer technical support in multiple languages?

Yes. Cooper & Hunter’s support center states that one-on-one technical and warranty assistance is available in English, Spanish, Mandarin, Russian, and Ukrainian.

How can I contact Cooper & Hunter Technical Support?

Cooper & Hunter lists Technical Support at (888) 293-9252 and an additional number at (786) 953-6706. Its support center currently lists availability Monday through Friday from 9:00 AM to 8:00 PM Eastern Time. Check the official support page for current hours before calling.

Does Cooper & Hunter’s warranty cover labor or refrigerant costs?

Cooper & Hunter’s published policy excludes labor and related field costs. It also states that refrigerant, charging, recharging, adjustment, and removal costs are not covered. The owner is generally responsible for these expenses even when an eligible replacement part is provided.

How do I register my Cooper & Hunter product warranty?

Register the equipment through Cooper & Hunter’s official warranty registration process. Registration can be completed online or by phone. Keep the model and serial numbers for each piece of equipment, the installation and purchase details, and the installing contractor’s information available before starting.

How soon should a Cooper & Hunter system be registered for warranty?

Cooper & Hunter states that products should be registered within 60 days of installation for its Limited Warranty. Registration and coverage remain subject to the current warranty policy and the eligibility requirements for the specific product.

What information is needed to register a Cooper & Hunter system?

Cooper & Hunter requests the model and serial number for each piece of equipment, installation date, owner contact information, installer or dealer information, purchase details, an email address, and the HVAC license number. Much of this information should be available on the product labels and installation invoice.

Can moving a Cooper & Hunter system affect its warranty?

Yes. Cooper & Hunter’s published policy states that warranty coverage applies to products remaining at their original installation location. Equipment removed and reinstalled elsewhere may be excluded from warranty coverage.

Can non-compatible or third-party components affect Cooper & Hunter warranty coverage?

Yes. Cooper & Hunter lists damage or repairs arising from non-compatible parts, third-party components, alterations, modifications, or improper applications among its warranty exclusions. Use components approved for the exact equipment and application.

Is a Cooper & Hunter Limited Warranty transferable to a new owner?

Cooper & Hunter’s published Limited Warranty is provided to the first original owner at the original installation location and is not transferable to subsequent owners. Review the current warranty policy for the exact product and transaction.

Are all Cooper & Hunter systems compatible with the Cooper & Hunter Remote app?

No. Wi-Fi and app compatibility are model dependent. Some systems include compatible wireless capability, while others require a specific Cooper & Hunter Wi-Fi accessory or do not support app control. Confirm the exact model’s product documents and accessory compatibility before ordering.
