{"id":7816179875955,"title":"48,000 BTU 3 Zone 12k+12k+24k Wall Mount Ductless Mini Split with Installation Kits, Olivia Series 23.4 SEER 4 Ton Tri Zone Multi Air Conditioner System Wi-Fi Adapter Included","handle":"48000-btu-3-zone-12k-12k-24k-ductless-mini-split-with-installation-kits-21-5-seer-4-ton-tri-zone-multi-air-conditioner-system-wifi-ready","description":"\u003ch1 style=\"font-size: 16px;\"\u003e\u003ca rel=\"noopener\" title=\"Contact Us\" href=\"https:\/\/southminisplits.com\/pages\/contact\" target=\"_blank\"\u003eCLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS \u003c\/a\u003e\u003c\/h1\u003e\n\u003cp\u003e\u003ca title=\"Call Us Now!\" href=\"tel:(737)%20738-6329\"\u003eCLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS\u003c\/a\u003e\u003c\/p\u003e\n\u003ch1 style=\"font-size: 16px;\"\u003eCooper \u0026amp; Hunter Multi-Zone 4 Ton 230V Olivia Series High Wall, Three Head, Wall-Mount Air Conditioning Unit for Heat Pump, Mini Split Inverter System, 23.4 SEER2 - (2x) CH-12MOLVWM-230VI + (1x) CH-24M0LVWM-230VI + CH-48MES-230VO\u003c\/h1\u003e\n\u003chr\u003e\n\u003cp\u003e\u003cspan\u003e\u003cstrong\u003e\u003ca title=\"Olivia Series Multi Zone Booklet \u0026amp; Specifications\" href=\"https:\/\/api.cooperandhunter.us\/storage\/2825\/Multi-Zone-Leaflet.pdf\" target=\"_blank\"\u003eClick Here to see the Olivia Series Multi Zone Booklet\u003c\/a\u003e\u003c\/strong\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003ch2\u003eSummary\u003c\/h2\u003e\n\u003cp\u003eThis Cooper \u0026amp; Hunter Olivia Series Multi-Zone system combines a high-efficiency 48,000 BTU outdoor unit (CH-48MES-230VO) with three indoor wall-mounted units (two 12K and one 24K BTU) to deliver 23.4 SEER2 efficiency. The system operates on 208\/230V power and provides flexible climate control with a heating range down to -13°F. The outdoor unit measures 37.48\"W x 52.48\"H x 16.34\"D and weighs 225 lbs, while the indoor units range from compact 31.57\"W models (12K) to larger 42.60\"W units (24K). With R410A refrigerant and a maximum piping length of 262 feet, this system offers quiet operation (as low as 24 dB indoors) and features auto-swing louvers, Wi-Fi control, and Toshiba-GMCC inverter technology.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch2\u003eIncluded in Your Order:\u003c\/h2\u003e\n\u003cp\u003e\u003cstrong\u003eCooper \u0026amp; Hunter Multi-Zone Ductless Mini Split System (48,000 BTU Outdoor + 12K+12K+24K BTU Indoor)\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eOutdoor Unit:\u003c\/strong\u003e 48,000 BTU (1pc) – Model: \u003cstrong\u003eCH-48MES-230VO\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eIndoor Units:\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e12,000 BTU (2pcs with remotes) – Model: \u003cstrong\u003eCH-12MOLVWM-230VI\u003c\/strong\u003e\n\u003c\/li\u003e\n\u003cli\u003e24,000 BTU (1pc with remote) – Model: \u003cstrong\u003eCH-24M0LVWM-230VI\u003c\/strong\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cstrong\u003eWi-Fi Adapter\u003c\/strong\u003e (17310900A05963)\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eWireless Remote Controls\u003c\/strong\u003e (3)\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eInstallation Kit (3)\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eInstallation Manual\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eUser's Manual\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eManufacturer Warranty\u003c\/strong\u003e\u003c\/p\u003e\n\u003chr\u003e\n\u003ch2\u003eKey Features:\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eThree-zone configuration with mixed capacity indoor units\u003c\/li\u003e\n\u003cli\u003eAuto-Swing horizontal\/vertical louvers\u003c\/li\u003e\n\u003cli\u003eHyper Heat operation down to -13°F\u003c\/li\u003e\n\u003cli\u003eTurbo Mode for rapid cooling\/heating\u003c\/li\u003e\n\u003cli\u003eSelf-Clean function prevents mold buildup\u003c\/li\u003e\n\u003cli\u003eFollow Me temperature sensing\u003c\/li\u003e\n\u003cli\u003e24V DC powered remote controls\u003c\/li\u003e\n\u003cli\u003eUltra-quiet operation (24-48 dB indoor noise)\u003c\/li\u003e\n\u003cli\u003eSmart control via Wi-Fi and C\u0026amp;H Remote app\u003c\/li\u003e\n\u003cli\u003eEnergy Star certified (23.4 SEER2)\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003chr\u003e\n\u003ch2\u003e\u003cspan style=\"text-decoration: underline;\"\u003e\u003cstrong\u003eImportant Notes\u003c\/strong\u003e\u003c\/span\u003e\u003c\/h2\u003e\n\u003cp\u003e\u003cstrong\u003eAll units must be installed by a licensed HVAC professional for the warranty to be valid.\u003c\/strong\u003e Registration is required within 60 days of installation and can be completed online or by phone.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch2\u003eComplete Technical Specifications\u003c\/h2\u003e\n\u003ch3\u003eIndoor Unit: CH-12MOLVWM-230VI (12,000 BTU)\u003c\/h3\u003e\n\u003ctable\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003cth\u003e\u003cstrong\u003eSpecification\u003c\/strong\u003e\u003c\/th\u003e\n\u003cth\u003e\u003cstrong\u003eDetails\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eModel Number\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eCH-12MOLVWM-230VI\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eRated Capacity\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e12,000 Btu\/h\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003ePower Supply\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e208\/230V, 1Ph, 60Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMinimum Circuit Ampacity (MCA)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e3A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMax Fuse Size\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e15A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eIndoor Air Flow (Turbo\/Hi\/Med\/Lo)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e341\/291\/194\/152 CFM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNoise Level (Hi\/Med\/Lo)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e41.5\/36\/24 dB(A)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eDimensions (W×D×H)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e31.57×7.87×11.61 inches\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003ePacking Dimensions\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e34.45×11.22×14.96 inches\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNet\/Gross Weight\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e18.74\/24.25 lbs\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOperating Temp (Cooling)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e60-90°F\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOperating Temp (Heating)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e32-86°F\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eRefrigerant Lines\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1\/4\" (liquid) \/ 1\/2\" (gas)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003ch3\u003eIndoor Unit: CH-24M0LVWM-230VI (24,000 BTU)\u003c\/h3\u003e\n\u003ctable\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003cth\u003e\u003cstrong\u003eSpecification\u003c\/strong\u003e\u003c\/th\u003e\n\u003cth\u003e\u003cstrong\u003eDetails\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eModel Number\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eCH-24M0LVWM-230VI\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eRated Capacity\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e24,000 Btu\/h\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003ePower Supply\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e208\/230V, 1Ph, 60Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMinimum Circuit Ampacity (MCA)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e3A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMax Fuse Size\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e15A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eIndoor Air Flow (Turbo\/Hi\/Med\/Lo)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e760\/601\/458\/382 CFM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNoise Level (Hi\/Med\/Lo)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e46.5\/44\/35 dB(A)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eDimensions (W×D×H)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e42.60×9.21×13.27 inches\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003ePacking Dimensions\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e45.47×16.34×12.40 inches\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNet\/Gross Weight\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e29.98\/38.14 lbs\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOperating Temp (Cooling)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e60-90°F\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOperating Temp (Heating)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e32-86°F\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eRefrigerant Lines\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e3\/8\" (liquid) \/ 5\/8\" (gas)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003ch3\u003eOutdoor Unit: CH-48MES-230VO\u003c\/h3\u003e\n\u003ctable\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003cth\u003e\u003cstrong\u003eSpecification\u003c\/strong\u003e\u003c\/th\u003e\n\u003cth\u003e\u003cstrong\u003eDetails\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eModel Number\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eCH-48MES-230VO\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eES Series\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eRated Capacity (Cooling)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e48,000 BTU\/h (19,000-50,000 range)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eRated Capacity (Heating)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e48,000 BTU\/h (12,500-52,000 range)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003ePower Supply\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e208-230V, 1Ph, 60Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVoltage Range\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e187-253V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCooling Rated Current\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e16.8A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eHeating Rated Current\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e16.8A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eEER2\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e12.5\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSEER2\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e23.4\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCOP\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e3.57\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eHSPF2-4\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e8.7\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eHSPF2-5\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e6.8\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMinimum Circuit Ampacity\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e40A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMax Fuse Size\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e60A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eRefrigerant Type\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eR410A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003ePrecharged Refrigerant\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eUp to 125 oz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eAdditional Charge (3\/8\" line)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e0.32 oz\/ft\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eAdditional Charge (1\/4\" line)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e0.16 oz\/ft\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMax Pipe Length\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e262 ft\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMax Height Difference\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e49.21 ft\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOutdoor Air Flow\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e4,500 CFM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNoise Level\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e64 dB(A)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eDimensions (W×D×H)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e37.48×16.34×52.48 inches\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003ePacking Dimensions\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e43.11×19.49×58.27 inches\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNet\/Gross Weight\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e225.53\/256.62 lbs\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eRefrigerant Lines\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e5x1\/4\" (liquid) \/ 3x3\/8\"+2x1\/2\" (gas)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOperating Temp (Cooling)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e5-122°F\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOperating Temp (Heating)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e-13-75°F\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eDesign Pressure\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e550 PSIG (high side) \/ 340 PSIG (low side)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003ch2\u003eWarranty Information\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cstrong\u003e7-Year Compressor Warranty\u003c\/strong\u003e - Covers defects in materials\/workmanship\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003e5-Year Parts Warranty\u003c\/strong\u003e - Covers all other components (except remote)\u003c\/li\u003e\n\u003cli\u003e\u003cstrong\u003e1-Year Remote Control Warranty\u003c\/strong\u003e\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cstrong\u003eNote:\u003c\/strong\u003e Warranty valid only when installed by licensed HVAC technician and registered within 60 days of installation.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch2\u003ePerformance Features\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003ePrecise ±1°F temperature maintenance\u003c\/li\u003e\n\u003cli\u003e294-760 CFM adjustable airflow per indoor unit\u003c\/li\u003e\n\u003cli\u003e6.85 pints\/hour dehumidification capacity\u003c\/li\u003e\n\u003cli\u003e3.57 COP heating efficiency at 47°F\u003c\/li\u003e\n\u003cli\u003eAutomatic reverse cycle defrost\u003c\/li\u003e\n\u003cli\u003eFilter cleaning reminder system\u003c\/li\u003e\n\u003cli\u003eRefrigerant leak detection with auto-shutdown\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003chr\u003e\n\u003ch2\u003eManuals \u0026amp; Downloads\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/api.cooperandhunter.us\/storage\/2825\/Multi-Zone-Leaflet.pdf\" target=\"_blank\"\u003eOlivia Series Multi Zone Booklet\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/api.cooperandhunter.us\/storage\/2809\/Installation-Manual.pdf\" target=\"_blank\"\u003eInstallation Manual\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/api.cooperandhunter.us\/storage\/1126\/QUICK-START-GUIDE.pdf\" target=\"_blank\"\u003eQuick Start Guide\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/cooperandhunter.us\/rebates\" target=\"_blank\"\u003eRebate Information\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cstyle\u003e\n.specs-grid {\n display: grid;\n grid-template-columns: repeat(auto-fit, minmax(300px, 1fr));\n gap: 20px;\n margin: 20px 0;\n}\n\u003c\/style\u003e","published_at":"2024-10-31T11:03:36-05:00","created_at":"2024-10-31T11:03:56-05:00","vendor":"Cooper \u0026 Hunter","type":"3 Zone","tags":["1000-1500","12000 BTU (1 TON)","208-230V","24000 BTU (2 TON)","3 zone","400-550","48000 BTU VO (4 TON)","Cooper\u0026Hunter","Multi Zone","Multi Zone Wall Mount","Olivia","Pre-Made Kits","R410A","Wall Mount"],"price":466200,"price_min":466200,"price_max":466200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42487688200307,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"CH-48MES-230VO + 2X CH-12MOLVWM-230VI + CH-24MOLVWM-230VI","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"48,000 BTU 3 Zone 12k+12k+24k Wall Mount Ductless Mini Split with Installation Kits, Olivia Series 23.4 SEER 4 Ton Tri Zone Multi Air Conditioner System Wi-Fi Adapter Included","public_title":null,"options":["Default Title"],"price":466200,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/southminisplits.com\/cdn\/shop\/files\/Tri-zone_mini_split_system_bundle5.jpg?v=1730390637","\/\/southminisplits.com\/cdn\/shop\/files\/Olivia_Series_Wall_Mount_System_Features_30.jpg?v=1730390637","\/\/southminisplits.com\/cdn\/shop\/files\/Cooper_and_Hunter_Installation_Kit_Bundle_50.png?v=1730390637","\/\/southminisplits.com\/cdn\/shop\/files\/C_H_Installation_Kit_for_Ductless_Mini_Splits_43.png?v=1730390637","\/\/southminisplits.com\/cdn\/shop\/files\/Cooper_and_Hunter_Drain_Hose_Comparison_33.png?v=1730390637","\/\/southminisplits.com\/cdn\/shop\/files\/Cooper_and_Hunter_Line_Set_Insulation_durability_40.png?v=1730390637","\/\/southminisplits.com\/cdn\/shop\/files\/USB_Wifi_Dongle_84.webp?v=1730390637"],"featured_image":"\/\/southminisplits.com\/cdn\/shop\/files\/Tri-zone_mini_split_system_bundle5.jpg?v=1730390637","options":["Title"],"media":[{"alt":"Tri Zone Bundle","id":28399742976115,"position":1,"preview_image":{"aspect_ratio":0.974,"height":1453,"width":1415,"src":"\/\/southminisplits.com\/cdn\/shop\/files\/Tri-zone_mini_split_system_bundle5.jpg?v=1730390637"},"aspect_ratio":0.974,"height":1453,"media_type":"image","src":"\/\/southminisplits.com\/cdn\/shop\/files\/Tri-zone_mini_split_system_bundle5.jpg?v=1730390637","width":1415},{"alt":"Olivia Series","id":28399743008883,"position":2,"preview_image":{"aspect_ratio":0.972,"height":1475,"width":1434,"src":"\/\/southminisplits.com\/cdn\/shop\/files\/Olivia_Series_Wall_Mount_System_Features_30.jpg?v=1730390637"},"aspect_ratio":0.972,"height":1475,"media_type":"image","src":"\/\/southminisplits.com\/cdn\/shop\/files\/Olivia_Series_Wall_Mount_System_Features_30.jpg?v=1730390637","width":1434},{"alt":"Cooper and Hunter Installation Kit Bundle","id":28399743041651,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1467,"width":1467,"src":"\/\/southminisplits.com\/cdn\/shop\/files\/Cooper_and_Hunter_Installation_Kit_Bundle_50.png?v=1730390637"},"aspect_ratio":1.0,"height":1467,"media_type":"image","src":"\/\/southminisplits.com\/cdn\/shop\/files\/Cooper_and_Hunter_Installation_Kit_Bundle_50.png?v=1730390637","width":1467},{"alt":"C\u0026H Installation Kit for Ductless Mini Splits","id":28399743074419,"position":4,"preview_image":{"aspect_ratio":1.006,"height":1467,"width":1476,"src":"\/\/southminisplits.com\/cdn\/shop\/files\/C_H_Installation_Kit_for_Ductless_Mini_Splits_43.png?v=1730390637"},"aspect_ratio":1.006,"height":1467,"media_type":"image","src":"\/\/southminisplits.com\/cdn\/shop\/files\/C_H_Installation_Kit_for_Ductless_Mini_Splits_43.png?v=1730390637","width":1476},{"alt":"Cooper and Hunter Drain Hose Comparison","id":28399743107187,"position":5,"preview_image":{"aspect_ratio":1.005,"height":1469,"width":1477,"src":"\/\/southminisplits.com\/cdn\/shop\/files\/Cooper_and_Hunter_Drain_Hose_Comparison_33.png?v=1730390637"},"aspect_ratio":1.005,"height":1469,"media_type":"image","src":"\/\/southminisplits.com\/cdn\/shop\/files\/Cooper_and_Hunter_Drain_Hose_Comparison_33.png?v=1730390637","width":1477},{"alt":"Cooper and Hunter Line Set Insulation durability","id":28399743139955,"position":6,"preview_image":{"aspect_ratio":1.003,"height":1470,"width":1475,"src":"\/\/southminisplits.com\/cdn\/shop\/files\/Cooper_and_Hunter_Line_Set_Insulation_durability_40.png?v=1730390637"},"aspect_ratio":1.003,"height":1470,"media_type":"image","src":"\/\/southminisplits.com\/cdn\/shop\/files\/Cooper_and_Hunter_Line_Set_Insulation_durability_40.png?v=1730390637","width":1475},{"alt":"WIFI Adapter","id":28399743172723,"position":7,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/southminisplits.com\/cdn\/shop\/files\/USB_Wifi_Dongle_84.webp?v=1730390637"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/southminisplits.com\/cdn\/shop\/files\/USB_Wifi_Dongle_84.webp?v=1730390637","width":800}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch1 style=\"font-size: 16px;\"\u003e\u003ca rel=\"noopener\" title=\"Contact Us\" href=\"https:\/\/southminisplits.com\/pages\/contact\" target=\"_blank\"\u003eCLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS \u003c\/a\u003e\u003c\/h1\u003e\n\u003cp\u003e\u003ca title=\"Call Us Now!\" href=\"tel:(737)%20738-6329\"\u003eCLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS\u003c\/a\u003e\u003c\/p\u003e\n\u003ch1 style=\"font-size: 16px;\"\u003eCooper \u0026amp; Hunter Multi-Zone 4 Ton 230V Olivia Series High Wall, Three Head, Wall-Mount Air Conditioning Unit for Heat Pump, Mini Split Inverter System, 23.4 SEER2 - (2x) CH-12MOLVWM-230VI + (1x) CH-24M0LVWM-230VI + CH-48MES-230VO\u003c\/h1\u003e\n\u003chr\u003e\n\u003cp\u003e\u003cspan\u003e\u003cstrong\u003e\u003ca title=\"Olivia Series Multi Zone Booklet \u0026amp; Specifications\" href=\"https:\/\/api.cooperandhunter.us\/storage\/2825\/Multi-Zone-Leaflet.pdf\" target=\"_blank\"\u003eClick Here to see the Olivia Series Multi Zone Booklet\u003c\/a\u003e\u003c\/strong\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003ch2\u003eSummary\u003c\/h2\u003e\n\u003cp\u003eThis Cooper \u0026amp; Hunter Olivia Series Multi-Zone system combines a high-efficiency 48,000 BTU outdoor unit (CH-48MES-230VO) with three indoor wall-mounted units (two 12K and one 24K BTU) to deliver 23.4 SEER2 efficiency. The system operates on 208\/230V power and provides flexible climate control with a heating range down to -13°F. The outdoor unit measures 37.48\"W x 52.48\"H x 16.34\"D and weighs 225 lbs, while the indoor units range from compact 31.57\"W models (12K) to larger 42.60\"W units (24K). With R410A refrigerant and a maximum piping length of 262 feet, this system offers quiet operation (as low as 24 dB indoors) and features auto-swing louvers, Wi-Fi control, and Toshiba-GMCC inverter technology.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch2\u003eIncluded in Your Order:\u003c\/h2\u003e\n\u003cp\u003e\u003cstrong\u003eCooper \u0026amp; Hunter Multi-Zone Ductless Mini Split System (48,000 BTU Outdoor + 12K+12K+24K BTU Indoor)\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eOutdoor Unit:\u003c\/strong\u003e 48,000 BTU (1pc) – Model: \u003cstrong\u003eCH-48MES-230VO\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eIndoor Units:\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e12,000 BTU (2pcs with remotes) – Model: \u003cstrong\u003eCH-12MOLVWM-230VI\u003c\/strong\u003e\n\u003c\/li\u003e\n\u003cli\u003e24,000 BTU (1pc with remote) – Model: \u003cstrong\u003eCH-24M0LVWM-230VI\u003c\/strong\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cstrong\u003eWi-Fi Adapter\u003c\/strong\u003e (17310900A05963)\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eWireless Remote Controls\u003c\/strong\u003e (3)\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eInstallation Kit (3)\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eInstallation Manual\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eUser's Manual\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eManufacturer Warranty\u003c\/strong\u003e\u003c\/p\u003e\n\u003chr\u003e\n\u003ch2\u003eKey Features:\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eThree-zone configuration with mixed capacity indoor units\u003c\/li\u003e\n\u003cli\u003eAuto-Swing horizontal\/vertical louvers\u003c\/li\u003e\n\u003cli\u003eHyper Heat operation down to -13°F\u003c\/li\u003e\n\u003cli\u003eTurbo Mode for rapid cooling\/heating\u003c\/li\u003e\n\u003cli\u003eSelf-Clean function prevents mold buildup\u003c\/li\u003e\n\u003cli\u003eFollow Me temperature sensing\u003c\/li\u003e\n\u003cli\u003e24V DC powered remote controls\u003c\/li\u003e\n\u003cli\u003eUltra-quiet operation (24-48 dB indoor noise)\u003c\/li\u003e\n\u003cli\u003eSmart control via Wi-Fi and C\u0026amp;H Remote app\u003c\/li\u003e\n\u003cli\u003eEnergy Star certified (23.4 SEER2)\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003chr\u003e\n\u003ch2\u003e\u003cspan style=\"text-decoration: underline;\"\u003e\u003cstrong\u003eImportant Notes\u003c\/strong\u003e\u003c\/span\u003e\u003c\/h2\u003e\n\u003cp\u003e\u003cstrong\u003eAll units must be installed by a licensed HVAC professional for the warranty to be valid.\u003c\/strong\u003e Registration is required within 60 days of installation and can be completed online or by phone.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch2\u003eComplete Technical Specifications\u003c\/h2\u003e\n\u003ch3\u003eIndoor Unit: CH-12MOLVWM-230VI (12,000 BTU)\u003c\/h3\u003e\n\u003ctable\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003cth\u003e\u003cstrong\u003eSpecification\u003c\/strong\u003e\u003c\/th\u003e\n\u003cth\u003e\u003cstrong\u003eDetails\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eModel Number\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eCH-12MOLVWM-230VI\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eRated Capacity\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e12,000 Btu\/h\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003ePower Supply\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e208\/230V, 1Ph, 60Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMinimum Circuit Ampacity (MCA)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e3A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMax Fuse Size\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e15A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eIndoor Air Flow (Turbo\/Hi\/Med\/Lo)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e341\/291\/194\/152 CFM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNoise Level (Hi\/Med\/Lo)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e41.5\/36\/24 dB(A)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eDimensions (W×D×H)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e31.57×7.87×11.61 inches\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003ePacking Dimensions\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e34.45×11.22×14.96 inches\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNet\/Gross Weight\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e18.74\/24.25 lbs\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOperating Temp (Cooling)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e60-90°F\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOperating Temp (Heating)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e32-86°F\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eRefrigerant Lines\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e1\/4\" (liquid) \/ 1\/2\" (gas)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003ch3\u003eIndoor Unit: CH-24M0LVWM-230VI (24,000 BTU)\u003c\/h3\u003e\n\u003ctable\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003cth\u003e\u003cstrong\u003eSpecification\u003c\/strong\u003e\u003c\/th\u003e\n\u003cth\u003e\u003cstrong\u003eDetails\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eModel Number\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eCH-24M0LVWM-230VI\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eRated Capacity\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e24,000 Btu\/h\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003ePower Supply\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e208\/230V, 1Ph, 60Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMinimum Circuit Ampacity (MCA)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e3A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMax Fuse Size\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e15A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eIndoor Air Flow (Turbo\/Hi\/Med\/Lo)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e760\/601\/458\/382 CFM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNoise Level (Hi\/Med\/Lo)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e46.5\/44\/35 dB(A)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eDimensions (W×D×H)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e42.60×9.21×13.27 inches\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003ePacking Dimensions\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e45.47×16.34×12.40 inches\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNet\/Gross Weight\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e29.98\/38.14 lbs\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOperating Temp (Cooling)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e60-90°F\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOperating Temp (Heating)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e32-86°F\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eRefrigerant Lines\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e3\/8\" (liquid) \/ 5\/8\" (gas)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003ch3\u003eOutdoor Unit: CH-48MES-230VO\u003c\/h3\u003e\n\u003ctable\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003cth\u003e\u003cstrong\u003eSpecification\u003c\/strong\u003e\u003c\/th\u003e\n\u003cth\u003e\u003cstrong\u003eDetails\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eModel Number\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eCH-48MES-230VO\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eES Series\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eRated Capacity (Cooling)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e48,000 BTU\/h (19,000-50,000 range)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eRated Capacity (Heating)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e48,000 BTU\/h (12,500-52,000 range)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003ePower Supply\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e208-230V, 1Ph, 60Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eVoltage Range\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e187-253V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCooling Rated Current\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e16.8A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eHeating Rated Current\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e16.8A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eEER2\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e12.5\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSEER2\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e23.4\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eCOP\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e3.57\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eHSPF2-4\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e8.7\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eHSPF2-5\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e6.8\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMinimum Circuit Ampacity\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e40A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMax Fuse Size\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e60A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eRefrigerant Type\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eR410A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003ePrecharged Refrigerant\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eUp to 125 oz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eAdditional Charge (3\/8\" line)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e0.32 oz\/ft\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eAdditional Charge (1\/4\" line)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e0.16 oz\/ft\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMax Pipe Length\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e262 ft\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eMax Height Difference\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e49.21 ft\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOutdoor Air Flow\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e4,500 CFM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNoise Level\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e64 dB(A)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eDimensions (W×D×H)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e37.48×16.34×52.48 inches\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003ePacking Dimensions\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e43.11×19.49×58.27 inches\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eNet\/Gross Weight\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e225.53\/256.62 lbs\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eRefrigerant Lines\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e5x1\/4\" (liquid) \/ 3x3\/8\"+2x1\/2\" (gas)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOperating Temp (Cooling)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e5-122°F\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eOperating Temp (Heating)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e-13-75°F\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eDesign Pressure\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e550 PSIG (high side) \/ 340 PSIG (low side)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003ch2\u003eWarranty Information\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cstrong\u003e7-Year Compressor Warranty\u003c\/strong\u003e - Covers defects in materials\/workmanship\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003e5-Year Parts Warranty\u003c\/strong\u003e - Covers all other components (except remote)\u003c\/li\u003e\n\u003cli\u003e\u003cstrong\u003e1-Year Remote Control Warranty\u003c\/strong\u003e\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cstrong\u003eNote:\u003c\/strong\u003e Warranty valid only when installed by licensed HVAC technician and registered within 60 days of installation.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch2\u003ePerformance Features\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003ePrecise ±1°F temperature maintenance\u003c\/li\u003e\n\u003cli\u003e294-760 CFM adjustable airflow per indoor unit\u003c\/li\u003e\n\u003cli\u003e6.85 pints\/hour dehumidification capacity\u003c\/li\u003e\n\u003cli\u003e3.57 COP heating efficiency at 47°F\u003c\/li\u003e\n\u003cli\u003eAutomatic reverse cycle defrost\u003c\/li\u003e\n\u003cli\u003eFilter cleaning reminder system\u003c\/li\u003e\n\u003cli\u003eRefrigerant leak detection with auto-shutdown\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003chr\u003e\n\u003ch2\u003eManuals \u0026amp; Downloads\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/api.cooperandhunter.us\/storage\/2825\/Multi-Zone-Leaflet.pdf\" target=\"_blank\"\u003eOlivia Series Multi Zone Booklet\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/api.cooperandhunter.us\/storage\/2809\/Installation-Manual.pdf\" target=\"_blank\"\u003eInstallation Manual\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/api.cooperandhunter.us\/storage\/1126\/QUICK-START-GUIDE.pdf\" target=\"_blank\"\u003eQuick Start Guide\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/cooperandhunter.us\/rebates\" target=\"_blank\"\u003eRebate Information\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cstyle\u003e\n.specs-grid {\n display: grid;\n grid-template-columns: repeat(auto-fit, minmax(300px, 1fr));\n gap: 20px;\n margin: 20px 0;\n}\n\u003c\/style\u003e"}

1 7

48,000 BTU 3 Zone 12k+12k+24k Wall Mount Ductless Mini Split with Installation Kits, Olivia Series 23.4 SEER 4 Ton Tri Zone Multi Air Conditioner System Wi-Fi Adapter Included

Name: 48,000 BTU 3 Zone 12k+12k+24k Wall Mount Ductle...
SKU: CH-48MES-230VO+2XCH-12MOLVWM-230VI+CH-24MOLVWM-230VI
Price: 4662.0 USD
Availability: InStock
Rating: 4.5 (2 reviews)

SKU: CH-48MES-230VO + 2X CH-12MOLVWM-230VI + CH-24MOLVWM-230VI

Free Shipping on orders above $300

No sales tax except in TX, FL, & PA!

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Price

$4,662.00

Sold out

Quantity

NOTE: The default selection does not include an installation kit. Upgrade your selection to add to your order.

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

Cooper & Hunter Multi-Zone 4 Ton 230V Olivia Series High Wall, Three Head, Wall-Mount Air Conditioning Unit for Heat Pump, Mini Split Inverter System, 23.4 SEER2 - (2x) CH-12MOLVWM-230VI + (1x) CH-24M0LVWM-230VI + CH-48MES-230VO

Click Here to see the Olivia Series Multi Zone Booklet

Summary

This Cooper & Hunter Olivia Series Multi-Zone system combines a high-efficiency 48,000 BTU outdoor unit (CH-48MES-230VO) with three indoor wall-mounted units (two 12K and one 24K BTU) to deliver 23.4 SEER2 efficiency. The system operates on 208/230V power and provides flexible climate control with a heating range down to -13°F. The outdoor unit measures 37.48"W x 52.48"H x 16.34"D and weighs 225 lbs, while the indoor units range from compact 31.57"W models (12K) to larger 42.60"W units (24K). With R410A refrigerant and a maximum piping length of 262 feet, this system offers quiet operation (as low as 24 dB indoors) and features auto-swing louvers, Wi-Fi control, and Toshiba-GMCC inverter technology.

Included in Your Order:

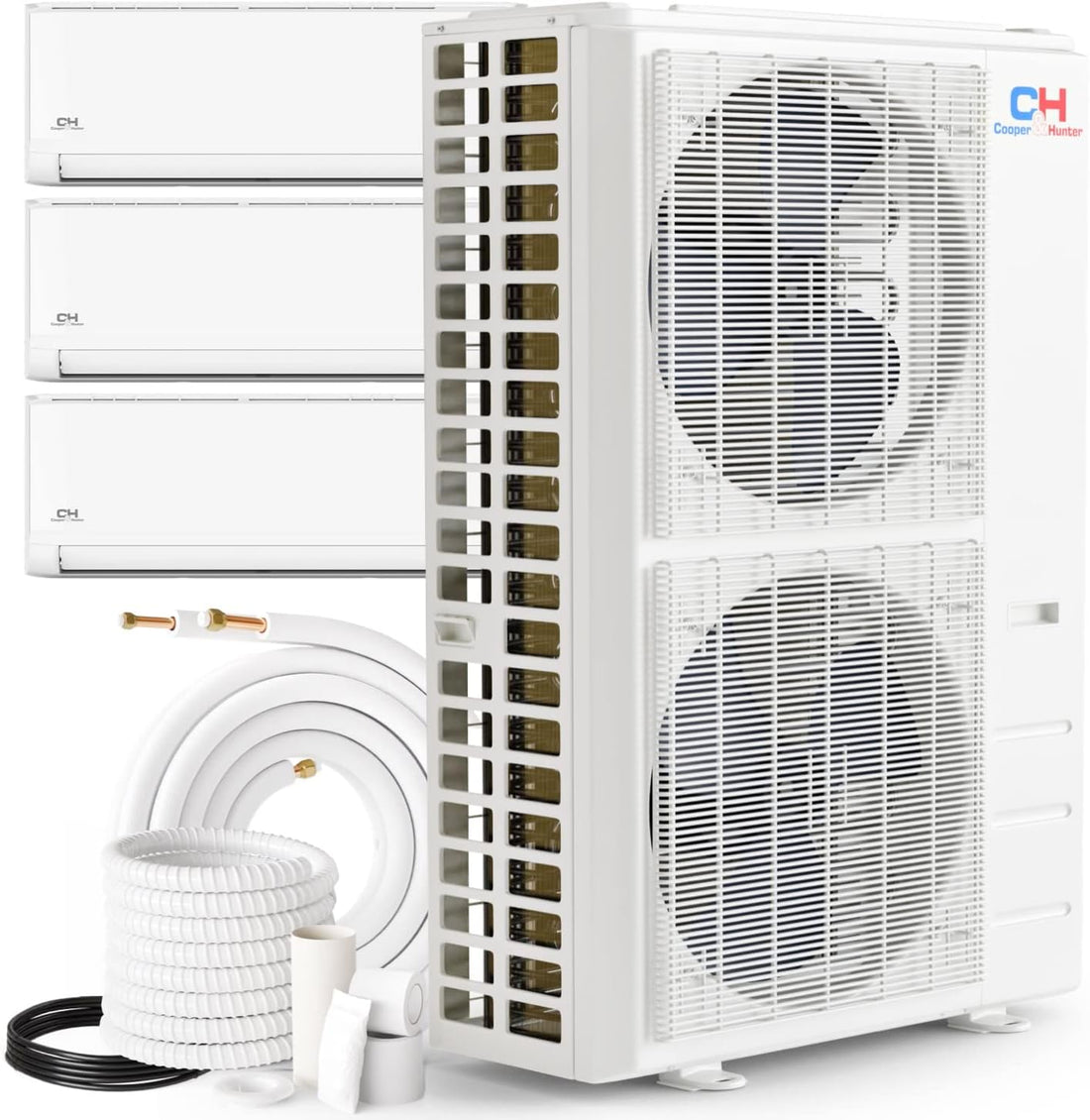

Cooper & Hunter Multi-Zone Ductless Mini Split System (48,000 BTU Outdoor + 12K+12K+24K BTU Indoor)

Outdoor Unit: 48,000 BTU (1pc) – Model: CH-48MES-230VO

Indoor Units:

12,000 BTU (2pcs with remotes) – Model: CH-12MOLVWM-230VI
24,000 BTU (1pc with remote) – Model: CH-24M0LVWM-230VI

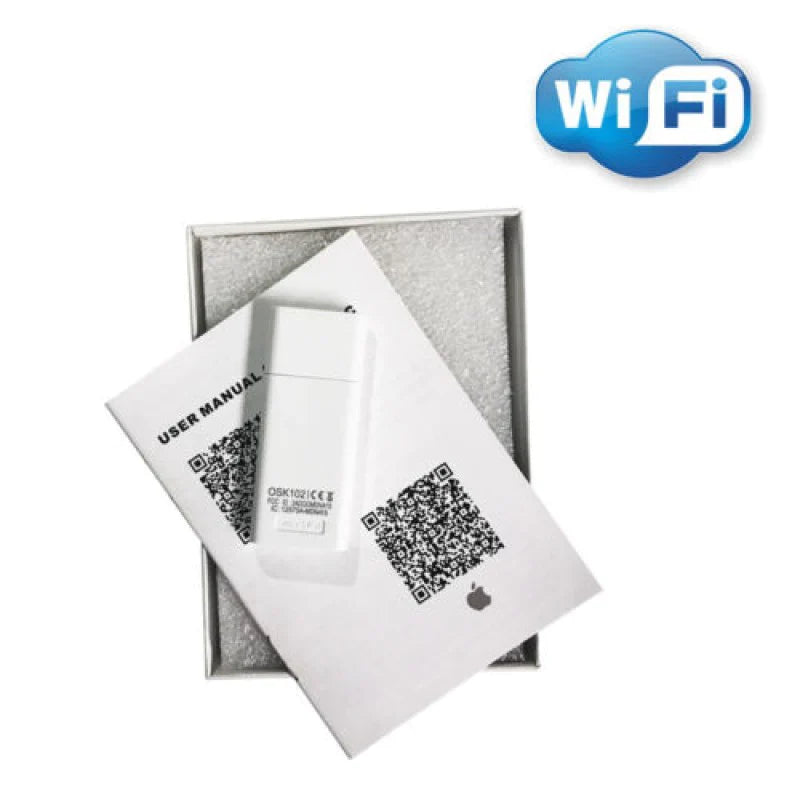

Wi-Fi Adapter (17310900A05963)

Wireless Remote Controls (3)

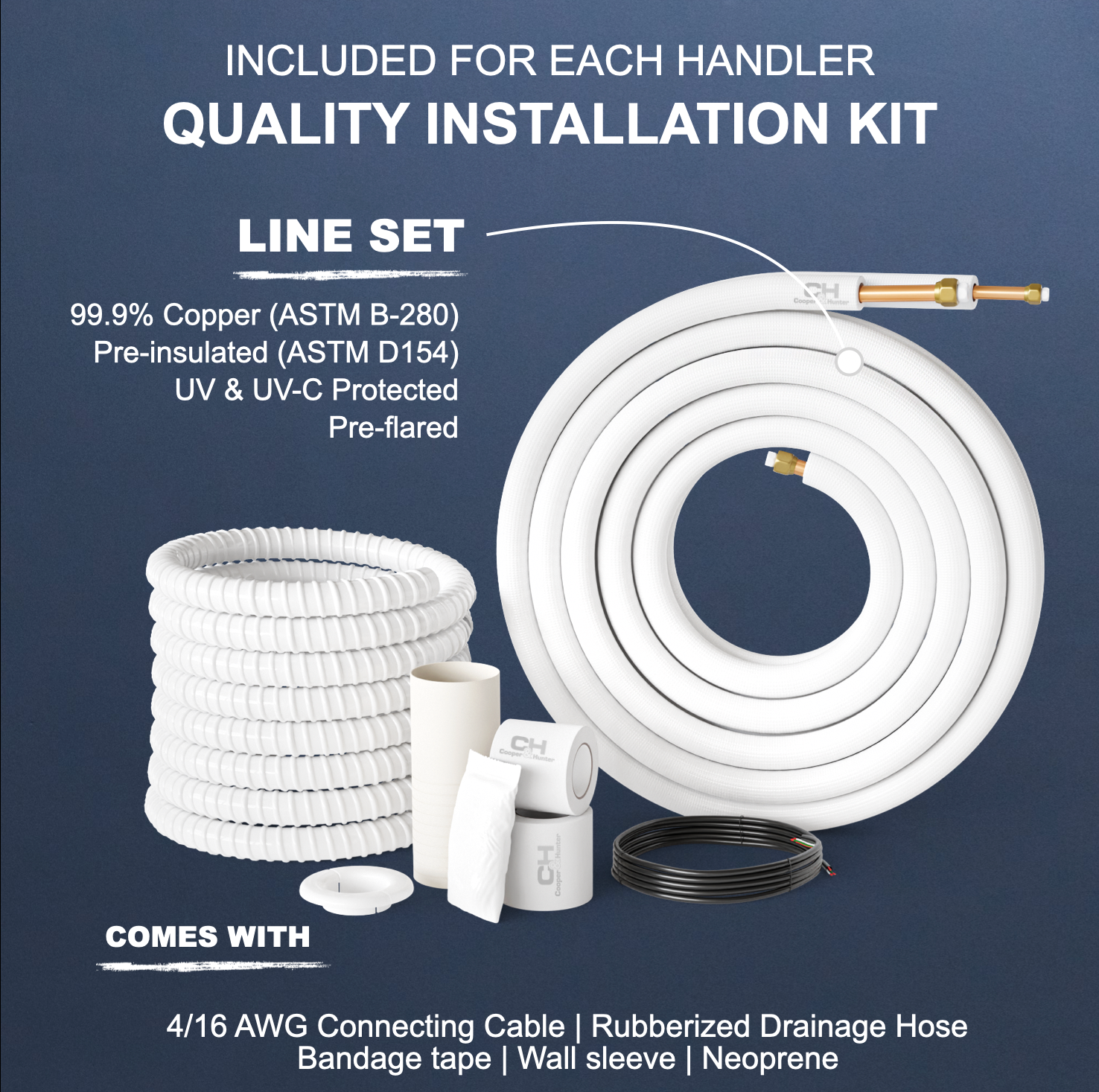

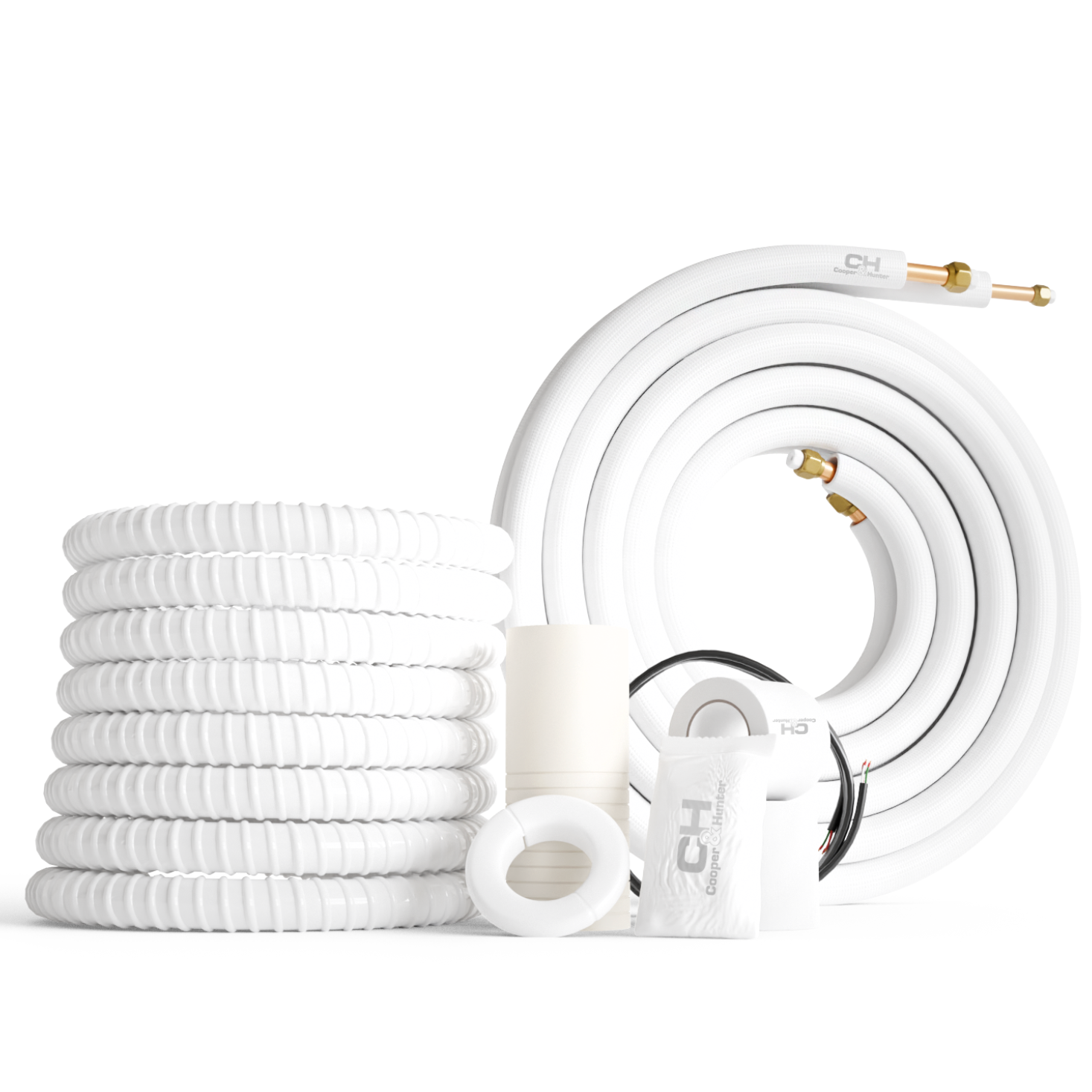

Installation Kit (3)

Installation Manual

User's Manual

Manufacturer Warranty

Key Features:

Three-zone configuration with mixed capacity indoor units
Auto-Swing horizontal/vertical louvers
Hyper Heat operation down to -13°F
Turbo Mode for rapid cooling/heating
Self-Clean function prevents mold buildup
Follow Me temperature sensing
24V DC powered remote controls
Ultra-quiet operation (24-48 dB indoor noise)
Smart control via Wi-Fi and C&H Remote app
Energy Star certified (23.4 SEER2)

Important Notes

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone.

Complete Technical Specifications

Indoor Unit: CH-12MOLVWM-230VI (12,000 BTU)

Specification	Details
Model Number	CH-12MOLVWM-230VI
Rated Capacity	12,000 Btu/h
Power Supply	208/230V, 1Ph, 60Hz
Minimum Circuit Ampacity (MCA)	3A
Max Fuse Size	15A
Indoor Air Flow (Turbo/Hi/Med/Lo)	341/291/194/152 CFM
Noise Level (Hi/Med/Lo)	41.5/36/24 dB(A)
Dimensions (W×D×H)	31.57×7.87×11.61 inches
Packing Dimensions	34.45×11.22×14.96 inches
Net/Gross Weight	18.74/24.25 lbs
Operating Temp (Cooling)	60-90°F
Operating Temp (Heating)	32-86°F
Refrigerant Lines	1/4" (liquid) / 1/2" (gas)

Indoor Unit: CH-24M0LVWM-230VI (24,000 BTU)

Specification	Details
Model Number	CH-24M0LVWM-230VI
Rated Capacity	24,000 Btu/h
Power Supply	208/230V, 1Ph, 60Hz
Minimum Circuit Ampacity (MCA)	3A
Max Fuse Size	15A
Indoor Air Flow (Turbo/Hi/Med/Lo)	760/601/458/382 CFM
Noise Level (Hi/Med/Lo)	46.5/44/35 dB(A)
Dimensions (W×D×H)	42.60×9.21×13.27 inches
Packing Dimensions	45.47×16.34×12.40 inches
Net/Gross Weight	29.98/38.14 lbs
Operating Temp (Cooling)	60-90°F
Operating Temp (Heating)	32-86°F
Refrigerant Lines	3/8" (liquid) / 5/8" (gas)

Outdoor Unit: CH-48MES-230VO

Specification	Details
Model Number	CH-48MES-230VO
Series	ES Series
Rated Capacity (Cooling)	48,000 BTU/h (19,000-50,000 range)
Rated Capacity (Heating)	48,000 BTU/h (12,500-52,000 range)
Power Supply	208-230V, 1Ph, 60Hz
Voltage Range	187-253V
Cooling Rated Current	16.8A
Heating Rated Current	16.8A
EER2	12.5
SEER2	23.4
COP	3.57
HSPF2-4	8.7
HSPF2-5	6.8
Minimum Circuit Ampacity	40A
Max Fuse Size	60A
Refrigerant Type	R410A
Precharged Refrigerant	Up to 125 oz
Additional Charge (3/8" line)	0.32 oz/ft
Additional Charge (1/4" line)	0.16 oz/ft
Max Pipe Length	262 ft
Max Height Difference	49.21 ft
Outdoor Air Flow	4,500 CFM
Noise Level	64 dB(A)
Dimensions (W×D×H)	37.48×16.34×52.48 inches
Packing Dimensions	43.11×19.49×58.27 inches
Net/Gross Weight	225.53/256.62 lbs
Refrigerant Lines	5x1/4" (liquid) / 3x3/8"+2x1/2" (gas)
Operating Temp (Cooling)	5-122°F
Operating Temp (Heating)	-13-75°F
Design Pressure	550 PSIG (high side) / 340 PSIG (low side)

Warranty Information

7-Year Compressor Warranty - Covers defects in materials/workmanship
5-Year Parts Warranty - Covers all other components (except remote)
1-Year Remote Control Warranty

Note: Warranty valid only when installed by licensed HVAC technician and registered within 60 days of installation.

Performance Features

Precise ±1°F temperature maintenance
294-760 CFM adjustable airflow per indoor unit
6.85 pints/hour dehumidification capacity
3.57 COP heating efficiency at 47°F
Automatic reverse cycle defrost
Filter cleaning reminder system
Refrigerant leak detection with auto-shutdown

Manuals & Downloads
