A smart, reliable choice for year-round comfort.
Recommended Add-Ons
Loading recommended accessories…

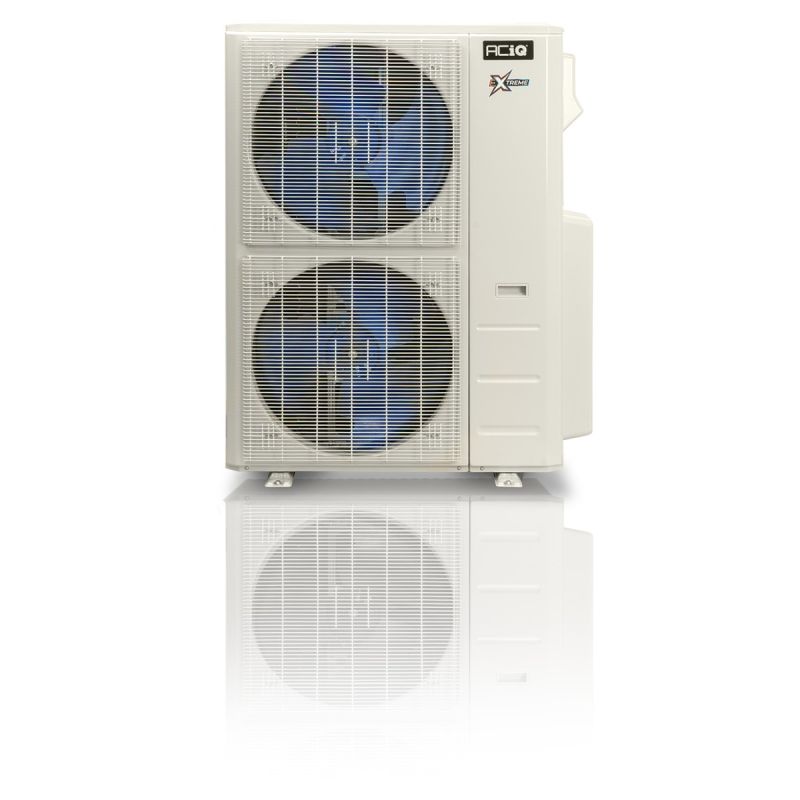

ACiQ is the smart solution to adaptive heating and cooling in almost any space and climate - all at an affordable cost. With the ACIQ-48Z-HH-M6C, you can operate multiple indoor air handlers from a single outdoor condenser, saving space outside while giving you room-by-room comfort control throughout your home.
This Extreme Heat multi-zone condenser is designed for reliable heating and cooling performance in demanding climates. Its inverter-driven operation constantly adjusts output to match the comfort needs of each connected zone, helping reduce energy waste while keeping occupied rooms comfortable.
Â
All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required for extended warranty coverage. This is an Outdoor Unit ONLY. Please ensure that you have selected compatible indoor air handlers as well. This condenser is pre-charged with refrigerant, but it does not use quick-connect line set fittings and is not intended as a self-install unit. A licensed HVAC professional must vacuum the lines, check the system, and add refrigerant as required.
Installation materials such as line sets, control wire, drain hose, whip, disconnect, condenser pad, wall bracket, and other accessories are not included unless specifically selected or bundled separately.
Â
The 48,000 BTU ACiQ-48Z-HH-M6C is designed to support multiple indoor air handlers from one outdoor condenser. This adaptive inverter condenser automatically adjusts its output to provide the precise amount of heating or cooling needed to maintain your selected temperature in each room or zone.
With a multi-zone setup, you can set different temperatures room by room and avoid conditioning unused areas. This, combined with high-efficiency inverter technology and up to 23 SEER2 performance, makes the ACIQ-48Z-HH-M6C a smart option for whole-home comfort, additions, offices, garages, and other multi-room applications.
For all multi-zone systems, connected indoor unit combinations must be compatible with the condenser’s minimum and maximum loading range. Always confirm the selected indoor air handlers, line set sizes, and total connected capacity before installation.
Â
The capacity and number of indoor units can vary depending on the selected combination. Consult the ACiQ multi-zone compatibility chart and submittal documentation before ordering. The total capacity of all connected indoor units must remain within the allowable loading range for the outdoor condenser.
It is not always required to use every available circuit on the condenser. Unused ports should remain properly sealed according to manufacturer instructions. For help selecting the correct indoor unit combination, contact our sales team before ordering.
Â
Â
| Outdoor Model | ACIQ-48Z-HH-M6C |
| Product Type | Multi Zone Heat Pump Condenser |
| Refrigerant | R454B |
| Power Supply | |
| Rated (V, Ph, Hz) | 208/230V, 1 Phase, 60Hz |
| System MCA | 37 A |
| System MOP | 40 A |
| Connection Wiring | AWG 14-4 |
| Efficiency Ratings | |
| SEER2 | 23.0 |
| EER2 | 12 |
| HSPF2-4 | 11.0 |
| COP | 3.7 |
| Cooling | |
| Rated Cooling Capacity | 47,000 BTU/h |
| Cooling Min/Max Capacity | 12,000 - 57,000 BTU/h |
| Moisture Removal | 4.4 L/h |
| Cooling Operating Range | -22°F to 122°F |
| Heating | |
| Rated Heating Capacity @ 47°F | 49,000 BTU/h |
| Heating Min/Max Capacity @ 47°F | 13,000 - 57,000 BTU/h |
| Rated Heating Capacity @ 17°F | 44,000 BTU/h |
| Rated Heating Capacity @ 5°F | 47,000 BTU/h |
| Max Heating Capacity @ 5°F | 47,000 BTU/h |
| Heating Operating Range | -22°F to 75°F |
| Outdoor Unit Specifications | |
| Compressor Type | Twin-Rotary |
| Outdoor Air Flow Max | 4,503 CFM |
| Outdoor Noise Level | 65 dBA |
| Dimensions (W x D x H) | 37.48 x 16.34 x 52.48 in |
| Package Dimensions (W x D x H) | 43.11 x 19.49 x 58.27 in |
| Net / Gross Weight | 246.47 / 276.68 lbs |
| Refrigerant Piping Specifications | |
| Liquid Side | 6 x 1/4 in |
| Gas Side | 4 x 3/8 in + 2 x 1/2 in |
| Max. Piping Length for All Rooms | 262.4 ft |
| Max. Piping Length for One Indoor Unit | 114.8 ft |
| Max. Height Difference of Indoor and Outdoor Unit | 49.2 ft |
| Refrigerant Pre-Charged Amount | 151.68 oz |
| Refrigerant Precharge Length | 24.6 ft x 6 |
| Additional Charge for 1/4 in Liquid Pipe | 0.16 oz/ft |
| Additional Charge for 3/8 in Liquid Pipe | 0.32 oz/ft |
| Connection Method | Flared |
| Certifications | |
| AHRI Certified | Yes |
| NEEP Listed | Yes |
| Energy Star | Yes |
| ETL Listed | Yes |
Technical Data
Loading technical data…
Product FAQs
ACiQ offers a broad range of heating, cooling, ventilation, thermostat, and water-heating products. Its catalog includes mini splits, central air conditioners and heat pumps, furnaces, air handlers, PTAC systems, mobile-home HVAC equipment, commercial systems, thermostats, ventilation products, and hybrid water heaters. Availability and specifications vary by model.
ACiQ provides support through its official contact form and by phone at 1-877-909-ACiQ. The published support hours are Monday through Friday, 8:00 a.m. to 5:00 p.m. Have the model number, serial number, and a clear description of the question or problem ready.
ACiQ’s registration form requests the part number, serial number, purchase date, installation date, customer contact and address information, and installer details, including the installer name, license number, and phone number or other identifying information.
Submit a request through the official ACiQ Parts Quote form or contact ACiQ parts support. Include the SKU or model number and a clear description of the part needed so the parts team can identify the correct component.
Use the official ACiQ Tech Center and select the appropriate product category. ACiQ organizes installation manuals, owner manuals, specification sheets, wiring diagrams, troubleshooting guides, warranty documents, and other technical resources by product family and model.
Start with ACiQ’s official warranty claim form. Be prepared to provide the owner’s contact information, the equipment model number, a description of the issue, and any supporting files requested. Additional diagnosis and equipment documentation may be required before the claim is approved.
ACiQ states that a factory-authorized, EPA-certified contractor must diagnose the equipment. The submission should include the diagnostic procedure, the required part number or part description, and the model and serial numbers. ACiQ may also request the original installation invoice.
ACiQ’s published warranty-resolution process states that round-trip shipping and labor associated with diagnosis and part replacement are not reimbursed. Coverage can vary by product and jurisdiction, so review the exact warranty certificate for the equipment before proceeding.
Register the equipment through ACiQ’s official online warranty registration form. Add each unit being registered and submit the requested equipment, customer, purchase, installation, and installer information. Keep a copy of the completed registration and related purchase and installation records.
Use ACiQ’s Warranty Finder to look up a registration, check its status, or provide missing information. Have the equipment and owner details available so the record can be matched accurately.
No. ACiQ warranty periods and conditions vary by product type and model. Review the warranty certificate listed for the exact equipment and use ACiQ’s warranty resources to confirm the applicable parts, compressor, replacement, registration, and eligibility terms.
On compatible systems, the app can provide remote on and off control, temperature adjustment, operating-mode selection, fan-speed control, daily or weekly scheduling, customized sleep settings, and an error-code check function. Available features can vary by model and app version.
Yes. Cooper & Hunter states that multiple users can connect and share control of compatible zones or units through the Cooper & Hunter Remote app, which can be useful for households, offices, and multi-zone installations.
Use the exact model number from the equipment label to search Cooper & Hunter’s website or support center. Confirm that the indoor unit, outdoor unit, voltage, capacity, and series shown in the result match the equipment before relying on the manual, submittal, leaflet, or troubleshooting material.
Yes. Cooper & Hunter’s support center allows installers to sign in or register for a personal account to access troubleshooting resources. Warranty diagnosis may still require direct troubleshooting with a Cooper & Hunter Technical Support agent while the technician is on site.
Yes. Cooper & Hunter’s Limited Warranty states that qualifying equipment must be properly installed by a state-certified or licensed HVAC contractor in accordance with applicable codes, permits, manufacturer instructions, and accepted trade practices.
Cooper & Hunter provides product manuals, troubleshooting guides, warranty information, product-specific documents, and selected troubleshooting videos through its official support center. Search using the exact model number to avoid using instructions for a different system.
Yes. Cooper & Hunter’s official website includes a Find Solution tool for selecting a system by application and climate zone, along with a dealer locator. Final equipment selection should still be confirmed against the project load, electrical requirements, installation conditions, and the exact product documentation.
Use Cooper & Hunter’s official Rebates & Incentives portal and enter the requested location and equipment information. Eligibility depends on the exact model, efficiency requirements, installation details, utility program, tax rules, and customer location.
No. Cooper & Hunter states that its systems meet guidelines in many regions and may qualify for rebates or other incentives, but availability and approval depend on the local program and the exact equipment. Verify eligibility before treating an incentive as part of the final project cost.
Compatible systems use the Cooper & Hunter Remote app, available through the Apple App Store and Google Play. The exact system must support Wi-Fi control and may require the manufacturer’s compatible wireless module or smart kit.
No. Cooper & Hunter’s Smart Kit instructions state that the reserved interface is intended for the manufacturer-provided compatible wireless module. Power should be disconnected before installation, and access, replacement, and maintenance of the wireless module should be handled by qualified personnel.
For the eligible product categories listed on its warranty page, Cooper & Hunter publishes one year of coverage for the original remote control, five years on parts, and seven years on the compressor for the original registered end user. Exact coverage can vary by product, purchase channel, registration status, and program eligibility, so confirm the warranty for the exact model.
The product owner or servicing technician should contact Cooper & Hunter Technical Support. For warranty troubleshooting, Cooper & Hunter instructs that the technician should be on site so the support agent can review error codes, symptoms, electrical readings, mechanical measurements, and other diagnostic information.
Have the unit model and serial number, installation date, installer’s EPA or HVAC license information, and the place of purchase available. Cooper & Hunter may also request photographs, error codes, measurements, or other diagnostic details before processing warranty support.
Yes. Cooper & Hunter’s support center states that one-on-one technical and warranty assistance is available in English, Spanish, Mandarin, Russian, and Ukrainian.
Cooper & Hunter lists Technical Support at (888) 293-9252 and an additional number at (786) 953-6706. Its support center currently lists availability Monday through Friday from 9:00 AM to 8:00 PM Eastern Time. Check the official support page for current hours before calling.
Cooper & Hunter’s published policy excludes labor and related field costs. It also states that refrigerant, charging, recharging, adjustment, and removal costs are not covered. The owner is generally responsible for these expenses even when an eligible replacement part is provided.
Register the equipment through Cooper & Hunter’s official warranty registration process. Registration can be completed online or by phone. Keep the model and serial numbers for each piece of equipment, the installation and purchase details, and the installing contractor’s information available before starting.
Cooper & Hunter states that products should be registered within 60 days of installation for its Limited Warranty. Registration and coverage remain subject to the current warranty policy and the eligibility requirements for the specific product.
Cooper & Hunter requests the model and serial number for each piece of equipment, installation date, owner contact information, installer or dealer information, purchase details, an email address, and the HVAC license number. Much of this information should be available on the product labels and installation invoice.
Yes. Cooper & Hunter’s published policy states that warranty coverage applies to products remaining at their original installation location. Equipment removed and reinstalled elsewhere may be excluded from warranty coverage.
Yes. Cooper & Hunter lists damage or repairs arising from non-compatible parts, third-party components, alterations, modifications, or improper applications among its warranty exclusions. Use components approved for the exact equipment and application.
Cooper & Hunter’s published Limited Warranty is provided to the first original owner at the original installation location and is not transferable to subsequent owners. Review the current warranty policy for the exact product and transaction.
No. Wi-Fi and app compatibility are model dependent. Some systems include compatible wireless capability, while others require a specific Cooper & Hunter Wi-Fi accessory or do not support app control. Confirm the exact model’s product documents and accessory compatibility before ordering.
