Cooper&Hunter Multi-Zone 48,000 BTU 230V Olivia Series Wall-Mount Air Conditioning Unit for Heat Pump, Mini Split Inverter System, 4 Ton 21.8 SEER2 with Wi-Fi, Installation Kit Included - CH-HPR48M-230VO + (2) 24,000 BTU Indoor Units
Summary
The Olivia Series Multi-Zone Ductless Mini Split System comes with OPTIONAL installation kits for each zone (options for 16ft and 50ft available). Auto-swing horizontal louvers maintain even airflow throughout the room, and the Genius Core Technology enables the unit to operate with an ultra-low compressor speed of 12Hz for extra energy savings, granting them a high-efficiency rating of up to 21.8 SEER2. This system will both heat and cool your home or office effectively down to -22°F.
The units can be controlled with the Cooper&Hunter remote control, or via a smart device when used with the included Wi-Fi kit and Cooper&Hunter Remote app. Other notable features include Follow Me Mode, Sleep Mode, Timer options, and 46°F Freeze Protection.
*ALL OF OUR MULTI ZONE SYSTEMS COME WITH AN OPTIONAL INSTALLATION KIT FOR EACH ZONE. WE CARRY 16FT AND 50FT. TO CUSTOMIZE, SEND US A MESSAGE OR GIVE US A CALL!
Included in Your Order:

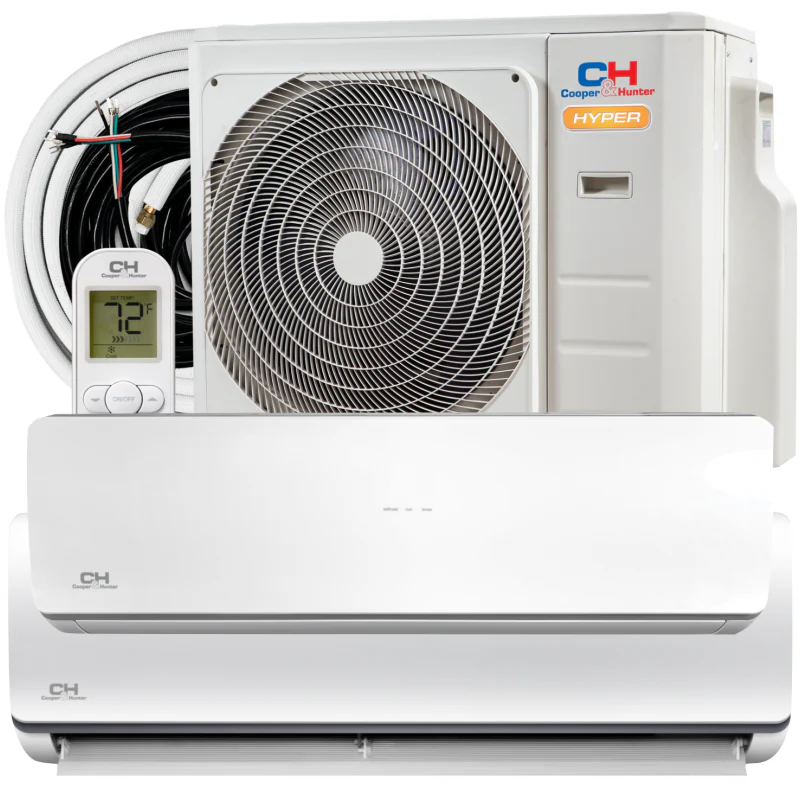

Cooper & Hunter Multi Zone Ductless Mini Split System (48,000 BTU Inverter with Heat Pump)
Outdoor Unit: 48,000 BTU (1pc) – Model: CH-HPR48M-230VO
Indoor Units: 24,000 BTU (2pc with remotes) – Model: CH-24M0LVWM-230VI

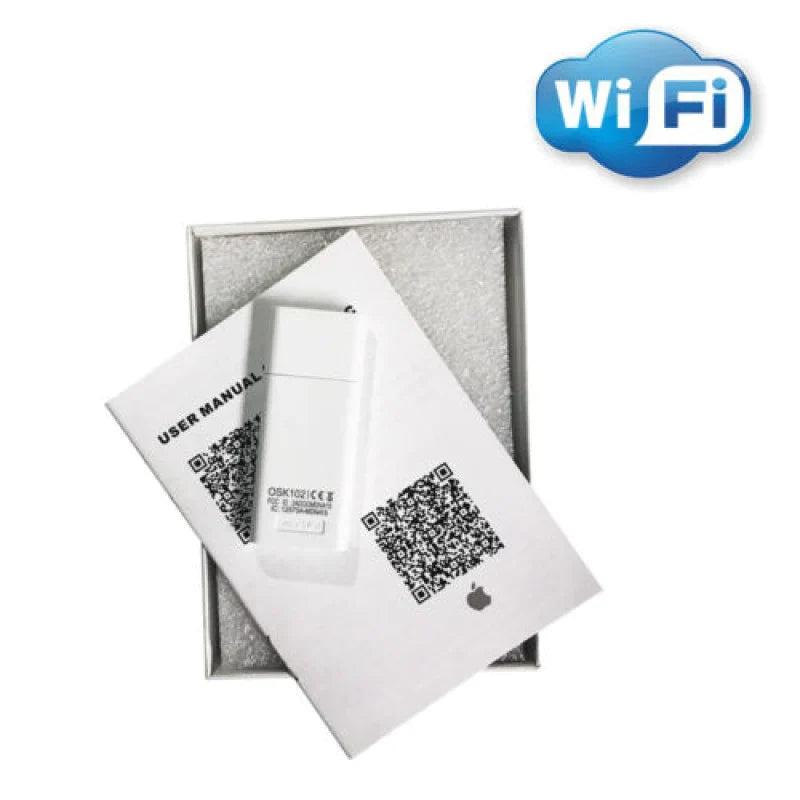

Wi-Fi Adapter (17310900A05963)
Wireless Remote Controls
Installation Manual
User's Manual
Manufacturer Warranty
Key Features:
- Auto-Swing horizontal louvers for even air distribution
- Genius Core ultra-low compressor speed (12Hz) for energy efficiency
- 46° Freeze Protection
- Turbo Mode for rapid cooling/heating
- Works in extreme temperatures down to -22°F
- Follow Me Mode for personalized comfort
- Sleep Mode for nighttime operation
- Timer Function for scheduled operation
- Remote Control included with each indoor unit
- Smart Control via Wi-Fi adapter and mobile app
- Self-diagnosis system for easy maintenance
Important

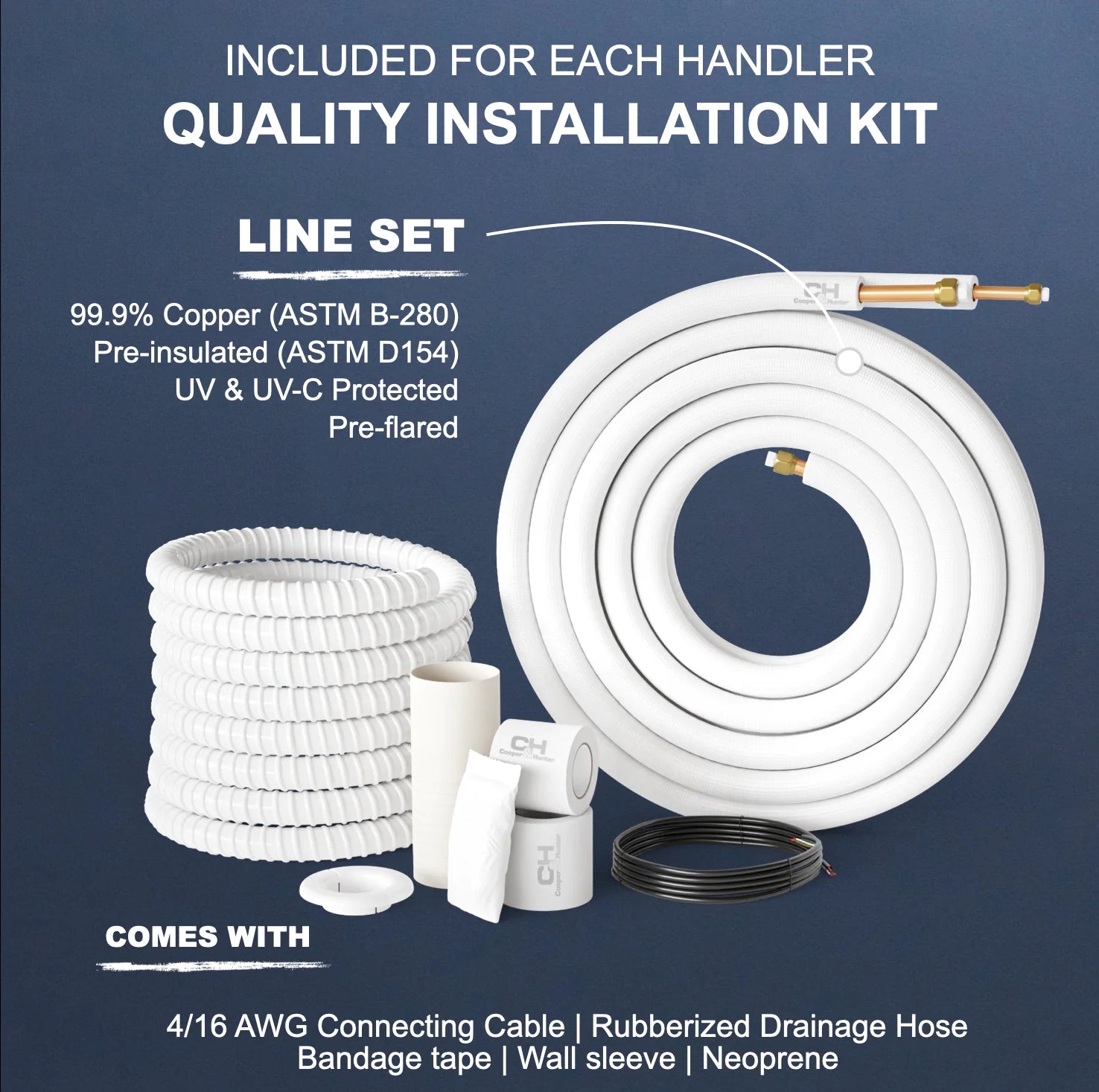

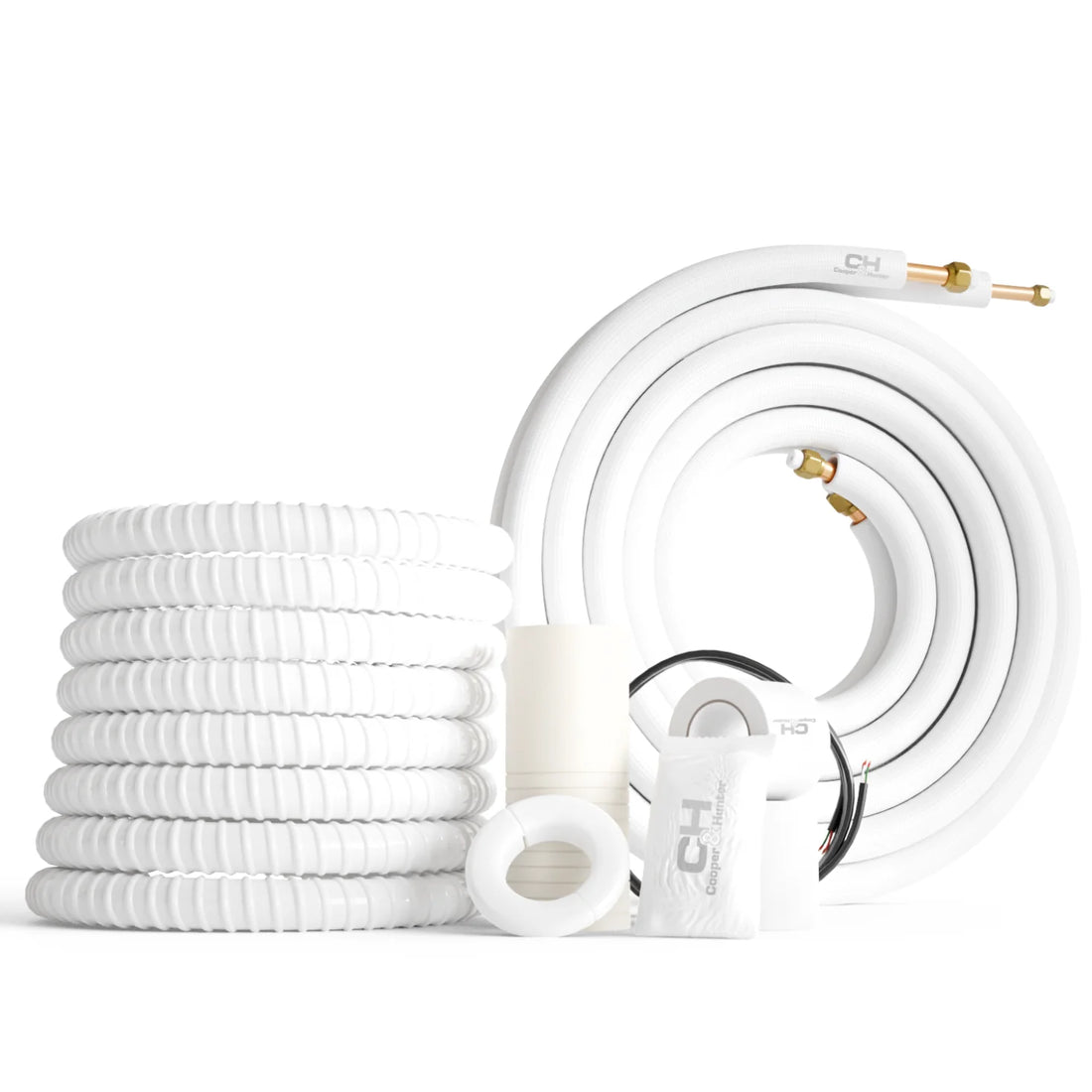

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function. This kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.
Warranty
- 7 year compressor limited warranty
- 5 year parts limited warranty (must be installed by a licensed HVAC technician)
- 1 year remote control
Cooper&Hunter Limited Warranty terms are available if the product is registered within 60 days of installation. THE UNIT(S) MUST BE INSTALLED BY A LICENSED HVAC PROFESSIONAL FOR VALID WARRANTY. Registration can be completed online or by phone.
Technical Information
Outdoor Unit: CH-HPR48M-230VO
| Specification | Details |
|---|---|
| System Type | Multi-zone unit |
| BTU Rated | 48,000 BTU |
| Power Source | 208-230V, 1Ph, 60Hz |
| Dehumidification Value | 6.85 pints/day |
| Max Pipe Length (ft) | 262 |
| Refrigerant Type | R410A |
| Voltage Range (V) | 187 - 253 |
| Packing Dimensions (W x D x H in inches) | 43.11 x 19.49 x 58.27 |
| Refrigerant Piping | 5x1/4" - 3x3/8"+2x1/2" |
| HSPF2-5 | 7.6 |
| HSPF2-4 | 9.8 |
| EER2 | 11.7 |
| Cooling Capacity (Min/Max) (BTU/h) | 48,000 (19,300~51,000) |
| SEER2 | 21.8 |
| Unit Net/Gross Weight (lbs) | 238.32/269.84 |
| Unit Dimensions (W x H x D in inches) | 37.48 x 16.34 x 52.48 |
| Refrigerant Precharge | up to 125 ft |
| Outdoor Noise Level (dB) | 65 |
| Outdoor Air Flow (CFM) | 4500 |
| Minimum Circuit Ampacity (A) | 42 |
| Max. Fuse (A) | 50 |
| Max Height Difference Between Indoor and Outdoor Unit (ft) | 49.21 |
| Heating Capacity (Min/Max) (BTU/h) | 49,000 (11,500~58,000) |
| COP | 3.8 |
| Ambient Temperature - Heating (°F) | -22～75 |
| Ambient Temperature - Cooling (°F) | 5~122 |
| Additional Refrigerant Charge (3/8" Liquid Line) | 0.32 oz/ft |
| Additional Refrigerant Charge (1/4" Liquid Line) | 0.16 oz/ft |
Indoor Unit: CH-24M0LVWM-230VI (x2)
| Specification | Details |
|---|---|
| BTU Rated | 24,000 BTU |
| Power Source | 208/230V, 1Ph, 60Hz |
| Rated Capacity (Btu/h) | 24,000 |
| Minimum Circuit Ampacity (A) | 3 |
| Max. Fuse (A) | 15 |
| Indoor Air Flow (CFM) | 760/601/458/382 |
| Indoor Noise Level (dB(A)) | 46.5/44/35 |
| Dimensions (WxDxH in inches) | 42.60x9.21x13.27 |
| Packing Dimensions (WxDxH in inches) | 45.47x16.34x12.40 |
| Net/Gross Weight (lbs) | 29.98/38.14 |
| Room Temperature Range - Cooling (°F) | 60-90 |
| Room Temperature Range - Heating (°F) | 32-86 |
| Refrigerant Piping (Liquid/Gas side in inches) | 3/8"/5/8" |
