Cooper&Hunter 48,000 BTU Dual Zone Mini Split Air Conditioner with Heat Pump - CH-HPR48M-230VO + CH-24M0LVWM-230VI (2x)
Summary
The Cooper & Hunter Dual Zone system features a 48,000 BTU outdoor unit paired with two 24,000 BTU wall-mounted indoor units. With its high efficiency compressor (up to 23.4 SEER2) and auto swing louvers, this system will both heat and cool your space effectively down to -22°F. The DC inverter heat pump provides energy-efficient operation while allowing independent temperature control in two zones.
Included in Your Order:

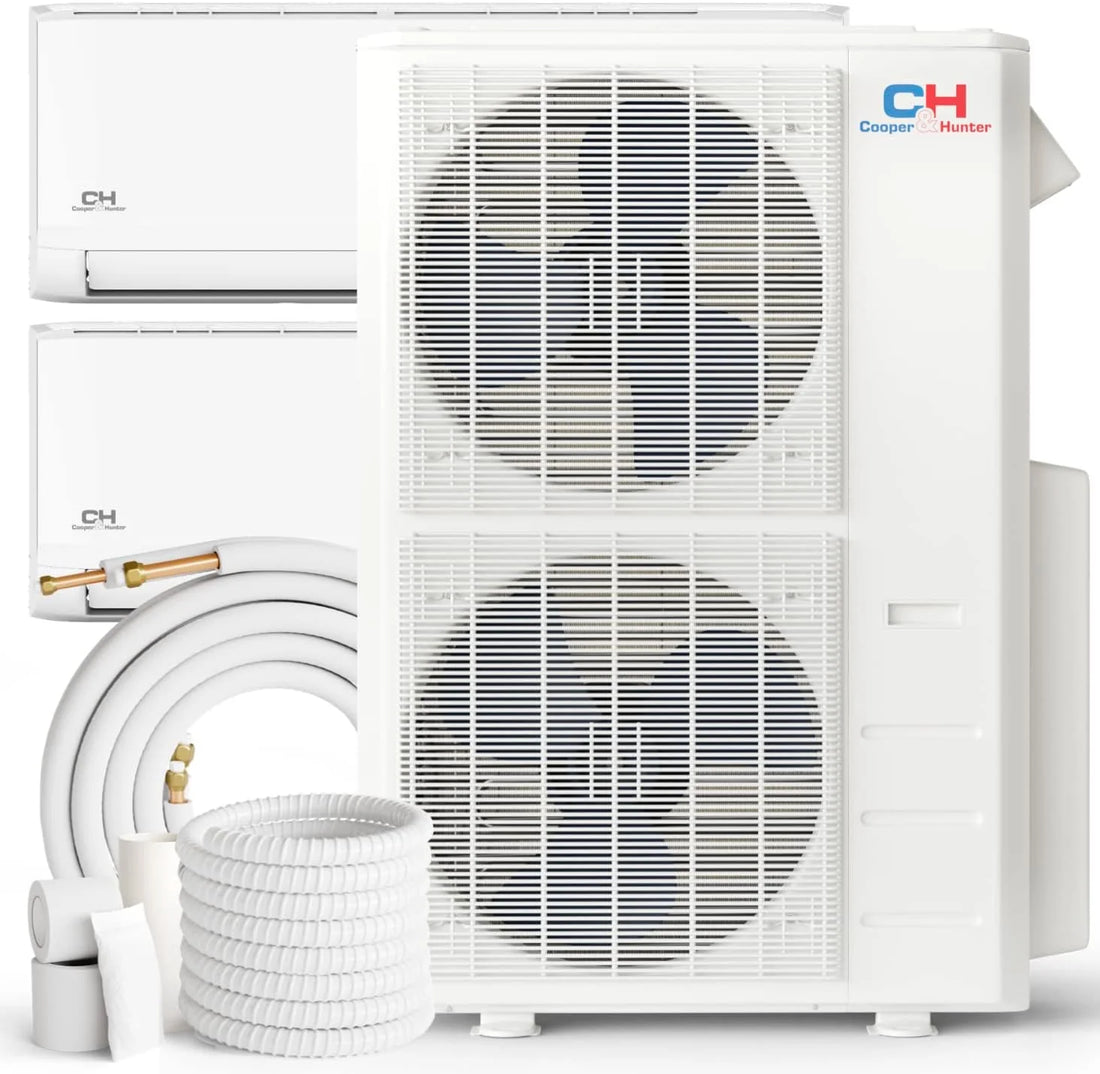

Cooper & Hunter Dual Zone Ductless Mini Split System (48,000 BTU Inverter with Heat Pump)
Outdoor Unit: 48,000 BTU (1pc) – Model: CH-HPR48M-230VO
Indoor Units: 24,000 BTU (2pcs with remotes) – Model: CH-24M0LVWM-230VI

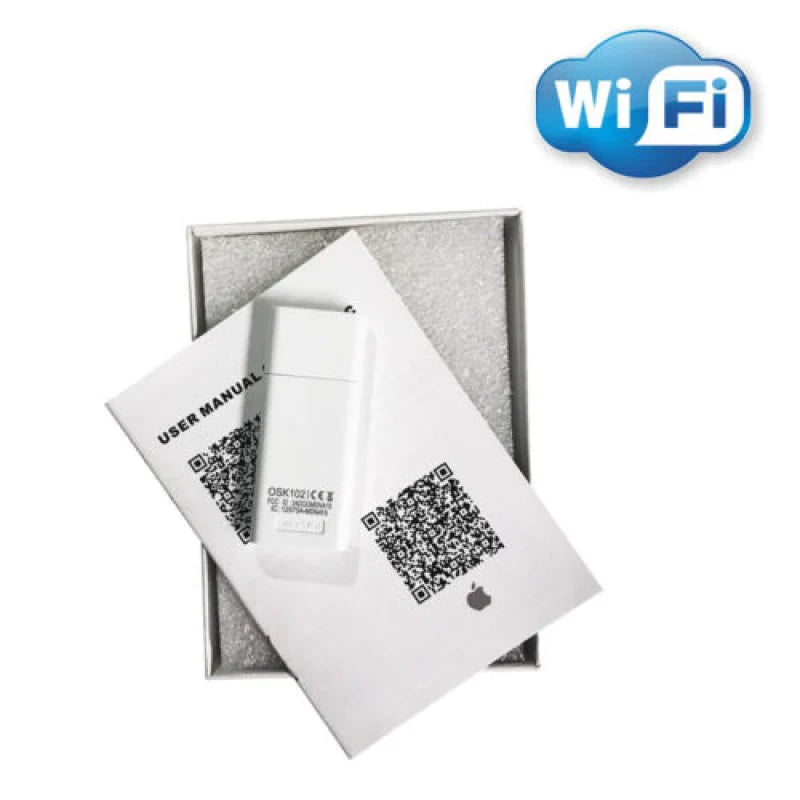

Wi-Fi Adapter

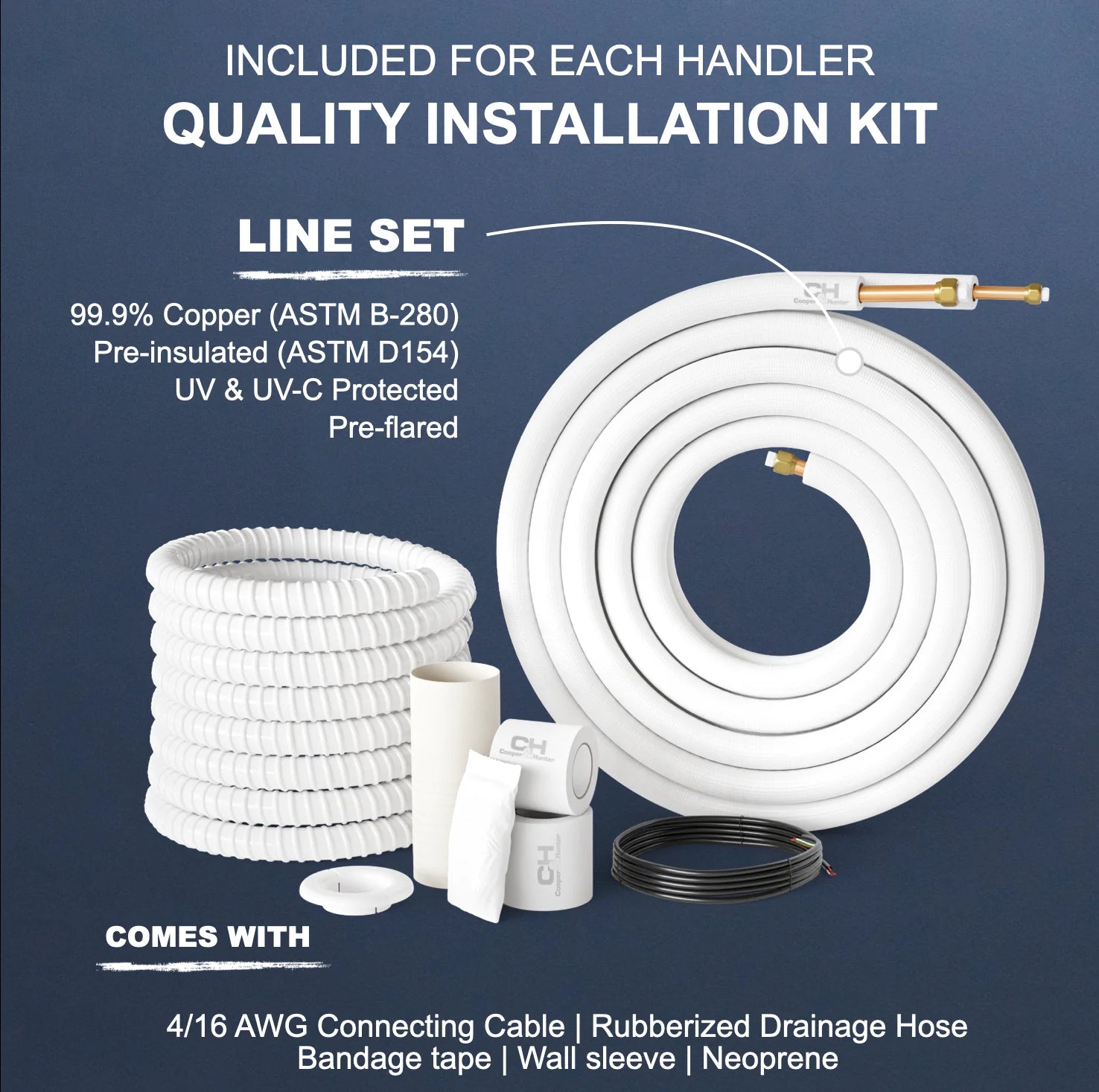

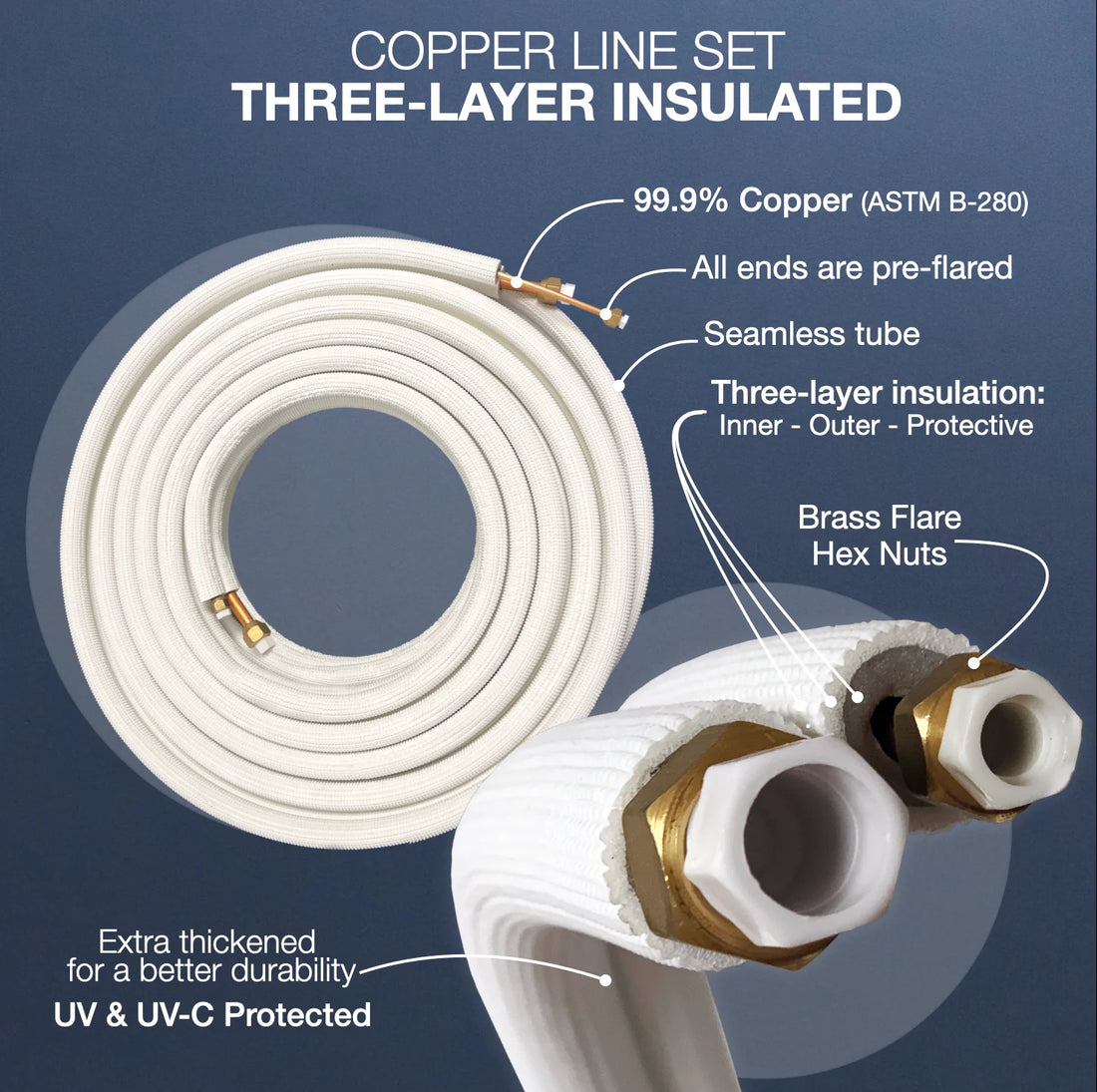

Installation Kits (25ft pre-bundled for each zone)
Wireless Remote Controls
Installation Manual
User's Manual
Manufacturer Warranty
Key Features:
- Dual zone independent temperature control
- High efficiency operation (up to 23.4 SEER2)
- Heats down to -22°F ambient temperature
- Auto-Swing horizontal louvers
- Turbo Mode for rapid cooling/heating
- Self-Clean Function
- Wi-Fi enabled with mobile app control
- Quiet operation
- Energy saving modes
Important
All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function.
Technical Information
Indoor Unit: CH-24M0LVWM-230VI
Specification | Details |
---|---|
System Type | Multi-zone unit |
BTU Rated | 24,000 BTU |
Power Source | 208/230V, 1Ph, 60Hz |
Rated Capacity | 24,000 Btu/h |
Minimum Circuit Ampacity (MCA) | 3A |
Max. Fuse | 15A |
Indoor Air Flow (Turbo/Hi/Mi/Lo) | 760/601/458/382 CFM |
Indoor Noise Level (Hi/Mi/Lo) | 46.5/44/35 dB(A) |
Dimension (WxDxH) | 42.60x9.21x13.27 inch |
Packing (WxDxH) | 45.47x16.34x12.40 inch |
Net/Gross Weight | 29.98/38.14 lbs. |
Room Temperature Cooling | 60-90°F |
Room Temperature Heating | 32-88°F |
Liquid Side/Gas Side | 3/8" / 5/8" |
Outdoor Unit: CH-HPR48M-230VO
Specification | Details |
---|---|
System Type | Multi-zone unit |
BTU Rated | 48,000 BTU |
Power Source | 208-230V, 1Ph, 60Hz |
Voltage Range | 187-253V |
Cooling Capacity (Min/Max) | 48,000 (19,300~51,000) BTU/h |
EER2 | 11.7 |
SEER2 | 21.8 |
Heating Capacity (Min/Max) | 49,000(11,500~58,000) BTU/h |
COP | 3.8 |
HSPF2-5 | 7.6 |
HSPF2-4 | 9.8 |
Minimum Circuit Ampacity | 42A |
Max Fuse | 50A |
Outdoor Air Flow (Max) | 4,500 CFM |
Outdoor Noise Level | 65 dB(A) |
Dimension (WxDxH) | 37.48x16.34x52.48 inch |
Packing (WxDxH) | 43.11x19.49x58.27 inch |
Net/Gross Weight | 238.32/269.84 lbs. |
Refrigerant Type | R410A |
Refrigerant Charge | up to 125 oz |
Refrigerant Piping | 5x1/4" - 3x3/8"+2x1/2" |
Max Pipe Length | 262 ft |
Max Height Difference | 49.21 ft |
Ambient Temperature Cooling | 5~122°F |
Ambient Temperature Heating | -22~75°F |
Additional Charge (3/8" line) | 0.32 oz/ft |
Additional Charge (1/4" line) | 0.16 oz/ft |
Warranty
- 7 year compressor limited warranty
- 5 year parts limited warranty (must be installed by a licensed HVAC technician)
- 1 year remote control
