48,000 BTU 2 Zone 12k+36k Wall Mounts with Installation Kits, Hyper Heat Series 21.8 SEER 4 TON Dual Zone Ductless Multi Mini Split AC System Wi-Fi Adapter Included

48,000 BTU 2 Zone 12k+36k Wall Mounts with Installation Kits, Hyper Heat Series 21.8 SEER 4 TON Dual Zone Ductless Multi Mini Split AC System Wi-Fi Adapter Included

SKU: CH-12MOLVWM-230VI & CH-36ELVWM-230VI & CH-HPR48M-230VO

Free Shipping on orders above $300

No sales tax except in TX, FL, & PA!

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Price
Regular price $4,966.40
Sale price $4,966.40 Regular price
Sold out
12,000 BTU Installation Kit
36,000 BTU Installation Kit

NOTE: The default selection does not include an installation kit. Upgrade your selection to add to your order.

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

Cooper&Hunter Multi-Zone 48,000 BTU 230V Olivia Series Wall-Mount Air Conditioning Unit for Heat Pump, Mini Split Inverter System, 4 Ton 21.8 SEER2 with Wi-Fi, Installation Kit Included - CH-HPR48M-230VO + Indoor Units


Summary

The Olivia Series Multi-Zone Ductless Mini Split System comes with installation kits for each zone (options for 16ft, 25FT and 50ft available). Auto-swing horizontal louvers maintain even airflow throughout the room, and the Genius Core Technology enables the unit to operate with an ultra-low compressor speed of 12Hz for extra energy savings. This system will both heat and cool your home or office effectively down to -22°F for Hyper units.

The units can be controlled with the Cooper&Hunter remote control, or via a smart device when used with the included Wi-Fi kit and Cooper&Hunter Remote app. Other notable features include Follow Me Mode, Sleep Mode, Timer options, and 46°F Freeze Protection.


Included in Your Order:

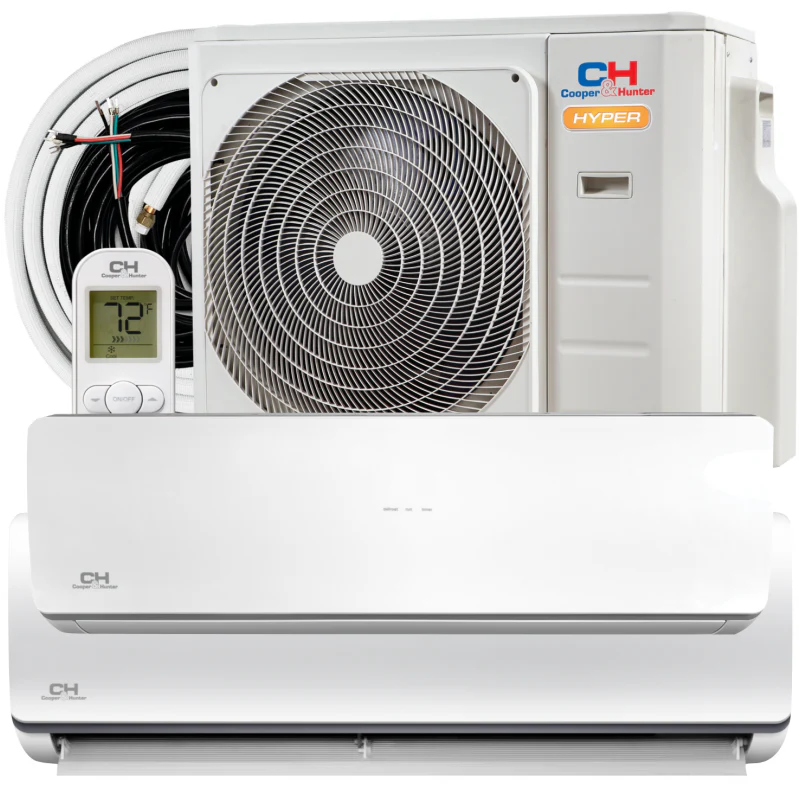

Cooper & Hunter Multi Zone Ductless Mini Split System (48,000 BTU Inverter with Heat Pump)

Outdoor Unit: 48,000 BTU (1pc) – Model: CH-HPR48M-230VO

Indoor Units: 12,000 BTU (1pc) + 36,000 BTU (1pc) - Models: CH-12MOLVWM-230VI + CH-36ELVWM-230VI

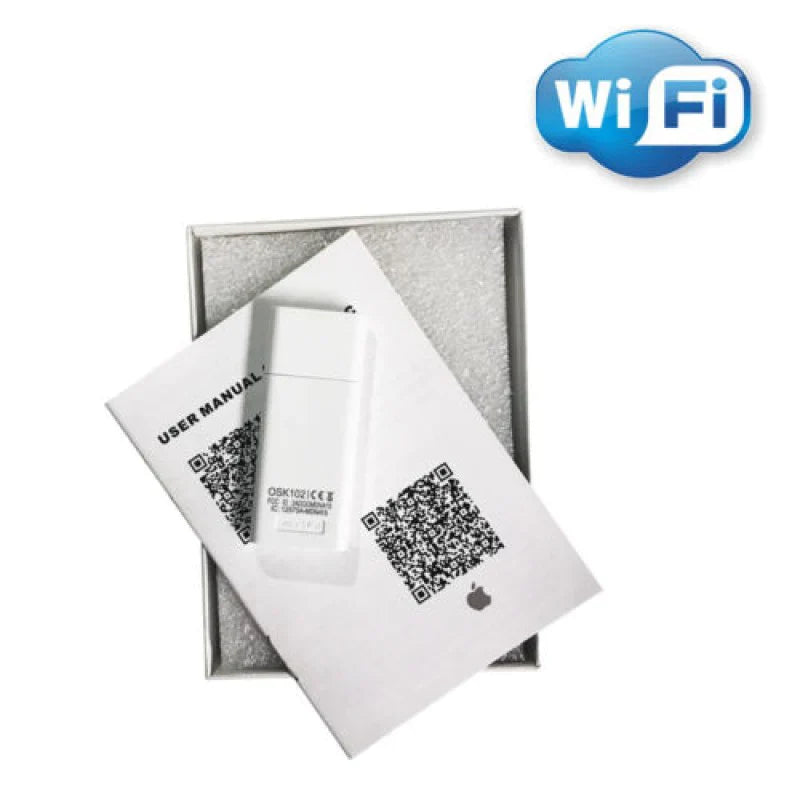

Wi-Fi Adapter (17310900A05963)

Pre-installed 25ft Line Sets for Each Zone (Custom lengths available: 16ft or 50ft)

Wireless Remote Controls

Installation Manual

User's Manual

Manufacturer Warranty


Key Features:

  • Auto-Swing horizontal louvers
  • Genius Core ultra-low compressor speed (12Hz)
  • 46° Freeze Protection
  • Turbo Mode for quick cooling/heating
  • Follow Me Mode
  • Sleep Mode
  • Timer Function
  • Remote Control included
  • Smart Control via Wi-Fi adapter and mobile app
  • Works in extreme temperatures down to -22°F

Important

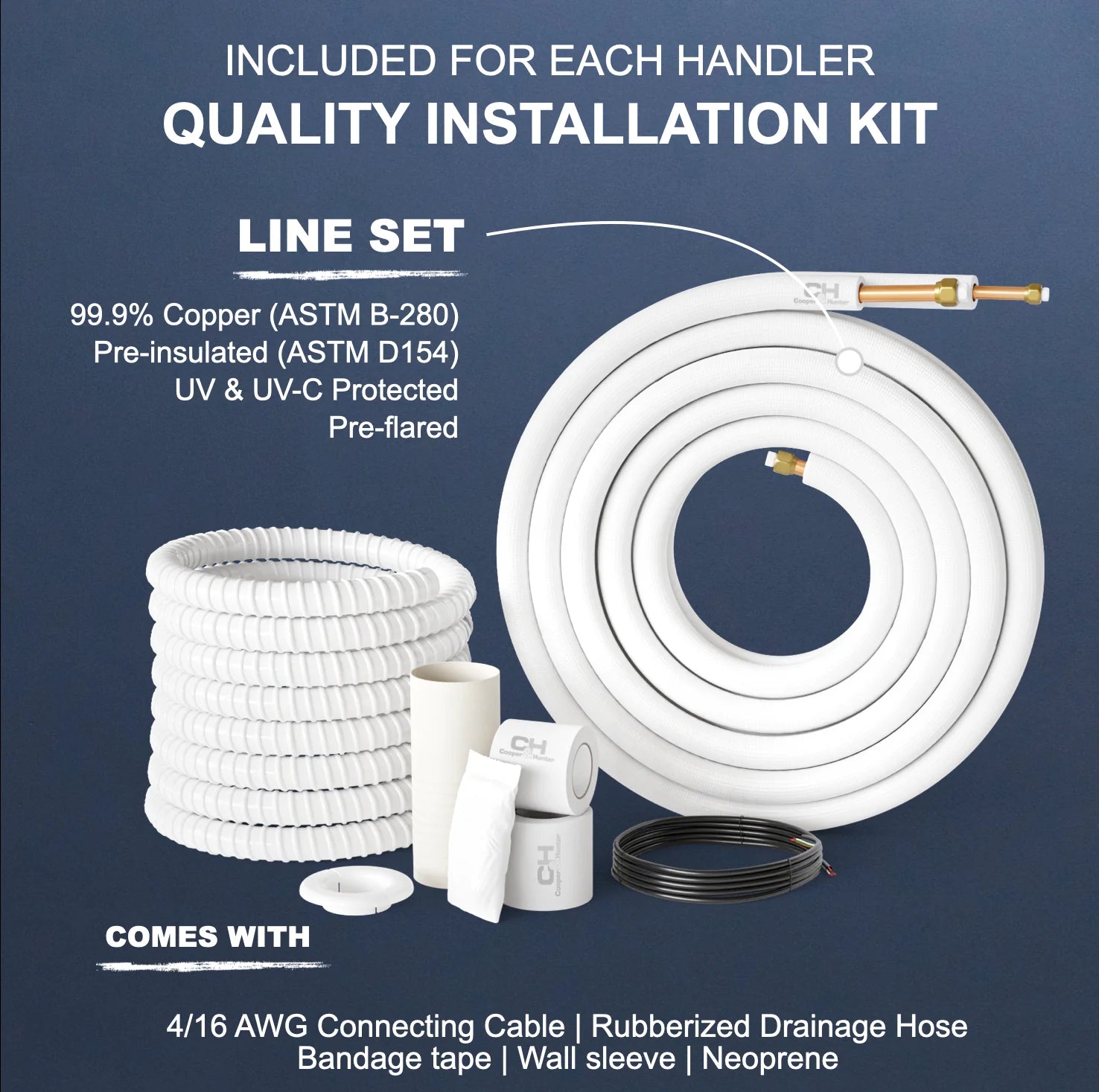

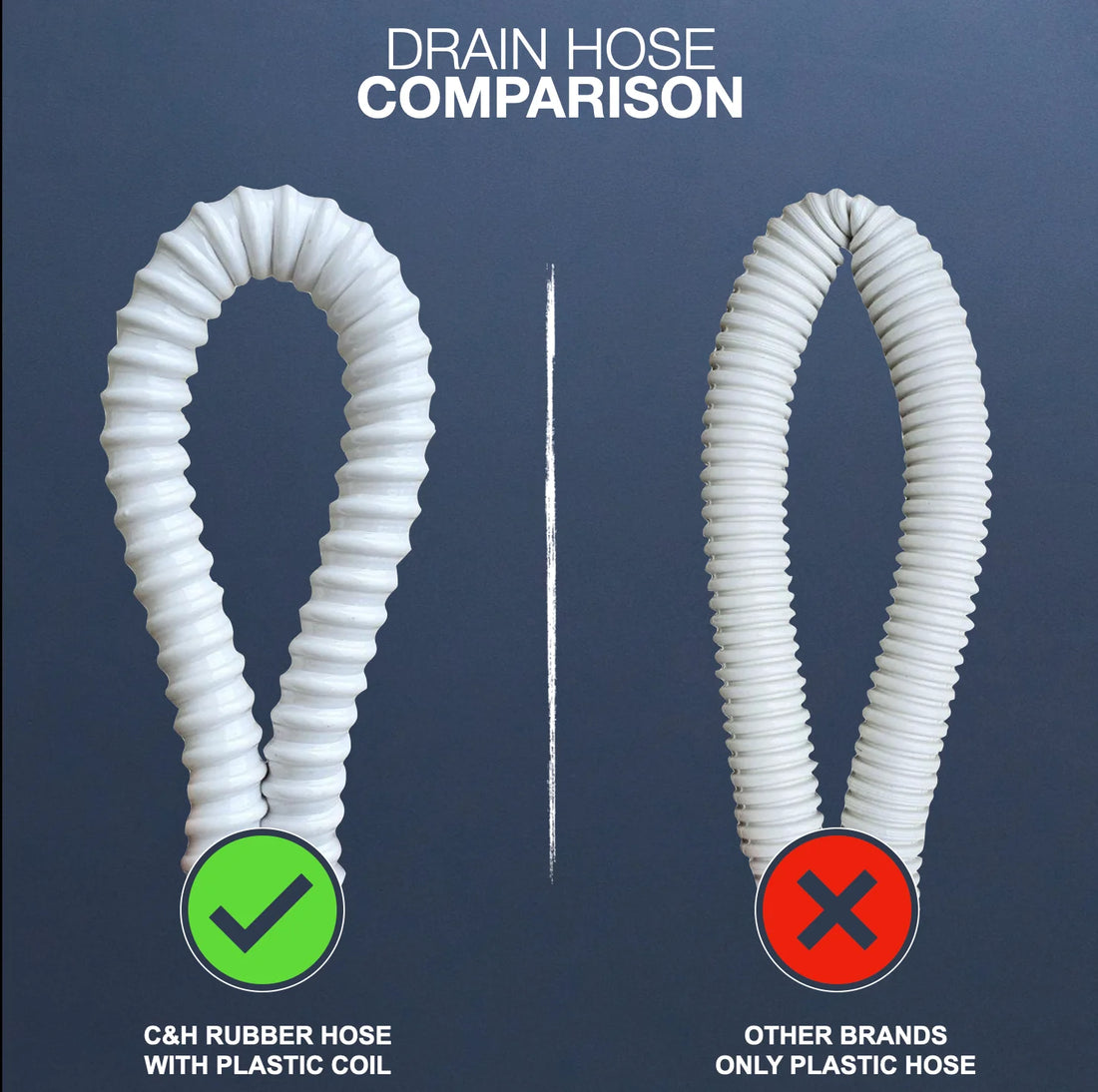

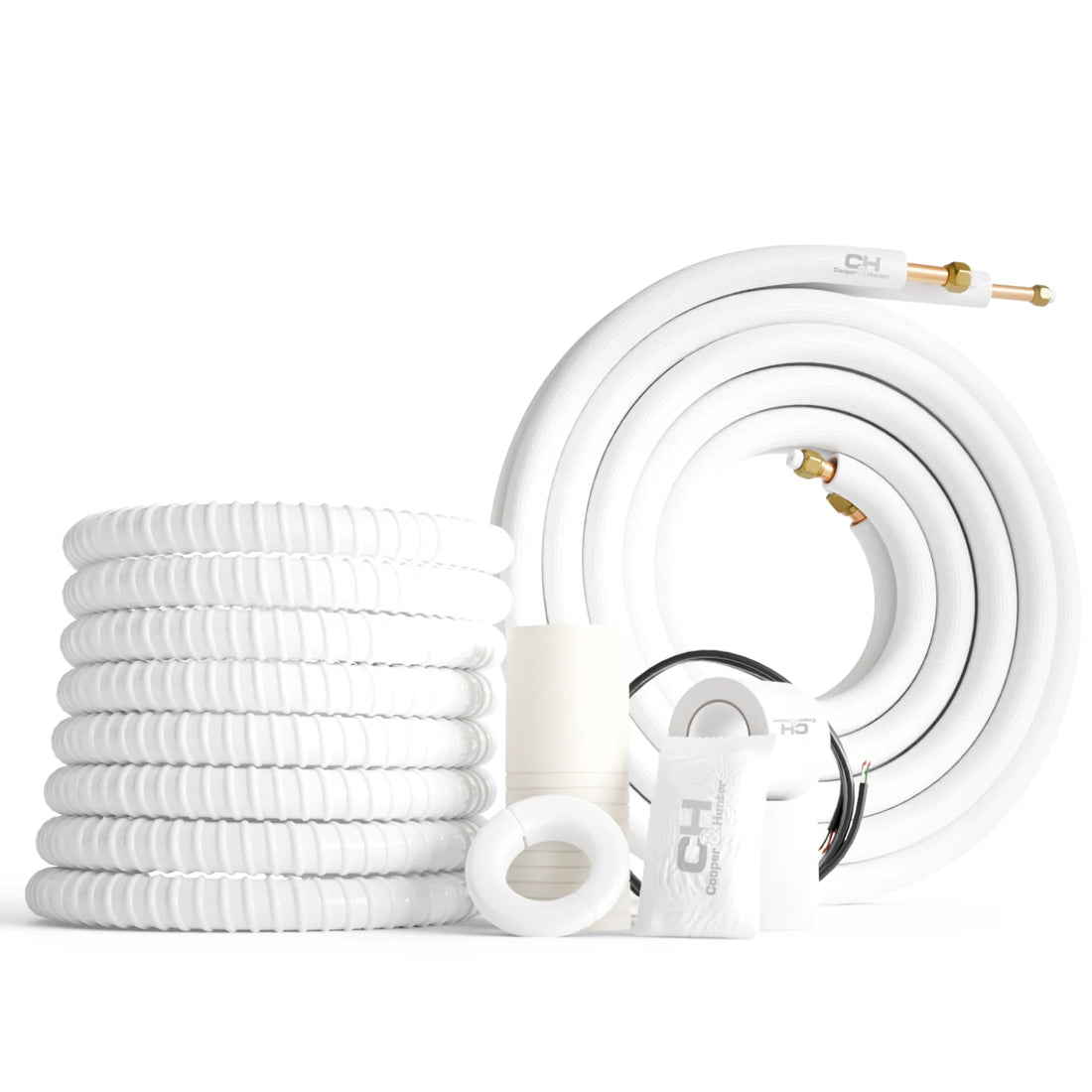

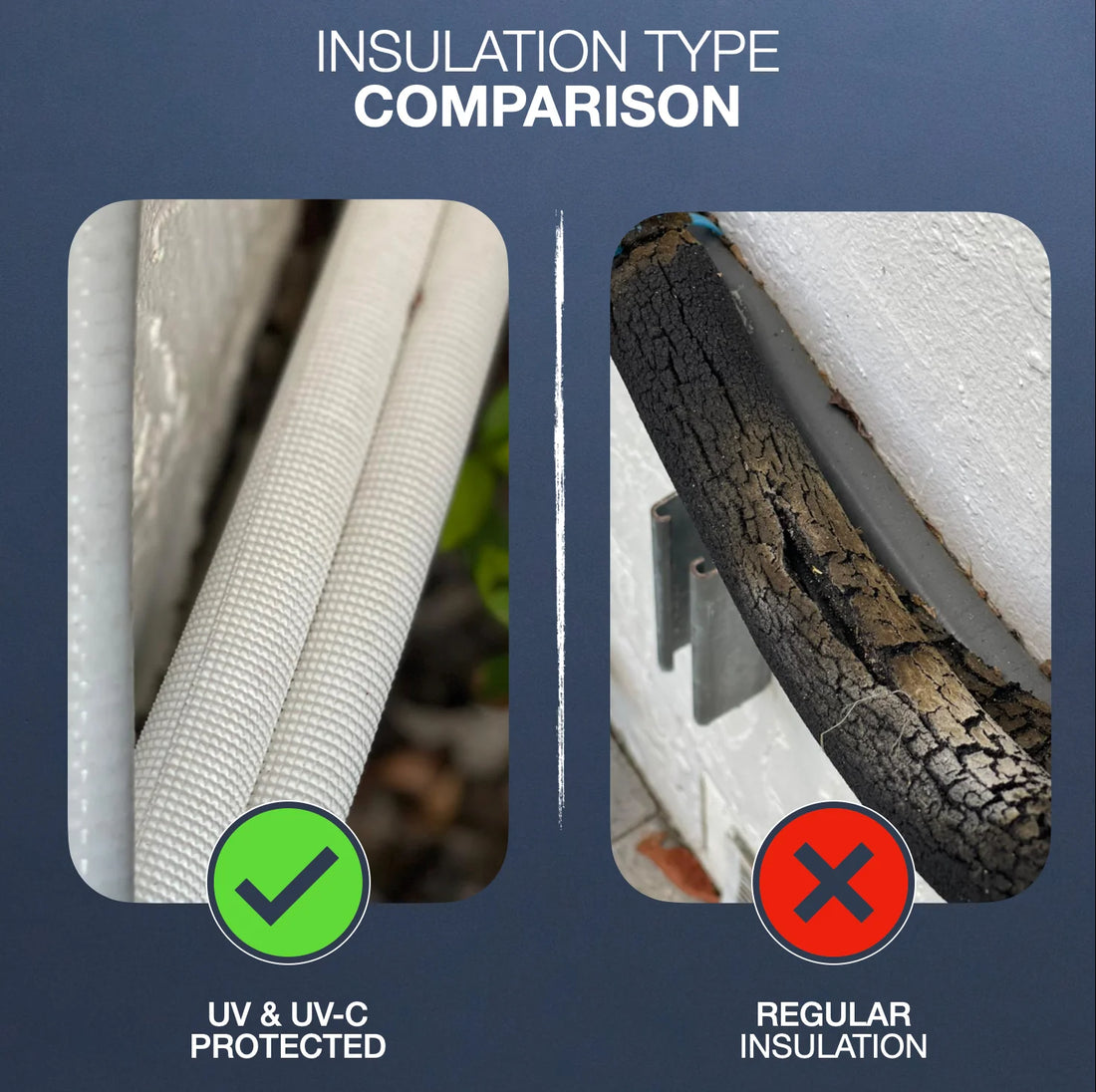

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function. This kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.


Warranty

  • 7 year compressor limited warranty
  • 5 year parts limited warranty (must be installed by a licensed HVAC technician)
  • 1 year remote control

Technical Information

Outdoor Unit: CH-HPR48M-230VO

Specification Details
System Type Multi-zone unit
BTU Rated 48,000 BTU
Power Source 208-230V, 1Ph, 60Hz
Dehumidification Value 6.85 pints/day
Max Pipe Length (ft) 262
Refrigerant Type R410A
Voltage Range (V) 187 - 253
Packing Dimensions (W x D x H in inches) 43.11 x 19.49 x 58.27
Refrigerant Piping 5x1/4" - 3x3/8"+2x1/2"
HSPF2-5 7.6
HSPF2-4 9.8
EER2 11.7
Cooling Capacity (Min/Max) (BTU/h) 48,000 (19,300~51,000)
SEER2 21.8
Unit Net/Gross Weight (lbs) 238.32/269.84
Unit Dimensions (W x H x D in inches) 37.48 x 16.34 x 52.48
Refrigerant Precharge up to 125 ft
Outdoor Noise Level (dB) 65
Outdoor Air Flow (CFM) 4500
Minimum Circuit Ampacity (A) 42
Max. Fuse (A) 50
Max Height Difference Between Indoor and Outdoor Unit (ft) 49.21
Heating Capacity (Min/Max) (BTU/h) 49,000 (11,500~58,000)
COP 3.8
Ambient Temperature - Heating (°F) -22~75
Ambient Temperature - Cooling (°F) 5~122
Additional Refrigerant Charge (3/8" Liquid Line) 0.32 oz/ft

Indoor Unit: CH-12MOLVWM-230VI

Specification Details
BTU Rated 12,000 BTU
Power Source 208/230V, 1Ph, 60Hz
Rated Capacity (Btu/h) 12,000
Minimum Circuit Ampacity (A) 3
Max. Fuse (A) 15
Indoor Air Flow (CFM) 341/291/194/152
Indoor Noise Level (dB(A)) 41.5/36/24
Dimensions (WxDxH in inches) 31.57x7.87x11.61
Packing Dimensions (WxDxH in inches) 34.45x11.22x14.96
Net/Gross Weight (lbs) 18.74/24.25
Room Temperature Range - Cooling (°F) 60-90
Room Temperature Range - Heating (°F) 32-86
Refrigerant Piping (Liquid/Gas side in inches) 1/4" / 1/2"

Indoor Unit: CH-36ELVWM-230VI

Specification Details
BTU Rated 36,000 BTU
Power Source 208/230V, 1Ph, 60Hz
Rated Capacity (Btu/h) 36,000
Minimum Circuit Ampacity (A) 3
Max. Fuse (A) 15
Indoor Air Flow (CFM) 794/652/447/329
Indoor Noise Level (dB(A)) 54/45/40
Dimensions (WxDxH in inches) 49.57x11.14x14.25
Packing Dimensions (WxDxH in inches) 52.76x17.72x15.16
Net/Gross Weight (lbs) 42.77/55.56
Room Temperature Range - Cooling (°F) 60-90
Room Temperature Range - Heating (°F) 32-86
Refrigerant Piping (Liquid/Gas side in inches) 3/8"/5/8"

Certifications
