4 Zone 36K BTU Olivia Series Wall Mount Ductless Mini Split A/C and Heat Pump 9k+9k+12k+18k with 25ft Installation Kits, 23.9 SEER 3 Ton Quad Zone Multi Zone System with Wi-Fi Adapter Included, R410A

Name: 4 Zone 36K BTU Olivia Series Wall Mount Ductles...
SKU: 2XCH-09MOLVWM-230VI+CH-12MOLVWM-230VI+CH-18MOLVWM-230VI+CH-36MES-230VO
Price: 5015.0 USD
Availability: InStock
Rating: 4.5 (2 reviews)

SKU: 2X CH-09MOLVWM-230VI + CH-12MOLVWM-230VI + CH-18MOLVWM-230VI + CH-36MES-230VO

Free Shipping on orders above $300

No sales tax except in TX, FL, & PA!

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Price

$5,015.00

$5,015.00 ~~$4,225.00~~

save $-790.00

Sold out

save $-790.00

Quantity

NOTE: The default selection does not include an installation kit. Upgrade your selection to add to your order.

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

Cooper & Hunter Olivia Series 36,000 BTU 4-Zone Mini Split System (2x9k + 1x12k + 1x18k BTU), R410A, 23.9 SEER Inverter Heat Pump, Includes Wi-Fi Adapter

Summary

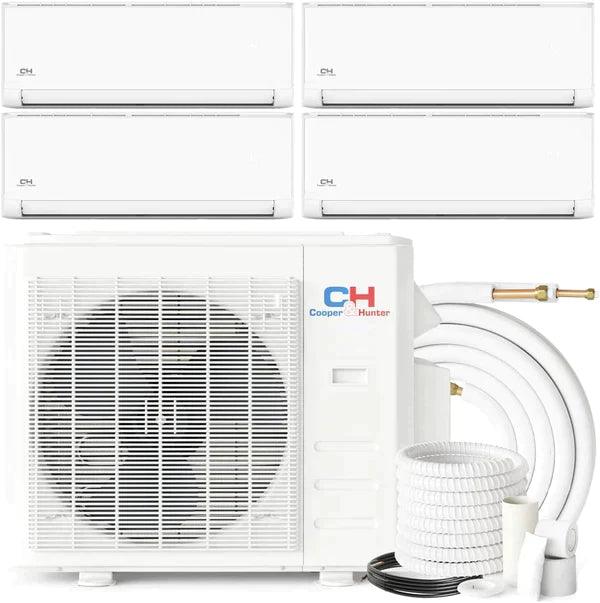

The Cooper & Hunter Olivia Series system features a 36,000 BTU outdoor unit paired with two 9,000 BTU, one 12,000 BTU, and one 18,000 BTU wall-mounted indoor units. This high-efficiency DC inverter heat pump provides independent temperature control in 4 zones and operates efficiently down to -13°F in heating mode.

Included in Your Order:

Cooper & Hunter Olivia Series Ductless Mini Split System (36,000 BTU Inverter with Heat Pump)

Outdoor Unit: 36,000 BTU (1pc) – Model: CH-36MES-230VO

Indoor Units:

9,000 BTU (2pcs with remotes) – Model: CH-09MOLVWM-230VI
12,000 BTU (1pc with remote) – Model: CH-12MOLVWM-230VI
18,000 BTU (1pc with remote) – Model: CH-18MOLVWM-230VI

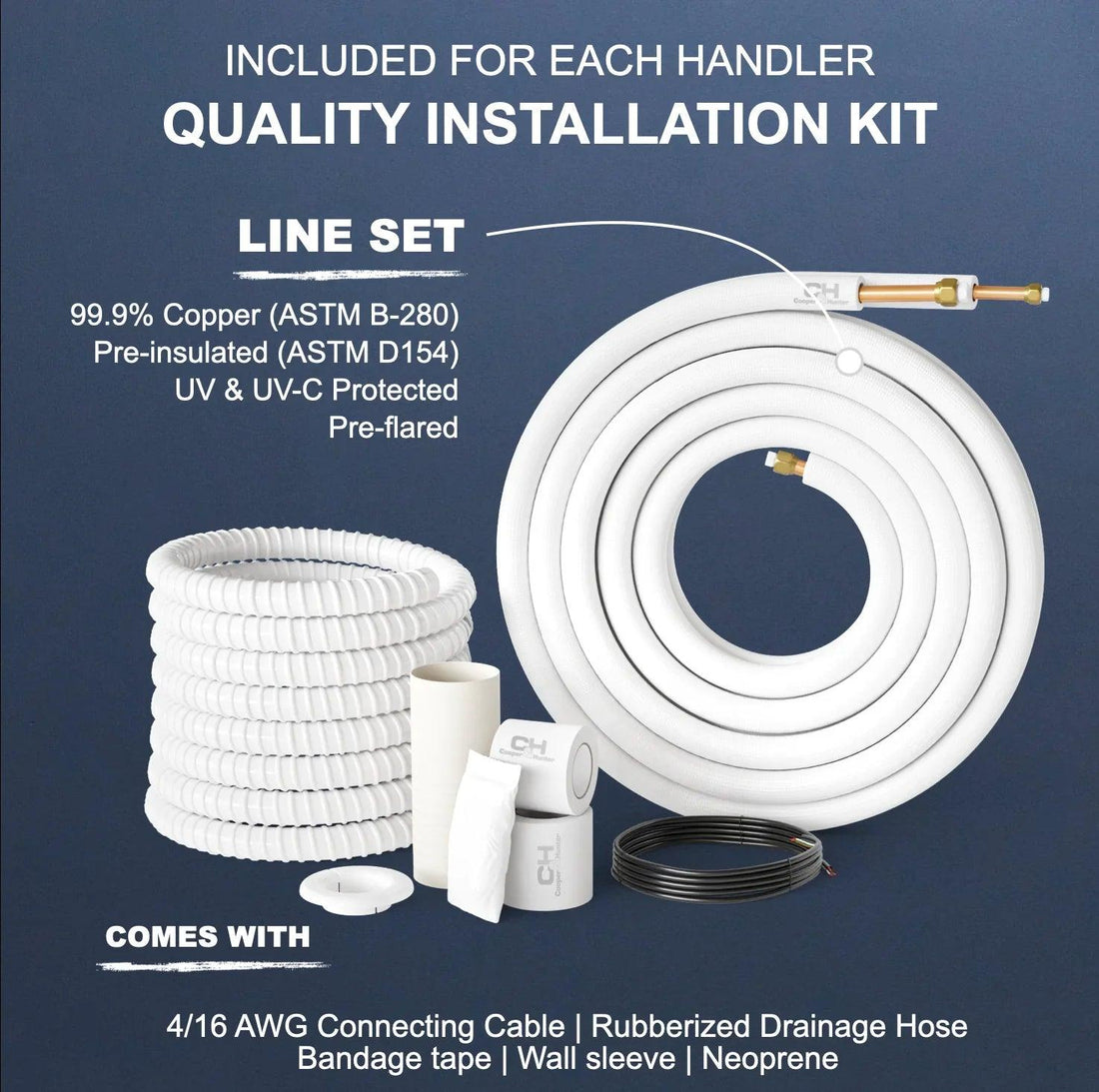

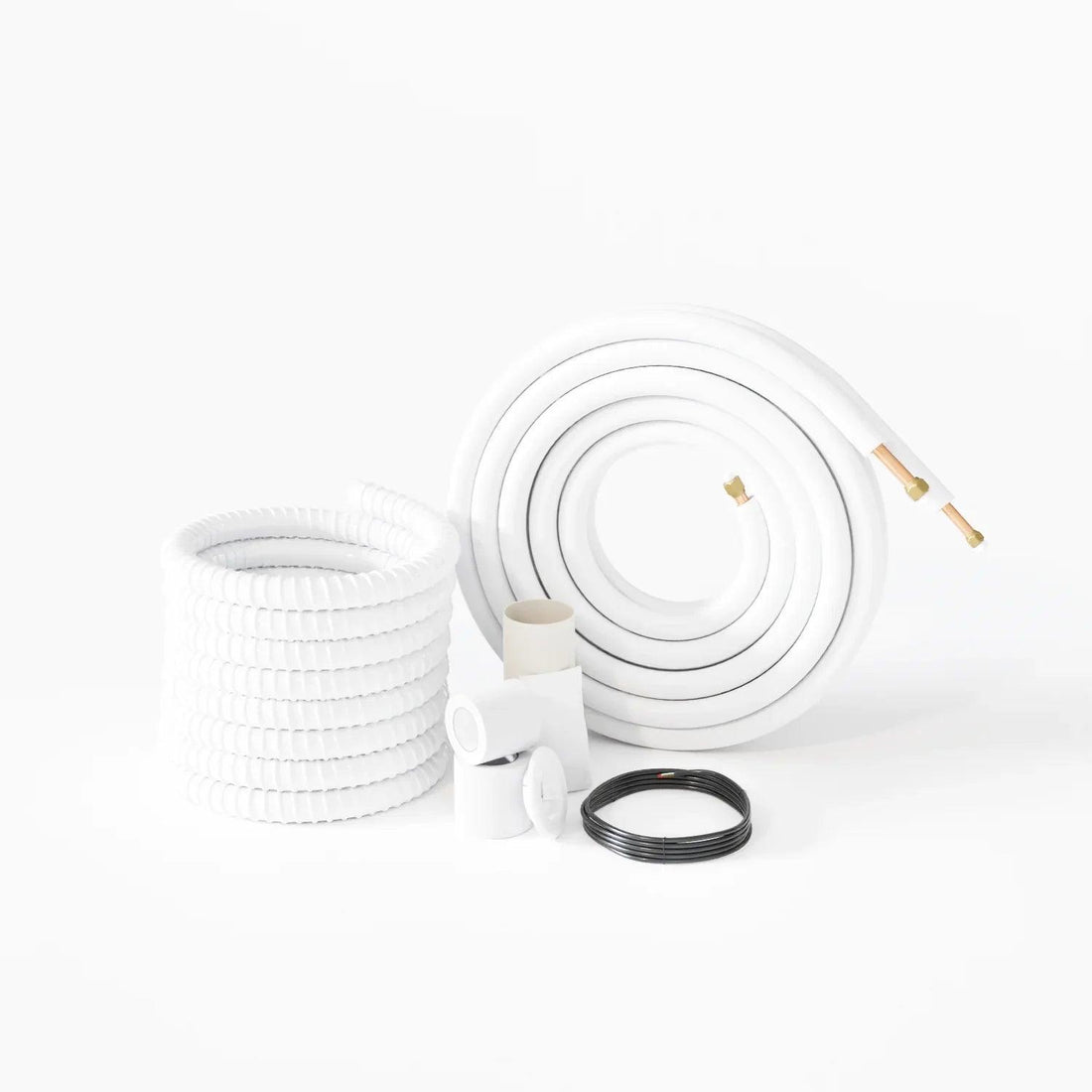

Installation Kits (25ft for each zone - 4 kits included)

Wireless Remote Controls (4 remotes)

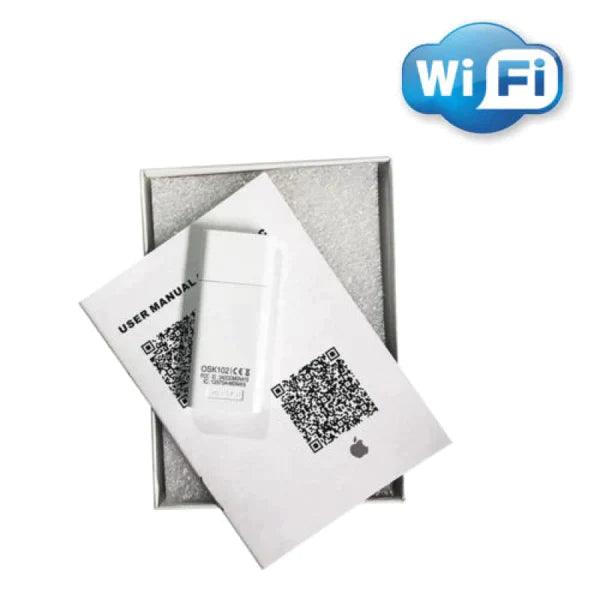

Wi-Fi Adapter (17310900A05963)

Installation Manual

User's Manual

Manufacturer Warranty

Key Features:

4-zone independent temperature control
High efficiency operation (23.9 SEER2)
Heats down to -13°F ambient temperature
Auto-Swing horizontal/vertical louvers
Turbo Mode for rapid cooling/heating
Self-Clean Function
Wi-Fi ready (adapter included)
Quiet operation (as low as 23.5 dB indoors)
Energy-saving inverter technology

Important Notes

Professional installation required for warranty validation. Registration must be completed within 60 days of installation. Includes four 25ft installation kits (one per zone).

Complete Technical Specifications

Indoor Unit: CH-09MOLVWM-230VI (9,000 BTU)

Specification	Details
BTU Rated	9,000
Power Supply	208/230V, 1Ph, 60Hz
Air Flow (Turbo/Hi/Mi/Lo)	341/291/194/152 CFM
Noise Level (Hi/Mi/Lo)	40/35/23.5 dB(A)
Dimensions (WxDxH)	31.57×7.87×11.61 in
Net/Gross Weight	18.96/24.25 lbs
Refrigerant Piping	1/4" (liquid) / 3/8" (gas)

Indoor Unit: CH-12MOLVWM-230VI (12,000 BTU)

Specification	Details
BTU Rated	12,000
Power Supply	208/230V, 1Ph, 60Hz
Air Flow (Turbo/Hi/Mi/Lo)	341/291/194/152 CFM
Noise Level (Hi/Mi/Lo)	41.5/36/24 dB(A)
Dimensions (WxDxH)	31.57×7.87×11.61 in
Net/Gross Weight	18.74/24.25 lbs
Refrigerant Piping	1/4" (liquid) / 1/2" (gas)

Indoor Unit: CH-18MOLVWM-230VI (18,000 BTU)

Specification	Details
BTU Rated	18,000
Power Supply	208/230V, 1Ph, 60Hz
Air Flow (Turbo/Hi/Mi/Lo)	760/530/458/382 CFM
Noise Level (Hi/Mi/Lo)	46/40/25 dB(A)
Dimensions (WxDxH)	42.64×9.61×13.23 in
Net/Gross Weight	29.54/37.48 lbs
Refrigerant Piping	1/4" (liquid) / 1/2" (gas)

Outdoor Unit: CH-36MES-230VO (36,000 BTU)

Specification	Details
Cooling Capacity	36,000 BTU/h (8,209-40,555 range)
Heating Capacity	37,000 BTU/h (8,008-44,632 range)
Power Supply	208-230V, 1Ph, 60Hz
SEER2	23.9
HSPF2-4	9.3
Minimum Circuit Ampacity	25A
Max Fuse	40A
Refrigerant	R410A (Up to 100 oz)
Max Pipe Length	262 ft
Dimensions (WxDxH)	37.24×16.14×31.89 in
Weight (Net/Gross)	169.09/181.44 lbs

Warranty Information

7-Year Compressor Warranty
5-Year Parts Warranty
1-Year Remote Control Warranty

Warranty requires professional installation and registration within 60 days.
