Product Overview
Full product descriptionRead the longer product copy, features, and application notes.+

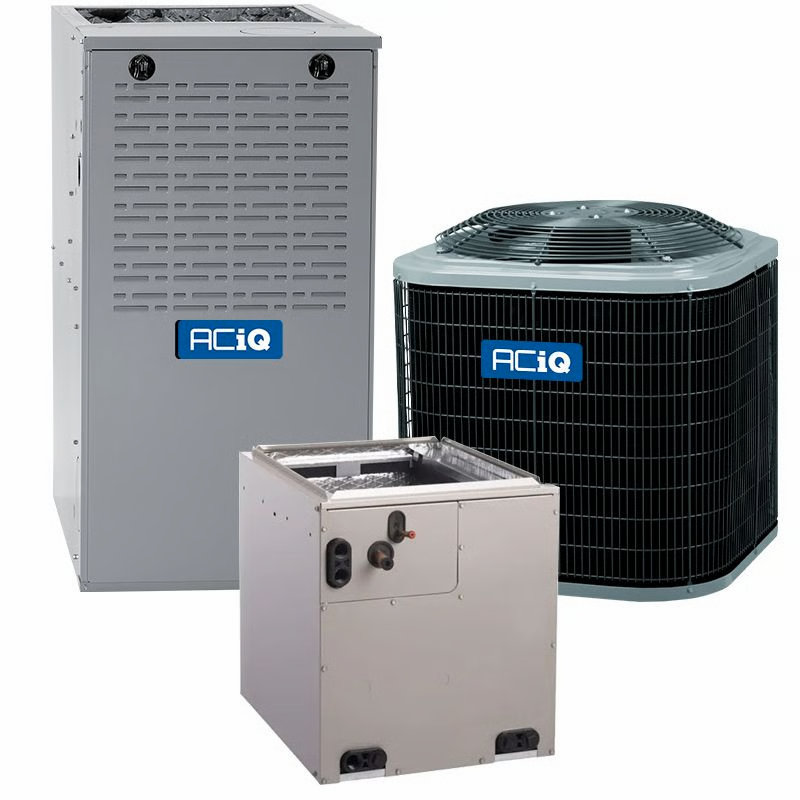

With tons of extra features and a great price, an ACiQ furnace and air conditioning system is the perfect choice for all of your heating and cooling needs for any time of year. All ACiQ models come with a 10 year parts warranty.
4 Ton 13.8 SEER2 ACiQ Air Conditioner Condenser - R454B
OVERVIEW
The ACiQ R5A5S48AKAWA is a standard AC-only condenser. Designed with comfort in mind and an inexpensive but higher-than-standard efficiency option for nearly any application, this condenser is considered a good all-around option for almost any application.
QUICK FACTS
Factory pre-charged with enough refrigerant for a 15-foot line set, ensuring proper performance and efficiency right out of the box.
4 Ton 13.8 SEER2 ACiQ Air Conditioner Condenser
Can cool a medium to large house in average conditions
Single stage compressor
Pre-charged with R454B refrigerant
Filter drier included to be field-installed
4 Tons
The ACiQ R5A5S48AKAWA air conditioner condenser has an output of 4 tons, generally enough to cool a medium to large house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit.Please note that this condenser cannot function or provide any sort of heating on its own, and it needs an indoor coil or air handler to work. If you have any questions, please contact us.
13.8 SEER2
The ACiQ R5A5S48AKAWA air conditioner condenser is rated at 13.8 SEER2, making it between 5-7% more efficient than standard 13.4 SEER2 units, saving you money in electric bills over the entire lifetime of your unit.
Warranty
ACiQ offers a 10 year parts warranty on this condenser. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer.
Durability
The cabinet of ACiQ units are extremely durable. On the R5A5S48AKAWA, there are reinforced corner posts and the internals of the unit are protected by an additional inlet grille, all to provide enhanced protection to the unit.
Disclaimer:This condenser contains R454B refrigerant, which is classified as an A2L refrigerant. To comply with safety standards, this unit must be paired with an R454B air handler or evaporator coil equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-557-9206 if you have any questions.
All ACiQ condensers come pre-charged with enough refrigerant for a 15-foot line set, making installation faster and more convenient. This pre-charged design saves installers time and reduces labor costs by eliminating the need for manual refrigerant charging. It also helps ensure the system starts with the correct amount of refrigerant, minimizing the risk of improper charging that could impact performance and efficiency. If a longer line set is required, your installer will need to add additional refrigerant to maintain optimal operation.
Quiet Comfort
ACiQ has the power to keep things cool when temperatures rise. Every ACiQ condenser uses a scroll compressor for long life and efficiency operation. From entry level to high efficient, single stage, two stage and communicating models, every ACiQ Condenser keeps you cool year after year.
High Efficiency
ACIQ saves you money up front, but also over time by reducing energy bills. Models ranging from standard efficiency to high efficient models can provide you savings from 21% to 63% over older, 10 SEER condensers. Coil construction is either all aluminum or copper/aluminum (depending on model) for max efficiency.
Longer life, longer warranty
ACiQ condensers are 100% run-tested at the factory. Protective coatings on the fins mean long life even in harsh conditions. A filter drier is included to keep the system healthy. ACiQ’s extended warranty with online registration provides 10 year protection.
ACiQ patent-pending multipoise evaporator coil with Power-V technology features a V-shape coil design provides excellent heat transfer over the coil needed to keep your system operating at peak energy efficiency and delivering consistent comfort.
Features
Cased V coil design for efficient heat transfer in a compact size.
Corrosion-resistant drain pan is designed in a Polybutylene Terephthalate (PBT) material that offers unsurpassed pan strength.
The V-coil design has a lighter, corrosion-resistant aluminum construction that increases system efficiency and durability. The all-aluminum recyclable coils supports our respect for the environment while providing durable and lasting resistance to multiple sources of corrosion.
The multipoise design allows the flexibility for the coil to be installed in multiple orientations, including upflow, downflow and horizontal applications.
ACiQ's V-coils with Power-V Technology features a variety of design improvements that allow for improved installation and serviceability by your HVAC technician.
66,000 BTU 80% AFUE Single Stage Multi-Positional ACiQ Gas Furnace
OVERVIEW
The ACiQ N80MSN0702116A is an inexpensive model of furnace to provide reasonable comfort to your home. At a basic efficiency, this furnace will heat your home adequately with the right output, providing comfort to your home even in the coldest parts of the year.
QUICK FACTS
66,000 BTU, 80% AFUE natural gas furnace
Generally suitable for up to a small to medium house in ideal applications
Multi-positional design - can be installed in the upflow, downflow, or horizontal orientations
Single stage burner with a multi-speed blower
Field-convertible to propane with an optional LP kit
On board self-diagnostics
66,000 BTU, 80% AFUE
The ACiQ N80MSN0702116A has an input of 66,000 BTU. With an efficiency of 80%, this means that the furnace has an output of 52,800 BTU. The 80% AFUE also means that for the gas going into the furnace, 80% of it is used to heat your home while the remaining 20% is lost out the flue piping and lost to normal furnace operations. All 80% furnaces require metal flue venting, and if you need it to be plastic/PVC venting a furnace with an efficiency of 90% or above is required. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost.Please note that this furnace is not Low NOx or Ultra Low NOx compliant and if shipped to California may be subject to a mitigation fee.
Warranty
ACiQ offers 10 year parts and 20 year heat exchanger limited warranties. Please note that in order for the heat exchanger and parts warranties to be upheld, the unit must be registered through the manufacturer within 90 days of installation. The installation must also follow your state and local codes.
Installation and Durability
With its ability to be installed in any configuration (upflow, downflow, or horizontal) the ACiQ N80MSN0702116A is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round.Please note that this furnace is not intended for mobile home installation on its own.
Quiet Comfort
Every ACiQ furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.
High Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.
Longer life, longer warranty
Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. Every furnace is backed by ACiQ’s 10 year, 20 year or lifetime (depending on model) heat exchanger extended warranty with online registration.
4 Ton 14.3 SEER2 ACiQ Air Conditioner Condenser - R454B
SKU
R5A5S48AKAWA
Weight
198.000000
Manufacturer
ACiQ
Replaces
R4A5S
Cooling BTU
48000
Maximum CFM
3100
Decibel Level (dBA)
75
Motor RPM
1100
Horsepower
1/5 HP
Refrigerant
R454B
SEER2
14.3
Condenser Stages
Single Stage
Compressor Type
Scroll
Liquid Valve Size
3/8"
Suction Valve Size
7/8"
Electrical
208 / 230 V. 1 Phase 60 Hz
Tonnage
4 Ton
Height
31 11/16"
Width
31 3/16"
Depth
31 3/16"
Warranty
10 Year Parts Limited Warranty with Online Registration
You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.
Helpful answers matched to this product, brand, specs, and configuration.
What types of products does ACiQ offer?
ACiQ offers a broad range of heating, cooling, ventilation, thermostat, and water-heating products. Its catalog includes mini splits, central air conditioners and heat pumps, furnaces, air handlers, PTAC systems, mobile-home HVAC equipment, commercial systems, thermostats, ventilation products, and hybrid water heaters. Availability and specifications vary by model.
How can I contact ACiQ technical support or customer service?
ACiQ provides support through its official contact form and by phone at 1-877-909-ACiQ. The published support hours are Monday through Friday, 8:00 a.m. to 5:00 p.m. Have the model number, serial number, and a clear description of the question or problem ready.
What information is needed to register an ACiQ product?
ACiQ’s registration form requests the part number, serial number, purchase date, installation date, customer contact and address information, and installer details, including the installer name, license number, and phone number or other identifying information.
How can I request a replacement part for an ACiQ product?
Submit a request through the official ACiQ Parts Quote form or contact ACiQ parts support. Include the SKU or model number and a clear description of the part needed so the parts team can identify the correct component.
Where can I find manuals and technical documents for an ACiQ product?
Use the official ACiQ Tech Center and select the appropriate product category. ACiQ organizes installation manuals, owner manuals, specification sheets, wiring diagrams, troubleshooting guides, warranty documents, and other technical resources by product family and model.
How do I start an ACiQ warranty claim?
Start with ACiQ’s official warranty claim form. Be prepared to provide the owner’s contact information, the equipment model number, a description of the issue, and any supporting files requested. Additional diagnosis and equipment documentation may be required before the claim is approved.
What diagnosis is required for an ACiQ warranty issue?
ACiQ states that a factory-authorized, EPA-certified contractor must diagnose the equipment. The submission should include the diagnostic procedure, the required part number or part description, and the model and serial numbers. ACiQ may also request the original installation invoice.
Does an ACiQ warranty claim cover labor and shipping costs?
ACiQ’s published warranty-resolution process states that round-trip shipping and labor associated with diagnosis and part replacement are not reimbursed. Coverage can vary by product and jurisdiction, so review the exact warranty certificate for the equipment before proceeding.
How do I register an ACiQ product for warranty coverage?
Register the equipment through ACiQ’s official online warranty registration form. Add each unit being registered and submit the requested equipment, customer, purchase, installation, and installer information. Keep a copy of the completed registration and related purchase and installation records.
How can I check an ACiQ warranty registration or coverage status?
Use ACiQ’s Warranty Finder to look up a registration, check its status, or provide missing information. Have the equipment and owner details available so the record can be matched accurately.
Does every ACiQ product have the same warranty coverage?
No. ACiQ warranty periods and conditions vary by product type and model. Review the warranty certificate listed for the exact equipment and use ACiQ’s warranty resources to confirm the applicable parts, compressor, replacement, registration, and eligibility terms.
