36,000 BTU 3 Zone 9k+12k+18k Ductless Mini Split with Installation Kits, 24.6 SEER 3 Ton Tri Zone Multi Air Conditioner System Wi-Fi Adapter Included

Name: 36,000 BTU 3 Zone 9k+12k+18k Ductless Mini Spli...
SKU: CH-36MES-230VO+CH-09MOLVWM-230VI+CH-12MOLVWM-230VI+CH-18MOLVWM-230VI
Price: 4492.0 USD
Availability: InStock
Rating: 4.5 (2 reviews)

SKU: CH-36MES-230VO + CH-09MOLVWM-230VI + CH-12MOLVWM-230VI + CH-18MOLVWM-230VI

Free Shipping on orders above $300

No Sales Tax in Select States

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Price

$4,492.00

$4,492.00 ~~$4,076.00~~

Sale Sold out

save $-416.00

Quantity

NOTE: The default selection does not include an installation kit. Upgrade your selection to add to your order.

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

Cooper & Hunter Multi-Zone 3 Ton 230V Olivia Series High Wall, Three Head, Wall-Mount Air Conditioning Unit for Heat Pump, Mini Split Inverter System, 23.9 SEER2 w/ Wi-Fi - (1x) CH-09MOLVWM-230VI + (1x) CH-12MOLVWM-230VI + (1x) CH-18MOLVWM-230VI + CH-36MES-230VO

Summary

The Olivia Series Multi-Zone Ductless Mini Split System features a high-efficiency 36,000 BTU outdoor unit (CH-36MES-230VO) paired with three indoor wall-mounted units (9K, 12K, and 18K BTU). This flexible configuration provides 23.9 SEER2 efficiency and operates down to -13°F for heating. The system delivers auto-swing louvers, Wi-Fi control, and Toshiba-GMCC inverter technology, this system provides precise temperature control for multiple zones.

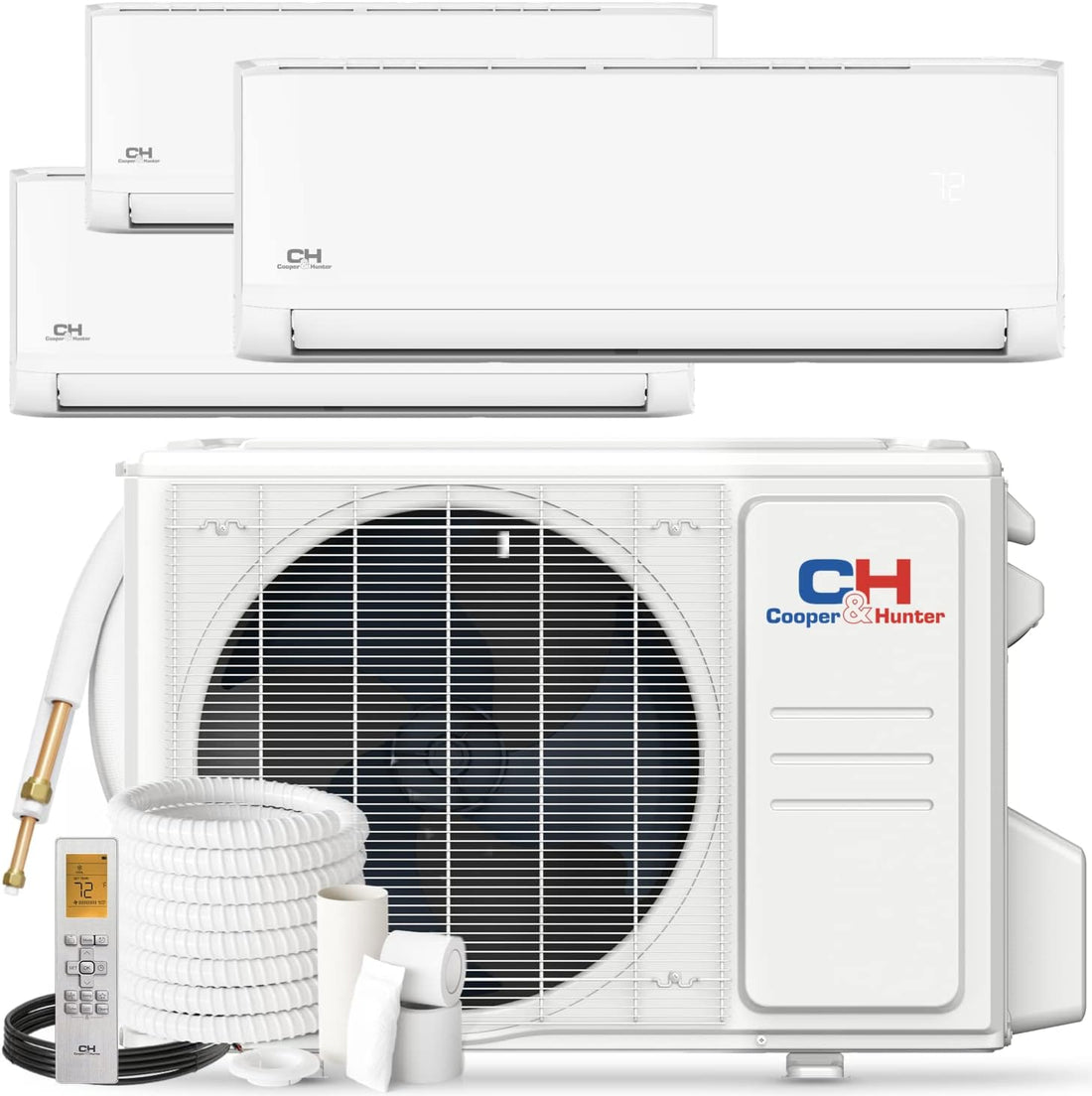

Included in Your Order:

Cooper & Hunter Multi-Zone Ductless Mini Split System (36,000 BTU Outdoor + 9K+12K+18K BTU Indoor)

Outdoor Unit: 36,000 BTU (1pc) – Model: CH-36MES-230VO

Indoor Units:

9,000 BTU (1pc with remote) – Model: CH-09MOLVWM-230VI
12,000 BTU (1pc with remote) – Model: CH-12MOLVWM-230VI
18,000 BTU (1pc with remote) – Model: CH-18MOLVWM-230VI

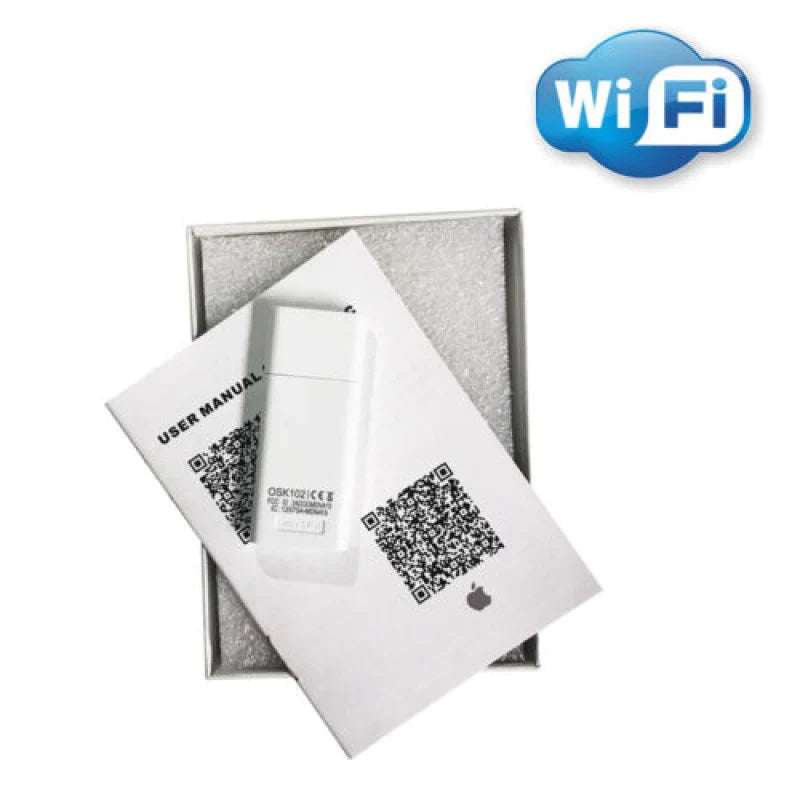

Wi-Fi Adapter (17310900A05963)

Wireless Remote Controls (3)

25Ft Installation Kit (3)

Installation Manual

User's Manual

Manufacturer Warranty

Key Features:

Three-zone flexibility with mixed capacity indoor units
Auto-Swing horizontal/vertical louvers
Heats down to -13°F ambient temperature
Turbo Mode (cooling/heating boost)
Self-Clean function prevents mold buildup
Follow Me mode (remote temperature sensing)
24V DC powered (no battery needed)
Quiet operation: 23.5-48 dB(A) indoor noise levels
Smart control via Wi-Fi and C&H Remote app
Energy Star certified (23.9 SEER2)

Important

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone (786-953-6706). Installation kits must be purchased separately. Available in 16ft, 25ft and 50ft lengths with pre-flared copper linesets (1/4"-3/8" for 9K/12K, 1/4"-1/2" for 18K units).

Warranty

7 year compressor limited warranty
5 year parts limited warranty (professional installation required)
1 year labor warranty (when installed by certified technician)
1 year remote control

Technical Information

Indoor Units

CH-09MOLVWM-230VI (9,000 BTU)

Dimensions: 31.57"W x 11.61"H x 7.87"D
Weight: 18.96 lbs (net), 24.25 lbs (gross)
Airflow: 341/291/194/152 CFM (Turbo/Hi/Med/Lo)
Noise: 40/35/23.5 dB(A)
Lineset: 1/4" (liquid) / 3/8" (gas)

CH-12MOLVWM-230VI (12,000 BTU)

Dimensions: 31.57"W x 11.61"H x 7.87"D
Weight: 18.74 lbs (net), 24.25 lbs (gross)
Airflow: 341/291/194/152 CFM
Noise: 41.5/36/24 dB(A)
Lineset: 1/4" (liquid) / 1/2" (gas)

CH-18MOLVWM-230VI (18,000 BTU)

Dimensions: 42.64"W x 13.23"H x 9.61"D
Weight: 29.54 lbs (net), 37.48 lbs (gross)
Airflow: 760/530/458/382 CFM
Noise: 46/40/25 dB(A)
Lineset: 1/4" (liquid) / 1/2" (gas)

Outdoor Unit: CH-36MES-230VO

Specification	Details
Dimensions	37.24"W x 31.89"H x 16.14"D
Weight	169.09 lbs (net), 181.44 lbs (gross)
Refrigerant	R410A (100oz pre-charge)
Electrical Data	25A MCA, 40A max fuse
Performance	23.9 SEER2, 9.3 HSPF2
Operating Range	-13°F to 122°F (Cooling), -13°F to 75°F (Heating)
Sound Level	63 dB(A) at full capacity
Piping	4x1/4" (liquid) / 3x3/8"+1x1/2" (gas)

Certifications

Performance Data/Features

Precision Control: ±1°F temperature maintenance
Airflow: 294-760 CFM per indoor unit
Dehumidification: 2.85-4.06 pints/hour per zone
Efficiency: 3.5 COP at 47°F heating
Defrost Cycle: Automatic reverse cycle
Filter Alert: Reminds when cleaning needed
Refrigerant Leak Detection: Automatic shutdown
