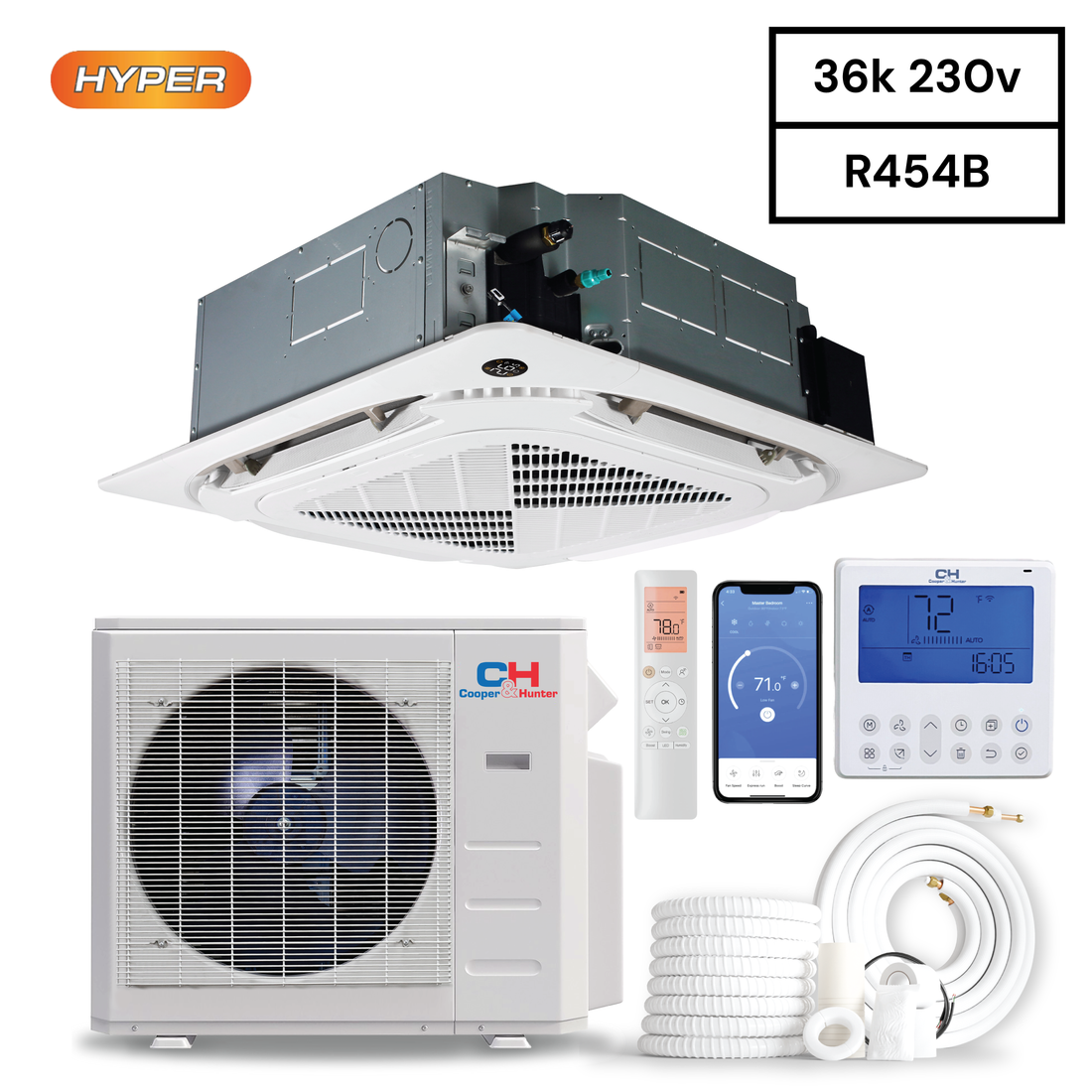

36,000 BTU 230V 21.2 SEER Ceiling Cassette, Hyper Series Light Commercial Ductless Mini Split 3 TON AC Heat Pump + Installation Kit Option CH-RH36LCCT-230VI + CH-RHP36LCU-230V0

Name: 36,000 BTU 230V 21.2 SEER Ceiling Cassette, Hyp...
SKU: CH-RH36LCCT-230VI+CH-RHP36LCU-230V0
Price: 3322.0 USD
Availability: InStock
Rating: 4.5 (2 reviews)

SKU: CH-RH36LCCT-230VI + CH-RHP36LCU-230V0

Free Shipping on orders above $300

No sales tax except in TX, FL, & PA!

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Price

$3,322.00

$3,322.00 ~~$3,020.00~~

save $-302.00

Sold out

INSTALLATION KIT OPTION NO INSTALLATION KIT 16FT 25FT 50FT

save $-302.00

save $-318.00

save $-322.00

save $-338.00

Quantity

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

Cooper&Hunter Four Way Ceiling Cassette HYPER R454B, 36,000 BTU 230V 18 SEER High Capacity Ductless Mini Split Air Conditioner, Heat Pump 2 TON + Installation Kit Option. CH-RH24MCT-230VI + CH-RHP24-230V0

Summary

The option to choose both, aesthetics and functionality is brought by Cooper&Hunter’s Ceiling Cassette mini split series. Ceiling Cassettes offer a convenient solution for offices and businesses, as they can easily fit into a standard ceiling grid, but they can be used for almost any application, as long as enough space exists above the ceiling itself. Ceiling Cassettes provide omnidirectional airflow and user-friendly Remote Control operation.

Ceiling Cassettes are designed to be controlled by our optional wall thermostat, the included remote control.

This series of mini splits is available in 9K, 12K, 18K, 24K (36K-48K in Single Zone Light Commercial Applications.) Btu/h models and can be paired with Regular or Hyper Heat Pump Outdoor Units. These systems can heat and cool your home or office effectively down to -13°F for Standard units and even down to -22°F for Hyper units.

Key Features:

Up to 22.7 SEER Efficiency: Delivers exceptional energy savings while maintaining powerful heating and cooling performance.
Four-Way Airflow Distribution: Ensures balanced and consistent comfort across every corner of the room.
Compact Ceiling Integration: Fits seamlessly into standard ceiling grids, ideal for spaces with limited wall or floor space.
Quiet Operation: Provides optimal performance without disruptive noise, making it perfect for peaceful environments.
Smart Control Ready: Compatible with smart controls, allowing for convenient operation via remote or mobile app.
Integrated Drain Pump: Built-in pump simplifies condensation removal for hassle-free operation and maintenance.
Optional installation kit available
-13°F low-temperature heating capability

Important

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function. Ensure that you have selected the desired installation kit above. This kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.

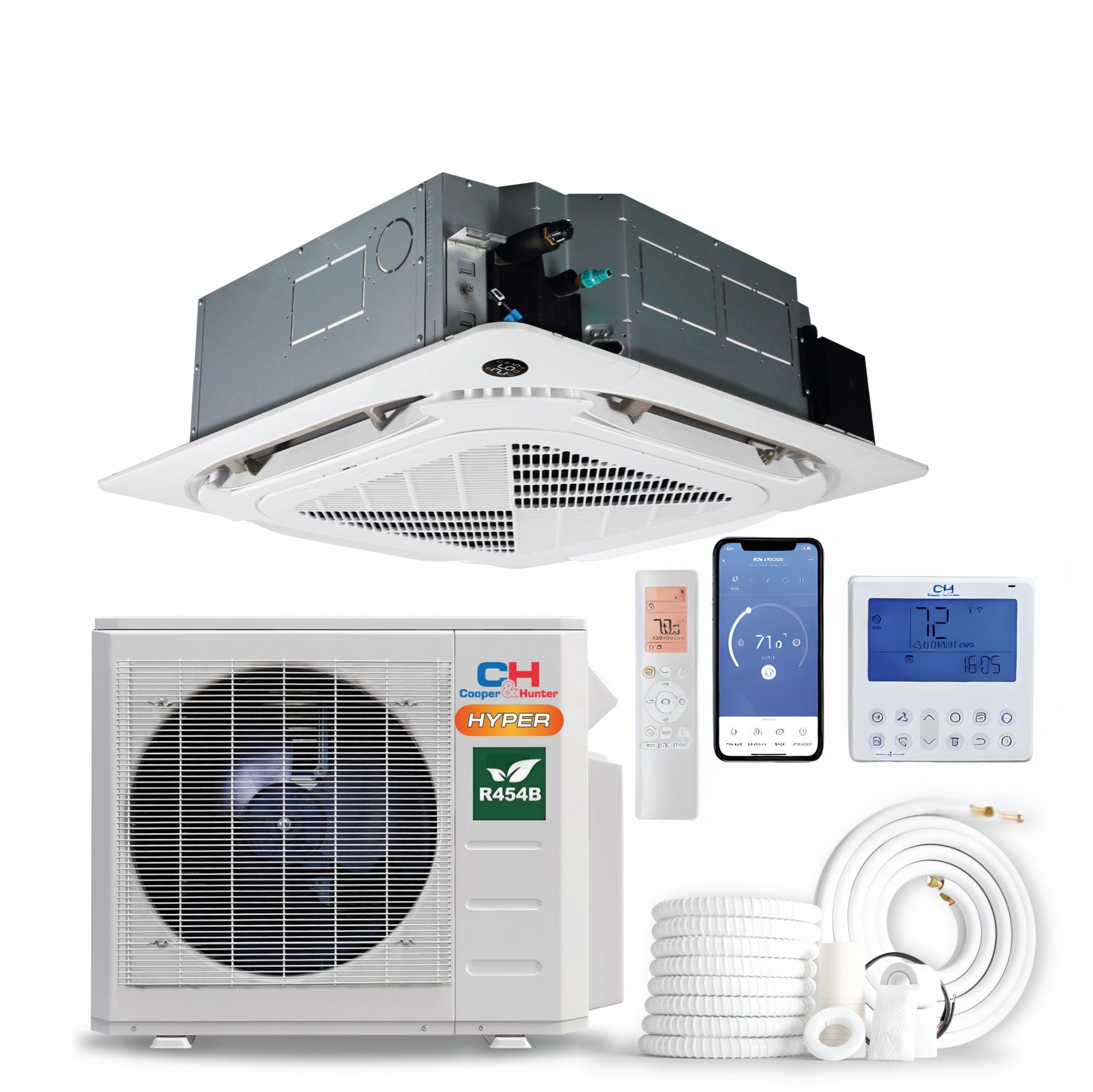

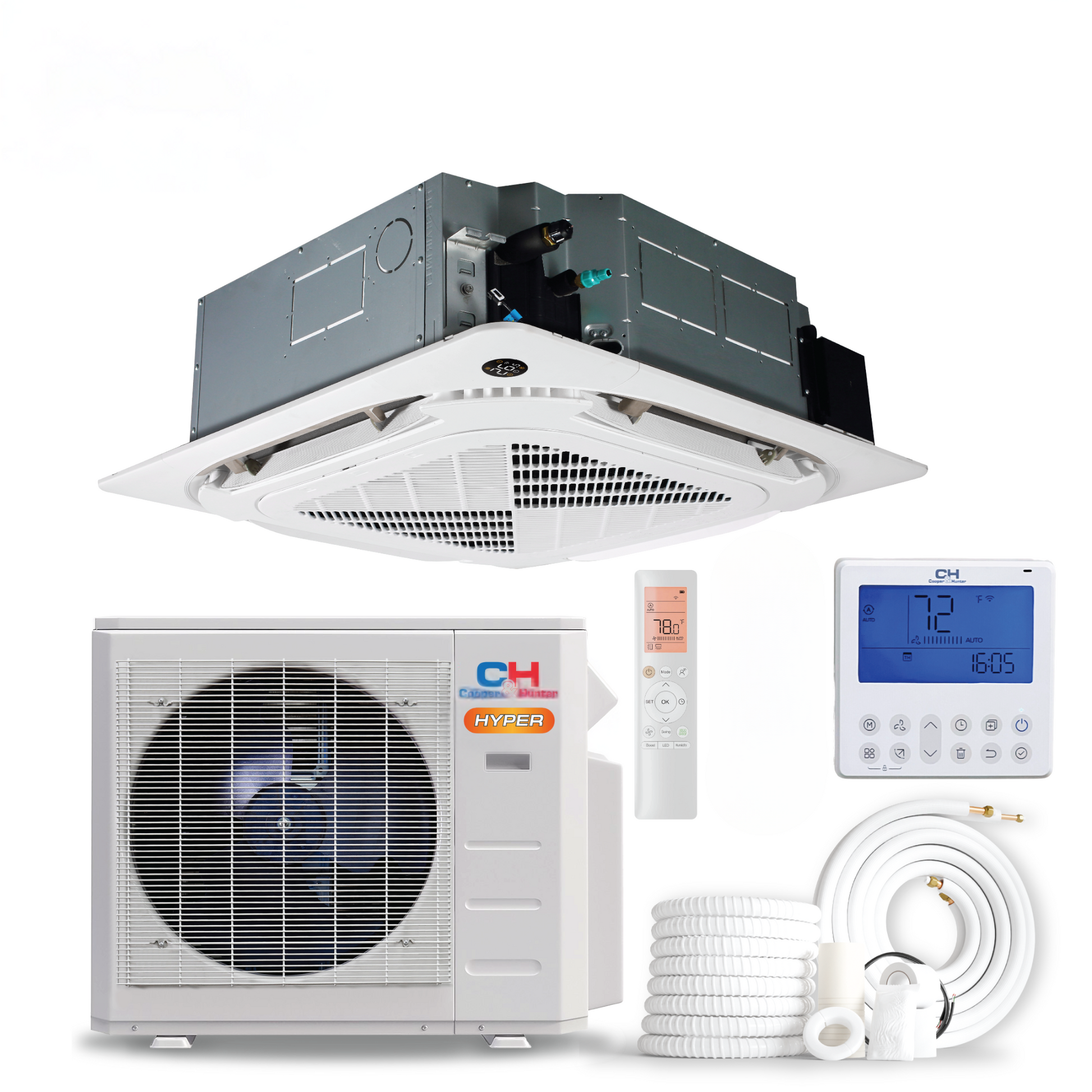

What's Included

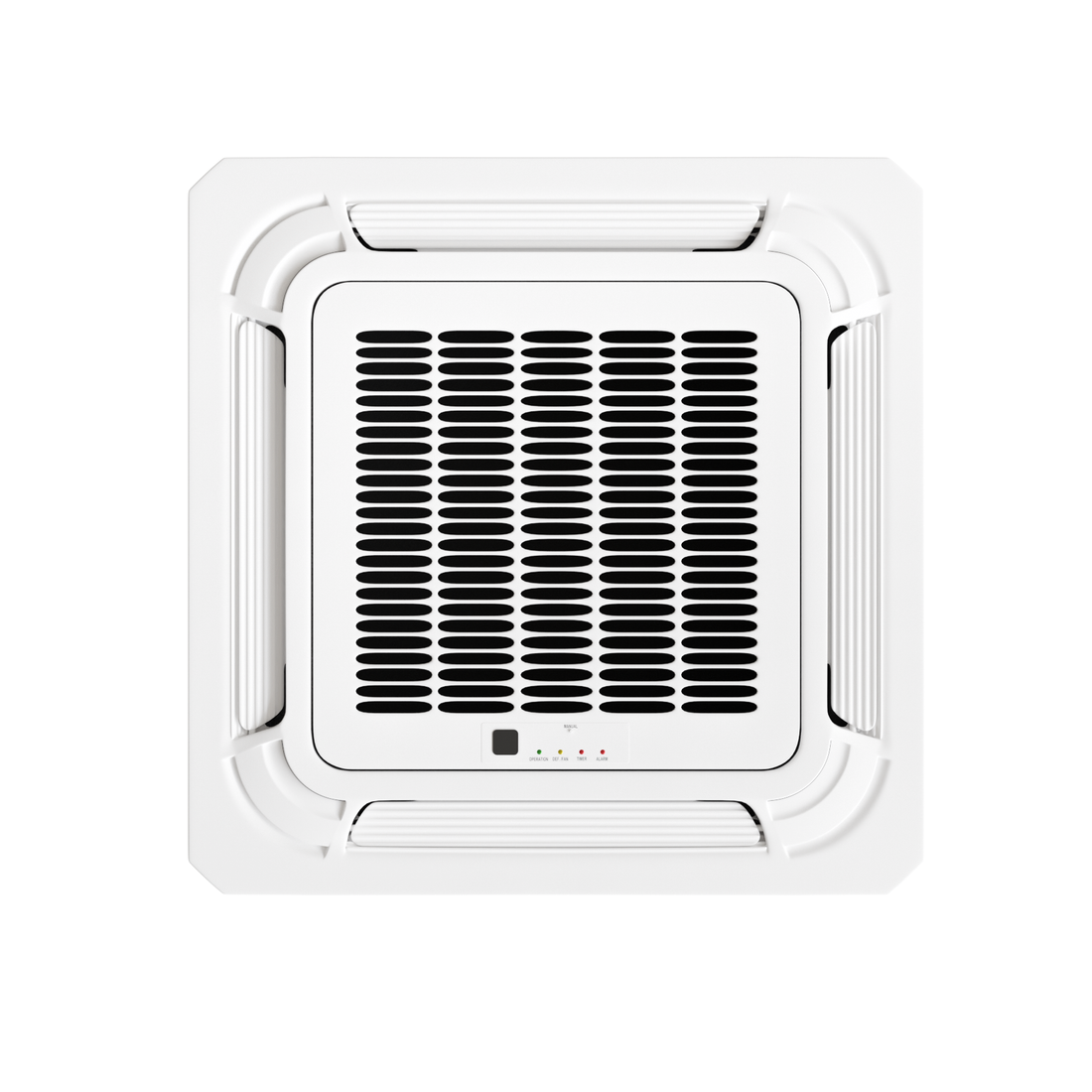

Indoor Unit: CH-RH36LCCT-230VI (36,000 BTU Sophia Series Indoor Four-Way Ceiling Cassette)

Outdoor Unit 36,000 BTU (1pc) model CH-RHP36LCU-230V0

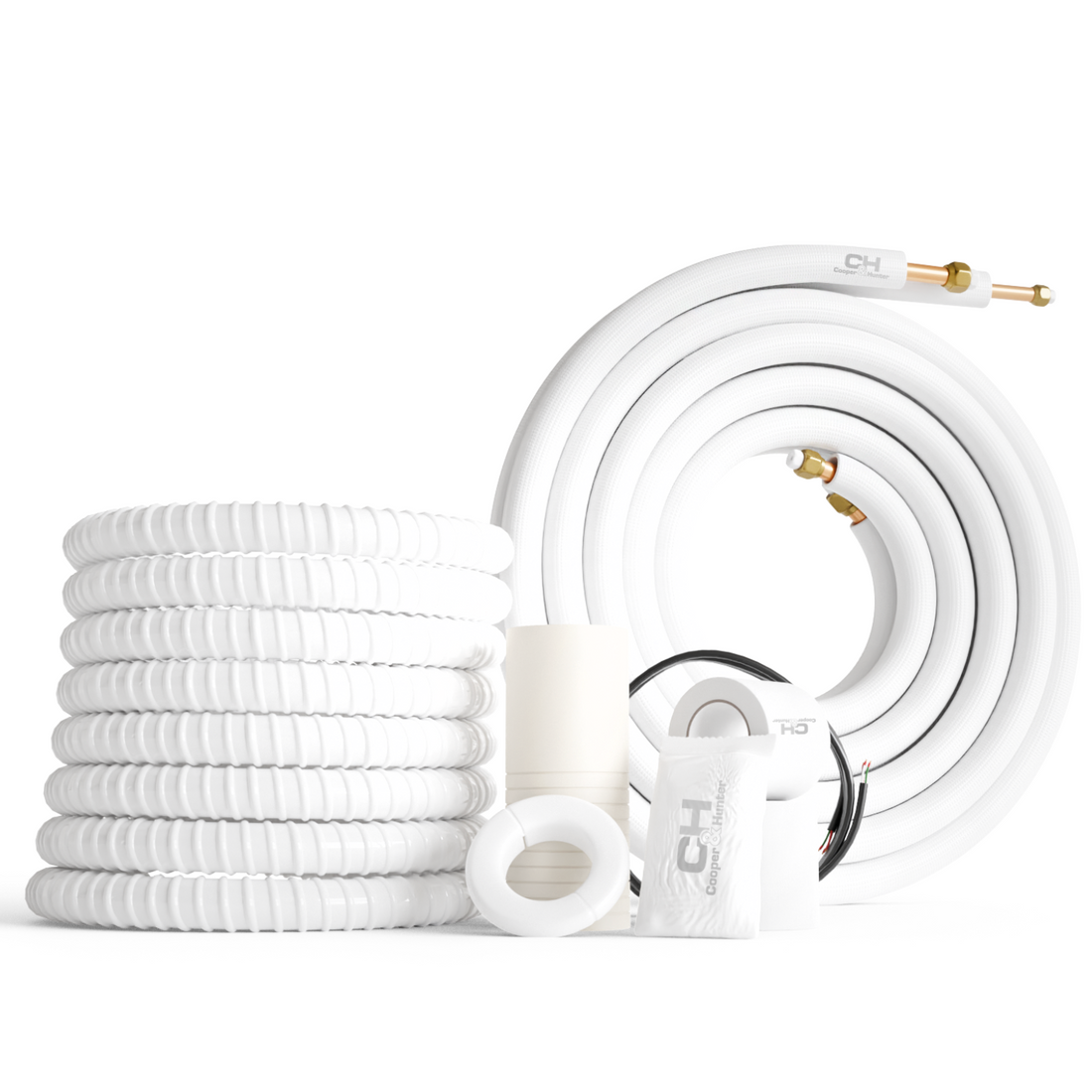

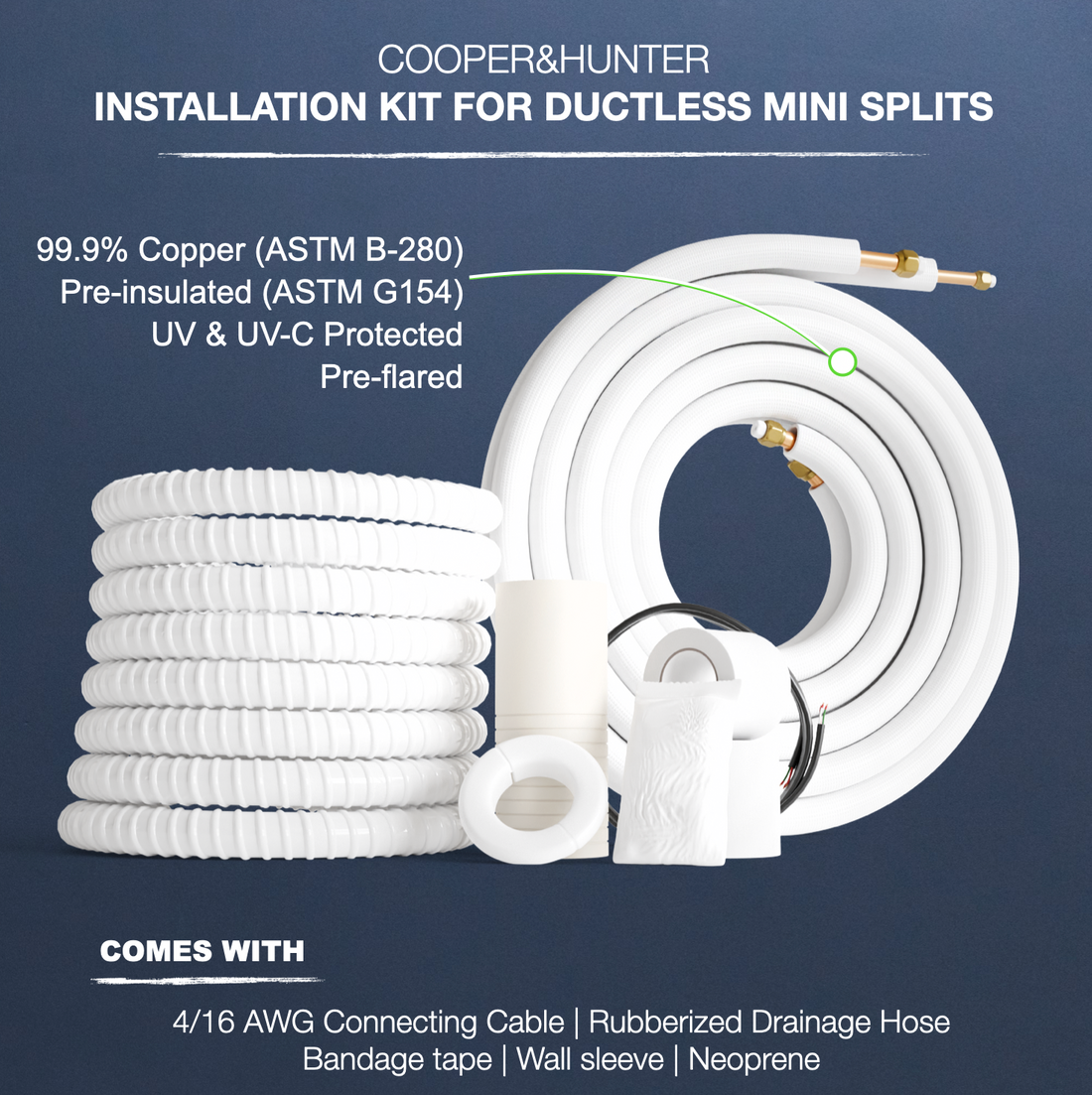

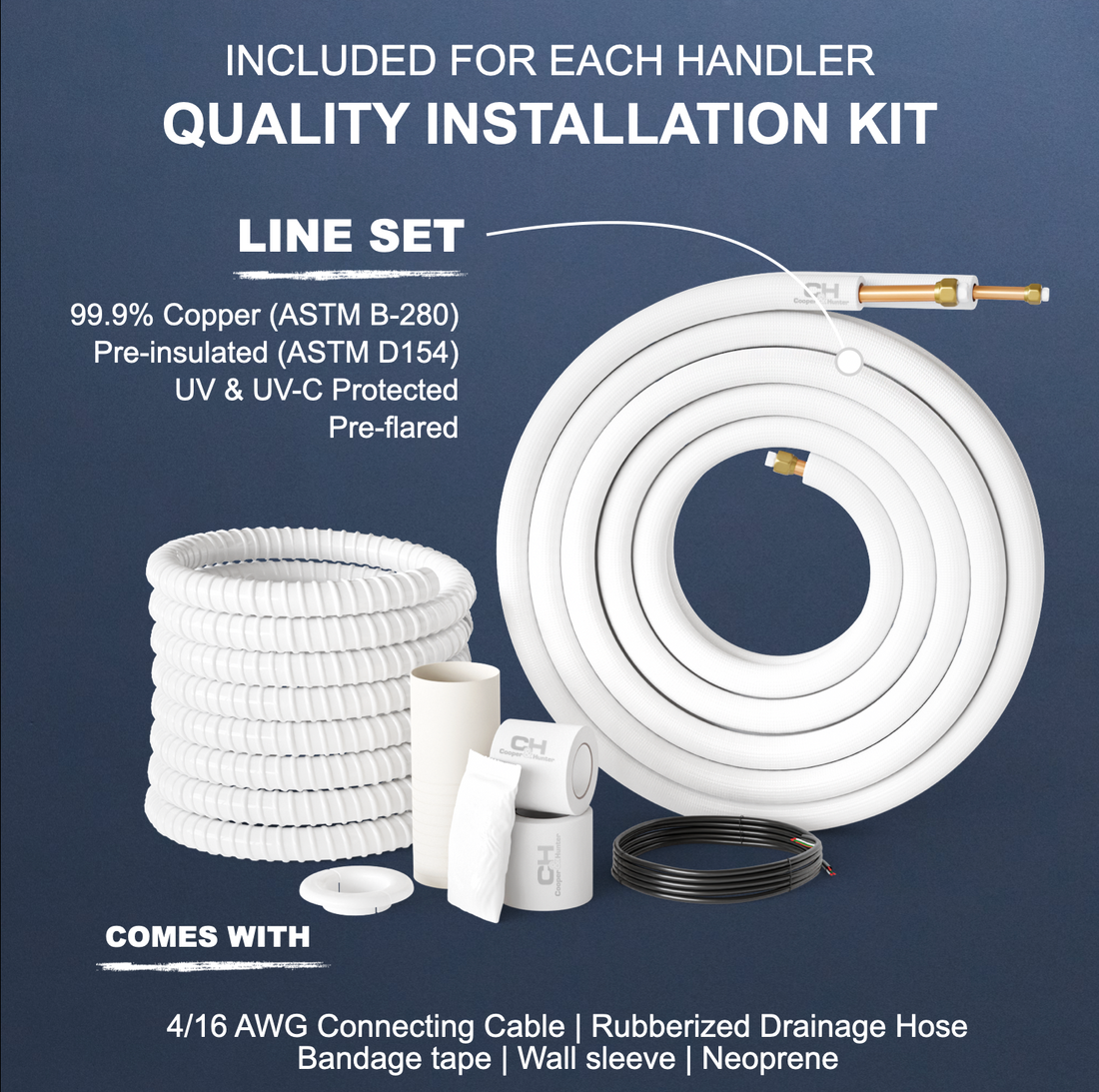

Optional, Pre-Flared 99% Copper Installation Kit (16ft, 25ft or 50ft.) MUST BE SELECTED ABOVE.
Thermostat
Wireless Remote Controls
Installation Manual
User’s Manual
Manufacturer Warranty

4 way cassettes Standard Units

4 way cassette 9,000 BTU 230VO	CH-09MSPHCT-230VI + CH-ES09-230VO
4 way cassette 12,000 BTU 230VO	CH-12MSPHCT-230VI + CH-ES12-230 VO
4 way cassettes 18,000 BTU 230VO	CH-18MSPHCT-230VI + CH-ES18-230VO
4 way cassettes 24,000 BTU 230VO	CH-N24MSPHCT-230VI + CH-ES24-230VO
4 way cassettes 36,000 BTU 230VO	CH-N36LLCT-230VI + CH-EL36-230VO

4 way cassettes 48,000 BTU 230VO

CH-48LCCT-230VI + CH-48LCUO

4 Way Cassettes Hyper Units

4 way cassette Hyper 9,000 BTU 230VO	CH-09MSPHCT-230VI + CH-HPR09-230VO
4 way cassette Hyper 12,000 BTU 230VO	CH-N12MSPHCT-230VI + CH-HPR12-230VO
4 way cassette Hyper 18,000 BTU 230VO	CH-N18MSPHCT-230VI + CH-HPR18-230VO
4 way cassette Hyper 24,000 BTU 230VO	CH-N24MSPHCT-230VI + CH-HPR24-230VO

Warranty

7 year compressor limited warranty
5 year parts limited warranty (must be installed by a licensed HVAC technician)
1 year remote control

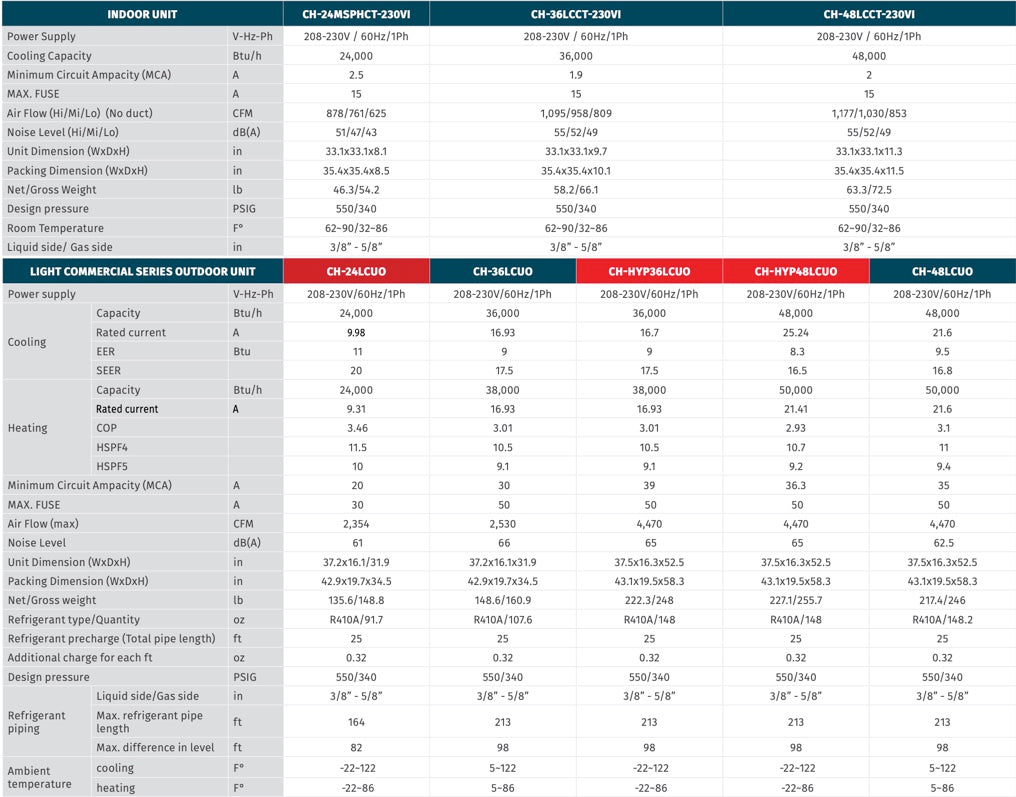

Technical Information

Model Number:CH-RH36LCCT-230VI

Power Supply	Rated	V,Ph,Hz	208/230, 1, 60
Rated Capacity	Cooling	Btu/h	36000
Rated Capacity	Heating	Btu/h	37000
Minimum Circuit Ampacity (MCA)		A	3
Max. Fuse		A	15
Indoor Air Flow (Turbo/Hi/Mi/Lo/Si)		CFM	1041.8/947.6
Indoor Noise Level (Turbo/Hi/Mi/Lo/Si)		dB(A)	54/52.5/47/39.5/36.5

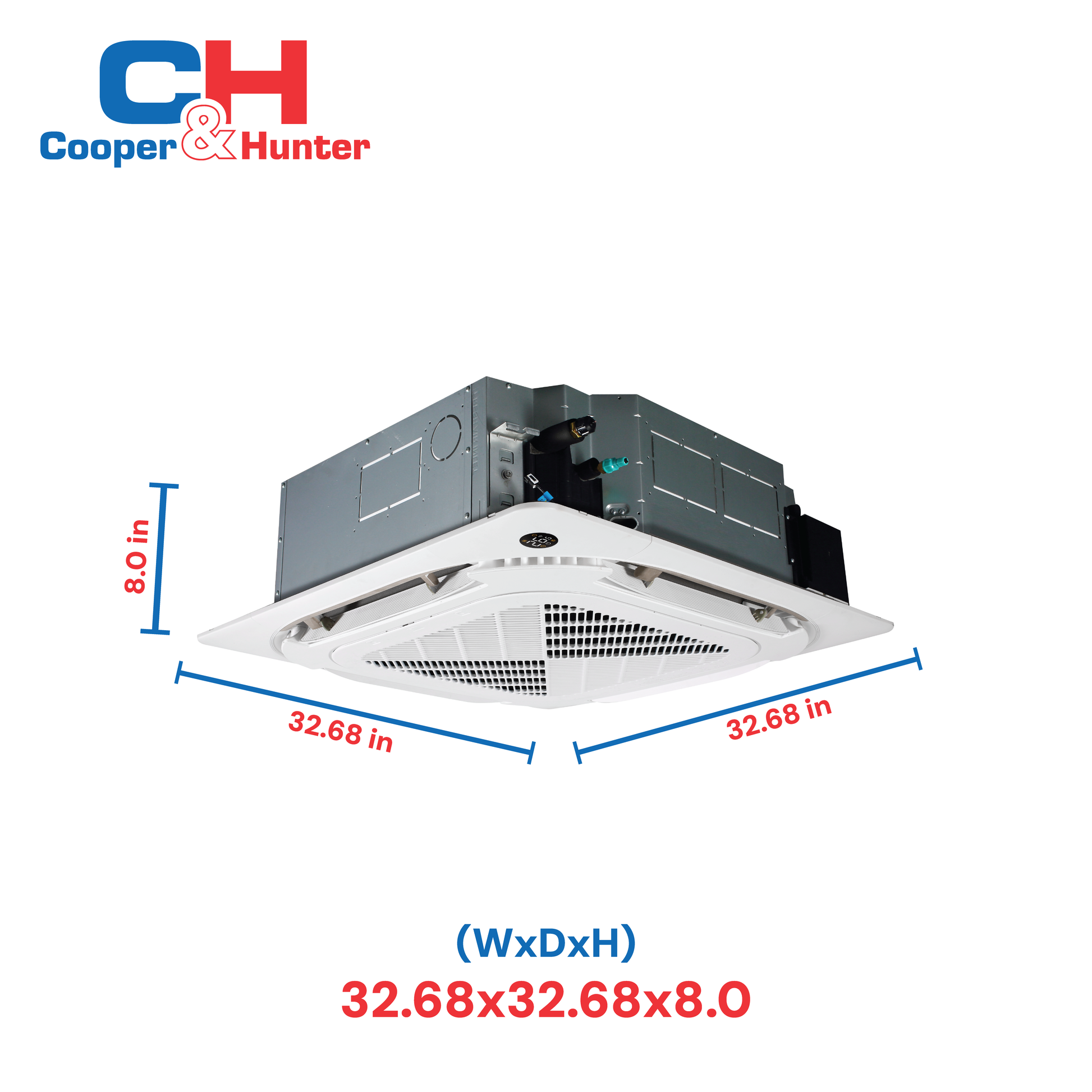

Indoor	Dimension (WxDxH)	inch	32.68x32.68x8
	Packing (WxDxH)	inch	35.83x35.83x11.42
	Net/Gross Weight	lbs.	59.30/71.43
Room Temperature	Cooling	°F	60-90
Room Temperature	Heating	°F	32-86
Liquid Side/Gas Side		inch	3/8"-3/4"

Outdoor Unit: CH-RHP36LCU-230V0

Power Supply	Rated	V, Ph, Hz	208/230,1,60
Power Supply	Voltage Range	V	187-253
Cooling	Rated Capacity (Range)	Btu/h	4,900-38,000
	Rated Current	A	13.5
	EER2	Btu/h	12
	SEER2	Btu/h	21.2
Heating at 47°F	Rated Capacity (Range)	Btu/h	11,400~44,600
	Rated Current	A	14.1
	COP	W/W	3.43
	HSPF4		10.6
	HSPF5		7.9
Minimum Circuit Ampacity (MCA)		A	38
Max. Fuse (Outdoor Unit)		A	40
Outdoor Air Flow (Max.)		CFM	3001.9
Outdoor Noise Level (Sound Pressure)		dB(A)	64.5

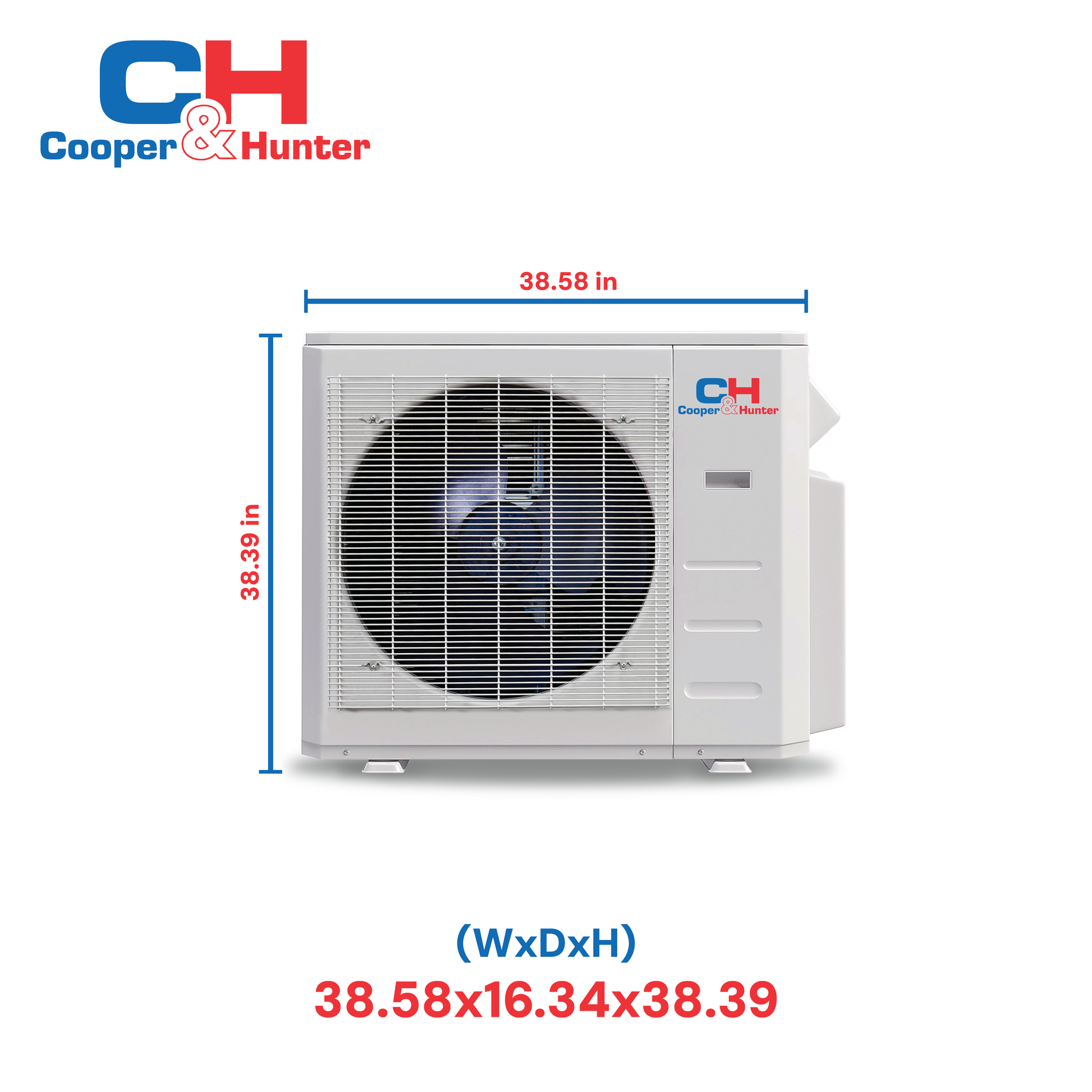

Dimension (W×D×H)		inch	38.58x16.34x38.39
Packing (W×D×H)		inch	45.08x19.68x42.52
Net/Gross Weight		lbs.	206.57/237.44
Refrigerant Type / Charge		oz.	R454B/126.99
Refrigerant Precharge Length		ft.	25
Additional Charge for Each ft.		oz/ft	0.32
Design Pressure		PSIG	550/340
Refrigerant Piping Liquid Side/Gas Side		inch	3/8"/3/4"
Max. Pipe Length		ft.	246
Max. Difference in Level		ft.	98.4
Ambient Temperature	Cooling	°F	-22~122
Ambient Temperature	Heating	°F	-22~75
Certifications	ETL		TRUE
	AHRI		TRUE
	Energy Star for Cold Climate		TRUE
	NEEP		TRUE

Certifications

Performance Data/Features

Louver Memory
Automatic Operation
Self-Diagnosis
Auto Swing
Goldfin Coating
Inverter Technology
Multiple Fan Speeds
Sleep Mode
Timer
Auto-restart Function
Turbo Mode
Follow Me Mode
Remote Control included
Intelligent Pre-Heating

Manuals & Do

You are well protected by a seven year warranty on the compressor, a five year parts warranty (must be installed by a licensed HVAC technician), abundant parts availability and smart, experienced technicians should you ever need assistance. This model features a safe and rugged Toshiba-GMCC inverter compressor.

Cooper&Hunter Limited Warranty terms are available if the product is registered within 60 days of installation. THE UNIT(S) MUST BE INSTALLED BY A LICENSED HVAC PROFESSIONAL FOR VALID WARRANTY. Registration can be completed online or by phone.
