Cooper & Hunter Multi-Zone 3 Ton 230V Olivia Series, 36K BTU Air Conditioner with 12K+12K+12K BTU Wall Mounts, R410A, 23.9 SEER2 Inverter Heat Pump (CH-36MES-230VO + 3xCH-12MOLVWM-230VI)
Summary
This Cooper & Hunter Olivia Series Multi-Zone system combines a high-efficiency 36,000 BTU outdoor unit (CH-36MES-230VO) with three 12,000 BTU indoor wall-mounted units to deliver 23.9 SEER2 efficiency. The system operates on 208/230V power with a voltage range of 187-253V and provides flexible climate control with a heating range down to -13°F. The outdoor unit measures 37.24"W x 31.89"H x 16.14"D and weighs 169.09 lbs (net), while the indoor units measure 31.57"W. With R410A refrigerant and a maximum piping length of 262 feet, this system offers quiet operation (as low as 24 dB indoors) and features auto-swing louvers, Wi-Fi control capability, and Toshiba-GMCC inverter technology.
Included in Your Order:

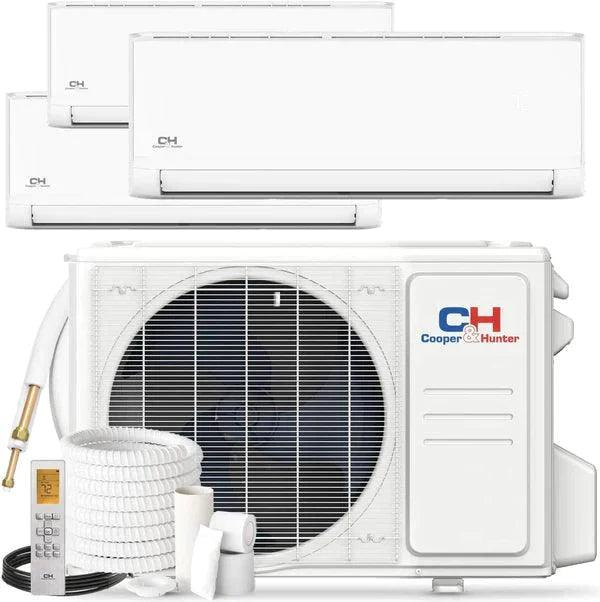

Cooper & Hunter Multi Zone Ductless Mini Split System (36,000 BTU Outdoor + 12K+12K+12K BTU Indoor)
Outdoor Unit: 36,000 BTU (1pc) – Model: CH-36MES-230VO
Indoor Units: 12,000 BTU (3pcs with remotes) – Model: CH-12MOLVWM-230VI

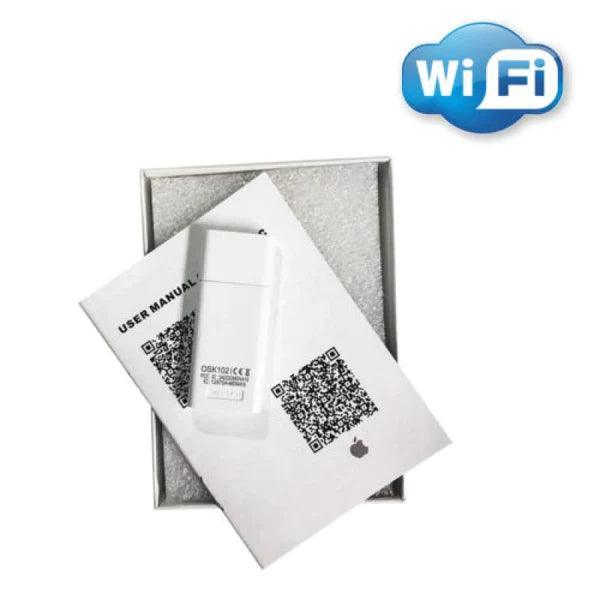

Wi-Fi Adapter (17310900A05963)
Wireless Remote Controls (3)
Installation Manual
User's Manual
Manufacturer Warranty

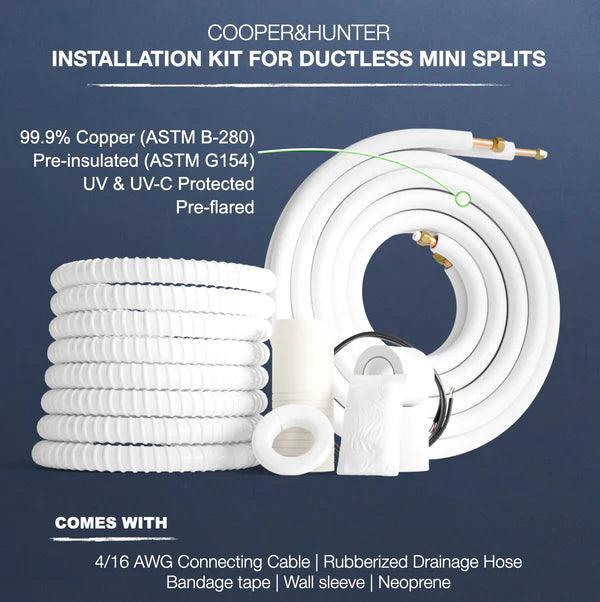

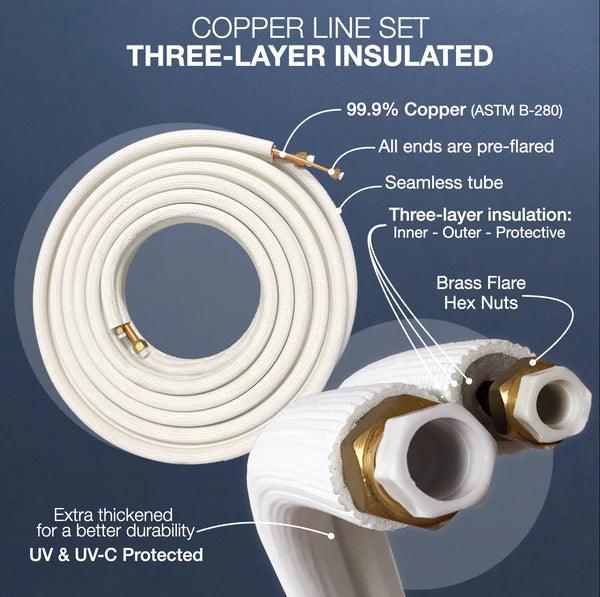

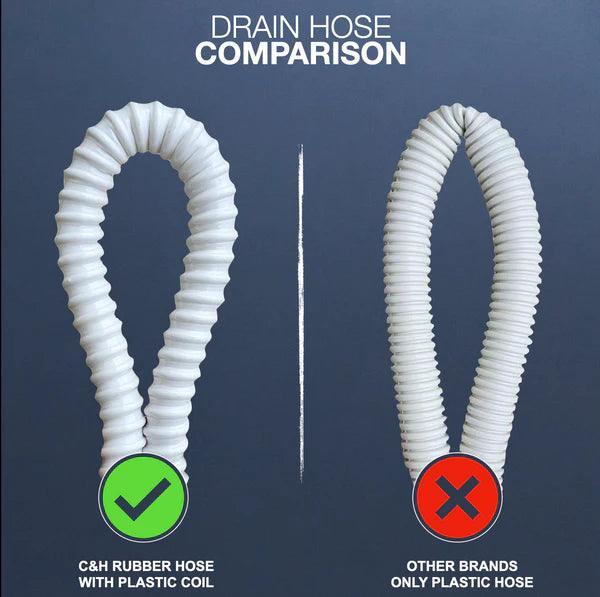

Installation Kits: 25ft Installation Kit (3pcs) with 25ft Copper Lines, 25ft Data Communication Wires, 16ft PVC Drainage Attachment, Wrapping Bands, etc.
SEER 1: 23.8
SEER2: 23.9
Key Features:
- Three-zone configuration with identical 12K BTU indoor units
- Auto-Swing horizontal/vertical louvers
- Hyper Heat operation down to -13°F
- Turbo Mode for rapid cooling/heating (341/291/194/152 CFM)
- Self-Clean function prevents mold buildup
- Follow Me temperature sensing
- 24V DC powered remote controls
- Ultra-quiet operation (41.5/36/24 dB)
- Smart control via Wi-Fi and C&H Remote app
- Energy Star certified (23.9 SEER2)
- Toshiba-GMCC inverter compressor technology
Important Notes
All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone.
Warranty Information
- 7-Year Compressor Warranty - Covers defects in materials/workmanship
- 5-Year Parts Warranty - Covers all other components (except remote)
- 1-Year Remote Control Warranty
Complete Technical Specifications

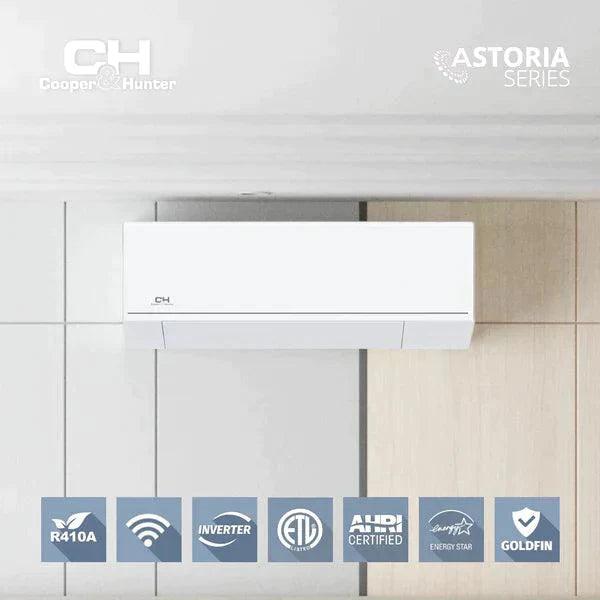

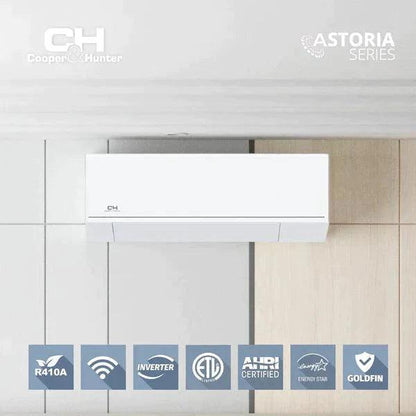

Indoor Unit: CH-12MOLVWM-230VI (12,000 BTU)
Specification | Details |
Model Number | CH-12MOLVWM-230VI |
Rated Capacity | 12,000 Btu/h |
Power Supply | 208/230V, 1Ph, 60Hz |
Minimum Circuit Ampacity (MCA) | 3A |
Max Fuse Size | 15A |
Indoor Air Flow (Turbo/Hi/Med/Lo) | 341/291/194/152 CFM |
Noise Level (Hi/Med/Lo) | 41.5/36/24 dB(A) |
Dimensions (W×D×H) | 31.57×7.87×11.61 inches |
Packing Dimensions | 34.45×11.22×14.96 inches |
Net/Gross Weight | 18.74/24.25 lbs |
Operating Temp (Cooling) | 60-90°F |
Operating Temp (Heating) | 32-86°F |
Refrigerant Lines | 1/4" (liquid) / 1/2" (gas) |

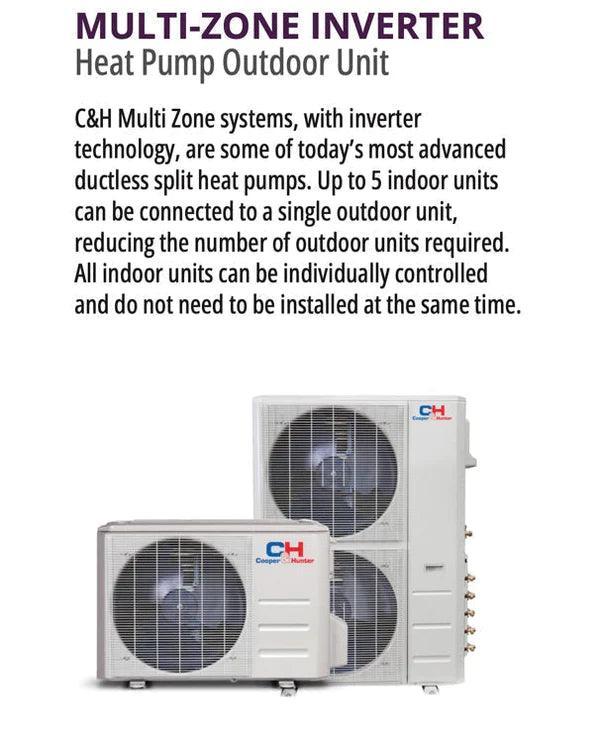

Outdoor Unit: CH-36MES-230VO (36,000 BTU)
CH-36MES-230VO | |
Specification | Details |
Power Supply | 208~230V, 60Hz, 1Ph |
Voltage Range | 187-253V |
Rated Capacity (Cooling) | 36,000 BTU/h (8,209~40,555 range) |
Rated Capacity (Heating at 47°F) | 37,000 BTU/h (8,008~44,632 range) |
EER2 | 11.7 |
SEER2 | 23.9 |
HSPF2-4 | 9.3 |
HSPF2-5 | 7.1 |
Minimum Circuit Ampacity | 25A |
Max Fuse Size | 40A |
Refrigerant Type | R410A |
Precharged Refrigerant | Up to 100 oz |
Outdoor Noise Level | 63 dB(A) |
Dimensions (W×D×H) | 37.24×16.14×31.89 inches |
Packing Dimensions | 42.91×19.69×34.84 inches |
Net/Gross Weight | 169.09/181.44 lbs |
Cooling Temp Range | 5-122°F |
Heating Temp Range | -13-75°F |
Max Pipe Length | 262 ft |
Max Height Difference | 49.21 ft |
Performance Features
- Precise ±1°F temperature maintenance
- 291 CFM adjustable airflow per indoor unit
- 7.14 pints/hour dehumidification capacity
- 3.5 COP heating efficiency at 47°F
- Automatic reverse cycle defrost
- Filter cleaning reminder system
- Refrigerant leak detection with auto-shutdown
- Maximum outdoor air flow: 2,147 CFM
