3 Zone Wall Mounts Ductless Mini Splits 9k+9k+9k with Installation Kits, R410A, 28K 2.3 Ton or 36K 3 Ton Condenser 24.6 SEER Tri Zone 230V Air Conditioner Heat Pump Inverter System with 3 Heads and Wi-Fi Adapter Included

Name: 3 Zone Wall Mounts Ductless Mini Splits 9k+9k+9...
SKU: 3xCH-09MOLVWM-230VI+CH-28MES-230VO
Price: 3010.0 USD
Availability: InStock
Rating: 4.5 (2 reviews)

SKU: 3xCH-09MOLVWM-230VI + CH-28MES-230VO

Free Shipping on orders above $300

No sales tax except in TX, FL, & PA!

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Ordered

Apr 08

Order Ready

Apr 10 - Apr 11

Delivered

Apr 11 - Apr 16

Order in the next 21 Hours 14 Minutes 10 Seconds and You will receive your order between Apr 11 and Apr 16

Price

$3,010.00

$3,010.00 ~~$3,106.00~~

save $96.00

Sold out

Condenser Size Standard 28000 BTU Condenser Upgrade to 36000 BTU Condenser

save $96.00

save $-167.00

Quantity

NOTE: The default selection does not include an installation kit. Upgrade your selection to add to your order.

Pickup available at Texas

Usually ready in 24 hours

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

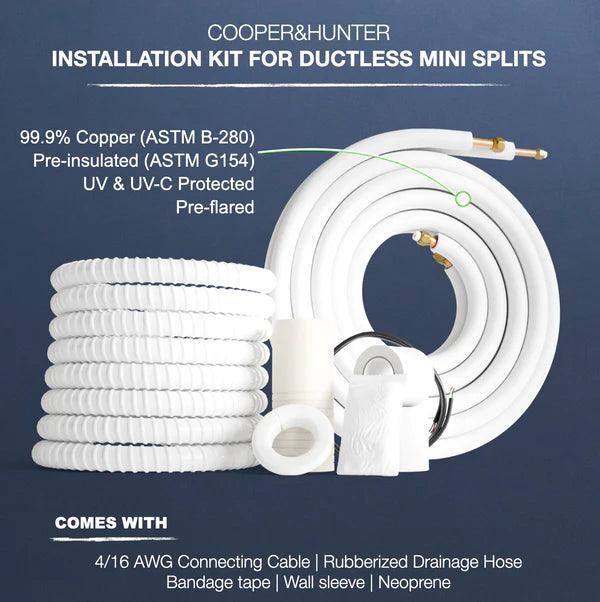

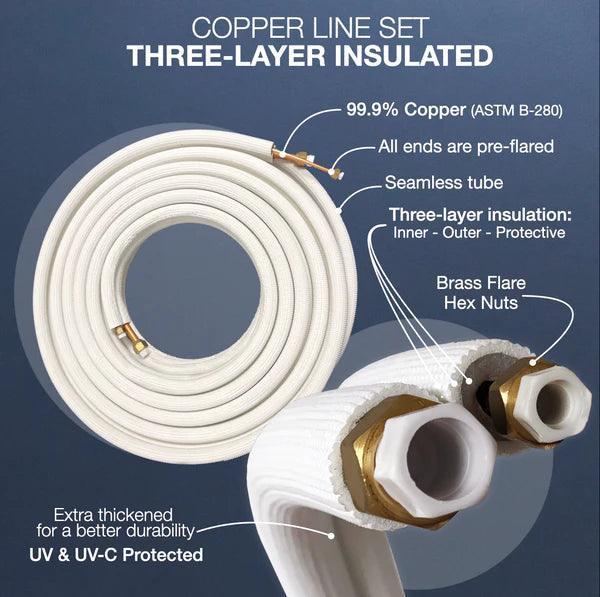

*ALL OF OUR MULTI ZONE SYSTEMS COME PRE-BUNDLED WITH A 25FT INSTALLATION KIT FOR EACH ZONE. WE CARRY 16FT, 25FT, AND 50FT. TO CUSTOMIZE, SEND US A MESSAGE OR GIVE US A CALL!

Click Here to see the Olivia Series Multi Zone Booklet

Cooper & Hunter Multi-Zone 2.5 Ton 230V Olivia Series, 28K BTU Air Conditioner with 9K+9K+9K BTU Wall Mounts, R410A, 24.6 SEER2 Inverter Heat Pump (CH-28MES-230VO + 3xCH-09MOLVWM-230VI)

Summary

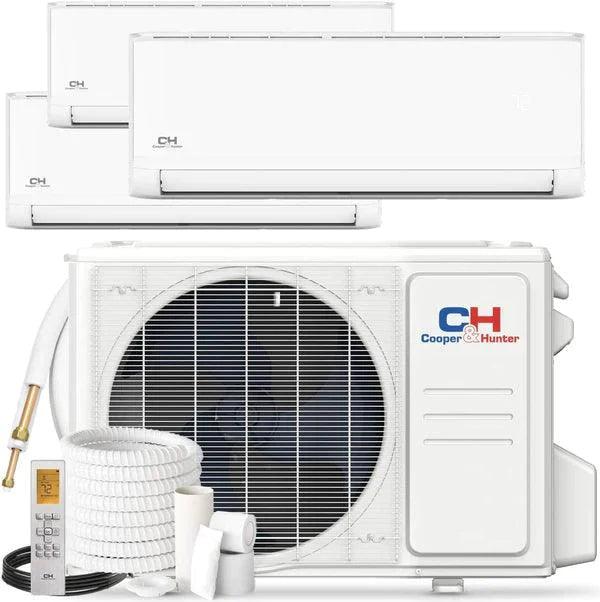

This Cooper & Hunter Olivia Series Multi-Zone system combines a high-efficiency 28,000 BTU outdoor unit with three 9,000 BTU indoor wall-mounted units. The system delivers 24.6 SEER2 efficiency and operates on 208/230V power (187-253V range). It provides heating down to -13°F with precise temperature control. The outdoor unit measures 37.24"W x 31.89"H x 16.14"D and weighs 139.77 lbs (net), while the compact indoor units measure 31.57"W. Features include auto-swing louvers, Wi-Fi control capability, and Toshiba-GMCC inverter technology.

Included in Your Order:

Cooper & Hunter Multi Zone Concealed Duct Mini Split System

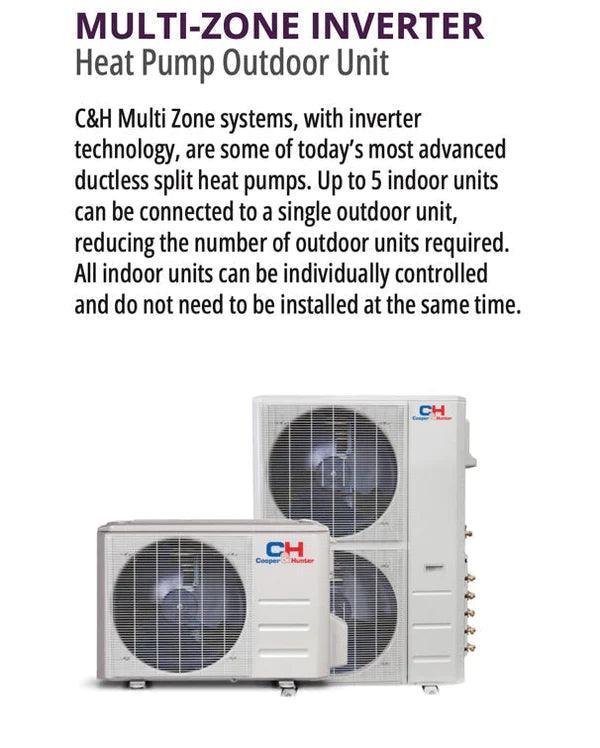

Standard Outdoor Unit: 28,000 BTU (1pc) – Model: CH-28MES-230VO

Optional Upgrade: 36,000 BTU (1pc) – Model: CH-36MES-230VO

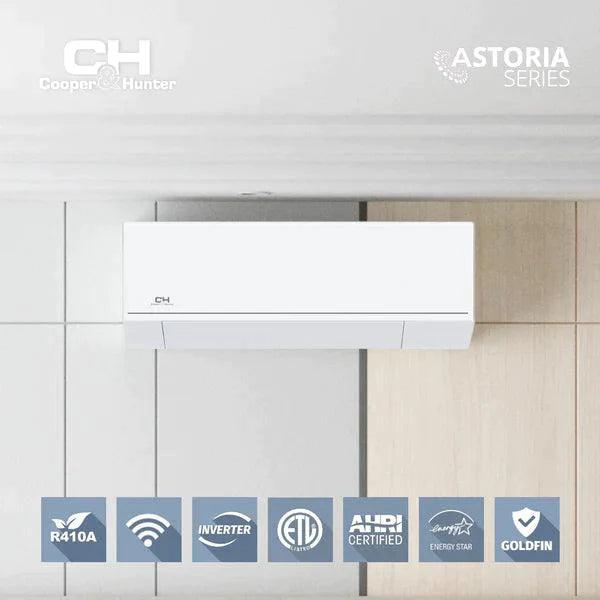

Indoor Units: 9,000 BTU (3pcs with remotes) – Model: CH-09MOLVWM-230VI

System Ratings: SEER1: 23.80 | SEER2: 24.60 | Capacity: 2.5 Ton

Key Features:

Three identical 9K BTU indoor units for balanced cooling/heating
Auto-Swing horizontal/vertical louvers for even air distribution
Hyper Heat operation down to -13°F
Turbo Mode (341/291/194/152 CFM airflow settings)
Self-Clean function prevents mold buildup
Follow Me temperature sensing technology
Ultra-quiet operation (40/35/23.5 dB indoor noise levels)

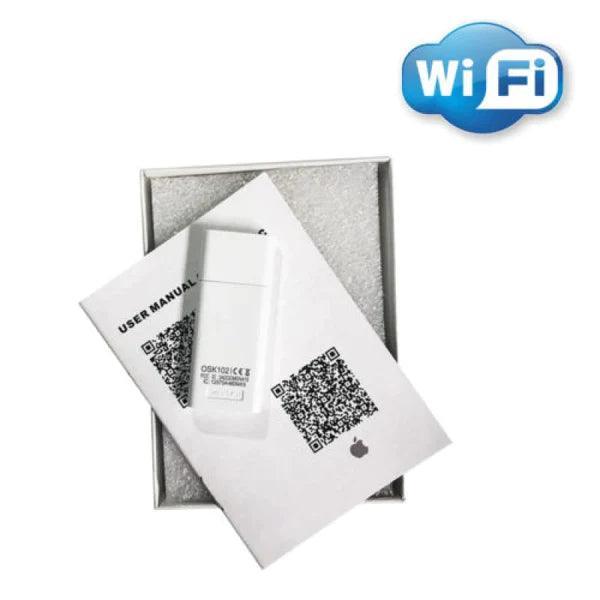

Smart control via Wi-Fi and C&H Remote app
Energy Star certified (24.6 SEER2)
Toshiba-GMCC inverter compressor technology

Important Notes

Professional installation required: All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation (online or by phone).

Warranty Information

7-Year Compressor Warranty - Covers defects in materials/workmanship
5-Year Parts Warranty - Covers all other components (except remote)
1-Year Remote Control Warranty

Complete Technical Specifications

Indoor Unit: CH-09MOLVWM-230VI (9,000 BTU)

Specification	Details
Model Number	CH-09MOLVWM-230VI
Rated Capacity	9,000 Btu/h
Power Supply	208/230V, 1Ph, 60Hz
Minimum Circuit Ampacity	3A
Max Fuse Size	15A
Air Flow (Turbo/Hi/Med/Lo)	341/291/194/152 CFM
Noise Level (Hi/Med/Lo)	40/35/23.5 dB(A)
Dimensions (W×D×H)	31.57×7.87×11.61 inches
Packing Dimensions	34.45×11.22×14.96 inches
Net/Gross Weight	18.96/24.25 lbs
Operating Temp (Cooling)	60-90°F
Operating Temp (Heating)	32-86°F
Refrigerant Lines	1/4" (liquid) / 3/8" (gas)

Standard Outdoor Unit: CH-28MES-230VO (28,000 BTU)

CH-28MES-230VO
Specification	Details
Power Supply	208~230V, 60Hz, 1Ph
Voltage Range	187-253V
Rated Capacity (Cooling)	28,000 BTU/h (9,838~30,438 range)
Rated Capacity (Heating)	28,000 BTU/h (8,218~31,000 range)
EER2	12.7
SEER2	24.6
HSPF2-4	10.6
Minimum Circuit Ampacity	24.5A
Max Fuse Size	30A
Refrigerant Type	R410A
Precharged Refrigerant	Up to 75 oz
Noise Level	61 dB(A)
Dimensions (W×D×H)	37.24×16.14×31.89 inches
Packing Dimensions	42.91×19.69×34.84 inches
Net/Gross Weight	139.77/150.57 lbs
Cooling Temp Range	5-122°F
Heating Temp Range	-13-75°F
Max Pipe Length	197 ft
Max Height Difference	49.21 ft

Upgrade Option: CH-36MES-230VO (36,000 BTU)

CH-36MES-230VO
Specification	Details
Power Supply	208~230V, 60Hz, 1Ph
Voltage Range	187-253V
Rated Capacity (Cooling)	36,000 BTU/h (8,209~40,555 range)
Rated Capacity (Heating)	37,000 BTU/h (8,008~44,632 range)
EER2	11.7
SEER2	23.9
HSPF2-4	9.3
Minimum Circuit Ampacity	25A
Max Fuse Size	40A
Refrigerant Type	R410A
Precharged Refrigerant	Up to 100 oz
Noise Level	63 dB(A)
Dimensions (W×D×H)	37.24×16.14×31.89 inches
Packing Dimensions	42.91×19.69×34.84 inches
Net/Gross Weight	169.09/181.44 lbs
Cooling Temp Range	5-122°F
Heating Temp Range	-13-75°F
Max Pipe Length	262 ft
Max Height Difference	49.21 ft

Performance Features

Precise ±1°F temperature maintenance
291 CFM (medium) airflow per indoor unit
5.41 pints/hour dehumidification (28K unit)
7.14 pints/hour dehumidification (36K unit)
3.73 COP heating efficiency at 47°F (28K unit)
3.5 COP heating efficiency at 47°F (36K unit)
Automatic reverse cycle defrost
Filter cleaning reminder system
Refrigerant leak detection with auto-shutdown
