3 Zone Cooper & Hunter Olivia Series Wall Mount Ductless Mini Split Air Conditioner and Heat Pump 9k+9k+12k BTU Wall Mounts, R410A, 2.3 Ton 28K BTU, OR 3 Ton 36K BTU Inverter with Heat Pump, 230V, Includes Installation Kits + Wi-Fi Adapter (3 Heads)

Name: 3 Zone Cooper & Hunter Olivia Series Wall Mount...
SKU: 2xCH-09MOLVWM-230VI&CH-12MOLVWM-230VI&CH-28MES-230VO
Price: 3040.0 USD
Availability: InStock
Rating: 4.5 (2 reviews)

SKU: 2xCH-09MOLVWM-230VI & CH-12MOLVWM-230VI& CH-28MES-230VO

Free Shipping on orders above $300

No sales tax except in TX, FL, & PA!

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Ordered

Mar 29

Order Ready

Mar 31 - Apr 01

Delivered

Apr 01 - Apr 06

Order in the next 05 Hours 28 Minutes 19 Seconds and You will receive your order between Apr 01 and Apr 06

Price

$3,040.00

$3,040.00 ~~$3,150.00~~

save $110.00

Sold out

Condenser Size Standard 28000 BTU Condenser Upgrade to 36000 BTU Condenser

save $110.00

save $-137.00

Quantity

NOTE: The default selection does not include an installation kit. Upgrade your selection to add to your order.

Pickup available at Texas

Usually ready in 24 hours

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

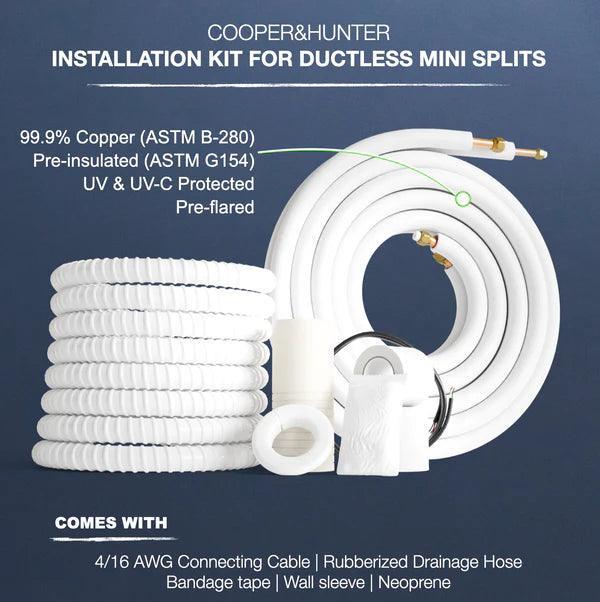

*ALL OF OUR MULTI ZONE SYSTEMS COME PRE-BUNDLED WITH A 25FT INSTALLATION KIT FOR EACH ZONE. WE CARRY 16FT, 25FT, AND 50FT. TO CUSTOMIZE, SEND US A MESSAGE OR GIVE US A CALL!

Cooper & Hunter Multi-Zone 2.5 Ton 230V Olivia Series, 28K BTU Air Conditioner with 9K+9K+12K BTU Wall Mounts, R410A, 24.6 SEER2 Inverter Heat Pump (CH-28MES-230VO + 2xCH-09MOLVWM-230VI + CH-12MOLVWM-230VI)

Summary

This Cooper & Hunter Olivia Series Multi-Zone system combines a high-efficiency 28,000 BTU outdoor unit (CH-28MES-230VO) with three indoor wall-mounted units (two 9K and one 12K BTU) to deliver 24.6 SEER2 efficiency. The system operates on 208/230V power with a voltage range of 187-253V and provides flexible climate control with a heating range down to -13°F. The outdoor unit measures 37.24"W x 31.89"H x 16.14"D and weighs 139.77 lbs (net), while the indoor units measure 31.57"W (9K/12K). With R410A refrigerant and a maximum piping length of 197 feet, this system offers quiet operation (as low as 23.5 dB indoors) and features auto-swing louvers, Wi-Fi control capability, and Toshiba-GMCC inverter technology. The outdoor unit delivers excellent efficiency with a SEER2 of 24.6 and HSPF2-4 of 10.6.

Included in Your Order:

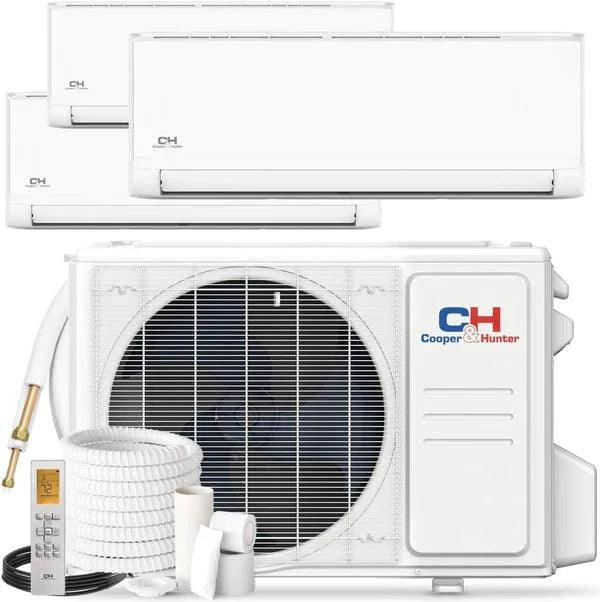

Cooper & Hunter Multi Zone Wall-Mount Mini Split System (28,000 BTU Outdoor + 9K+9K+12K BTU Indoor)

Outdoor Unit: 28,000 BTU (1pc) – Model: CH-28MES-230VO

OR Upgrade to 36,000 BTU Outdoor Unit: CH-36MES-230VO

Indoor Units:

9,000 BTU (2pcs with remotes) – Model: CH-09MOLVWM-230VI
12,000 BTU (1pc with remote) – Model: CH-12MOLVWM-230VI

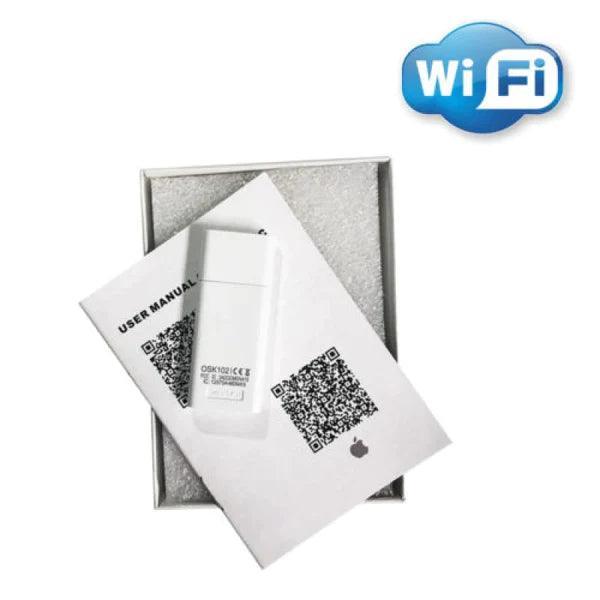

Wi-Fi Adapter (17310900A05963)

Wireless Remote Controls (3)

Installation Manual

User's Manual

Manufacturer Warranty

SEER 1: 23.8

SEER2: 24.6

Key Features:

Three-zone configuration with mixed capacity indoor units
Auto-Swing horizontal/vertical louvers
Hyper Heat operation down to -13°F
Turbo Mode for rapid cooling/heating (9K: 341/291/194/152 CFM, 12K: 341/291/194/152 CFM)
Self-Clean function prevents mold buildup
Follow Me temperature sensing
24V DC powered remote controls
Ultra-quiet operation (9K: 40/35/23.5 dB, 12K: 41.5/36/24 dB)
Smart control via Wi-Fi and C&H Remote app
Energy Star certified (24.6 SEER2)
Toshiba-GMCC inverter compressor technology

Important Notes

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone.

Warranty Information

7-Year Compressor Warranty - Covers defects in materials/workmanship
5-Year Parts Warranty - Covers all other components (except remote)
1-Year Remote Control Warranty

Complete Technical Specifications

Indoor Unit: CH-09MOLVWM-230VI (9,000 BTU)

Specification	Details
Model Number	CH-09MOLVWM-230VI
Rated Capacity	9,000 Btu/h
Power Supply	208/230V, 1Ph, 60Hz
Minimum Circuit Ampacity (MCA)	3A
Max Fuse Size	15A
Indoor Air Flow (Turbo/Hi/Med/Lo)	341/291/194/152 CFM
Noise Level (Hi/Med/Lo)	40/35/23.5 dB(A)
Dimensions (W×D×H)	31.57×7.87×11.61 inches
Packing Dimensions	34.45×11.22×14.96 inches
Net/Gross Weight	18.96/24.25 lbs
Operating Temp (Cooling)	60-90°F
Operating Temp (Heating)	32-86°F
Refrigerant Lines	1/4" (liquid) / 3/8" (gas)

Indoor Unit: CH-12MOLVWM-230VI (12,000 BTU)

Specification	Details
Model Number	CH-12MOLVWM-230VI
Rated Capacity	12,000 Btu/h
Power Supply	208/230V, 1Ph, 60Hz
Minimum Circuit Ampacity (MCA)	3A
Max Fuse Size	15A
Indoor Air Flow (Turbo/Hi/Med/Lo)	341/291/194/152 CFM
Noise Level (Hi/Med/Lo)	41.5/36/24 dB(A)
Dimensions (W×D×H)	31.57×7.87×11.61 inches
Packing Dimensions	34.45×11.22×14.96 inches
Net/Gross Weight	18.74/24.25 lbs
Operating Temp (Cooling)	60-90°F
Operating Temp (Heating)	32-86°F
Refrigerant Lines	1/4" (liquid) / 1/2" (gas)

Outdoor Unit: CH-28MES-230VO (28,000 BTU)

CH-28MES-230VO
Specification	Details
Power Supply	208~230V, 60Hz, 1Ph
Voltage Range	187-253V
Rated Capacity (Cooling)	28,000 BTU/h (9,838~30,438 range)
Rated Capacity (Heating at 47°F)	28,000 BTU/h (8,218~31,000 range)
EER2	12.7
SEER2	24.6
HSPF2-4	10.6
HSPF2-5	8.1
Minimum Circuit Ampacity	24.5A
Max Fuse Size	30A
Refrigerant Type	R410A
Precharged Refrigerant	Up to 75 oz
Outdoor Noise Level	61 dB(A)
Dimensions (W×D×H)	37.24×16.14×31.89 inches
Packing Dimensions	42.91×19.69×34.84 inches
Net/Gross Weight	139.77/150.57 lbs
Cooling Temp Range	5-122°F
Heating Temp Range	-13-75°F
Max Pipe Length	197 ft
Max Height Difference	49.21 ft

Optional Outdoor Unit: CH-36MES-230VO (36,000 BTU)

CH-36MES-230VO
Specification	Details
Power Supply	208~230V, 60Hz, 1Ph
Voltage Range	187-253V
Rated Capacity (Cooling)	36,000 BTU/h (8,209~40,555 range)
Rated Capacity (Heating at 47°F)	37,000 BTU/h (8,008~44,632 range)
EER2	11.7
SEER2	23.9
HSPF2-4	9.3
HSPF2-5	7.1
Minimum Circuit Ampacity	25A
Max Fuse Size	40A
Refrigerant Type	R410A
Precharged Refrigerant	Up to 100 oz
Outdoor Noise Level	63 dB(A)
Dimensions (W×D×H)	37.24×16.14×31.89 inches
Packing Dimensions	42.91×19.69×34.84 inches
Net/Gross Weight	169.09/181.44 lbs
Cooling Temp Range	5-122°F
Heating Temp Range	-13-75°F
Max Pipe Length	262 ft
Max Height Difference	49.21 ft

Performance Features

Precise ±1°F temperature maintenance
291-760 CFM adjustable airflow per indoor unit
5.41 pints/hour dehumidification capacity (28K unit)
7.14 pints/hour dehumidification capacity (36K unit)
3.73 COP heating efficiency at 47°F (28K unit)
3.5 COP heating efficiency at 47°F (36K unit)
Automatic reverse cycle defrost
Filter cleaning reminder system
Refrigerant leak detection with auto-shutdown
Maximum outdoor air flow: 2,129 CFM (28K) / 2,147 CFM (36K)
