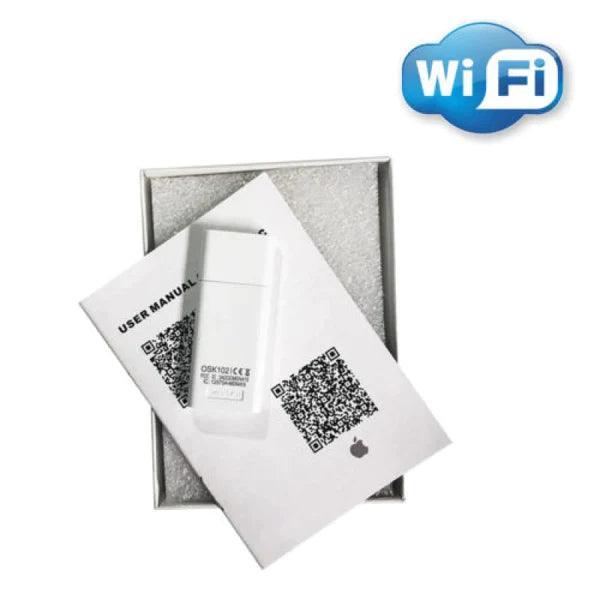

3 Zone Wall Mounts Ductless Mini Splits 9k+6k+6k with Installation Kits, R410A, 28K 2.3 Ton or 36K 3 Ton Condenser 24.6 SEER Tri Zone 230V Air Conditioner Heat Pump Inverter System with Three Heads and Wi-Fi Adapter Included

3 Zone Wall Mounts Ductless Mini Splits 9k+6k+6k with Installation Kits, R410A, 28K 2.3 Ton or 36K 3 Ton Condenser 24.6 SEER Tri Zone 230V Air Conditioner Heat Pump Inverter System with Three Heads and Wi-Fi Adapter Included

SKU: CH-09MOLVWM-230VI + 2xCH-06MOLVWM-230VI + CH-28MES-230VO

Free Shipping on orders above $300

No sales tax except in TX, FL, & PA!

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Ordered

Mar 29

After you place the order, we will need to 1 day to prepare the shipment

Order Ready

Mar 31 - Apr 01

Order will start to be shipped.

Delivered

Apr 01 - Apr 06

Estimate arrival date: Apr 01 - Apr 06

Order in the next 01 Days 02 Hours 37 Minutes 50 Seconds and You will receive your order between Apr 01 and Apr 06

Price
Regular price $2,927.00
Sale price $2,927.00 Regular price $3,106.00
save $179.00
Sold out
Condenser Size
save $179.00
save $-38.00

NOTE: The default selection does not include an installation kit. Upgrade your selection to add to your order.

 More payment options

Pickup available at Texas

Usually ready in 24 hours

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

Olivia Series Multi Zone  Mini Split System with Installation Kits, 24.6 SEER 2.3 Ton Air Conditioner System


Summary

The Cooper & Hunter Olivia Series Multi Zone Mini Split System features high-efficiency DC inverter technology with options of 16ft, 25ft, and 50ft installation kits. These systems provide both heating and cooling with efficient compressor operation, achieving SEER2 ratings up to 24.6. The Olivia series models can heat effectively down to -13°F, making them suitable for moderate climate applications.
The systems can be controlled via the included remote controls. Features include auto-swing louvers, Turbo mode, and reliable year-round operation.

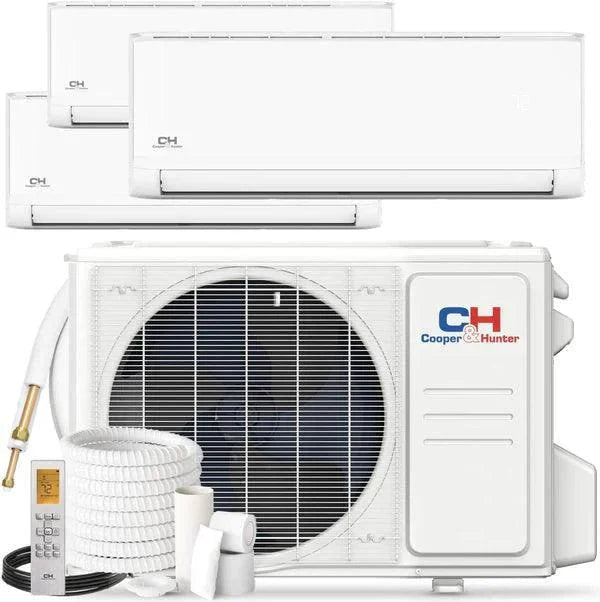

Included in Your Order (28K BTU System):

Outdoor unit CH-28MES-230VO (28,000 BTU Outdoor Condenser Unit)

X1 Indoor unit CH-09MOLVWM-230VI (9,000 BTU Indoor Wall Mount Unit)

X2 Indoor units CH-06MOLVWM-230VI (6,000 BTU Indoor Wall Mount Units)

Optional Installation Kit (16ft, 25ft, or 50ft options available)

Wireless Remote Controls

Installation Manual

User's Manual

Manufacturer Warranty

Included in Your Order (36K BTU System):

Outdoor unit CH-36MES-230VO (36,000 BTU Outdoor Condenser Unit)

X1 Indoor unit CH-09MOLVWM-230VI (9,000 BTU Indoor Wall Mount Unit)

X2 Indoor units CH-06MOLVWM-230VI (6,000 BTU Indoor Wall Mount Units)

Optional Installation Kit (16ft, 25ft, or 50ft options available)

Wireless Remote Controls

Installation Manual

User's Manual

Manufacturer Warranty


Key Features:

  • Auto-Swing for horizontal louvers
  • High efficiency DC inverter technology
  • Low temperature operation down to -13°F
  • Turbo Mode
  • Quiet operation
  • Remote Control included

Important

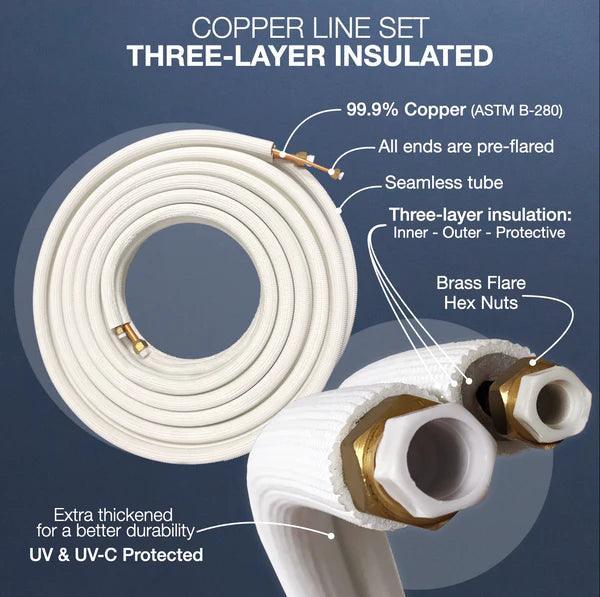

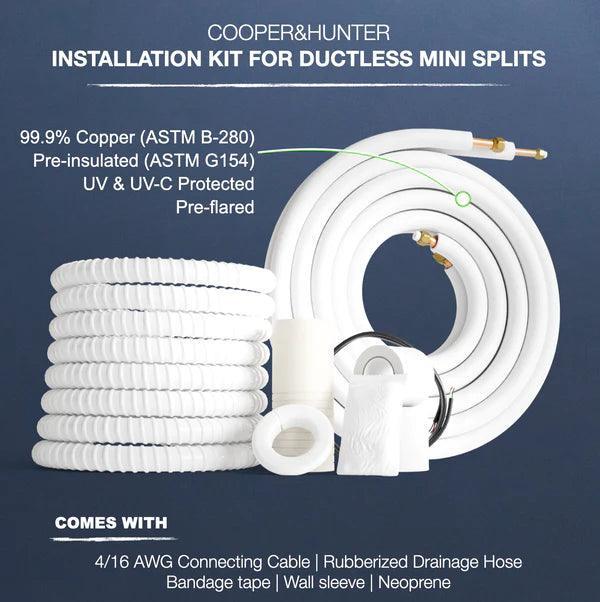

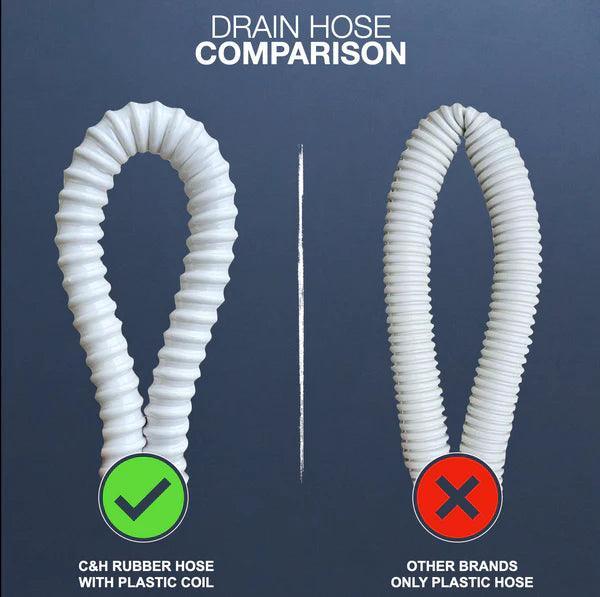

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function. Ensure that you have selected the desired installation kit.. This kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.


Warranty

  • 7 year compressor limited warranty
  • 5 year parts limited warranty (must be installed by a licensed HVAC technician)
  • 1 year remote control

Technical Information

Indoor units: CH-06MOLVWM-230VI (6,000 BTU Indoor Wall Mount Unit)

Specification Details
System Type Multi-zone unit
BTU Rated 6,000
Power Source 208/230V, 1Ph, 60Hz
Refrigerant Type R410A
Voltage Range 208/230V
Packing Dimensions (WxDxH) 31.10x10.63x14.76 inch
Refrigerant Piping (Liquid/Gas side) 1/4" / 3/8"
Unit Net/Gross Weight 17.64/22.49 lbs
Unit Dimensions (W×H×D) 28.70x7.87x11.50 inch
Operation Range - Heating 32~86°F
Operation Range - Cooling 60~90°F
Minimum Circuit Ampacity 3 A
Max. Fuse 15 A
Indoor Noise Level (H/M/L) 38.5/33/20.5 dB(A)
Indoor Air Flow (Turbo/Hi/Mi/Lo) 294/247/176/141 CFM

Indoor units: CH-09MOLVWM-230VI (9,000 BTU Indoor Wall Mount Unit)

Specification Details
System Type Multi-zone unit
BTU Rated 9,000
Power Source 208/230V, 1Ph, 60Hz
Refrigerant Type R410A
Voltage Range 208/230V
Packing Dimensions (WxDxH) 34.45x11.22x14.96 inch
Refrigerant Piping (Liquid/Gas side) 1/4" / 3/8"
Unit Net/Gross Weight 18.96/24.25 lbs
Unit Dimensions (W×H×D) 31.57x7.87x11.61 inch
Operation Range - Heating 32~86°F
Operation Range - Cooling 60~90°F
Minimum Circuit Ampacity 3 A
Max. Fuse 15 A
Indoor Noise Level (H/M/L) 40/35/23.5 dB(A)
Indoor Air Flow (Turbo/Hi/Mi/Lo) 341/291/194/152 CFM

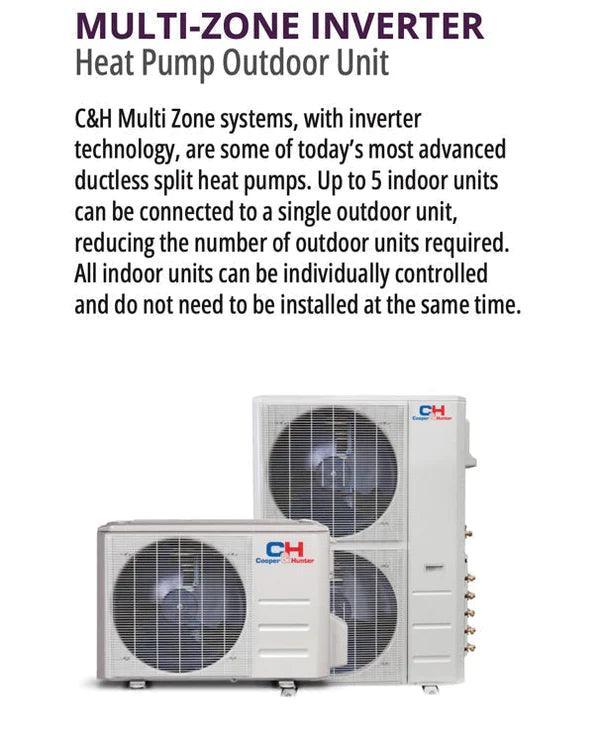

Outdoor unit: CH-28MES-230VO (28,000 BTU Outdoor Condenser Unit)

CH-28MES-230VO
Specification Details
Power Supply 208-230V, 1Ph, 60Hz
Cooling Capacity (range) 28,000 (9,838-30,438) BTU/h
Heating Capacity (range) 28,000 (8,218-31,000) BTU/h
EER2 12.7
SEER2 24.6
HSPF2-4 9.3
HSPF2-5 7.1
Minimum Circuit Ampacity 24.5 A
Max. Fuse 30 A
Refrigerant Type Charged R410A (up to 75 oz)
Outdoor Noise Level 61 dB(A)
Dimensions (W×H×D) 37.24x16.14x31.89 inch
Net/Gross Weight 139.77/150.57 lbs
Cooling Temp Range 5~122°F
Heating Temp Range -13~75°F

Outdoor unit: CH-36MES-230VO (36,000 BTU Outdoor Condenser Unit)

CH-36MES-230VO
Specification Details
Power Supply 208-230V, 1Ph, 60Hz
Cooling Capacity (range) 36,000 (8,209-40,555) BTU/h
Heating Capacity (range) 37,000 (8,008-44,632) BTU/h
EER2 11.7
SEER2 23.9
HSPF2-4 9.3
HSPF2-5 7.1
Minimum Circuit Ampacity 25 A
Max. Fuse 40 A
Refrigerant Type Charged R410A (up to 100 oz)
Outdoor Noise Level 63 dB(A)
Dimensions (W×H×D) 37.24x16.14x31.89 inch
Net/Gross Weight 169.09/181.44 lbs
Cooling Temp Range 5~122°F
Heating Temp Range -13~75°F

Certifications


Performance Data/Features

  • Auto-Swing for horizontal louvers
  • High efficiency DC inverter technology
  • Low temperature operation down to -13°F
  • Turbo Mode
  • Quiet operation
  • Remote Control included
