3 Zone Cooper & Hunter Olivia Series Wall Mount Ductless Mini Split Air Conditioner and Heat Pump 6k+12k+18k BTU Wall Mounts, R410A, 2.3 Ton 28K BTU, OR 3 Ton 36K BTU Inverter with Heat Pump, 230V, Includes 25ft Installation Kits + Wi-Fi Adapter

Name: 3 Zone Cooper & Hunter Olivia Series Wall Mount...
SKU: CH-28MES-230VO+CH-06MOLVWM-230VI+CH-12MOLVWM-230VI+CH-18MOLVWM-230VI
Price: 3127.0 USD
Availability: InStock
Rating: 4.5 (2 reviews)

SKU: CH-28MES-230VO + CH-06MOLVWM-230VI + CH-12MOLVWM-230VI + CH-18MOLVWM-230VI

Free Shipping on orders above $300

No sales tax except in TX, FL, & PA!

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Ordered

Apr 08

Order Ready

Apr 10 - Apr 11

Delivered

Apr 11 - Apr 16

Order in the next 08 Hours 52 Minutes 19 Seconds and You will receive your order between Apr 11 and Apr 16

Price

$3,127.00

$3,127.00 ~~$3,123.00~~

save $-4.00

Sold out

Condenser Size Standard 28000 BTU Upgrade to 36000 BTU

save $-4.00

save $-37.00

Quantity

NOTE: The default selection does not include an installation kit. Upgrade your selection to add to your order.

Pickup available at Texas

Usually ready in 24 hours

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

Cooper & Hunter Multi-Zone 3 Ton 230V Olivia Series High Wall, Three Head, Wall-Mount Air Conditioning Unit for Heat Pump, Mini Split Inverter System, 23.9 SEER2 - (1x) CH-06MOLVWM-230VI + (1x) CH-12MOLVWM-230VI + (1x) CH-18MOLVWM-230VI + CH-36MES-230VO

Summary

The Olivia Series Multi Zone Ductless Mini Split System combines a high-efficiency 36,000 BTU outdoor unit with three indoor wall-mounted units (6K, 12K, and 18K BTU) to deliver 23.9 SEER2 efficiency. The system operates on 208/230V power and provides flexible climate control with a heating range down to -13°F. The outdoor unit measures 37.24"W x 31.89"H x 16.14"D and weighs 169 lbs, while the indoor units range from compact 28.70"W models (6K) to larger 42.64"W units (18K). With R410A refrigerant and a maximum piping length of 262 feet, this system offers quiet operation (as low as 20.5 dB indoors) and features auto-swing louvers, Wi-Fi control, and Toshiba-GMCC inverter technology.

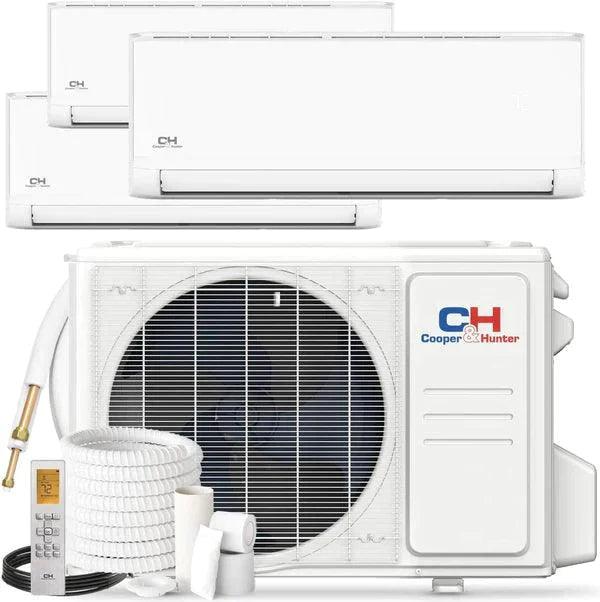

Included in Your Order:

Outdoor unit CH-36MES-230VO (36,000 BTU Outdoor Condenser Unit)

Indoor units:

CH-06MOLVWM-230VI (6,000 BTU Indoor Wall Mount Unit)
CH-12MOLVWM-230VI (12,000 BTU Indoor Wall Mount Unit)
CH-18MOLVWM-230VI (18,000 BTU Indoor Wall Mount Unit)

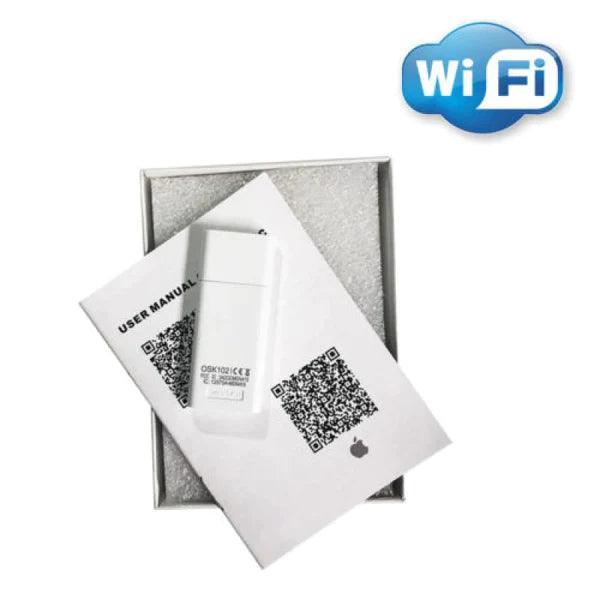

Wi-Fi Adapter (17310900A05963)

Wireless Remote Controls (3)

Installation Manual

User's Manual

Manufacturer Warranty

Key Features:

Three-zone configuration with mixed capacity indoor units
Auto-Swing horizontal/vertical louvers
Hyper Heat operation down to -13°F
Turbo Mode for rapid cooling/heating
Self-Clean function prevents mold buildup
Follow Me temperature sensing
24V DC powered remote controls
Ultra-quiet operation (20.5-46 dB indoor noise)
Smart control via Wi-Fi and C&H Remote app
Energy Star certified (23.9 SEER2)

Important

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone.

Warranty

7 year compressor limited warranty
5 year parts limited warranty (must be installed by a licensed HVAC technician)
1 year remote control

Technical Information

Indoor unit: CH-06MOLVWM-230VI (6,000 BTU Indoor Wall Mount Unit)

Specification	Value
BTU Rated	6,000
Power source	208/230V, 1Ph, 60Hz
Minimum Circuit Ampacity (MCA)	3A
Max Fuse Size	15A
Indoor Air Flow (Turbo/Hi/Med/Lo)	294/247/176/141 CFM
Noise Level (Hi/Med/Lo)	38.5/33/20.5 dB(A)
Dimensions (W×D×H)	28.70×7.87×11.50 inches
Packing Dimensions	31.10×10.63×14.76 inches
Net/Gross Weight	17.64/22.49 lbs
Operating Temp (Cooling)	60-90°F
Operating Temp (Heating)	32-86°F
Refrigerant Lines	1/4" (liquid) / 3/8" (gas)

Indoor unit: CH-12MOLVWM-230VI (12,000 BTU Indoor Wall Mount Unit)

Specification	Value
BTU Rated	12,000
Power source	208/230V, 1Ph, 60Hz
Minimum Circuit Ampacity (MCA)	3A
Max Fuse Size	15A
Indoor Air Flow (Turbo/Hi/Med/Lo)	341/291/194/152 CFM
Noise Level (Hi/Med/Lo)	41.5/36/24 dB(A)
Dimensions (W×D×H)	31.57×7.87×11.61 inches
Packing Dimensions	34.45×11.22×14.96 inches
Net/Gross Weight	18.74/24.25 lbs
Operating Temp (Cooling)	60-90°F
Operating Temp (Heating)	32-86°F
Refrigerant Lines	1/4" (liquid) / 1/2" (gas)

Indoor unit: CH-18MOLVWM-230VI (18,000 BTU Indoor Wall Mount Unit)

Specification	Value
BTU Rated	18,000
Power source	208/230V, 1Ph, 60Hz
Minimum Circuit Ampacity (MCA)	3A
Max Fuse Size	15A
Indoor Air Flow (Turbo/Hi/Med/Lo)	760/530/458/382 CFM
Noise Level (Hi/Med/Lo)	46/40/25 dB(A)
Dimensions (W×D×H)	42.64×9.61×13.23 inches
Packing Dimensions	45.47×16.34×12.40 inches
Net/Gross Weight	29.54/37.48 lbs
Operating Temp (Cooling)	60-90°F
Operating Temp (Heating)	32-86°F
Refrigerant Lines	1/4" (liquid) / 1/2" (gas)

Outdoor unit: CH-36MES-230VO (36,000 BTU Outdoor Condenser Unit)

CH-36MES-230VO
Specification	Details
Power Supply	208~230V, 60Hz, 1Ph
Rated Capacity (range) (cooling)	36,000(8,209~40,555)
Rated Capacity (range) (heating at 47F°)	37,000(8,008~44,632)
EER2	11.7
SEER 2	23.9
Minimum Circuit Ampacity (Outdoor unit) A	25
Max. Fuse (Outdoor unit) A	40
Refrigerant Type Charged	R410A
Refrigerant Precharge	Up to 100 oz
Outdoor Noise Level (Sound Pressure) dB(A)	63
Dimensions (W×D×H)	37.24×16.14×31.89 inches
Net/Gross Weight	169.09/181.44 lbs
Cooling °F	5~122
Heating °F	-13~75
Max Pipe Length	262 ft
Max Height Difference	49.21 ft

Performance Data/Features

Precise ±1°F temperature maintenance
294-760 CFM adjustable airflow per indoor unit
7.14 pints/hour dehumidification capacity
3.5 COP heating efficiency at 47°F
Automatic reverse cycle defrost
Filter cleaning reminder system
Refrigerant leak detection with auto-shutdown
