The Cooper & Hunter Tri-Zone system features a 28,000 BTU ES Series outdoor unit paired with 6,000 BTU, 9,000 BTU, and 12,000 BTU wall-mounted indoor units. This high-performance system with ultra-efficient compressor (24.6 SEER2) and auto swing louvers will both heat and cool your space effectively down to -13°F. The DC inverter heat pump provides energy-efficient operation while allowing independent temperature control in three zones.

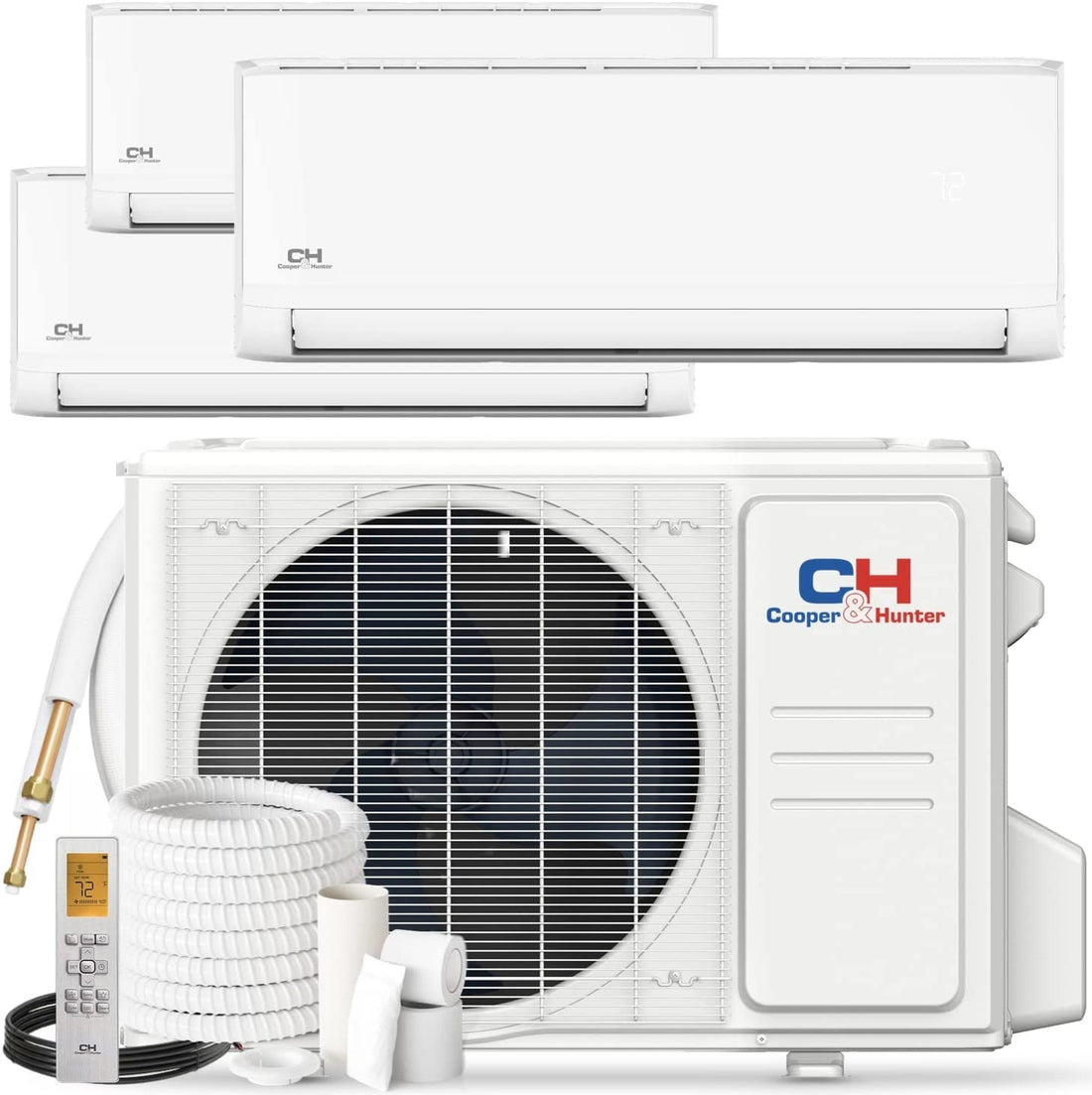

Cooper & Hunter Tri-Zone Ductless Mini Split System (28,000 BTU Inverter with Heat Pump)

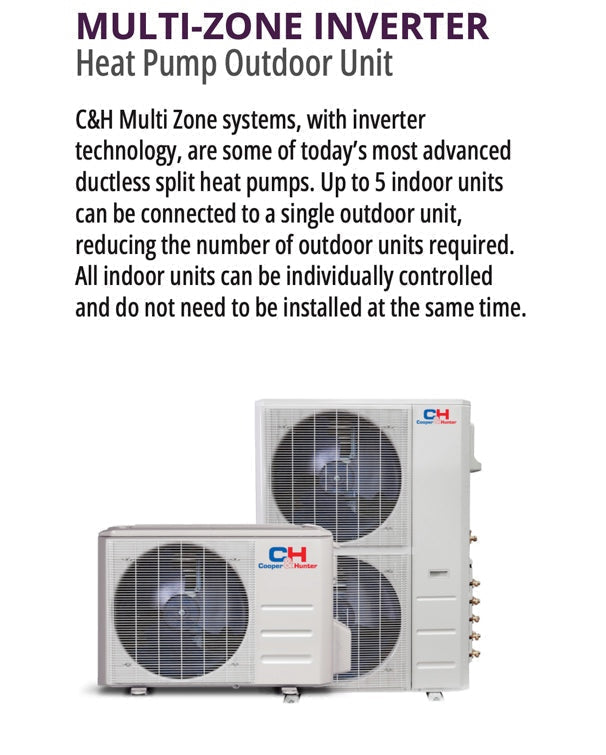

Outdoor Unit: 28,000 BTU (1pc) – Model: CH-28MES-230VO (ES Series)
Indoor Units:
- 6,000 BTU (1pc with remote) – Model: CH-06MOLVWM-230VI
- 9,000 BTU (1pc with remote) – Model: CH-09MOLVWM-230VI
- 12,000 BTU (1pc with remote) – Model: CH-12MOLVWM-230VI

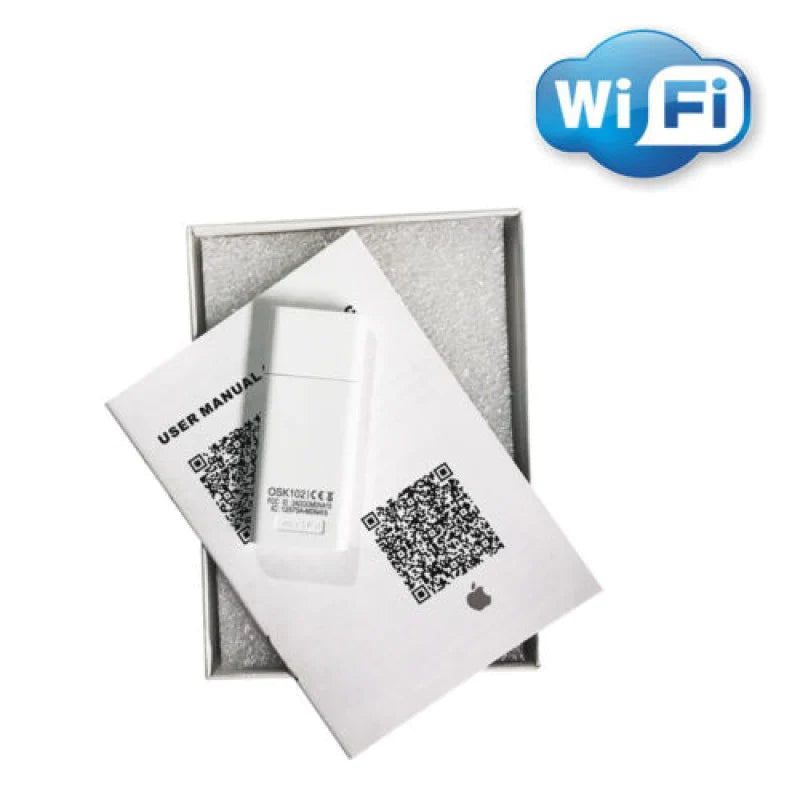

Wi-Fi Adapter (Model: 17310900A05963)
Installation Kits (25ft x 3 included - other sizes available)
Wireless Remote Controls (3 total)
Installation Manual
User's Manual
Manufacturer Warranty
| Specification | Details |
|---|---|
| Model Number | CH-06MOLVWM-230VI |
| Rated Capacity | 6,000 Btu/h |
| Power Supply | 208/230V, 1Ph, 60Hz |
| Minimum Circuit Ampacity (MCA) | 3A |
| Max Fuse Size | 15A |
| Indoor Air Flow (Turbo/Hi/Med/Lo) | 294/247/176/141 CFM |
| Noise Level (Hi/Med/Lo) | 38.5/33/20.5 dB(A) |
| Dimensions (W×D×H) | 28.70×7.87×11.50 inches |
| Packing Dimensions | 31.10×10.63×14.76 inches |
| Net/Gross Weight | 17.64/22.49 lbs |
| Operating Temp (Cooling) | 60-90°F |
| Operating Temp (Heating) | 32-86°F |
| Refrigerant Lines | 1/4" (liquid) / 3/8" (gas) |
| Specification | Details |
|---|---|
| Model Number | CH-09MOLVWM-230VI |
| Rated Capacity | 9,000 Btu/h |
| Power Supply | 208/230V, 1Ph, 60Hz |
| Minimum Circuit Ampacity (MCA) | 3A |
| Max Fuse Size | 15A |
| Indoor Air Flow (Turbo/Hi/Med/Lo) | 341/291/194/152 CFM |
| Noise Level (Hi/Med/Lo) | 40/35/23.5 dB(A) |
| Dimensions (W×D×H) | 31.57×7.87×11.61 inches |
| Packing Dimensions | 34.45×11.22×14.96 inches |
| Net/Gross Weight | 18.96/24.25 lbs |
| Operating Temp (Cooling) | 60-90°F |
| Operating Temp (Heating) | 32-86°F |
| Refrigerant Lines | 1/4" (liquid) / 3/8" (gas) |
| Specification | Details |
|---|---|
| Model Number | CH-12MOLVWM-230VI |
| Rated Capacity | 12,000 Btu/h |
| Power Supply | 208/230V, 1Ph, 60Hz |
| Minimum Circuit Ampacity (MCA) | 3A |
| Max Fuse Size | 15A |
| Indoor Air Flow (Turbo/Hi/Med/Lo) | 341/291/194/152 CFM |
| Noise Level (Hi/Med/Lo) | 41.5/36/24 dB(A) |
| Dimensions (W×D×H) | 31.57×7.87×11.61 inches |
| Packing Dimensions | 34.45×11.22×14.96 inches |
| Net/Gross Weight | 18.74/24.25 lbs |
| Operating Temp (Cooling) | 60-90°F |
| Operating Temp (Heating) | 32-86°F |
| Refrigerant Lines | 1/4" (liquid) / 1/2" (gas) |
| Specification | Details |
|---|---|
| Model Number | CH-28MES-230VO |
| Series | ES Series |
| Rated Capacity (Cooling) | 28,000 BTU/h (9,838-30,438 range) |
| Rated Capacity (Heating) | 28,000 BTU/h (8,218-31,000 range) |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Voltage Range | 187-253V |
| Cooling Rated Current | 5.94A |
| Heating Rated Current | 6.31A |
| EER2 | 12.7 |
| SEER2 | 24.6 |
| COP | 3.73 |
| HSPF2-4 | 9.3 |
| HSPF2-5 | 7.1 |
| Minimum Circuit Ampacity | 24.5A |
| Max Fuse Size | 30A |
| Refrigerant Type | R410A |
| Precharged Refrigerant | Up to 75 oz |
| Additional Charge (3/8" line) | 0.32 oz/ft |
| Additional Charge (1/4" line) | 0.16 oz/ft |
| Max Pipe Length | 197 ft |
| Max Height Difference | 49.21 ft |
| Outdoor Air Flow | 2,129 CFM |
| Noise Level | 61 dB(A) |
| Dimensions (W×D×H) | 37.24×16.14×31.89 inches |
| Packing Dimensions | 42.91×19.69×34.84 inches |
| Net/Gross Weight | 139.77/150.57 lbs |
| Refrigerant Lines | 3x1/4" (liquid) / 3x3/8" (gas) |
| Operating Temp (Cooling) | 5-122°F |
| Operating Temp (Heating) | -13-75°F |
| Design Pressure | 550 PSIG (high side) / 340 PSIG (low side) |
Note: Warranty valid only when installed by licensed HVAC technician and registered within 60 days of installation.
Standard 25ft kits included (3 total). Other sizes available:
All kits include: Pre-flared copper linesets (25ft), communication wires (25ft), 16ft PVC drainage attachment, wrapping bands, and installation accessories.
With its high efficiency/high SEER compressor and auto swing louvers, this newest model Cooper & Hunter ductless mini split will both heat and cool your home or office. The DC inverter heat pump pulls heat from the air down to temperatures as low as -13°F!
You are well protected by a seven year warranty on the compressor, a five year parts warranty (must be installed by a licensed HVAC technician), abundant parts availability and smart, experienced technicians should you ever need assistance. This model features a safe and rugged Toshiba-GMCC inverter compressor.
Technical Data
Loading technical data…
Product FAQs
On compatible systems, the app can provide remote on and off control, temperature adjustment, operating-mode selection, fan-speed control, daily or weekly scheduling, customized sleep settings, and an error-code check function. Available features can vary by model and app version.
Yes. Cooper & Hunter states that multiple users can connect and share control of compatible zones or units through the Cooper & Hunter Remote app, which can be useful for households, offices, and multi-zone installations.
Use the exact model number from the equipment label to search Cooper & Hunter’s website or support center. Confirm that the indoor unit, outdoor unit, voltage, capacity, and series shown in the result match the equipment before relying on the manual, submittal, leaflet, or troubleshooting material.
Yes. Cooper & Hunter’s support center allows installers to sign in or register for a personal account to access troubleshooting resources. Warranty diagnosis may still require direct troubleshooting with a Cooper & Hunter Technical Support agent while the technician is on site.
Yes. Cooper & Hunter’s Limited Warranty states that qualifying equipment must be properly installed by a state-certified or licensed HVAC contractor in accordance with applicable codes, permits, manufacturer instructions, and accepted trade practices.
Cooper & Hunter provides product manuals, troubleshooting guides, warranty information, product-specific documents, and selected troubleshooting videos through its official support center. Search using the exact model number to avoid using instructions for a different system.
Yes. Cooper & Hunter’s official website includes a Find Solution tool for selecting a system by application and climate zone, along with a dealer locator. Final equipment selection should still be confirmed against the project load, electrical requirements, installation conditions, and the exact product documentation.
Use Cooper & Hunter’s official Rebates & Incentives portal and enter the requested location and equipment information. Eligibility depends on the exact model, efficiency requirements, installation details, utility program, tax rules, and customer location.
No. Cooper & Hunter states that its systems meet guidelines in many regions and may qualify for rebates or other incentives, but availability and approval depend on the local program and the exact equipment. Verify eligibility before treating an incentive as part of the final project cost.
Compatible systems use the Cooper & Hunter Remote app, available through the Apple App Store and Google Play. The exact system must support Wi-Fi control and may require the manufacturer’s compatible wireless module or smart kit.
No. Cooper & Hunter’s Smart Kit instructions state that the reserved interface is intended for the manufacturer-provided compatible wireless module. Power should be disconnected before installation, and access, replacement, and maintenance of the wireless module should be handled by qualified personnel.
For the eligible product categories listed on its warranty page, Cooper & Hunter publishes one year of coverage for the original remote control, five years on parts, and seven years on the compressor for the original registered end user. Exact coverage can vary by product, purchase channel, registration status, and program eligibility, so confirm the warranty for the exact model.
The product owner or servicing technician should contact Cooper & Hunter Technical Support. For warranty troubleshooting, Cooper & Hunter instructs that the technician should be on site so the support agent can review error codes, symptoms, electrical readings, mechanical measurements, and other diagnostic information.
Have the unit model and serial number, installation date, installer’s EPA or HVAC license information, and the place of purchase available. Cooper & Hunter may also request photographs, error codes, measurements, or other diagnostic details before processing warranty support.
Yes. Cooper & Hunter’s support center states that one-on-one technical and warranty assistance is available in English, Spanish, Mandarin, Russian, and Ukrainian.
Cooper & Hunter lists Technical Support at (888) 293-9252 and an additional number at (786) 953-6706. Its support center currently lists availability Monday through Friday from 9:00 AM to 8:00 PM Eastern Time. Check the official support page for current hours before calling.
Cooper & Hunter’s published policy excludes labor and related field costs. It also states that refrigerant, charging, recharging, adjustment, and removal costs are not covered. The owner is generally responsible for these expenses even when an eligible replacement part is provided.
Register the equipment through Cooper & Hunter’s official warranty registration process. Registration can be completed online or by phone. Keep the model and serial numbers for each piece of equipment, the installation and purchase details, and the installing contractor’s information available before starting.
Cooper & Hunter states that products should be registered within 60 days of installation for its Limited Warranty. Registration and coverage remain subject to the current warranty policy and the eligibility requirements for the specific product.
Cooper & Hunter requests the model and serial number for each piece of equipment, installation date, owner contact information, installer or dealer information, purchase details, an email address, and the HVAC license number. Much of this information should be available on the product labels and installation invoice.
Yes. Cooper & Hunter’s published policy states that warranty coverage applies to products remaining at their original installation location. Equipment removed and reinstalled elsewhere may be excluded from warranty coverage.
Yes. Cooper & Hunter lists damage or repairs arising from non-compatible parts, third-party components, alterations, modifications, or improper applications among its warranty exclusions. Use components approved for the exact equipment and application.
Cooper & Hunter’s published Limited Warranty is provided to the first original owner at the original installation location and is not transferable to subsequent owners. Review the current warranty policy for the exact product and transaction.
No. Wi-Fi and app compatibility are model dependent. Some systems include compatible wireless capability, while others require a specific Cooper & Hunter Wi-Fi accessory or do not support app control. Confirm the exact model’s product documents and accessory compatibility before ordering.
