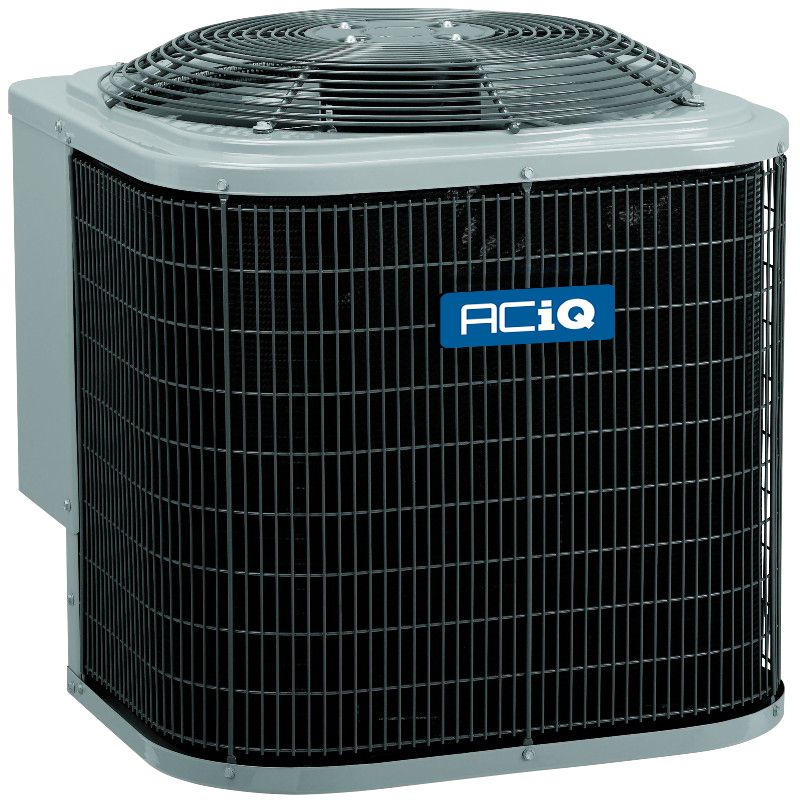

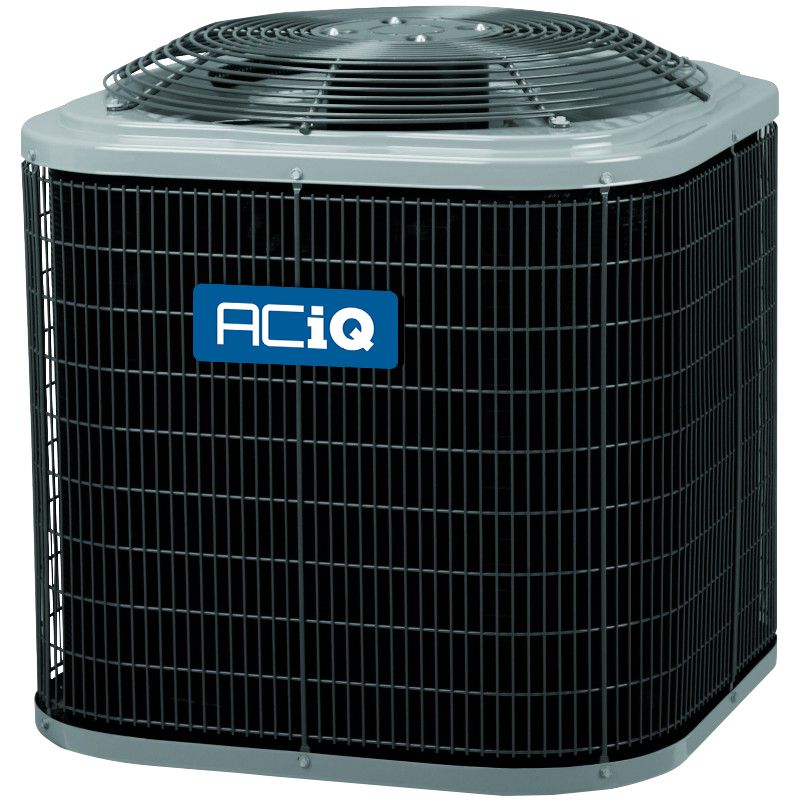

ACiQ 3.5 Ton 14.3 SEER2 ACiQ Mobile Home Air Conditioner Condenser - R454B
$2,119.00
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.
A smart, reliable choice for year-round comfort.
Best for:
- Bedrooms
- Home Offices
- Additions
- Garages
- See specs
- Cooling
- See specs
- Heating
- See specs
- Quiet Inside
- Rated
- High Efficiency
Recommended Add-Ons
Compatible accessories for this system
Must haves for best Installation
Loading recommended accessories…
Brand Information
ACIQ
- Support Number
- 1-877-909-ACiQ
- Official Site
- ACIQ Official Site
Product Overview Full product description Read the longer product copy, features, and application notes. +
ACiQ
ACiQ 3.5 Ton 14.3 SEER2 ACiQ Mobile Home Air Conditioner Condenser - R454B
Product Overview
OVERVIEW
The ACIQ R5A5S42AKAWA-MH is a standard AC-only mobile home condenser. Designed with comfort in mind and an inexpensive but higher-than-standard efficiency option for nearly any application, this condenser is considered a good all-around option for almost any application.
QUICK FACTS
- Factory pre-charged with enough refrigerant for a 15-foot line set, ensuring proper performance and efficiency right out of the box.
- 3.5 Ton 14.3 SEER2 ACIQ Mobile Home Air Conditioner Condenser
- Can cool up to a medium size house in average conditions
- Single stage compressor
- Pre-charged with R454B refrigerant
- Filter drier included to be field-installed
3.5 Tons
The ACIQ R5A5S42AKAWA-MH mobile home air conditioner condenser has an output of 3.5 tons, generally enough to cool up to a medium size house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function or provide any sort of heating on its own, and it needs an indoor coil or air handler to work.
14.3 SEER2
The ACIQ R5A5S42AKAWA-MH mobile home air conditioner condenser is rated at 14.3 SEER2, making it between 5-7% more efficient than standard 13.4 SEER2 units, saving you money in electric bills over the entire lifetime of your unit.
Warranty
ACIQ offers a 10 year parts warranty on this condenser. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer.
Durability
The cabinet of ACIQ units are extremely durable. On the R5A5S42AKAWA, there are reinforced corner posts and the internals of the unit are protected by an additional inlet grille, all to provide enhanced protection to the unit.
Disclaimer: This condenser contains R454B refrigerant, which is classified as an A2L refrigerant. To comply with safety standards, this unit must be paired with an R454B air handler or evaporator coil equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty.
All ACIQ condensers come pre-charged with enough refrigerant for a 15-foot line set, making installation faster and more convenient. This pre-charged design saves installers time and reduces labor costs by eliminating the need for manual refrigerant charging. It also helps ensure the system starts with the correct amount of refrigerant, minimizing the risk of improper charging that could impact performance and efficiency. If a longer line set is required, your installer will need to add additional refrigerant to maintain optimal operation.
Upgrade to a Mobile Home System!
Quiet Comfort
ACiQ has the power to keep things cool when temperatures rise. Every ACiQ condenser uses a scroll compressor for long life and efficiency operation. From entry level to high efficient, single stage, two stage and communicating models, every ACiQ Condenser keeps you cool year after year.
High Efficiency
ACIQ saves you money up front, but also over time by reducing energy bills. Models ranging from standard efficiency to high efficient models can provide you savings from 21% to 63% over older, 10 SEER condensers. Coil construction is either all aluminum or copper/aluminum (depending on model) for max efficiency.
Longer life, longer warranty
ACiQ condensers are 100% run-tested at the factory. Protective coatings on the fins mean long life even in harsh conditions. A filter drier is included to keep the system healthy. ACiQ’s extended warranty with online registration provides 10 year protection.
Mobile Home Buying & Sizing Guide
- Mobile home approved product types
- Product differences
- Figuring out the right size unit for your needs
- Determining factors
- Repair vs. replace
Technical Specifications — R5A5S42AKAWA-MH
| sku | R5A5S42AKAWA-MH |
|---|---|
| refrigerant charge | 15' |
| weight (in lbs) | 215.000000 |
| brand/manufacturer | ACiQ |
| replaces | R4A5S |
| product features | New Refrigerant Compliant |
| cooling btu | 42000 |
| maximum cfm | 4900 |
| decibel level (dba) | 75 |
| motor rpm | 1100 |
| horsepower | 1/5 HP |
| refrigerant | R454B |
| seer2 (efficiency) | 14.3 |
| condenser stages | Single Stage |
| compressor type | Scroll |
| liquid valve size | 3/8" |
| suction valve size | 7/8" |
| electrical | 208 / 230 V. 1 Phase 60 Hz |
| tonnage | 3.5 Ton |
| height | 38 7/16" |
| width | 31 3/16" |
| depth | 31 3/16" |
| warranty | 10 Year Parts Limited Warranty with Online Registration |
| resources | R5A5S Owners ManualR5A5S Specifications SheetACiQ Condenser WarrantyYou will need Adobe® Acrobat® Reader to view PDF documents. |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
