2 Zone Cooper & Hunter Olivia Series, 3 Ton Air Conditioner, Ductless Mini Split with 9k+12k BTU Wall Mounts, R410A, 23.9 SEER 36K BTU Inverter Heat Pump, 230V, Dual Head (2 Heads), Includes Choice of 25ft or 50ft Installation Kit + WIFI Adapter

2 Zone Cooper & Hunter Olivia Series, 3 Ton Air Conditioner, Ductless Mini Split with 9k+12k BTU Wall Mounts, R410A, 23.9 SEER 36K BTU Inverter Heat Pump, 230V, Dual Head (2 Heads), Includes Choice of 25ft or 50ft Installation Kit + WIFI Adapter

SKU: CH-09MOLVWM-230VI+CH-12MOLVWM-230VI + CH-36MES-230VO

Free Shipping on orders above $300

No sales tax except in TX, FL, & PA!

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Ordered

Apr 08

After you place the order, we will need to 1 day to prepare the shipment

Order Ready

Apr 10 - Apr 13

Order will start to be shipped.

Delivered

Apr 13 - Apr 16

Estimate arrival date: Apr 13 - Apr 16

Order in the next 06 Hours 20 Minutes 11 Seconds and You will receive your order between Apr 13 and Apr 16

Price
Regular price $3,163.00
Sale price $3,163.00 Regular price $2,989.00
save $-174.00
Sold out
SIZE
save $-174.00
save $-325.00
save $-378.00

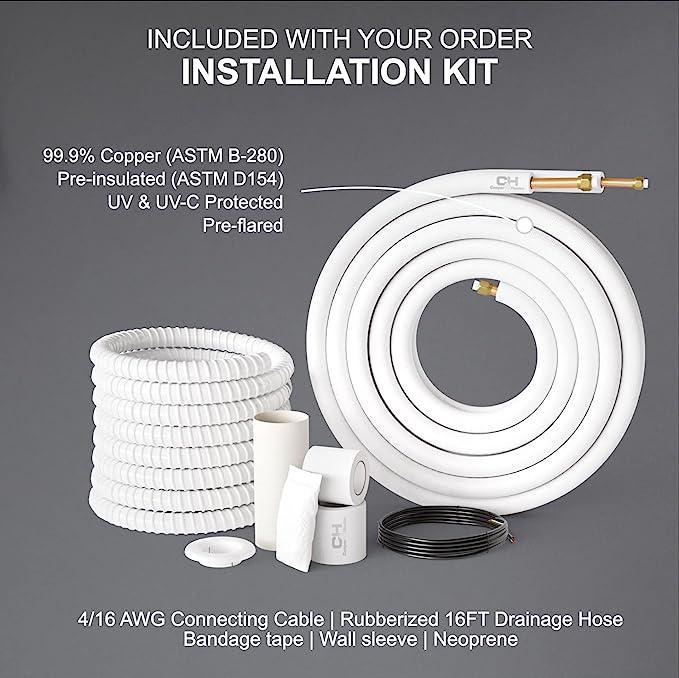

NOTE: The default selection does not include an installation kit. Upgrade your selection to add to your order.

 More payment options

Pickup available at Texas

Usually ready in 24 hours

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS


CUSTOM INSTALLATION KITS AVAILABLE IN 16FT, 25FT, AND 50FT LENGTHS. CONTACT US TO CONFIGURE YOUR SYSTEM! (737)-738-6329
This is the NEWEST model from Cooper & Hunter, produced in 2022!
Wifi Ready* (adapter sold separately)

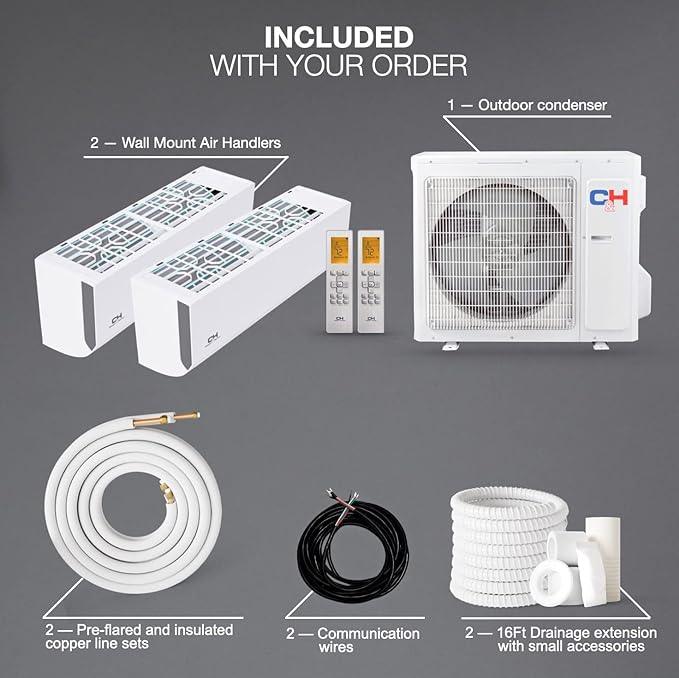

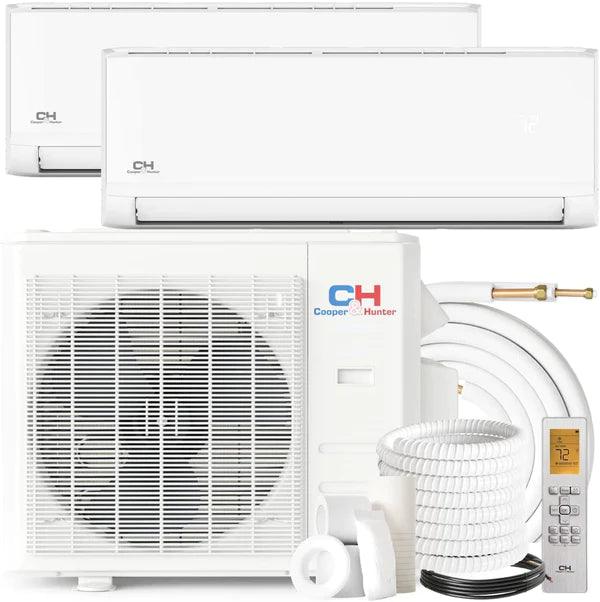

INCLUDED IN YOUR ORDER:
Cooper & Hunter Multi Zone Ductless Mini Split System 36,000 BTU Inverter with Heat Pump
* OUTDOOR UNIT = 36,000 BTU (1pc) (CH-36MES-230VO)
* INDOOR UNIT (with remotes) = 9,000 BTU (1pc) (CH-9MASTWM-230VI) + 12,000 BTU (1pc) (CH-12MOLVWM-230VI)
(Two Heads)

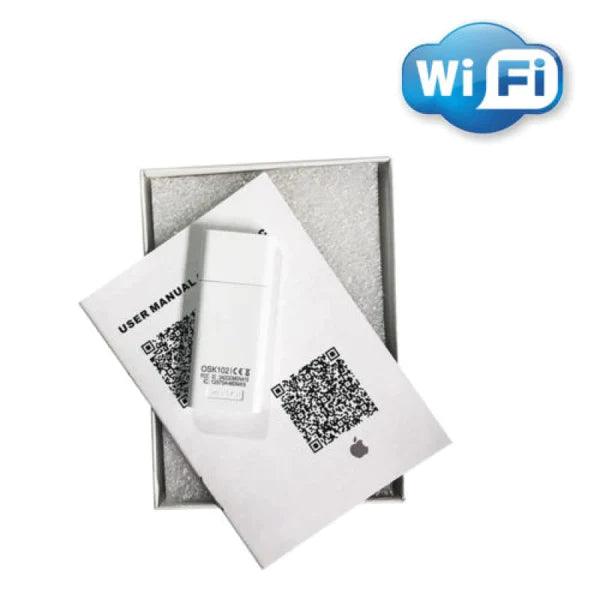

* WI-FI ADAPTER (17310900A05963)

Cooper&Hunter Olivia Series R410A, 36,000 BTU Dual Zone Mini Split Heat Pump System with 9,000 BTU + 12,000 BTU Wall-Mount Indoor Units, 230V

Summary

The Cooper&Hunter Olivia series combines sleek design with high-performance functionality. This system features a 36,000 BTU outdoor unit (CH-36MES-230VO) with 23.9 SEER2 and 9.3 HSPF2-4 ratings, paired with a 9,000 BTU (CH-9MASTWM-230VI) and 12,000 BTU (CH-12MOLVWM-230VI) indoor units. The outdoor unit operates at 63 dB(A) noise level with 2,068 CFM airflow, while the indoor units deliver quiet operation down to 24 dB(A). The system provides efficient heating down to -13°F with DC inverter technology.

Important

Professional installation required for warranty validation. Register within 60 days of installation.

Technical Specifications

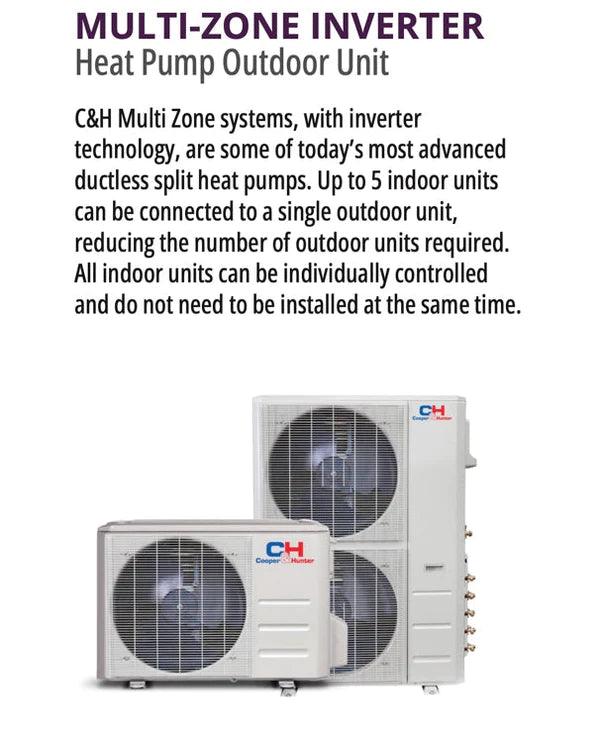

Outdoor Unit: CH-36MES-230VO

Specification Unit Value
Power Supply V/Ph/Hz 208/230, 1, 60
Voltage Range V 187-253
Cooling Capacity BTU/h 36,000 (8,209-40,555 range)
Heating Capacity BTU/h 37,000 (8,008-44,632 range)
SEER2 23.9
HSPF2-4 9.3
EER2 11.7
Refrigerant R410A (Up to 100oz)
Outdoor Air Flow CFM 2,068 (Max)
Noise Level dB(A) 58.8
Dimensions inches 35.04x13.46x28.50
Net/Gross Weight lbs 94.36/100.97
Max Pipe Length ft 98
Max Height Difference ft 66

Indoor Unit: CH-9MASTWM-230VI (9,000 BTU)

Specification Unit Value
Power Supply V/Ph/Hz 208/230, 1, 60
Rated Capacity BTU/h 9,000
Air Flow (Turbo/Hi/Mi/Lo) CFM 341/300/241/176
Noise Level (Hi/Mi/Lo) dB(A) 41.5/36/24
Dimensions inches 31.57x7.87x11.61
Packing Dimensions inches 34.45x11.22x14.96
Net/Gross Weight lbs 18.96/24.47
Cooling Temp Range °F 60-90
Heating Temp Range °F 32-86
Refrigerant Piping inch 1/4" (liquid) / 3/8" (gas)

Indoor Unit: CH-12MOLVWM-230VI (12,000 BTU)

Specification Unit Value
Power Supply V/Ph/Hz 208/230, 1, 60
Rated Capacity BTU/h 12,000
Air Flow (Turbo/Hi/Mi/Lo) CFM 341/291/194/152
Noise Level (Hi/Mi/Lo) dB(A) 41.5/36/24
Dimensions inches 31.57x7.87x11.61
Packing Dimensions inches 34.45x11.22x14.96
Net/Gross Weight lbs 18.74/24.25
Cooling Temp Range °F 60-90
Heating Temp Range °F 32-86
Refrigerant Piping inch 1/4" (liquid) / 1/2" (gas)

Warranty

  • 7 year compressor limited warranty
  • 5 year parts limited warranty (must be installed by a licensed HVAC technician)
  • 1 year remote control

Performance Features

  • Auto-Swing horizontal louvers
  • DC Inverter technology
  • Heating down to -13°F
  • Multiple fan speeds
  • Quiet operation
  • Wi-Fi ready (adapter included)
  • Self-cleaning function
  • Sleep mode
  • Timer function

Certifications

Brackets and Concrete Pads

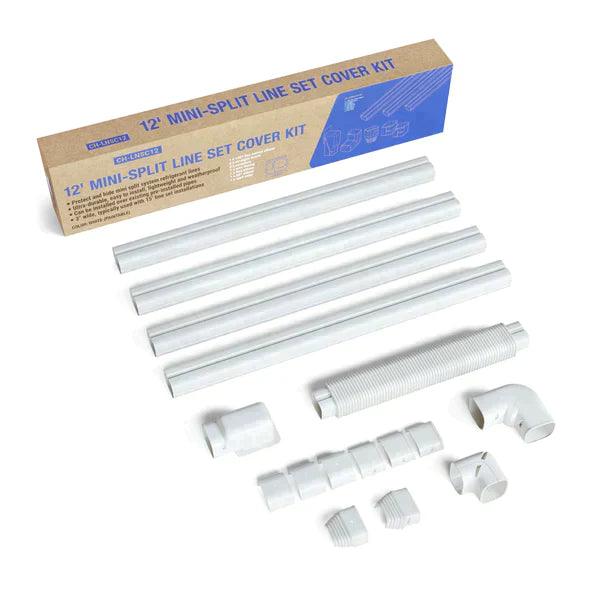

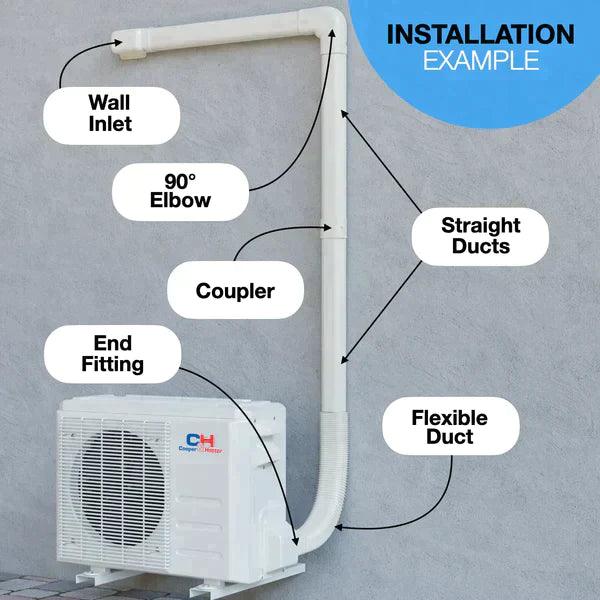

Line covers
