Cooper & Hunter, Olivia Series, Multi-Zone, 36,000 BTU/h, 208-230V/60HZ, 3 Ton, 23.9 SEER, Ductless Mini Split Wall Mount AC/Heater With WIFI. CH-06MOLVWM-230VI + CH-18MOLVWM-230VI + CH-36MES-230VO
Summary
The Olivia Series Multi Zone Ductless Mini Split System features high-efficiency performance with a 6,000 BTU and 18,000 BTU indoor unit connected to one 36,000 BTU outdoor unit. Auto-swing horizontal louvers maintain even airflow throughout the room, and the Genius Core Technology enables the unit to operate with an ultra-low compressor speed of 12Hz for extra energy savings, granting them a high-efficiency rating of up to 23.9 SEER. This system will both heat and cool your home or office effectively down to -13°F. The units can be controlled with the Cooper&Hunter remote control, or via a smart device when used with the optional Wi-Fi kit and Cooper&Hunter Remote app.
Included in Your Order:

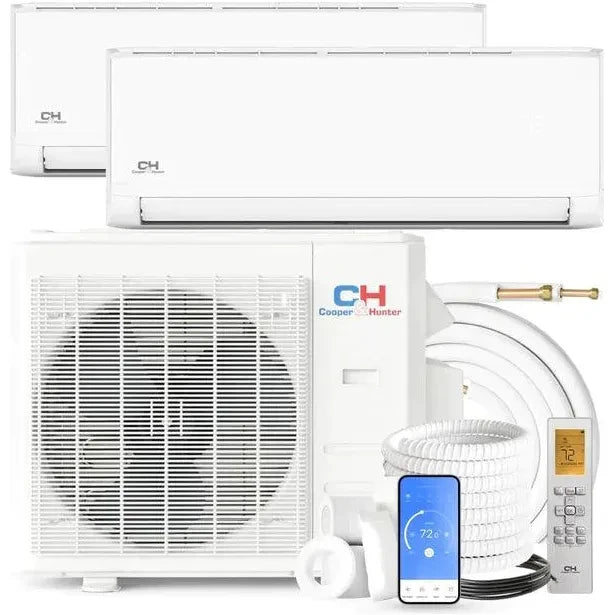

Cooper & Hunter Multi Zone Ductless Mini Split System (36,000 BTU Inverter with Heat Pump)

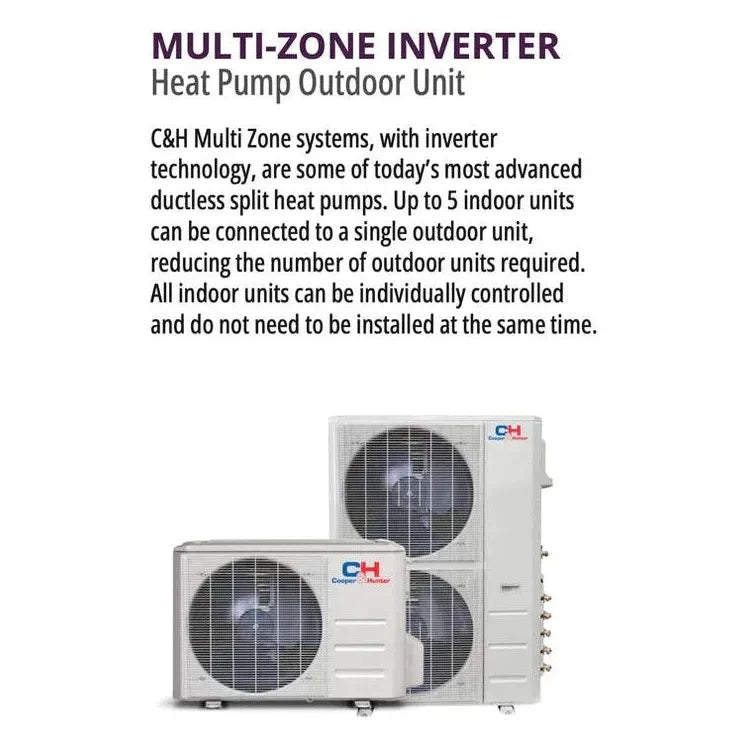

Outdoor Unit: 36,000 BTU (1pc) – Model: CH-36MES-230VO

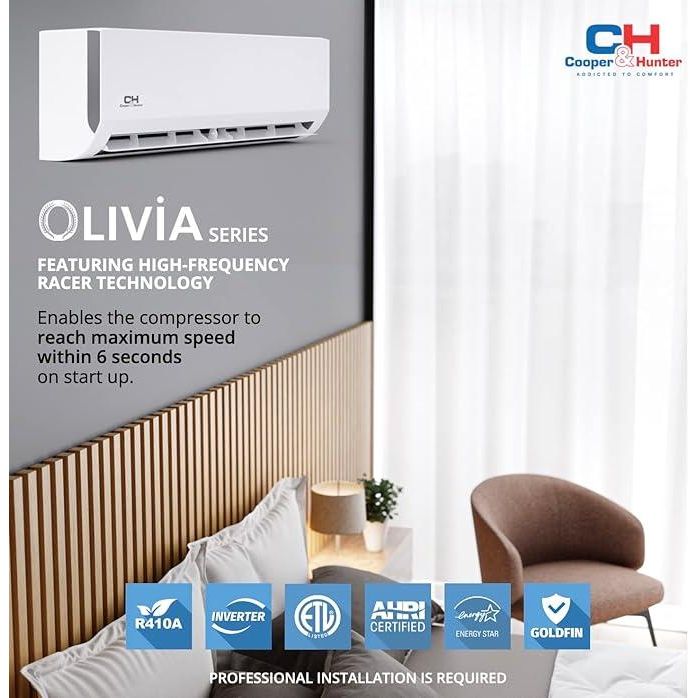

Indoor Units: 6,000 BTU (1pc) and 18,000 BTU (1pc) with remotes – Models: CH-06MOLVWM-230VI + CH-18MOLVWM-230VI
Wi-Fi Adapter
Wireless Remote Controls (2)
Installation Manual
User's Manual
Manufacturer Warranty
Key Features:
- Auto-Swing for horizontal louvers
- Genius Core ultra-low compressor speed of 12Hz
- 46° Freeze Protection
- Turbo Mode
- Self-Clean Function
- Eco Mode
- Follow Me Mode
- Remote Controls included
- Smart Kit ready with downloadable C&H remote app
- Independent temperature control for each zone
Important
All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone.
Technical Information
Indoor Unit: CH-06MOLVWM-230VI
| Indoor Model | CH-06MOLVWM-230VI | ||
| Power Supply | Rated | V, Ph, Hz | 208/230,1,60 |
| Rated Capacity | Btu/h | 6,000 | |
| Minimum Circuit Ampacity (MCA) | A | 3 | |
| Max. Fuse | A | 15 | |
| Indoor Air Flow (Turbo/Hi/Mi/Lo) | CFM | 294/247/176/141 | |
| Indoor Noise Level (Hi/Mi/Lo) | dB(A) | 38.5/33/20.5 | |
| Indoor | Dimensions | inch | 28.70x7.87x11.50 |
| Packing | inch | 31.10x10.63x14.76 | |
| Net/Gross Weight | lbs. | 17.64/22.49 | |
| Room temperature | Cooling | °F | 60 ~ 90 |
| Heating | °F | 32 ~ 86 | |
| Liquid Side/Gas Side | inch | 1/4" / 3/8" | |
Indoor Unit: CH-18MOLVWM-230VI
| Indoor Model | CH-18MOLVWM-230VI | ||
| Power Supply | Rated | V, Ph, Hz | 208/230,1,60 |
| Rated Capacity | Btu/h | 18,000 | |
| Minimum Circuit Ampacity (MCA) | A | 3 | |
| Max. Fuse | A | 15 | |
| Indoor Air Flow (Turbo/Hi/Mi/Lo) | CFM | 760/530/458/382 | |
| Indoor Noise Level (Hi/Mi/Lo) | dB(A) | 46/40/25 | |
| Indoor | Dimensions | inch | 42.64x9.61x13.23 |
| Packing | inch | 45.47x16.34x12.40 | |
| Net/Gross Weight | lbs. | 29.54/37.48 | |
| Room temperature | Cooling | °F | 60 ~ 90 |
| Heating | °F | 32 ~ 86 | |
| Liquid Side/Gas Side | inch | 1/4" / 1/2" | |
Outdoor Unit: CH-36MES-230VO
| Outdoor Model | CH-36MES-230VO | ||
| Power Supply | Rated | V, Ph, Hz | 208/230,1,60 |
| Voltage Range | V | 187-253 | |
| Cooling | Rated Capacity (Range) | Btu/h | 36,000 (8,209-40,555) |
| Rated Current | A | 25 | |
| EER2 | Btu/h | 11.7 | |
| SEER2 | Btu/h | 23.9 | |
| Heating at 47°F | Rated Capacity (Range) | Btu/h | 37,000 (8,008-44,632) |
| Rated Current | A | 40 | |
| COP | W/W | 3.5 | |
| HSPF4 | 9.3 | ||
| HSPF5 | 7.1 | ||
| Minimum Circuit Ampacity | A | 25 | |
| Max. Fuse (Outdoor Unit) | A | 40 | |
| Outdoor Air Flow (Max.) | CFM | 2147.06 | |
| Outdoor Noise Level (Sound Pressure) | dB(A) | 63 | |
| Dimension (W×D×H) | inch | 37.24x16.14x31.89 | |
| Packing (W×D×H) | inch | 42.91x19.69x34.84 | |
| Net/Gross Weight | lbs. | 169.09/181.44 | |
| Refrigerant Type / Charge | oz. | R410A/100 | |
| Refrigerant Piping Liquid Side/Gas Side | inch | 4x1/4" - 3x3/8" + 1x1/2" | |
| Max. Pipe Length | ft. | 262 | |
| Max. Difference in Level | ft. | 49.21 | |
| Ambient Temperature | Cooling | °F | -13~122 |
| Heating | °F | -13~75 | |
Warranty
- 7 year compressor limited warranty
- 5 year parts limited warranty (must be installed by a licensed HVAC technician)
- 1 year remote control
Certifications
