Cooper&Hunter Olivia Midnight Series Multi-Zone System, 36,000 BTU Outdoor Unit with 9K+24K Indoor Units, 230V Mini Split Heat Pump Inverter System
Â
Summary
The Cooper&Hunter Olivia Midnight series offers both aesthetics and functionality with its sleek black panel design. This multi-zone system features a 36,000 BTU outdoor unit paired with two indoor wall-mounted units (9,000 BTU and 24,000 BTU). The system provides efficient heating and cooling with features like auto-swing louvers, Follow Me mode, Sleep mode, and 46°F Freeze Protection. Units can be controlled via included remote or through the C&H Remote app when used with the optional Smart Kit.
Â
Important
All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone.
Â
What's Included
- Outdoor Unit: CH-36MES-230VO (36,000 BTU)
- Indoor Unit: CH-09MOLVWM-230VI (9,000 BTU Black Olivia Midnight)
- Indoor Unit: CH-24M0LVWM-230VI (24,000 BTU Black Olivia Midnight)

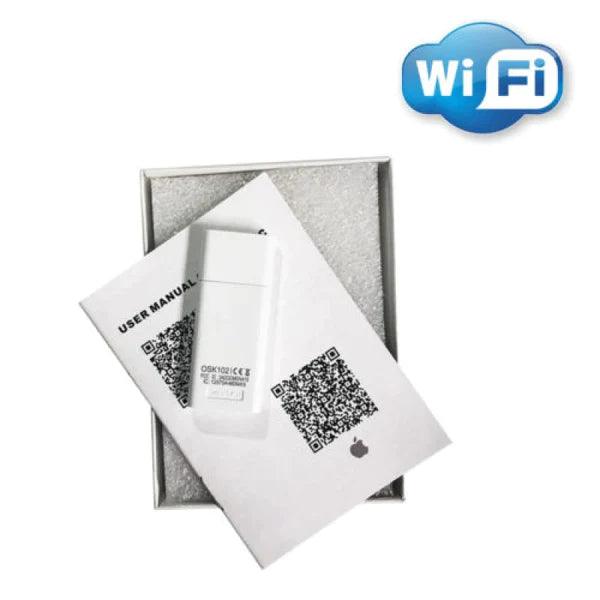

- Wi-Fi Adapter (17310900A05963)
- Wireless Remote Controls
- Installation Manual
- User's Manual
- Manufacturer Warranty
Technical Information

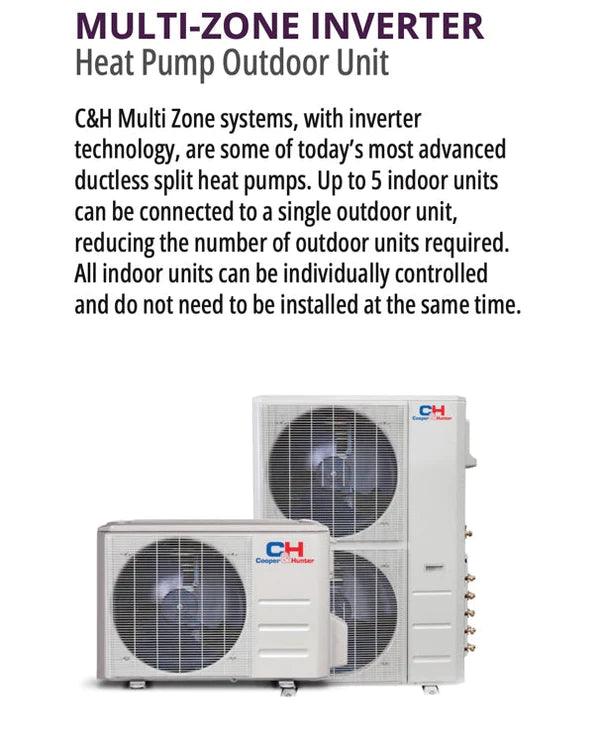

Outdoor Unit: CH-36MES-230VO
| Power Supply | 208-230V, 1Ph, 60Hz |
| Rated Cooling Capacity | 36,000 BTU/h (8,209-40,555 range) |
| Rated Heating Capacity | 37,000 BTU/h (8,008-44,632 range) |
| SEER2 | 23.9 |
| HSPF2-4 | 9.3 |
| EER2 | 11.7 |
| Minimum Circuit Ampacity | 25A |
| Max Fuse | 40A |
| Outdoor Air Flow (Max) | 2,147.06 CFM |
| Outdoor Noise Level | 63 dB(A) |
| Dimensions (WxDxH) | 37.24x16.14x31.89 inches |
| Net/Gross Weight | 169.09/181.44 lbs |
| Refrigerant Type | R410A |
| Max Pipe Length | 262 ft |
| Max Height Difference | 49.21 ft |
| Ambient Temperature Range | Cooling: 5~122°F Heating: -13~75°F |
Indoor Unit: CH-09MOLVWM-230VI (9,000 BTU)
| Power Supply | 208/230, 1, 60 |
| Rated Capacity | 9,000 BTU/h |
| Minimum Circuit Ampacity (MCA) | 3A |
| Max. Fuse | 15A |
| Indoor Air Flow (Turbo/Hi/Mi/Lo) | 341/291/194/152 CFM |
| Indoor Noise Level (Hi/Mi/Lo) | 40/35/23.5 dB(A) |
| Dimensions (WxDxH) | 31.57x7.87x11.61 inches |
| Net/Gross Weight | 18.96/24.25 lbs |
| Room Temperature Range | Cooling: 60-90°F Heating: 32-86°F |
Indoor Unit: CH-24M0LVWM-230VI (24,000 BTU)
| Power Supply | 208/230, 1, 60 |
| Rated Capacity | 24,000 BTU/h |
| Minimum Circuit Ampacity (MCA) | 3A |
| Max. Fuse | 15A |
| Indoor Air Flow (Turbo/Hi/Mi/Lo) | 760/601/458/382 CFM |
| Indoor Noise Level (Hi/Mi/Lo) | 46.5/44/35 dB(A) |
| Dimensions (WxDxH) | 42.60x9.21x13.27 inches |
| Net/Gross Weight | 29.98/38.14 lbs |
| Room Temperature Range | Cooling: 60-90°F Heating: 32-86°F |
Performance Data/Features
- Auto-Swing for horizontal louvers
- Genius Core ultra-low compressor speed of 12Hz
- 46° Freeze Protection
- Turbo Mode
- Self-Clean Function
- Eco Mode
- Follow Me Mode
- Remote Control included
- Smart Kit ready with downloadable C&H remote app
Warranty
- 7 year compressor limited warranty
- 5 year parts limited warranty (must be installed by a licensed HVAC technician)
- 1 year remote control
