2 Zone Cooper & Hunter Olivia Series, 3 TON Air Conditioner, Ductless Mini Split with 12K+24K BTU Wall Mounts, R410A, 23.9 SEER 36K BTU Inverter Heat Pump, 230V, Dual Head, Installation Kits Option + Wi-Fi Adapter

2 Zone Cooper & Hunter Olivia Series, 3 TON Air Conditioner, Ductless Mini Split with 12K+24K BTU Wall Mounts, R410A, 23.9 SEER 36K BTU Inverter Heat Pump, 230V, Dual Head, Installation Kits Option + Wi-Fi Adapter

SKU: CH-12MOLVWM-230VI & CH-24MOLVWM-230VI & CH-36MES-230VO

Free Shipping on orders above $300

No sales tax except in TX, FL, & PA!

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Price
Regular price $3,227.52
Sale price $3,227.52 Regular price
Sold out
12,000 BTU Installation Kit
24,000 BTU Installation Kit

NOTE: The default selection does not include an installation kit. Upgrade your selection to add to your order.

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

Cooper&Hunter 36,000 BTU Dual Zone Mini Split System - CH-36MES-230VO + CH-12MOLVWM-230VI + CH-24M0LVWM-230VI


Summary

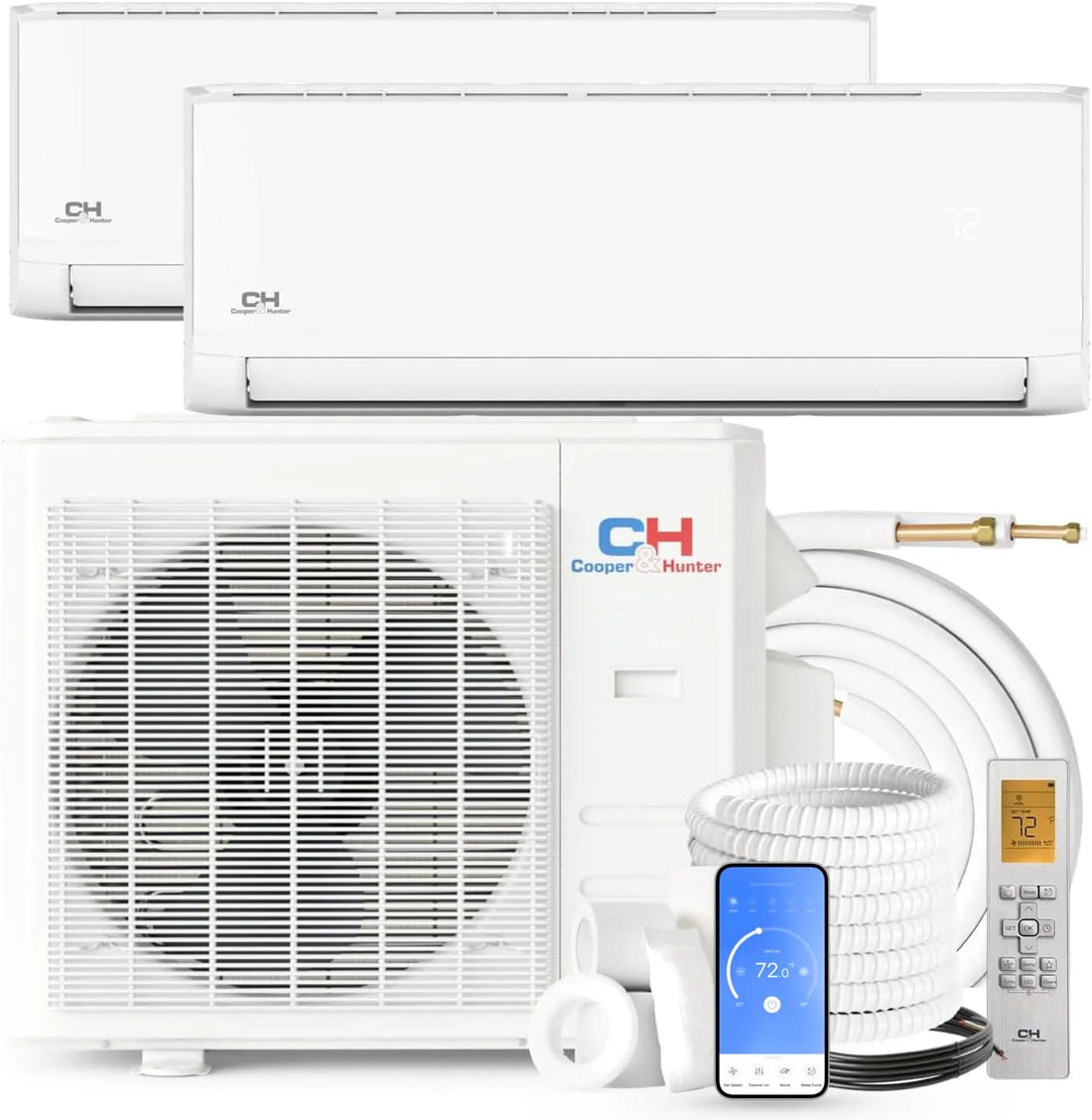

The Cooper & Hunter Dual Zone system features a 36,000 BTU outdoor unit paired with one 12,000 BTU and one 24,000 BTU wall-mounted indoor unit. With its high efficiency compressor (23.9 SEER2) and auto swing louvers, this system will both heat and cool your space effectively down to -13°F. The DC inverter heat pump provides energy-efficient operation while allowing independent temperature control in two zones.


Included in Your Order:

Cooper & Hunter Dual Zone Ductless Mini Split System (36,000 BTU Inverter with Heat Pump)

Outdoor Unit: 36,000 BTU (1pc) – Model: CH-36MES-230VO

Indoor Units:
- 12,000 BTU (1pc with remote) – Model: CH-12MOLVWM-230VI
- 24,000 BTU (1pc with remote) – Model: CH-24M0LVWM-230VI

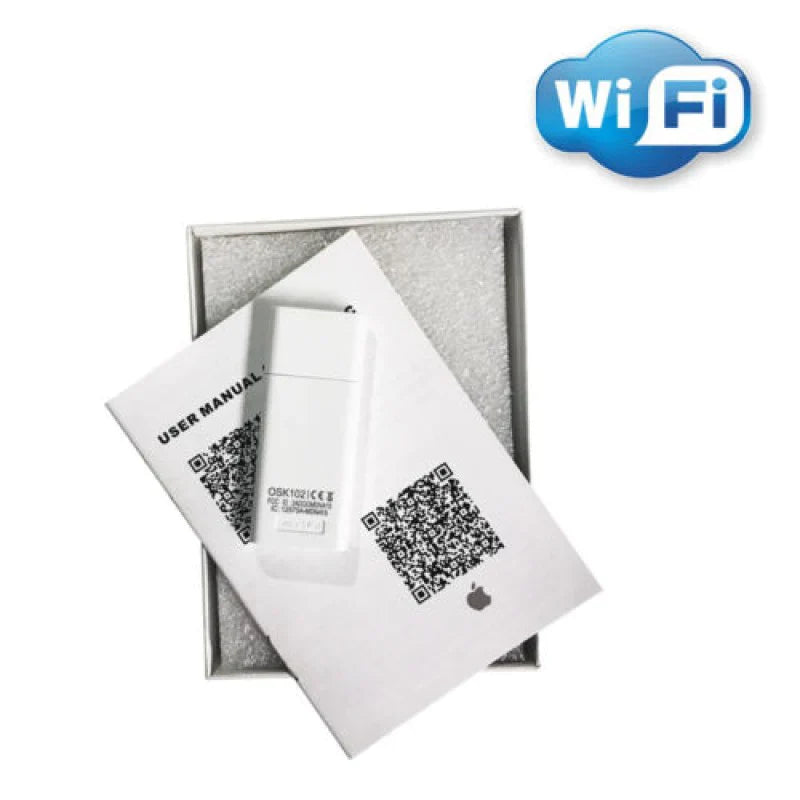

Wi-Fi Adapter

Optional Installation Kit (16ft, 25ft, or 50ft options available at checkout)

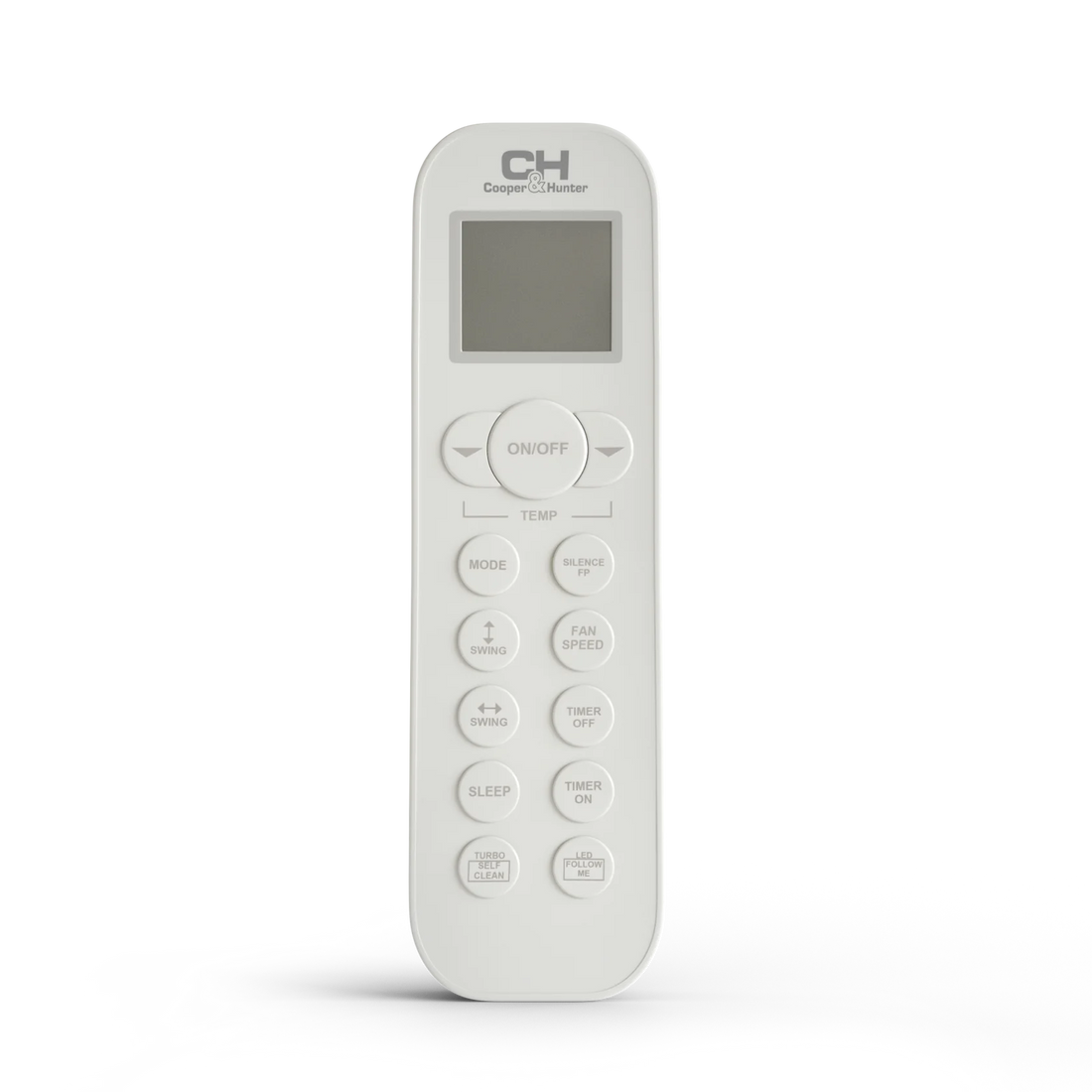

Wireless Remote Controls

Installation Manual

User's Manual

Manufacturer Warranty


Key Features:

  • Dual zone independent temperature control
  • High efficiency operation (23.9 SEER2)
  • Heats down to -13°F ambient temperature
  • Auto-Swing horizontal louvers
  • Turbo Mode for rapid cooling/heating
  • Self-Clean Function
  • Wi-Fi enabled with mobile app control
  • Quiet operation (as low as 24dB indoor)
  • Energy saving modes
  • Follow Me mode for personalized comfort

Important Notes

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function - please select your preferred size (16ft, 25ft, or 50ft) at checkout.


Complete Technical Specifications

Indoor Unit: CH-12MOLVWM-230VI

Specification Details
Model Number CH-12MOLVWM-230VI
Rated Capacity 12,000 Btu/h
Power Supply 208/230V, 1Ph, 60Hz
Minimum Circuit Ampacity (MCA) 3A
Max Fuse Size 15A
Indoor Air Flow (Turbo/Hi/Med/Lo) 341/291/194/152 CFM
Noise Level (Hi/Med/Lo) 41.5/36/24 dB(A)
Dimensions (W×D×H) 31.57×7.87×11.61 inches
Packing Dimensions 34.45×11.22×14.96 inches
Net/Gross Weight 18.74/24.25 lbs
Operating Temp (Cooling) 60-90°F
Operating Temp (Heating) 32-86°F
Refrigerant Lines 1/4" (liquid) / 1/2" (gas)

Indoor Unit: CH-24M0LVWM-230VI

Specification Details
Model Number CH-24M0LVWM-230VI
Rated Capacity 24,000 Btu/h
Power Supply 208/230V, 1Ph, 60Hz
Minimum Circuit Ampacity (MCA) 3A
Max Fuse Size 15A
Indoor Air Flow (Turbo/Hi/Med/Lo) 760/601/458/382 CFM
Noise Level (Hi/Med/Lo) 46.5/44/35 dB(A)
Dimensions (W×D×H) 42.60×9.21×13.27 inches
Packing Dimensions 45.47×16.34×12.40 inches
Net/Gross Weight 29.98/38.14 lbs
Operating Temp (Cooling) 60-90°F
Operating Temp (Heating) 32-88°F
Refrigerant Lines 3/8" (liquid) / 5/8" (gas)

Outdoor Unit: CH-36MES-230VO

Specification Details
Model Number CH-36MES-230VO
Series ES Series
Rated Capacity (Cooling) 36,000 BTU/h (8,209-40,555 range)
Rated Capacity (Heating) 37,000 BTU/h (8,008-44,632 range)
Power Supply 208-230V, 1Ph, 60Hz
Voltage Range 187-253V
Cooling Rated Current 5.94A
Heating Rated Current 6.31A
EER2 11.7
SEER2 23.9
COP 3.5
HSPF2-4 9.3
HSPF2-5 7.1
Minimum Circuit Ampacity 25A
Max Fuse Size 40A
Refrigerant Type R410A
Precharged Refrigerant Up to 100 oz
Additional Charge (3/8" line) 0.32 oz/ft
Additional Charge (1/4" line) 0.16 oz/ft
Max Pipe Length 262 ft
Max Height Difference 49.21 ft
Outdoor Air Flow 2,147 CFM
Noise Level 63 dB(A)
Dimensions (W×D×H) 37.24×16.14×31.89 inches
Packing Dimensions 42.91×19.69×34.84 inches
Net/Gross Weight 169.09/181.44 lbs
Refrigerant Lines 4x1/4" (liquid) / 3x3/8"+1x1/2" (gas)
Operating Temp (Cooling) 5-122°F
Operating Temp (Heating) -13-75°F
Design Pressure 550 PSIG (high side) / 340 PSIG (low side)

Warranty Information

  • 7-Year Compressor Warranty - Covers defects in materials/workmanship
  • 5-Year Parts Warranty - Covers all other components (except remote)
  • 1-Year Remote Control Warranty

Note: Warranty valid only when installed by licensed HVAC technician and registered within 60 days of installation.


Installation Kit Options

Please select your preferred installation kit size at checkout:

  • 16ft Kit - Ideal for short runs between indoor and outdoor units
  • 25ft Kit - Standard length for most installations
  • 50ft Kit - For longer runs between units

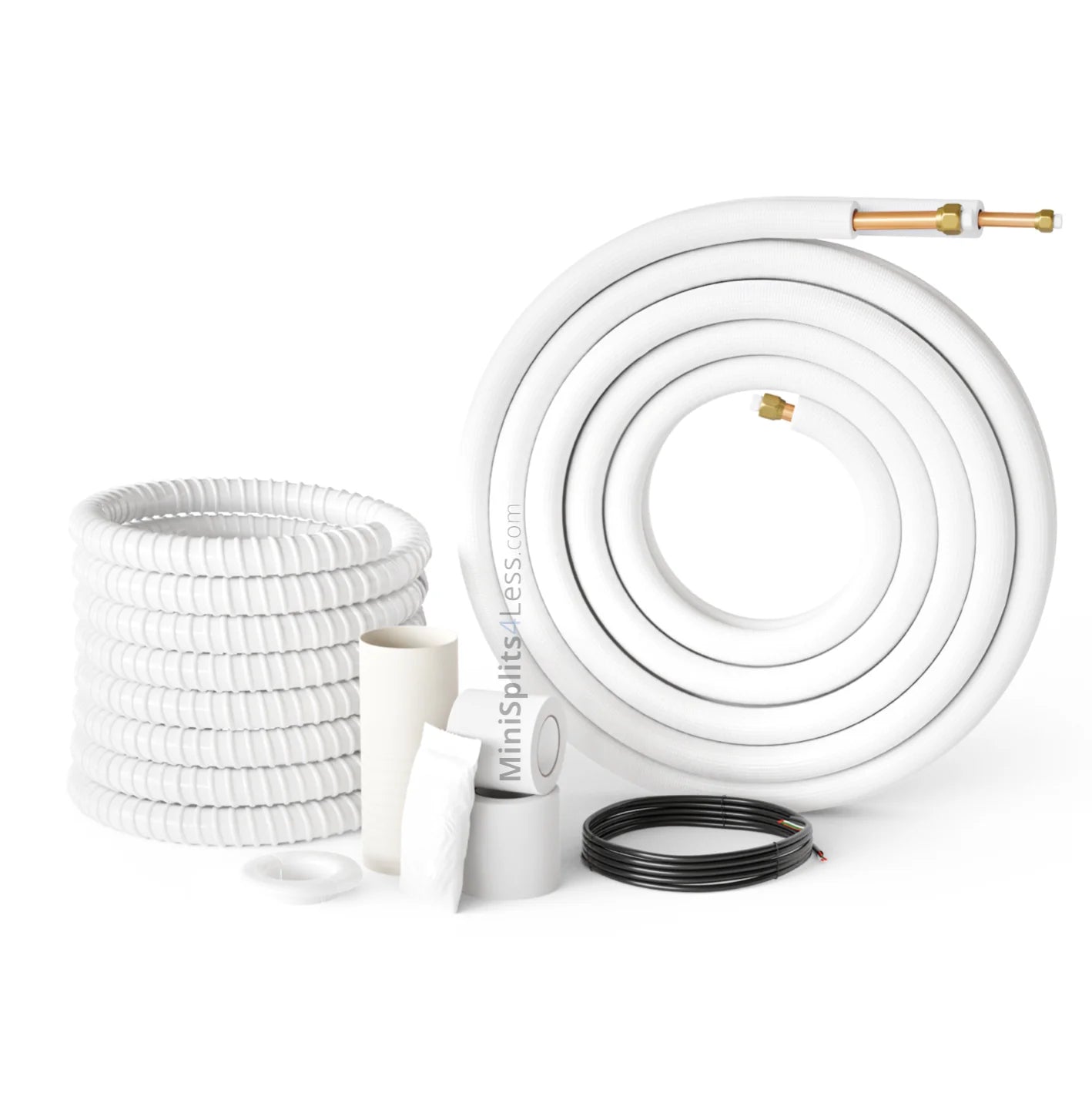

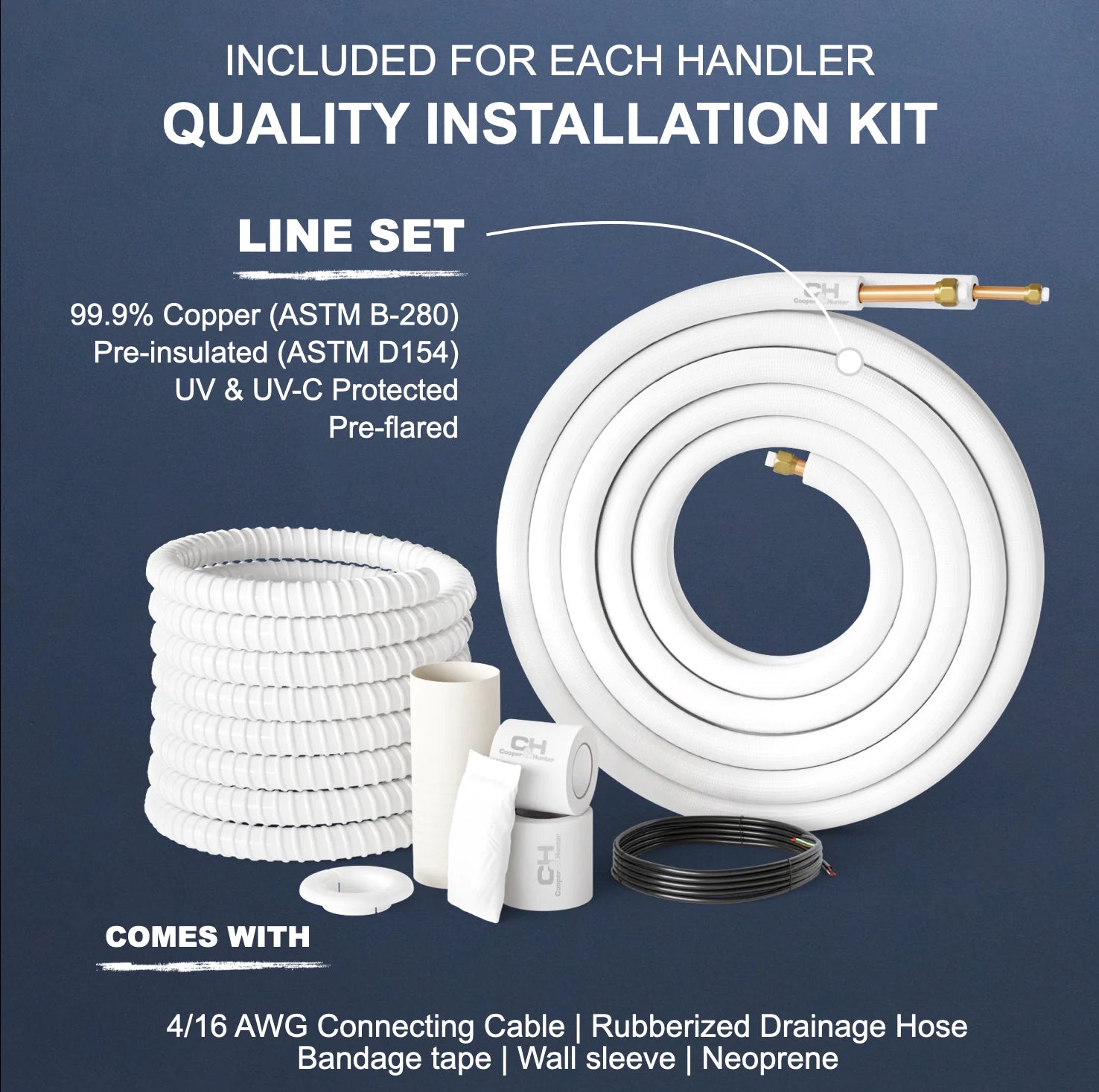

All kits include: Pre-flared copper linesets, communication wires, and installation accessories.
