2 Zone Cooper & Hunter Olivia Series, 2.3 Ton Air Conditioner, Ductless Mini Split with 9k+18k BTU Wall Mounts, R410A, 24.6 SEER 28K BTU Inverter Heat Pump, 230V, Dual Head (2 Heads), Includes Choice of 16ft 25ft or 50ft Installation Kits + Wi-Fi Adapter

Name: 2 Zone Cooper & Hunter Olivia Series, 2.3 Ton A...
SKU: 42942408753267
Price: 2342.34 USD
Availability: InStock
Rating: 4.5 (2 reviews)

SKU:

Free Shipping on orders above $300

No sales tax except in TX, FL, & PA!

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Ordered

Apr 12

Order Ready

Apr 15 - Apr 16

Delivered

Apr 16 - Apr 21

Order in the next 07 Hours 41 Minutes 56 Seconds and You will receive your order between Apr 16 and Apr 21

Price

$2,342.34

Sold out

18000 BTU Installation Kit No Installation Kit 16FT Installation Kit 25FT Installation Kit 50FT Installation kit

9000 BTU Installation Kit No Installation Kit 16FT Installation Kit 25FT Installation Kit 50FT Installation kit

Quantity

NOTE: The default selection does not include an installation kit. Upgrade your selection to add to your order.

Pickup available at Texas

Usually ready in 24 hours

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

2 Zone Cooper & Hunter Olivia Series, 2.3 Ton Air Conditioner, Ductless Mini Split with 9k+18k BTU Wall Mounts, R410A, 24.6 SEER 28K BTU Inverter Heat Pump, 230V, Dual Head (2 Heads), Includes Choice of 16ft 25ft or 50ft Installation Kits + Wi-Fi Adapter

Summary

The Cooper & Hunter Dual Zone system features a 28,000 BTU outdoor unit paired with one 9,000 BTU and one 18,000 BTU wall-mounted indoor unit. This model with high efficiency compressor and auto swing louvers will both heat and cool your space effectively down to -13°F. The DC inverter heat pump provides energy-efficient operation while allowing independent temperature control in two zones.

Included in Your Order:

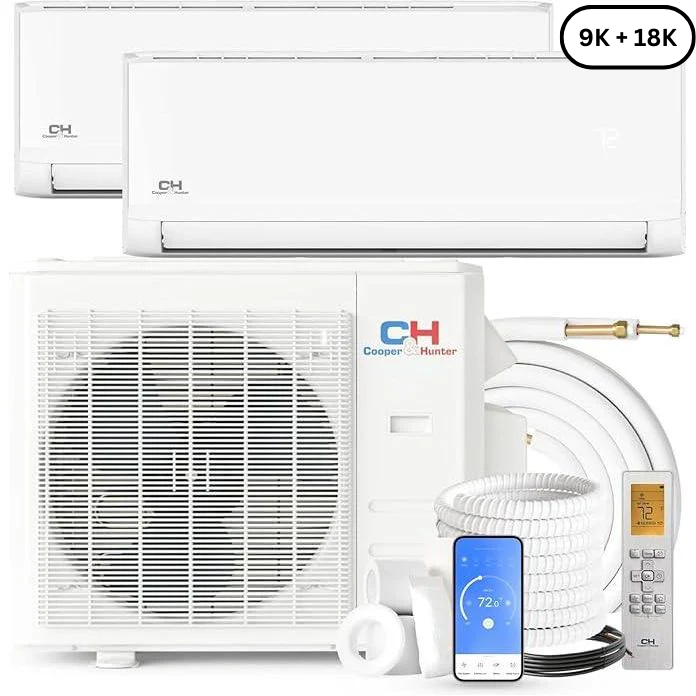

Cooper & Hunter Dual Zone Ductless Mini Split System (28,000 BTU Inverter with Heat Pump)

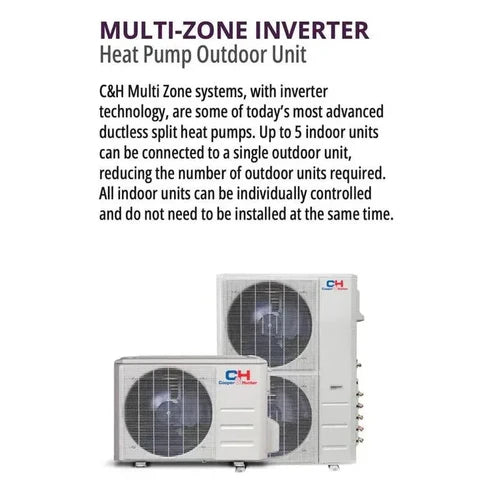

Outdoor Unit: 28,000 BTU (1pc) – Model: CH-28MES-230VO

Indoor Units:
- 9,000 BTU (1pc with remote) – Model: CH-09MOLVWM-230VI
- 18,000 BTU (1pc with remote) – Model: CH-18M0LVWM-230VI

Optional Installation Kit (16ft, 25ft, or 50ft options available at checkout)

Wireless Remote Controls

Installation Manual

User's Manual

Manufacturer Warranty

Key Features:

Dual zone independent temperature control
High efficiency operation (SEER2: 24.6)
Heats down to -13°F ambient temperature
Auto-Swing horizontal louvers
Turbo Mode for rapid cooling/heating
Self-Clean Function

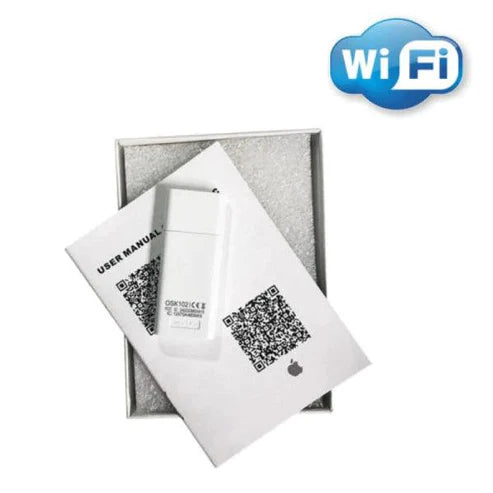

Wi-Fi ready (adapter required)
Quiet operation (as low as 23.5 dB indoors)
Energy saving modes
2022 model with latest technology

Important Notes

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function - please select your preferred size (16ft, 25ft, or 50ft) at checkout.

Complete Technical Specifications

Indoor Unit: CH-09MOLVWM-230VI

Specification	CH-09MOLVWM-230VI
System type	Single/Multi-zone unit
BTU Rated	9,000
Power source	208/230V, 1Ph, 60Hz
Voltage range (V)	187-253
Packing dimensions (WxDxH)	34.45×11.22×14.96 inches
Refrigerant piping Liquid/Gas side (inch)	1/4" / 3/8"
SEER2	26.4
Unit Net/Gross weight	18.96/24.25 lbs
Unit dimensions (WHD)	31.57×7.87×11.61 inches
Operation Range - Heating	32~86°F
Operation Range - Cooling	60~90°F
Minimum circuit ampacity	3A
Max.fuse	15A
Indoor Noise Level H/M/L	40/35/23.5 dB(A)
Indoor Air Flow (Turbo/Hi/Mi/Lo)	341/291/194/152 CFM

Indoor Unit: CH-18M0LVWM-230VI

Specification	CH-18M0LVWM-230VI
System type	Single/Multi-zone unit
BTU Rated	18,000
Power source	208/230V, 1Ph, 60Hz
Voltage range (V)	187-253
Packing dimensions (WxDxH)	45.47×16.34×12.40 inches
Refrigerant piping Liquid/Gas side (inch)	1/4" / 1/2"
SEER2	24
Unit Net/Gross weight	29.54/37.48 lbs
Unit dimensions (WHD)	42.64×9.61×13.23 inches
Operation Range - Heating	32~86°F
Operation Range - Cooling	60~90°F
Minimum circuit ampacity	3A
Max.fuse	15A
Indoor Noise Level H/M/L	46/40/25 dB(A)
Indoor Air Flow (Turbo/Hi/Mi/Lo)	760/530/458/382 CFM

Outdoor Unit: CH-28MES-230VO

Specification	Details
Model Number	CH-28MES-230VO
Series	ES Series
Rated Capacity (Cooling)	28,000 BTU/h (9,838-30,438 range)
Rated Capacity (Heating)	28,000 BTU/h (8,218-31,000 range)
Power Supply	208-230V, 1Ph, 60Hz
Voltage Range	187-253V
Cooling Rated Current	5.94A
Heating Rated Current	6.31A
EER2	12.7
SEER2	24.6
COP	3.73
HSPF2-4	9.3
HSPF2-5	7.1
Minimum Circuit Ampacity	24.5A
Max Fuse Size	30A
Refrigerant Type	R410A
Precharged Refrigerant	Up to 75 oz
Additional Charge (3/8" line)	0.32 oz/ft
Additional Charge (1/4" line)	0.16 oz/ft
Max Pipe Length	197 ft
Max Height Difference	49.21 ft
Outdoor Air Flow	2,129 CFM
Noise Level	61 dB(A)
Dimensions (W×D×H)	37.24×16.14×31.89 inches
Packing Dimensions	42.91×19.69×34.84 inches
Net/Gross Weight	139.77/150.57 lbs
Refrigerant Lines	3x1/4" (liquid) / 3x3/8" (gas)
Operating Temp (Cooling)	5-122°F
Operating Temp (Heating)	-13-75°F
Design Pressure	550 PSIG (high side) / 340 PSIG (low side)

Warranty Information

7-Year Compressor Warranty - Covers defects in materials/workmanship
5-Year Parts Warranty - Covers all other components (except remote)
1-Year Remote Control Warranty

Note: Warranty valid only when installed by licensed HVAC technician and registered within 60 days of installation.

Installation Kit Options

Please select your preferred installation kit size at checkout:

16ft Kit - Ideal for short runs between indoor and outdoor units
25ft Kit - Standard length for most installations
50ft Kit - For longer runs between units

All kits include: Pre-flared copper linesets, communication wires, and installation accessories.

Manuals & Downloads

Brackets and Concrete Pads

18"x40"x4" Plastic Equipment Mounting Pads – Lightweight, Durable Base for HVAC Units & Outdoor Installations

Sold out

18"x40"x4" Plastic Equipment Mounting Pads – Lightweight, Durable Base for HVAC Units & Outdoor Installations

Regular price $69.00

Sale price $69.00 Regular price
Unit price per

Sold out
Heavy-Duty Mini Split Ground Stand with Load Capacity up to 500LBS, Condenser Bracket for 9000-36000 BTU Ductless Air Conditioners and Heat Pump, Inverter Systems

Heavy-Duty Mini Split Ground Stand with Load Capacity up to 500LBS, Condenser Bracket for 9000-36000 BTU Ductless Air Conditioners and Heat Pump, Inverter Systems

Regular price $129.99

Sale price $129.99 Regular price
Unit price per
Heavy-Duty Mini Split Ground Stand with Load Capacity up to 770LBS, Condenser Bracket for 9000-60000 BTU Ductless Air Conditioners and Heat Pumps, Inverter Systems

Sold out

Heavy-Duty Mini Split Ground Stand with Load Capacity up to 770LBS, Condenser Bracket for 9000-60000 BTU Ductless Air Conditioners and Heat Pumps, Inverter Systems

Regular price $169.99

Sale price $169.99 Regular price
Unit price per

Sold out
Heavy-Duty Mini Split Wall Bracket with Load Capacity up to 480LBS, Condenser Bracket for High BTU Ductless Air Conditioners and Heat Pump, Inverter Systems

Heavy-Duty Mini Split Wall Bracket with Load Capacity up to 480LBS, Condenser Bracket for High BTU Ductless Air Conditioners and Heat Pump, Inverter Systems

Regular price $59.97

Sale price $59.97 Regular price
Unit price per
Mini Split Compressor Bracket for 6,000 - 28,000 BTU

Mini Split Compressor Bracket for 6,000 - 28,000 BTU

Regular price $39.97

Sale price $39.97 Regular price
Unit price per

Line covers

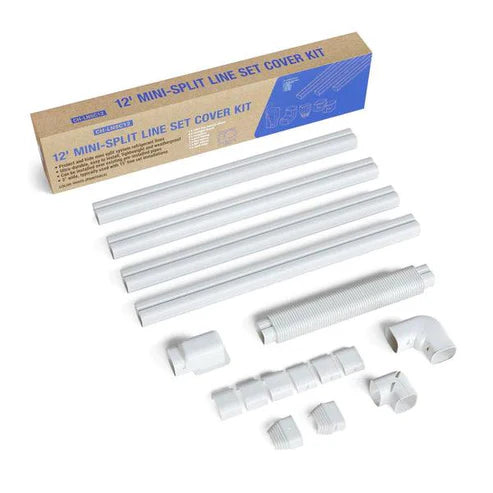

12FT PVC Decorative Line Set Cover Kit for Ductless Mini Split Air Conditioners, Heat Pumps, and Inverters systems.
