2 Zone Cooper & Hunter Olivia Series, 3 Ton Air Conditioner, Ductless Mini Split with 12k+12k BTU Wall Mounts, R410A, 23.9 SEER 36K BTU Inverter Heat Pump, 230V, Dual Head (2 Heads), Includes Choice of 25ft or 50ft Installation Kit + WIFI Adapter

Name: 2 Zone Cooper & Hunter Olivia Series, 3 Ton Air...
SKU: 2XCH-12MOLVWM-230VI+CH-36MES-230VO
Price: 3117.0 USD
Availability: InStock
Rating: 4.5 (2 reviews)

SKU: 2X CH-12MOLVWM-230VI + CH-36MES-230VO

Free Shipping on orders above $300

No sales tax except in TX, FL, & PA!

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Price

$3,117.00

$3,117.00 ~~$2,914.00~~

save $-203.00

Sold out

Size NO INSTALLATION KITS 25FT INSTALLATION KITS 50FT INSTALLATION KITS

save $-203.00

save $-324.00

save $-207.00

Quantity

NOTE: The default selection does not include an installation kit. Upgrade your selection to add to your order.

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

Cooper & Hunter, Olivia Series, Multi-Zone, 36,000 BTU/h, 208-230V/60HZ, 3 Ton, 23.9 SEER, Ductless Mini Split Wall Mount AC/Heater With WIFI. CH-12MOLVWM-230VI x2 + CH-36MES-230VO

Summary

The Olivia Series Multi Zone Ductless Mini Split System features two 12,000 BTU indoor units connected to one 36,000 BTU outdoor unit. With auto-swing horizontal louvers and Genius Core Technology operating at 12Hz compressor speed, this system achieves up to 23.9 SEER efficiency. It provides both heating and cooling for your space, effective down to -13°F. Control via included remotes or through the Cooper&Hunter app with optional Wi-Fi adapter.

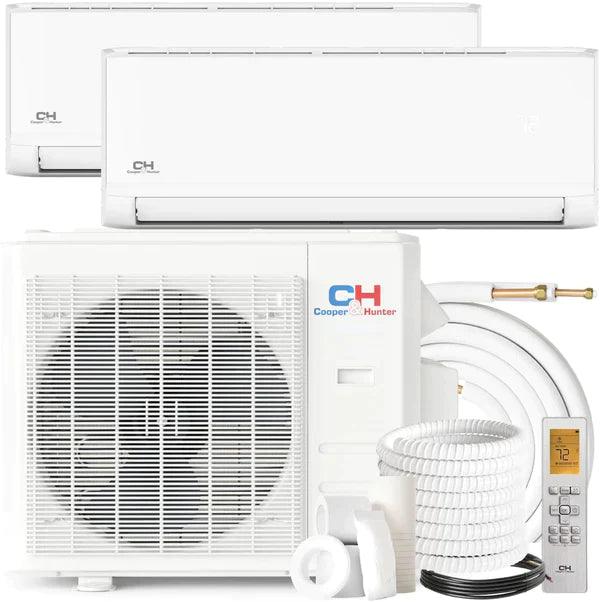

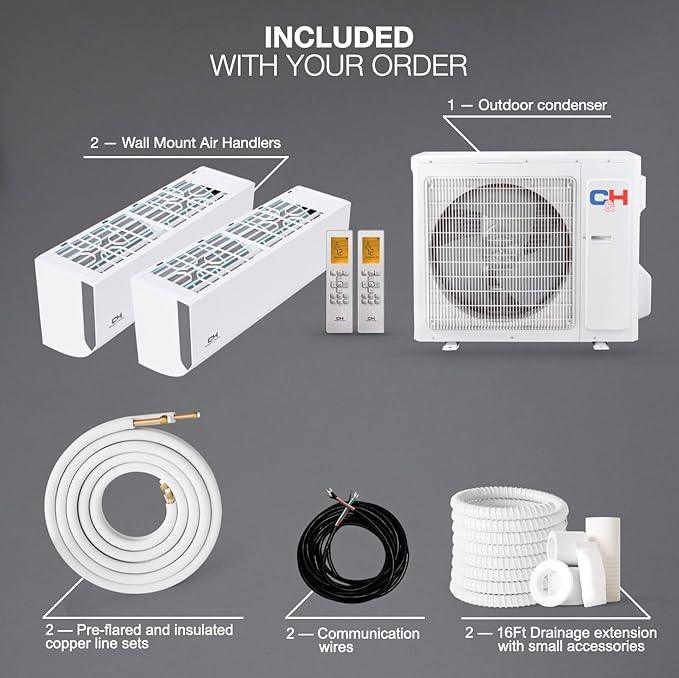

Included in Your Order:

Cooper & Hunter Multi Zone Ductless Mini Split System (36,000 BTU Inverter with Heat Pump)

Outdoor Unit: 36,000 BTU (1pc) – Model: CH-36MES-230VO

Indoor Units: 12,000 BTU (2pcs with remotes) – Model: CH-12MOLVWM-230VI

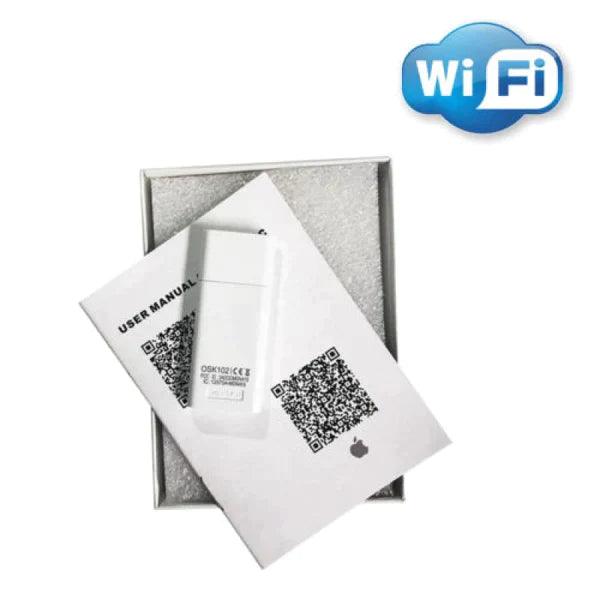

Wi-Fi Adapter

Wireless Remote Controls (2)

Installation Manual

User's Manual

Manufacturer Warranty

Key Features:

Auto-Swing horizontal louvers
Genius Core 12Hz ultra-low compressor speed
46° Freeze Protection
Turbo Mode for rapid cooling/heating
Self-Clean Function
Eco Mode for energy savings
Follow Me temperature sensing
Smart control via C&H Remote app
Independent zone temperature control

Important

Professional installation by a licensed HVAC technician is required for warranty validation. Product registration must be completed within 60 days of installation either online or by phone.

Technical Information

Indoor Unit: CH-12MOLVWM-230VI

Indoor Model			CH-12MOLVWM-230VI
Power Supply	Rated	V, Ph, Hz	208/230,1,60
Power Supply	Rated Capacity	Btu/h	12,000
Minimum Circuit Ampacity (MCA)		A	3
Max. Fuse		A	15
Indoor Air Flow (Turbo/Hi/Mi/Lo)		CFM	341/291/194/152
Indoor Noise Level (Hi/Mi/Lo)		dB(A)	41.5/36/24
Dimensions	Unit Size	inch	31.57x7.87x11.61
	Packing Size	inch	34.45x11.22x14.96
	Net/Gross Weight	lbs.	18.74/24.25
Operating Range	Cooling	°F	60-90
Operating Range	Heating	°F	32-86
Refrigerant Connections		inch	1/4" (liquid) / 1/2" (gas)

Outdoor Unit: CH-36MES-230VO

Outdoor Model			CH-36MES-230VO
Power Supply	Rated	V, Ph, Hz	208/230,1,60
Power Supply	Voltage Range	V	187-253
Cooling Performance	Capacity (Range)	Btu/h	36,000 (8,209-40,555)
	Rated Current	A	25
	EER2	Btu/Wh	11.7
	SEER2	Btu/Wh	23.9
Heating Performance	Capacity (Range)	Btu/h	37,000 (8,008-44,632)
	Rated Current	A	40
	COP	W/W	3.5
	HSPF4		9.3
	HSPF5		7.1
Electrical Requirements		A	25 (MCA)
Max Fuse Size		A	40
Air Flow (Max)		CFM	2147.06
Sound Pressure Level		dB(A)	63
Dimensions	Unit Size	inch	37.24x16.14x31.89
Dimensions	Packing Size	inch	42.91x19.69x34.84
Weight		lbs.	169.09/181.44
Refrigerant		oz.	R410A/100
Pipe Connections		inch	4x1/4" (liquid) / 3x3/8"+1x1/2" (gas)
Max Pipe Length		ft.	262
Max Elevation Difference		ft.	49.21
Operating Temperatures	Cooling	°F	-13~122
Operating Temperatures	Heating	°F	-13~75

Warranty

7 year compressor limited warranty
5 year parts limited warranty (professional installation required)
1 year remote control warranty

Certifications

ETL, AHRI, Energy Star Certified

Manuals & Downloads

Brackets and Concrete Pads

18"x40"x4" Plastic Equipment Mounting Pads – Lightweight, Durable Base for HVAC Units & Outdoor Installations

Sold out

18"x40"x4" Plastic Equipment Mounting Pads – Lightweight, Durable Base for HVAC Units & Outdoor Installations

Regular price $69.00

Sale price $69.00 Regular price
Unit price per

Sold out
Heavy-Duty Mini Split Ground Stand with Load Capacity up to 500LBS, Condenser Bracket for 9000-55000 BTU Ductless Air Conditioners and Heat Pump, Inverter Systems

Heavy-Duty Mini Split Ground Stand with Load Capacity up to 500LBS, Condenser Bracket for 9000-55000 BTU Ductless Air Conditioners and Heat Pump, Inverter Systems

Regular price $129.99

Sale price $129.99 Regular price
Unit price per
Heavy-Duty Mini Split Ground Stand with Load Capacity up to 770LBS, Condenser Bracket for 9000-60000 BTU Ductless Air Conditioners and Heat Pumps, Inverter Systems

Sold out

Heavy-Duty Mini Split Ground Stand with Load Capacity up to 770LBS, Condenser Bracket for 9000-60000 BTU Ductless Air Conditioners and Heat Pumps, Inverter Systems

Regular price $169.99

Sale price $169.99 Regular price
Unit price per

Sold out
Heavy-Duty Mini Split Wall Bracket with Load Capacity up to 480LBS, Condenser Bracket for High BTU Ductless Air Conditioners and Heat Pump, Inverter Systems

Heavy-Duty Mini Split Wall Bracket with Load Capacity up to 480LBS, Condenser Bracket for High BTU Ductless Air Conditioners and Heat Pump, Inverter Systems

Regular price $59.97

Sale price $59.97 Regular price
Unit price per
Mini Split Compressor Bracket for 6,000 - 28,000 BTU

Mini Split Compressor Bracket for 6,000 - 28,000 BTU

Regular price $39.97

Sale price $39.97 Regular price
Unit price per

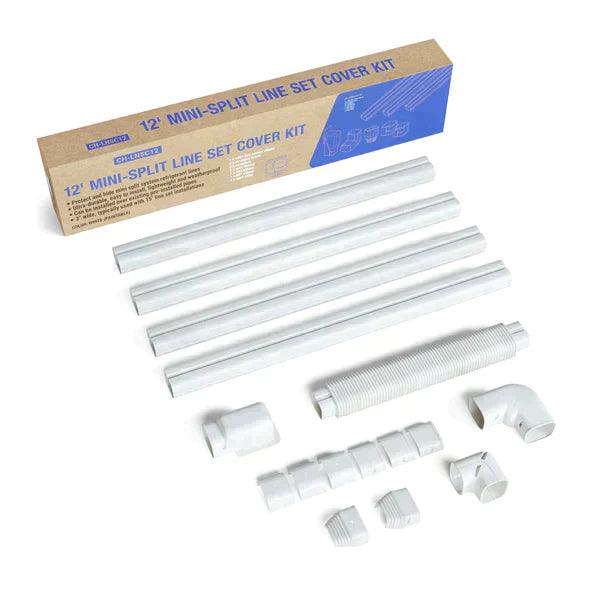

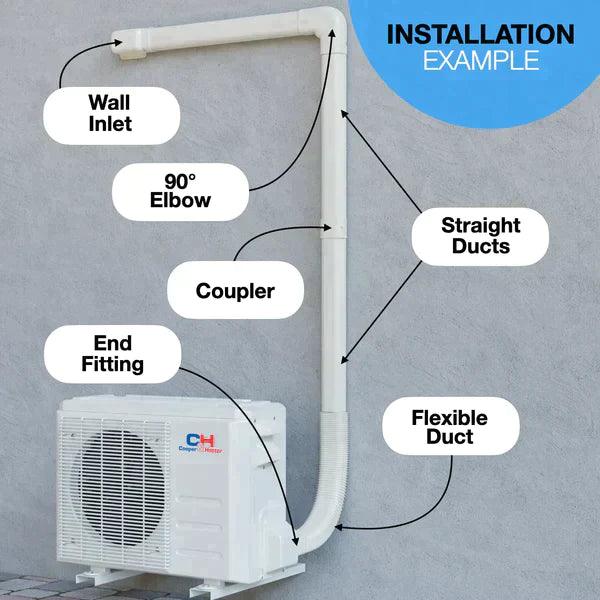

Line covers
