2 Zone 9k+18k with Installation Kits, Hyper Heat Series 23 SEER 2.3 TON Dual Zone Ductless Multi Mini Split AC System Wi-Fi Adapter Included

Name: 2 Zone 9k+18k with Installation Kits, Hyper Hea...
SKU: CH-HPR28M-230VO,CH-09MOLVWM-230VI&CH-18MOLVWM-230VI
Price: 2777.13 USD
Availability: InStock
Rating: 4.5 (2 reviews)

SKU: CH-HPR28M-230VO, CH-09MOLVWM-230VI & CH-18MOLVWM-230VI

Free Shipping on orders above $300

No sales tax except in TX, FL, & PA!

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Price

$2,777.13

Sold out

9,000 BTU Installation Kit - 1 No Installation Kit 16FT Installation Kit 25FT Installation Kit 50FT Installation kit

9,000 BTU Installation Kit - 2 No Installation Kit 16FT Installation Kit 25FT Installation Kit 50FT Installation kit

Quantity

NOTE: The default selection does not include an installation kit. Upgrade your selection to add to your order.

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

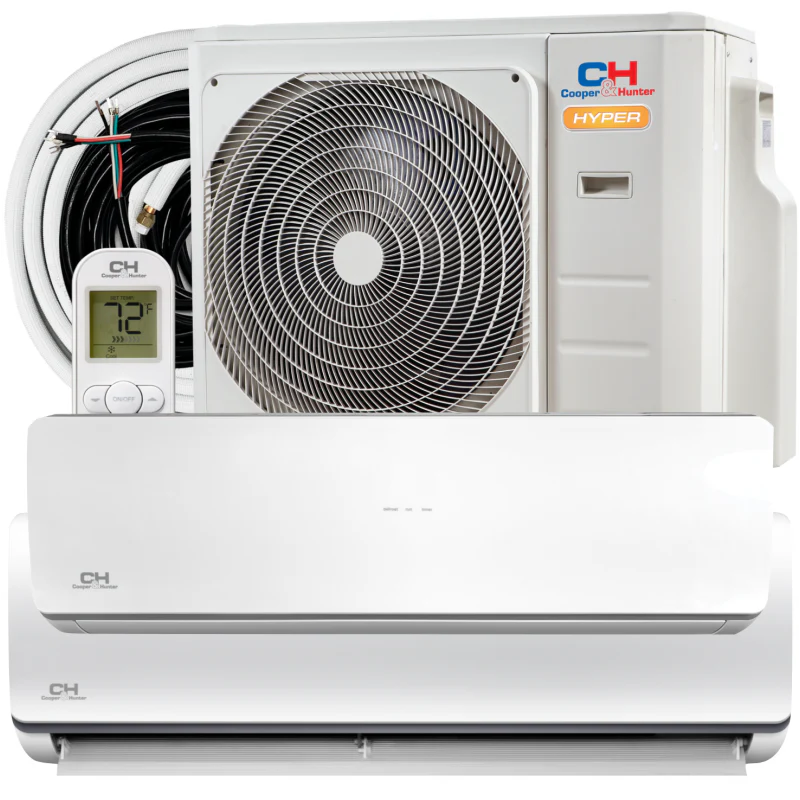

Cooper&Hunter Multi-Zone 28,000 BTU 230V Olivia Series Wall-Mount Air Conditioning Unit for Heat Pump, Mini Split Inverter System with Wi-Fi, Optional Installation Kit

Summary

The Olivia Series Multi Zone Ductless Mini Split Systems we offer come with pre-bundled 25ft installation kits for each zone (options for 16ft and 50ft available). Auto-swing horizontal louvers maintain even airflow throughout the room, and the Genius Core Technology enables the unit to operate with an ultra-low compressor speed of 12Hz for extra energy savings. This system will both heat and cool your home or office effectively down to -22°F for Hyper units.
The units can be controlled with the Cooper&Hunter remote control, or via a smart device when used with the included Wi-Fi kit and Cooper&Hunter Remote app. Other notable features include Follow Me Mode, Sleep Mode, Timer options, and 46°F Freeze Protection.

Included in Your Order (28K BTU System):

Cooper & Hunter Multi Zone Ductless Mini Split System (28,000 BTU Inverter with Heat Pump)

Outdoor Unit: 28,000 BTU (1pc) – Model: CH-HPRM28-230VO

Indoor Units:

9,000 BTU (1pc with remote) – Model: CH-09MOLVWM-230VI
18,000 BTU (1pc with remote) – Model: CH-18M0LVWM-230VI

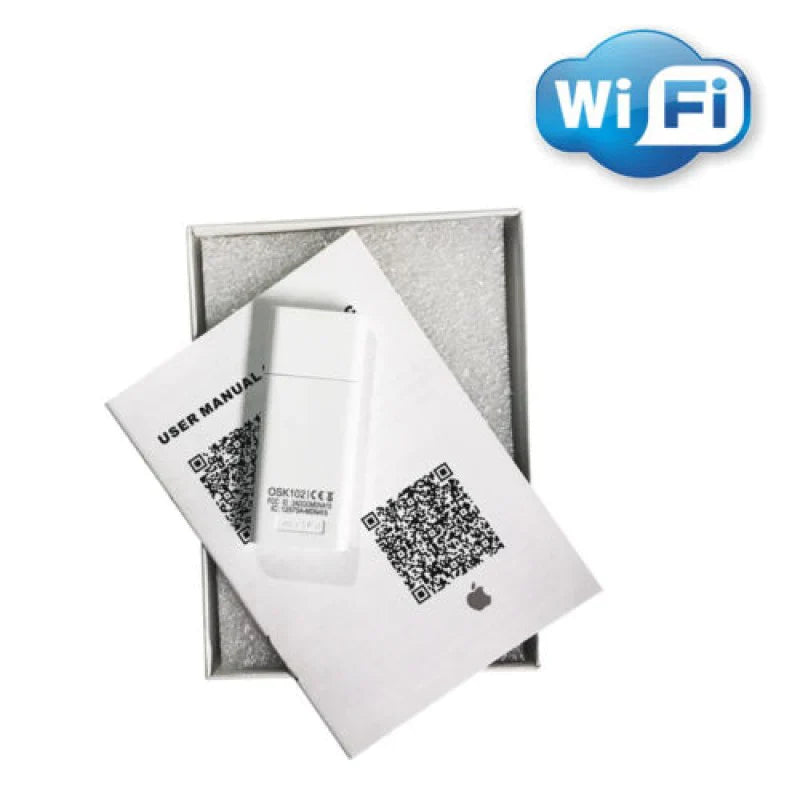

Wi-Fi Adapter (17310900A05963)

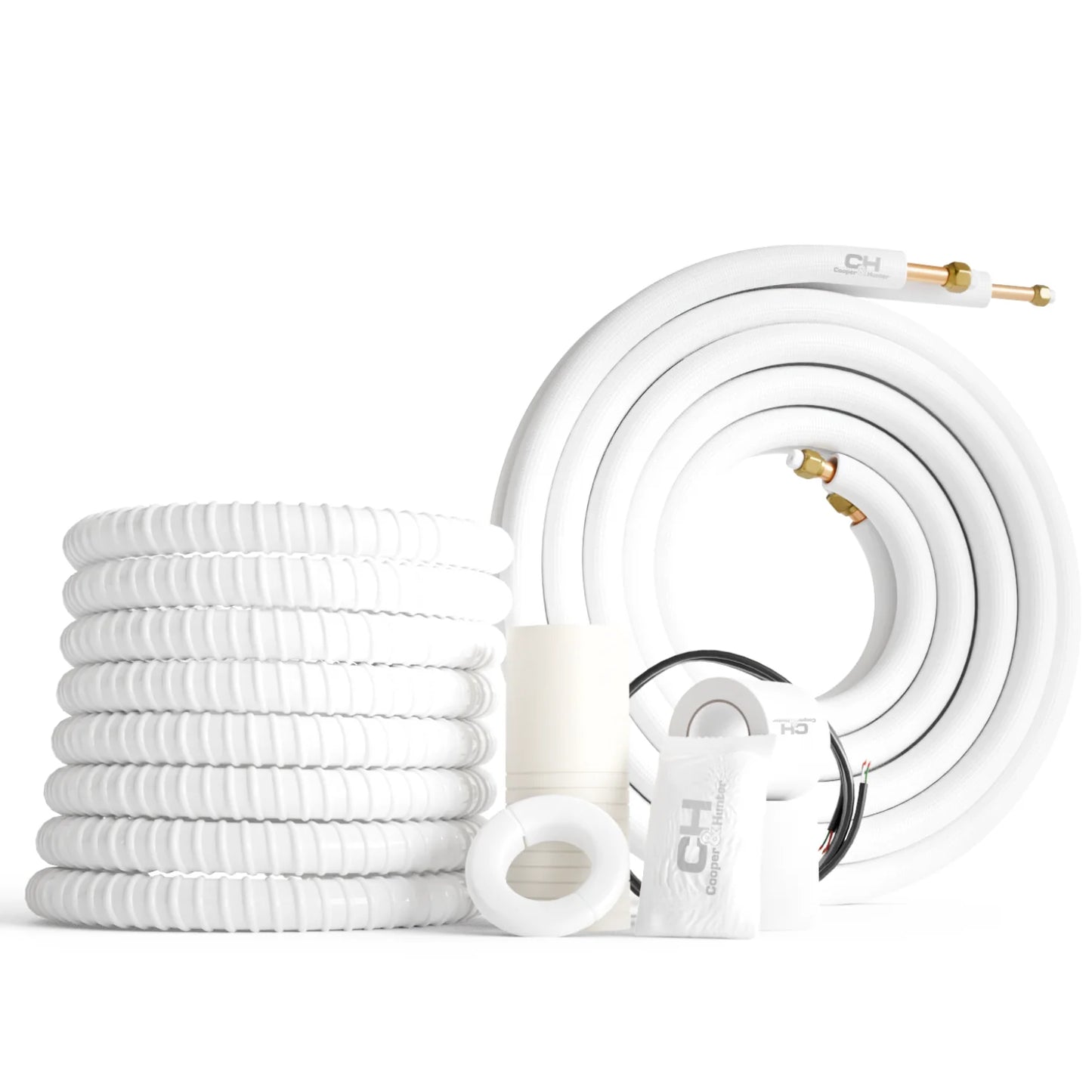

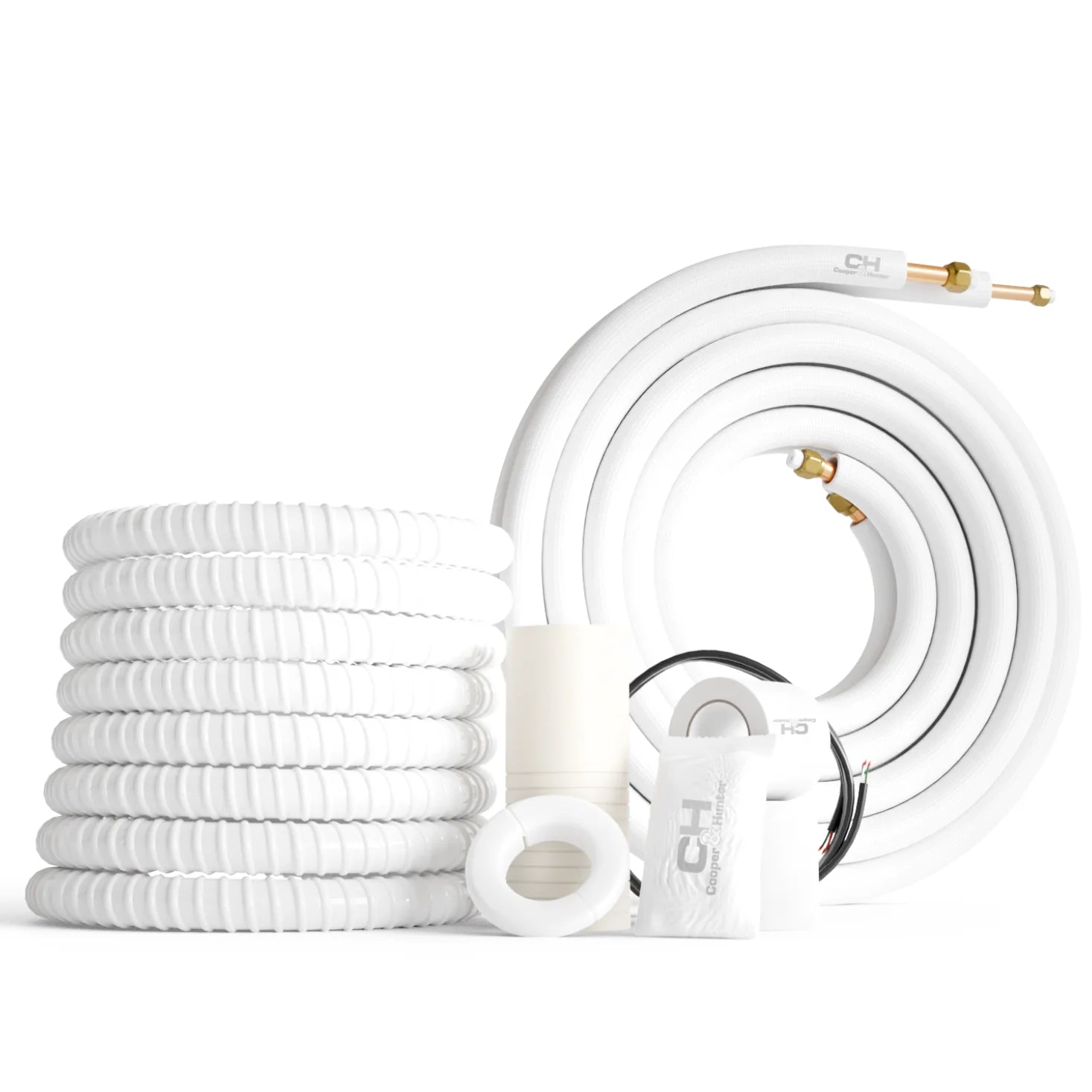

Installation Kits (25ft for each zone included)

Wireless Remote Controls (1 per indoor unit)

Installation Manual

User's Manual

Manufacturer Warranty

Key Features:

Auto-Swing horizontal louvers
Genius Core ultra-low compressor speed of 12Hz
46° Freeze Protection
Turbo Mode
Self-Clean Function
Eco Mode
Follow Me Mode
Remote Control included for each unit
Smart Kit ready with downloadable C&H remote app
Heats down to -22°F

Important

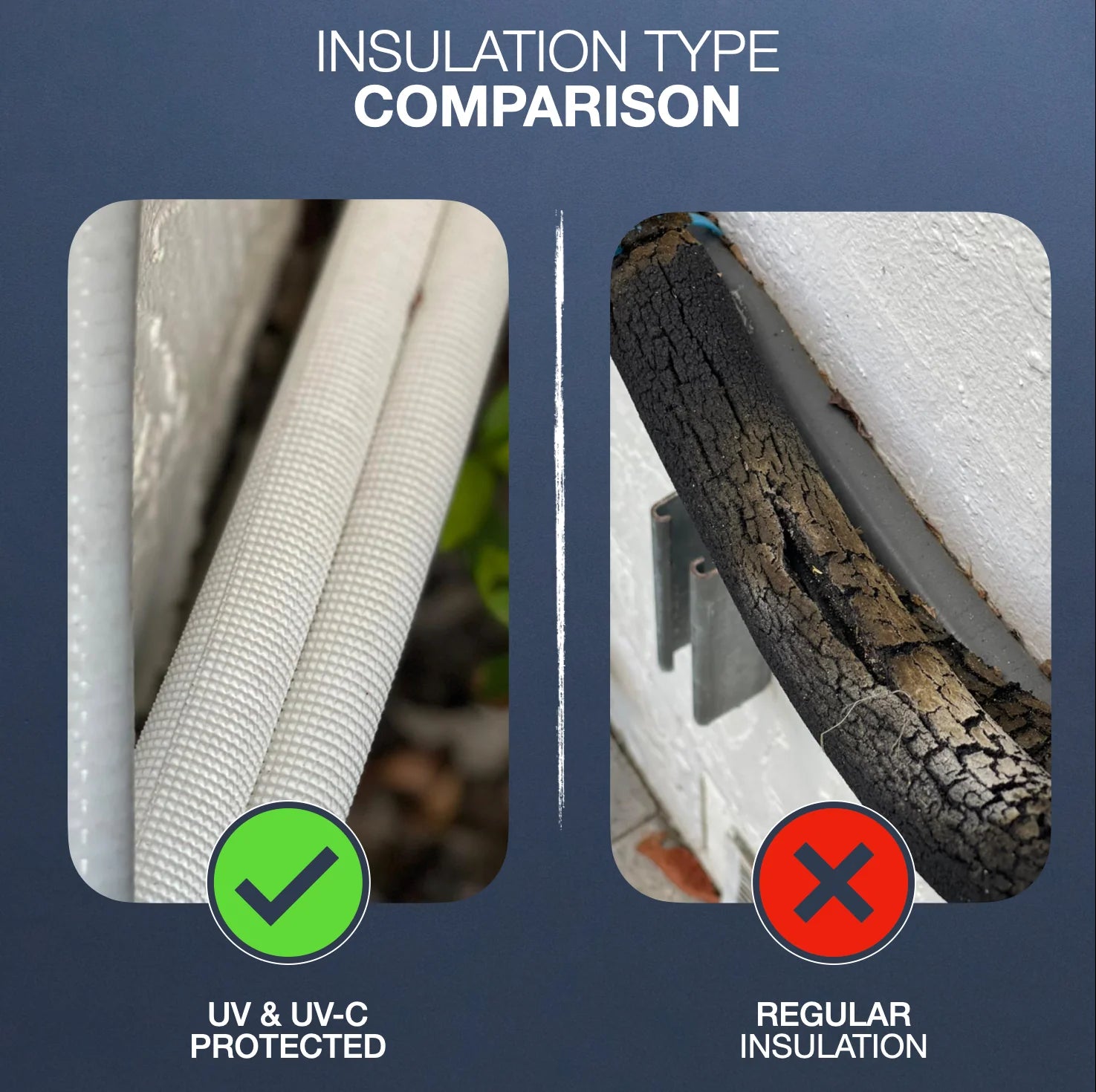

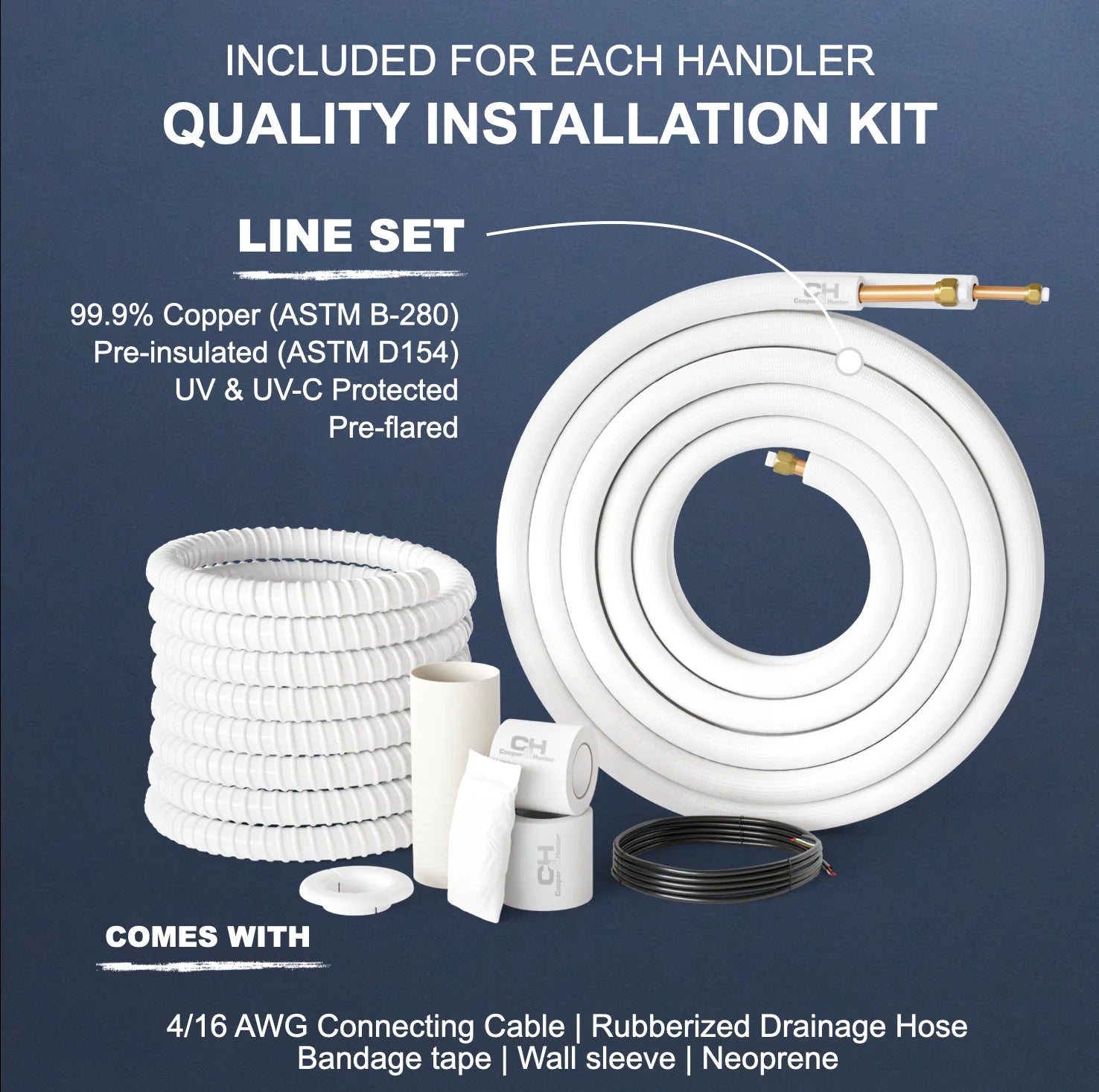

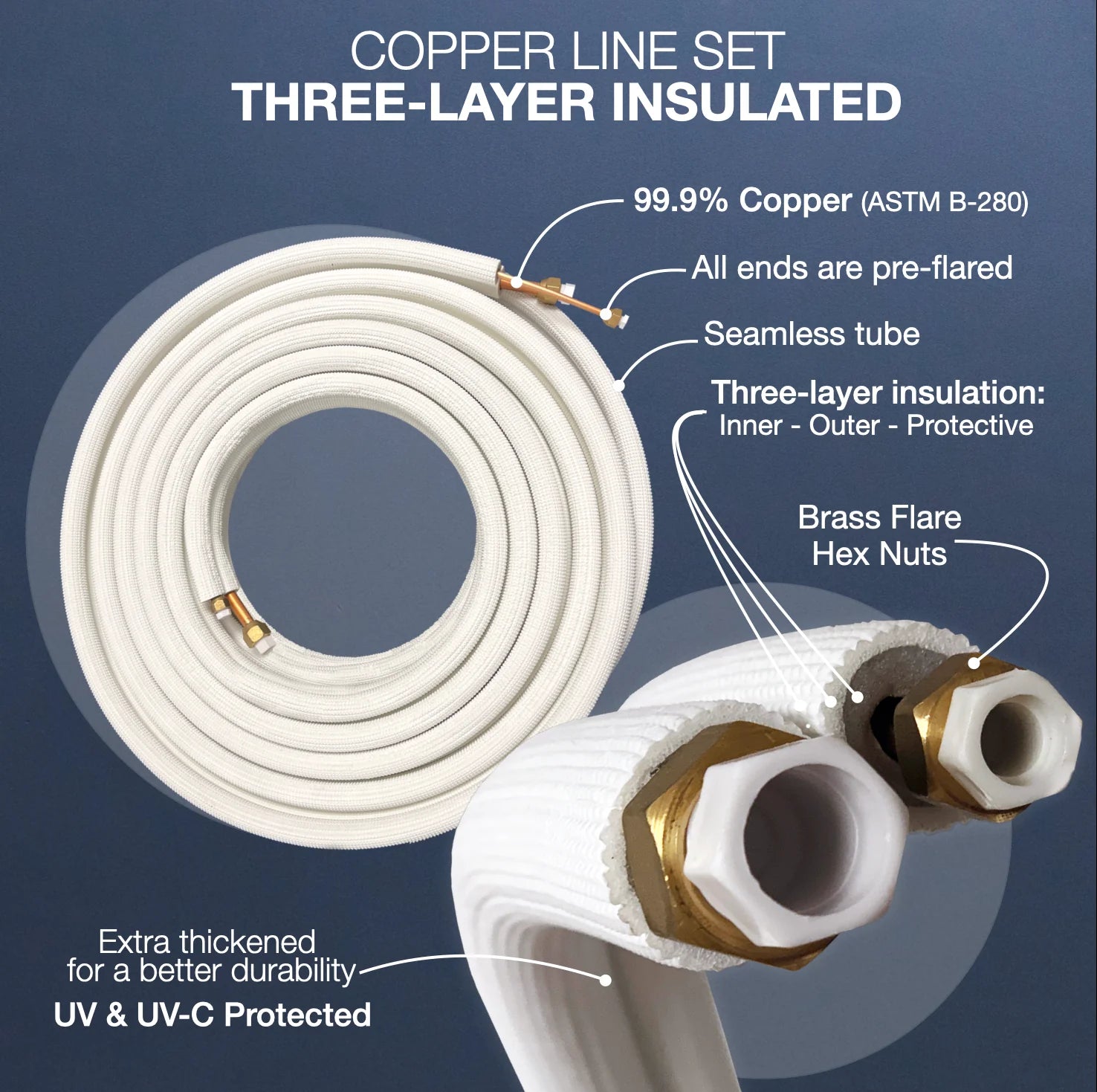

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kits come with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.

Technical Information

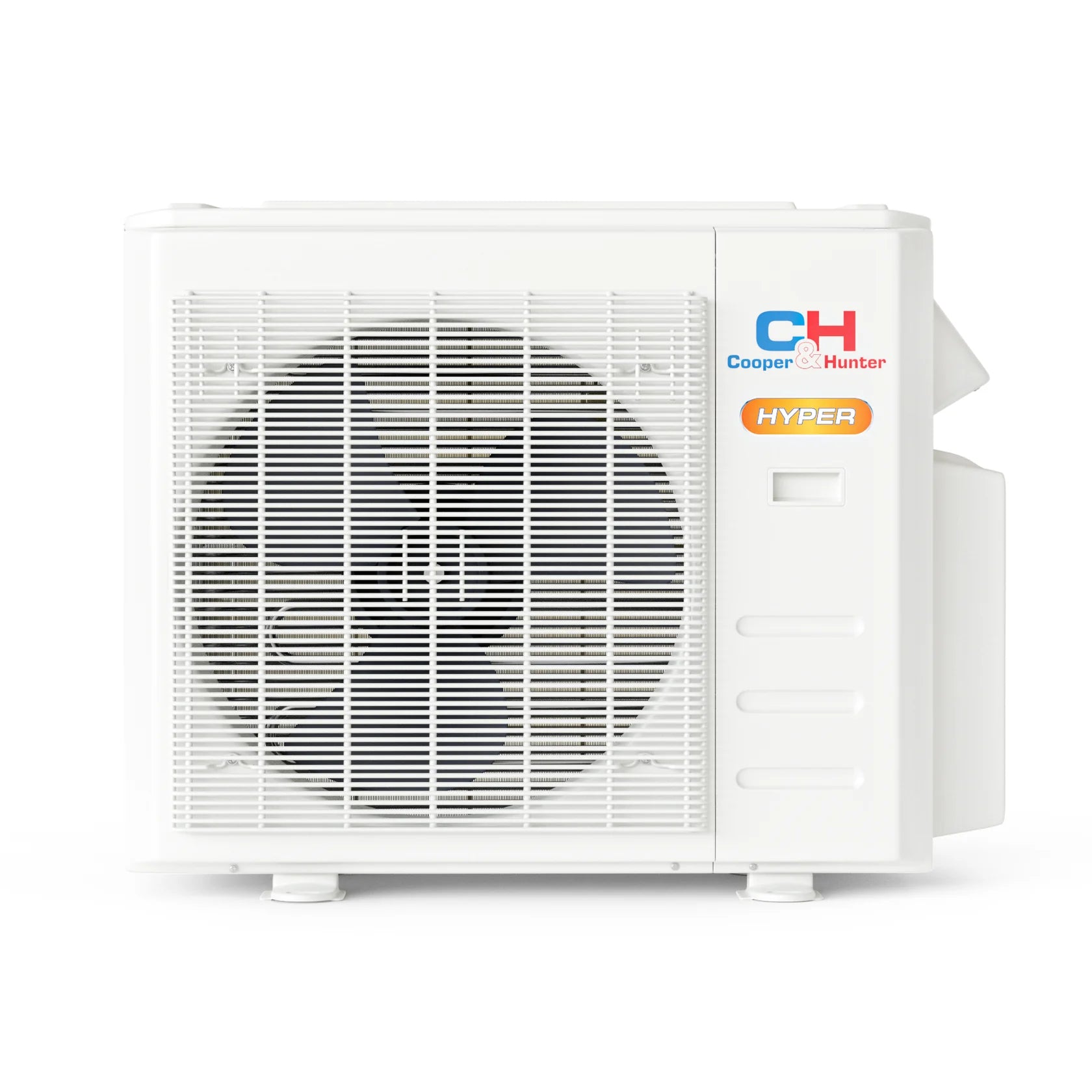

Outdoor Unit: CH-HPRM28-230VO

Specification	Details
System Type	Multi-zone unit
BTU Rated	28,000 BTU (8,000-32,800 BTU range)
Power Source	208-230V, 1Ph, 60Hz
Voltage Range	187-253V
EER2	12.5
SEER2	23
HSPF2-5	8.1
HSPF2-4	10.6
Refrigerant Type	R410A
Refrigerant Charge	Up to 75 oz
Precharge Length	25 ft
Additional Charge (3/8" line)	0.32 oz/ft
Additional Charge (1/4" line)	0.16 oz/ft
Max Pipe Length	197 ft
Max Height Difference	49.21 ft
Dimensions (WxHxD)	37.24" x 16.14" x 31.89"
Packing Dimensions	42.91" x 19.69" x 34.84"
Net/Gross Weight	167.99/179.67 lbs
Outdoor Noise Level	63 dB(A)
Outdoor Air Flow	2,147.06 CFM
Minimum Circuit Ampacity	25A
Max Fuse	40A
Ambient Temp Range (Cooling)	5°F to 122°F
Ambient Temp Range (Heating)	-22°F to 75°F

Indoor Unit: CH-09MOLVWM-230VI (9,000 BTU)

Specification	Details
BTU Rated	9,000 BTU
Power Source	208/230V, 1Ph, 60Hz
Air Flow (Turbo/Hi/Mi/Lo)	341/291/194/152 CFM
Noise Level (Hi/Mi/Lo)	40/35/23.5 dB(A)
Dimensions (WxDxH)	31.57" x 7.87" x 11.61"
Packing Dimensions	34.45" x 11.22" x 14.96"
Net/Gross Weight	18.96/24.25 lbs
Operation Range (Cooling)	60°F to 90°F
Operation Range (Heating)	32°F to 86°F
Refrigerant Lines	1/4" (liquid) / 3/8" (gas)
Minimum Circuit Ampacity	3A
Max Fuse	15A

Indoor Unit: CH-18M0LVWM-230VI (18,000 BTU)

Specification	Details
BTU Rated	18,000 BTU
Power Source	208/230V, 1Ph, 60Hz
Air Flow (Turbo/Hi/Mi/Lo)	760/530/458/382 CFM
Noise Level (Hi/Mi/Lo)	46/40/25 dB(A)
Dimensions (WxDxH)	42.64" x 9.61" x 13.23"
Packing Dimensions	45.47" x 16.34" x 12.40"
Net/Gross Weight	29.54/37.48 lbs
Operation Range (Cooling)	60°F to 90°F
Operation Range (Heating)	32°F to 86°F
Refrigerant Lines	1/4" (liquid) / 1/2" (gas)
Minimum Circuit Ampacity	3A
Max Fuse	15A

Warranty

7 year compressor limited warranty
5 year parts limited warranty (must be installed by a licensed HVAC technician)
1 year remote control

Certifications
