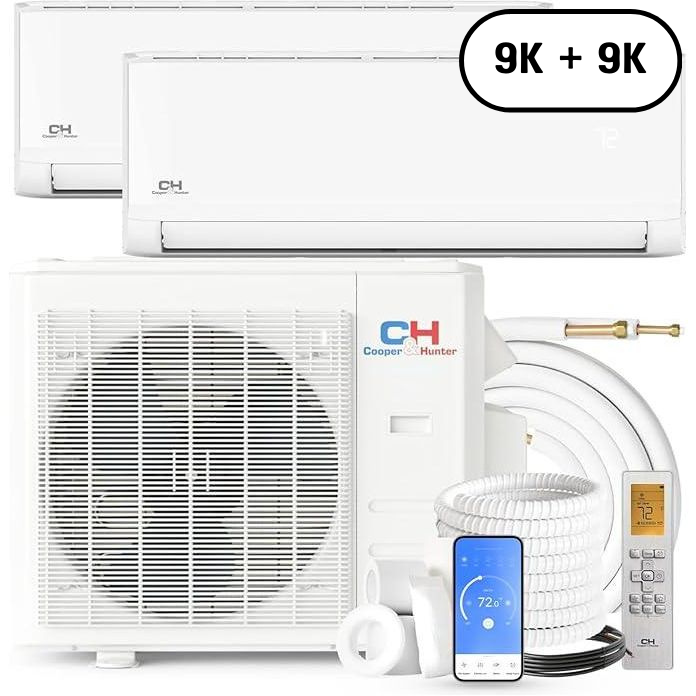

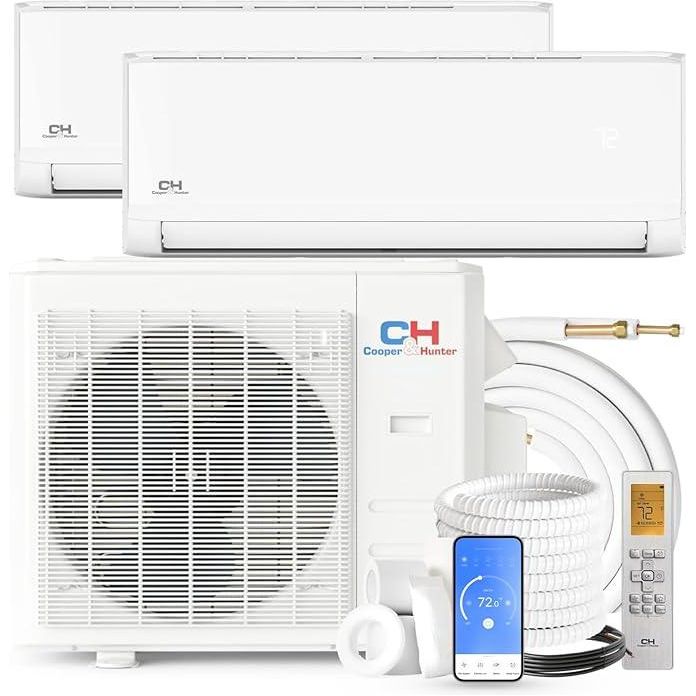

2 Zone Cooper & Hunter Olivia Series, 1.5 Ton Air Conditioner, Ductless Mini Split with 9k+9k BTU Wall Mounts, R410A, 22.9 SEER 18K BTU Inverter Heat Pump, 230V, Dual Head (2 Heads), Choose Install Kit + WIFI Adapter

Name: 2 Zone Cooper & Hunter Olivia Series, 1.5 Ton A...
SKU: 2XCH-09MOLVWM-230VI+CH-18MES-230VO
Price: 1913.0 USD
Availability: InStock
Rating: 4.5 (2 reviews)

SKU: 2X CH-09MOLVWM-230VI + CH-18MES-230VO

Free Shipping on orders above $300

No Sales Tax in Select States

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Price

$1,913.00

$1,913.00 ~~$1,826.00~~

Sale Sold out

SIZE NO INSTALLATION KIT 16FT 25FT 50FT

save $-87.00

save $-208.00

save $-236.00

save $-373.00

Quantity

NOTE: The default selection does not include an installation kit. Upgrade your selection to add to your order.

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

INSTALLATION KIT FOR EACH ZONE. WE CARRY 16FT, 25FT, AND 50FT. SEND US A MESSAGE OR GIVE US A CALL TO CUSTOMIZE! (737)-738-6329

This is the NEWEST model from Cooper & Hunter, produced in 2022!

Cooper & Hunter, Olivia Series, Multi-Zone, 18,000 BTU/h, 208-230V/60HZ, 1.5 Ton, 24 SEER, Ductless Mini Split Wall Mount AC/Heater With WIFI. CH-09MOLVWM-230VI + CH-09MOLVWM-230VI + CH-18MES-230VO

Summary

The Olivia Series Multi Zone Ductless Mini Split System features high-efficiency performance with options of 16ft, 25ft, and 50ft installation kits. The system includes two 9,000 BTU indoor units connected to one 18,000 BTU outdoor unit. Auto-swing horizontal louvers maintain even airflow throughout the room, and the Genius Core Technology enables the unit to operate with an ultra-low compressor speed of 12Hz for extra energy savings, granting them a high-efficiency rating of up to 24 SEER. This system will both heat and cool your home or office effectively down to -13°F. The units can be controlled with the Cooper&Hunter remote control, or via a smart device when used with the optional Wi-Fi kit and Cooper&Hunter Remote app.

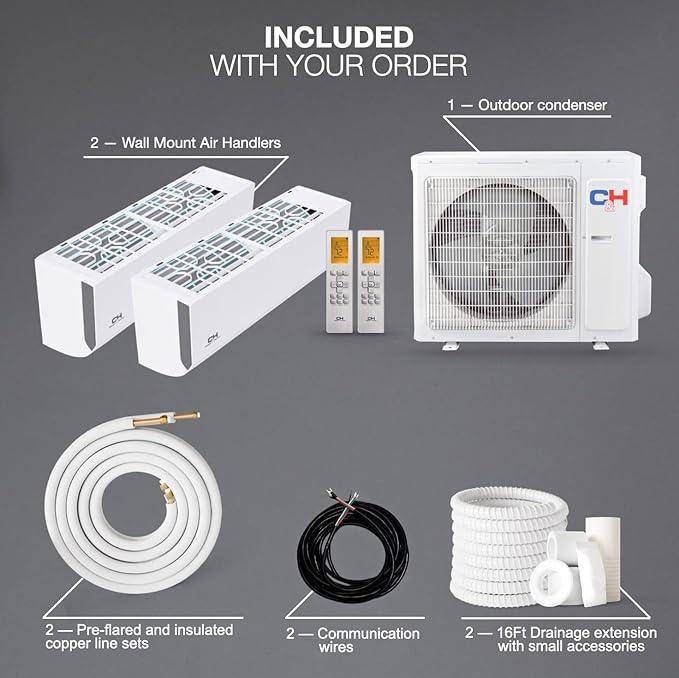

Included in Your Order:

Cooper & Hunter Multi Zone Ductless Mini Split System (18,000 BTU Inverter with Heat Pump)

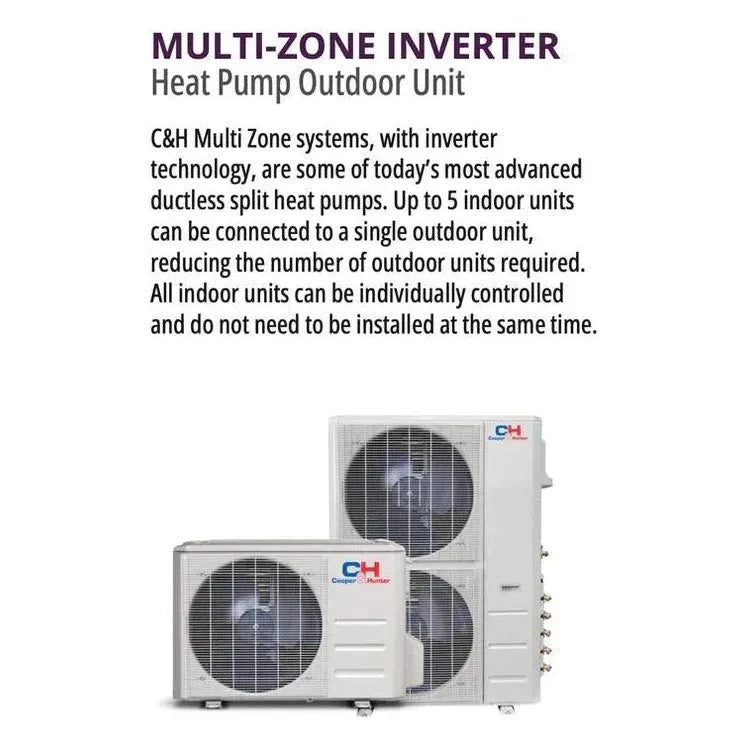

Outdoor Unit: 18,000 BTU (1pc) – Model: CH-18MES-230VO

Indoor Units: 9,000 BTU (2pcs with remotes) – Model: CH-09MOLVWM-230VI

Wi-Fi Adapter

Wireless Remote Controls (2)

Installation Manual

User's Manual

Manufacturer Warranty

Key Features:

Auto-Swing for horizontal louvers
Genius Core ultra-low compressor speed of 12Hz
46° Freeze Protection
Turbo Mode
Self-Clean Function
Eco Mode
Follow Me Mode
Remote Controls included
Smart Kit ready with downloadable C&H remote app
Independent temperature control for each zone

Important

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function.

Warranty

7 year compressor limited warranty
5 year parts limited warranty (must be installed by a licensed HVAC technician)
1 year remote control

Technical Information

Indoor Unit: CH-09MOLVWM-230VI

Indoor Model			CH-09MOLVWM-230VI
Power Supply	Rated	V, Ph, Hz	208/230,1,60
Power Supply	Rated Capacity	Btu/h	9,000
Minimum Circuit Ampacity (MCA)		A	3
Max. Fuse		A	15
Indoor Air Flow (Turbo/Hi/Mi/Lo)		CFM	341/291/194/152
Indoor Noise Level (Hi/Mi/Lo)		dB(A)	40/35/23.5
Indoor	Dimensions	inch	31.57x7.87x11.61
	Packing	inch	34.45x11.22x14.96
	Net/Gross Weight	lbs.	18.96/24.25
Room temperature	Cooling	°F	60 ~ 90
Room temperature	Heating	°F	32 ~ 86
Liquid Side/Gas Side		inch	1/4" / 3/8"

Outdoor Unit: CH-18MES-230VO

Outdoor Model			CH-18MES-230VO
Power Supply	Rated	V, Ph, Hz	208/230,1,60
Power Supply	Voltage Range	V	187-253
Cooling	Rated Capacity (Range)	Btu/h	18,000 (7,320-19,500)
	Rated Current	A	5.94
	EER2		13.5
	Seer2		24
Heating at 47°F	Rated Capacity (Range)	Btu/h	18,000 (8,620-21,200)
	Rated Current	A	6.31
	COP	W/W	3.74
	HSPF4		10.5
	HSPF5		7.9
Minimum Circuit Ampacity		A	19
Max. Fuse (Outdoor Unit)		A	30
Outdoor Air Flow (Max.)		CFM	2,068
Outdoor Noise Level (Sound Pressure)		dB(A)	58.8
Dimension (W×D×H)		inch	35.04x13.46x28.50
Packing (W×D×H)		inch	39.17x15.87x29.13
Net/Gross Weight		lbs.	94.36/100.97
Refrigerant Type / Charge		oz.	R410A/56.44
Refrigerant Precharge Length		ft.	25
Additional Charge for Each ft.		oz/ft	0.16
Design Pressure		PSIG	550/340
Refrigerant Piping Liquid Side/Gas Side		inch	1/4" / 1/2"
Max. Pipe Length		ft.	98
Max. Difference in Level		ft.	66
Ambient Temperature	Cooling	°F	-13~122
Ambient Temperature	Heating	°F	-13~75
Certifications	ETL		TRUE
	AHRI		TRUE
	Energy Star for Cold Climate		TRUE
	NEEP		TRUE

Certifications

Performance Data/Features

Auto-Swing for horizontal louvers
Genius Core ultra-low compressor speed of 12Hz
46° Freeze Protection
Turbo Mode
Self-Clean Function
Eco Mode
Follow Me Mode
Remote Control included
Smart Kit ready with downloadable C&H remote app
Independent temperature control for each zone

Manuals & Downloads

Brackets and Concrete Pads

18"x40"x4" Plastic Equipment Mounting Pads – Lightweight, Durable Base for HVAC Units & Outdoor Installations

Sold out

18"x40"x4" Plastic Equipment Mounting Pads – Lightweight, Durable Base for HVAC Units & Outdoor Installations

Regular price $69.00

Sale price $69.00 Regular price
Unit price per

Sold out
ARMBRIDGE 18"x38"x3" Ribbed Plastic Condenser Pad | Shock-Absorbing, Anti-Slip Foundation for HVAC Systems and Outdoor Equipment

ARMBRIDGE 18"x38"x3" Ribbed Plastic Condenser Pad | Shock-Absorbing, Anti-Slip Foundation for HVAC Systems and Outdoor Equipment

Regular price $64.00

Sale price $64.00 Regular price
Unit price per
ARMBRIDGE AB-RF Rubber Feet Mounting Set – Heavy-Duty Adjustable Base with Built-In Leveler

ARMBRIDGE AB-RF Rubber Feet Mounting Set – Heavy-Duty Adjustable Base with Built-In Leveler

Regular price $65.00

Sale price $65.00 Regular price
Unit price per
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 9,000–36,000 BTU Units | Weatherproof Design, 330+ lbs Capacity

ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 9,000–36,000 BTU Units | Weatherproof Design, 330+ lbs Capacity

Regular price $100.00

Sale price $100.00 Regular price
Unit price per
ARMBRIDGE Mini Split Wall Mounting Bracket 9,000 – 36,000 BTU Units | Foldable 304 Stainless Steel, Vibration-Absorbing (Up to 550 lbs Each)

ARMBRIDGE Mini Split Wall Mounting Bracket 9,000 – 36,000 BTU Units | Foldable 304 Stainless Steel, Vibration-Absorbing (Up to 550 lbs Each)

Regular price $89.00

Sale price $89.00 Regular price
Unit price per
Heavy-Duty Mini Split Ground Stand with Load Capacity up to 500LBS, Condenser Bracket for 9000-55000 BTU Ductless Air Conditioners and Heat Pump, Inverter Systems

Sold out

Heavy-Duty Mini Split Ground Stand with Load Capacity up to 500LBS, Condenser Bracket for 9000-55000 BTU Ductless Air Conditioners and Heat Pump, Inverter Systems

Regular price $129.99

Sale price $129.99 Regular price
Unit price per

Sold out
Heavy-Duty Mini Split Ground Stand with Load Capacity up to 770LBS, Condenser Bracket for 9000-60000 BTU Ductless Air Conditioners and Heat Pumps, Inverter Systems

Sold out

Heavy-Duty Mini Split Ground Stand with Load Capacity up to 770LBS, Condenser Bracket for 9000-60000 BTU Ductless Air Conditioners and Heat Pumps, Inverter Systems

Regular price $169.99

Sale price $169.99 Regular price
Unit price per

Sold out
Heavy-Duty Mini Split Wall Bracket with Load Capacity up to 480LBS, Condenser Bracket for High BTU Ductless Air Conditioners and Heat Pump, Inverter Systems

Sold out

Heavy-Duty Mini Split Wall Bracket with Load Capacity up to 480LBS, Condenser Bracket for High BTU Ductless Air Conditioners and Heat Pump, Inverter Systems

Regular price $89.97

Sale price $89.97 Regular price
Unit price per

Sold out
Mini Split Compressor Bracket for 6,000 - 28,000 BTU

Mini Split Compressor Bracket for 6,000 - 28,000 BTU

Regular price $49.00

Sale price $49.00 Regular price
Unit price per

Line covers

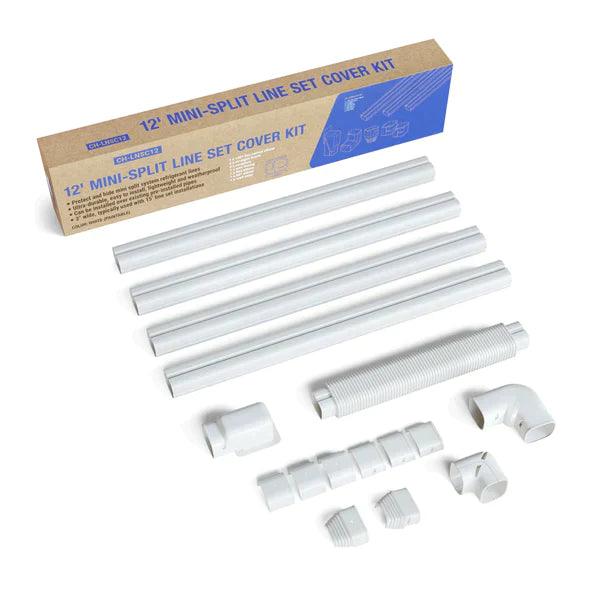

12FT PVC Decorative Line Set Cover Kit for Ductless Mini Split Air Conditioners, Heat Pumps, and Inverters systems.
