Cooper&Hunter Hyper Multi-Zone 19,000 BTU 230V Olivia Series Wall-Mount Air Conditioning Unit for Heat Pump, Mini Split Inverter System with Wi-Fi - CH-HYP19MSPH-230VO + CH-12MOLVWM-230VI (2x)
Summary

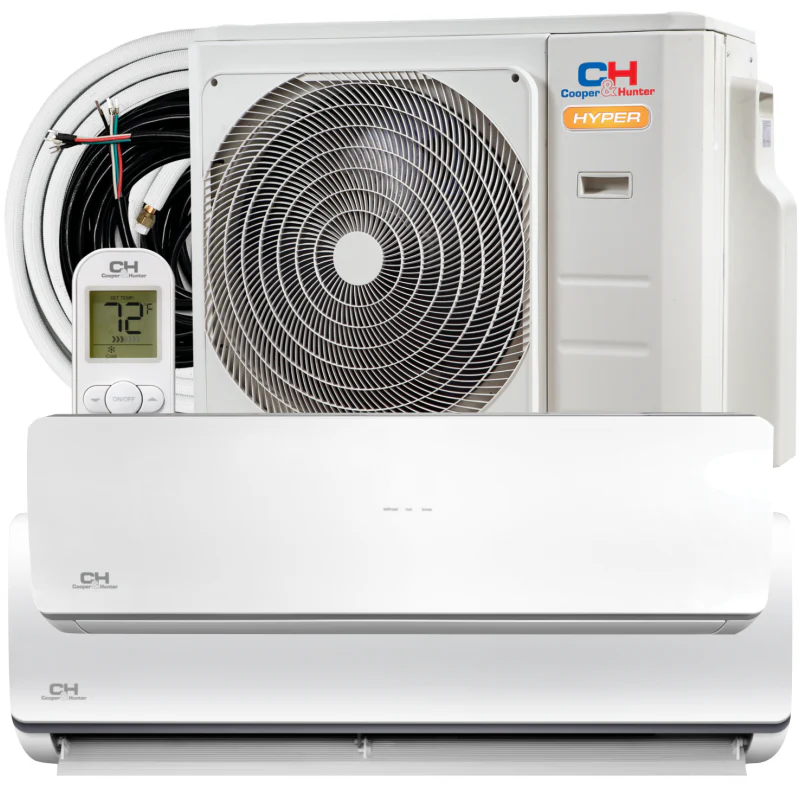

The Olivia Series Multi-Zone Ductless Mini Split System features a 19,000 BTU outdoor unit and two 12,000 BTU indoor units. Auto-swing horizontal louvers maintain even airflow throughout the room, and the system operates with high efficiency up to 22 SEER2. This system will both heat and cool your home or office effectively down to -22°F. The units can be controlled with the Cooper&Hunter remote control, or via a smart device when used with the included Wi-Fi kit and Cooper&Hunter Remote app. Other notable features include Follow Me Mode, Sleep Mode, Timer options, and Freeze Protection.
Included in Your Order:
Cooper & Hunter Multi Zone Ductless Mini Split System (19,000 BTU Inverter with Heat Pump)
Outdoor Unit: 19,000 BTU (1pc) – Model: CH-HYP19MSPH-230VO
Indoor Units: 12,000 BTU (2pcs with remotes) – Model: CH-12MOLVWM-230VI

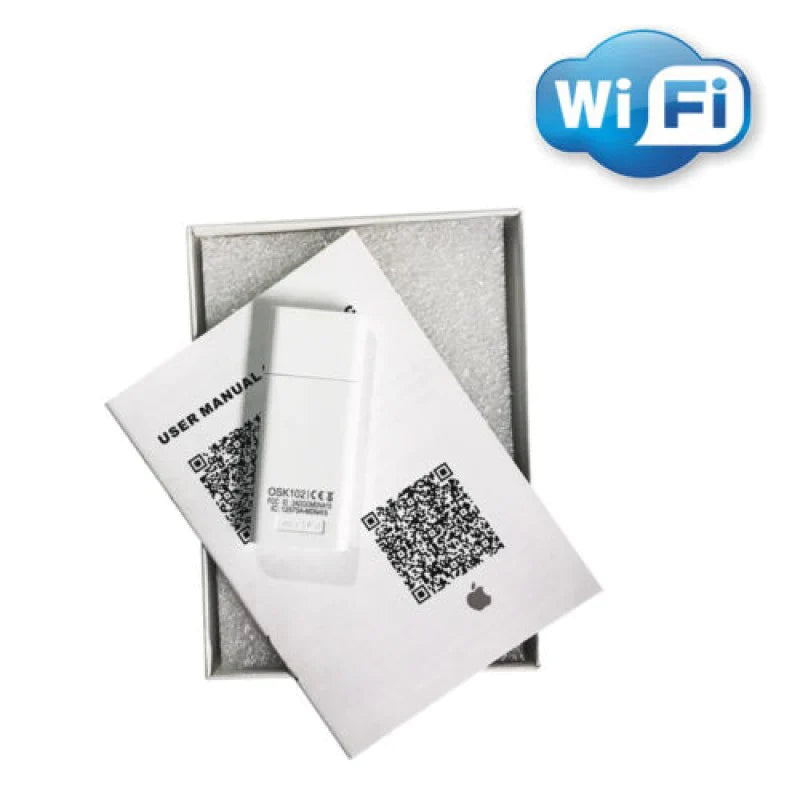

Wi-Fi Adapter
Wireless Remote Controls
Installation Manual
User's Manual
Manufacturer Warranty
Key Features:
- Auto-Swing horizontal louvers
- High efficiency operation (22 SEER2)
- Freeze Protection
- Turbo Mode
- Self-Clean Function
- Eco Mode
- Follow Me Mode
- Remote Control included
- Smart Kit ready with downloadable C&H remote app
- Hyper Heating technology (-22°F operation)
Important
All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone.
Technical Information
Indoor Unit: CH-12MOLVWM-230VI
| Specification | Details |
|---|---|
| System Type | Multi-zone unit |
| BTU Rated | 12,000 BTU |
| Power Source | 208/230V, 1Ph, 60Hz |
| Rated Capacity | 12,000 Btu/h |
| Minimum Circuit Ampacity (MCA) | 3A |
| Max. Fuse | 15A |
| Indoor Air Flow (Turbo/Hi/Mi/Lo) | 341/291/194/152 CFM |
| Indoor Noise Level (Hi/Mi/Lo) | 41.5/36/24 dB(A) |
| Dimension (WxDxH) | 31.57x7.87x11.61 inch |
| Packing (WxDxH) | 34.45x11.22x14.96 inch |
| Net/Gross Weight | 18.74/24.25 lbs. |
| Room Temperature Cooling | 60-90°F |
| Room Temperature Heating | 32-86°F |
| Liquid Side/Gas Side | 1/4" / 1/2" |

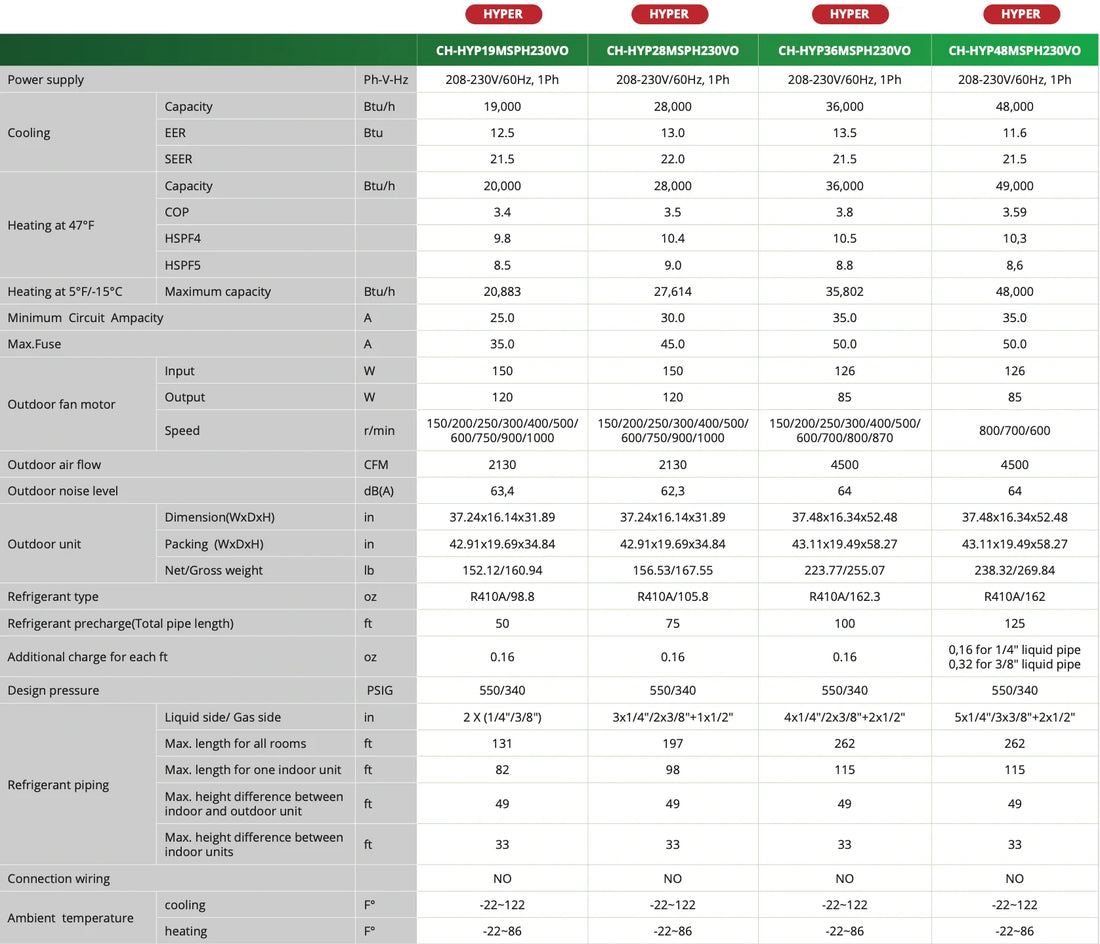

Outdoor Unit: CH-HYP19MSPH-230VO
| Specification | Details |
|---|---|
| System Type | Multi-zone unit |
| BTU Rated | 19,000 BTU |
| Power Source | 208-230V, 1Ph, 60Hz |
| Voltage Range | 187-253V |
| Cooling Capacity (Min/Max) | 19,000 (5,500~25,000) BTU/h |
| Cooling Rated Current | 8.9A |
| EER2 | 12.5 |
| SEER2 | 22 |
| Heating Capacity (Min/Max) | 20,000(8,100~29,600) BTU/h |
| Heating Rated Current | 9.2A |
| COP | 3.4 |
| HSPF2-5 | 7.7 |
| HSPF2-4 | 9.8 |
| Minimum Circuit Ampacity | 20A |
| Max Fuse | 25A |
| Outdoor Air Flow (Max) | 2,129.41 CFM |
| Outdoor Noise Level | 61 dB(A) |
| Dimension (WxDxH) | 37.24x16.14x31.89 inch |
| Packing (WxDxH) | 42.91x19.69x34.84 inch |
| Net/Gross Weight | 138.23/149.03 lbs. |
| Refrigerant Type | R410A |
| Refrigerant Charge | up to 50 oz |
| Refrigerant Piping | 2x1/4" - 2x3/8" |
| Max Pipe Length | 131 ft |
| Max Height Difference | 49.21 ft |
| Ambient Temperature Cooling | 5~122°F |
| Ambient Temperature Heating | -22~75°F |
| Additional Charge (3/8" line) | 0.32 oz/ft |
| Additional Charge (1/4" line) | 0.16 oz/ft |
Warranty
- 7 year compressor limited warranty
- 5 year parts limited warranty (must be installed by a licensed HVAC technician)
- 1 year remote control
