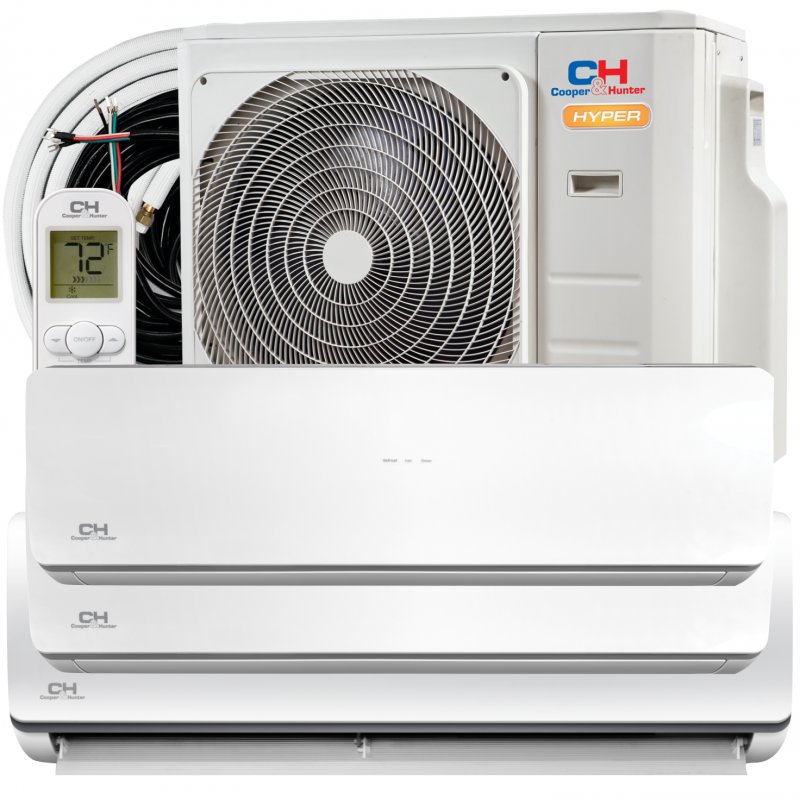

3 Zone Cooper & Hunter Olivia Series, 4 Ton Air Conditioner, Ductless Mini Split with 9k+18k+24k BTU Wall Mounts, R410A, 21.8 SEER 48K BTU Inverter Heat Pump, 230V, Triple Head (3 Heads), 25ft Install Kit + WIFI Adapter
Summary
The Cooper & Hunter Olivia Series 48,000 BTU Multi Zone system delivers powerful, efficient climate control with its DC inverter technology (21.8 SEER2 rating) and ultra-low -22°F heating capability. This high-performance system features three precisely matched indoor units (9K+18K+24K BTU) with whisper-quiet operation (as low as 23.5 dB(A)) and a robust 48K outdoor unit with R410A refrigerant.
Key specifications include:
- Cooling capacity range: 19,300-51,000 BTU
- Heating capacity range: 11,500-58,000 BTU
- Refrigerant lines: 1/4" to 5/8" depending on unit size
- Maximum pipe length: 262 feet between units
- Voltage range: 187-253V for stable operation
Included in Your Order:
Outdoor unit CH-HPR48M-230VO (48,000 BTU Outdoor Condenser Unit)
X1 Indoor unit CH-09MOLVWM-230VI (9,000 BTU Wall Mount)
X1 Indoor unit CH-18MOLVWM-230VI (18,000 BTU Wall Mount)
X1 Indoor unit CH-24M0LVWM-230VI (24,000 BTU Wall Mount)
Wi-Fi Adapter for smart control

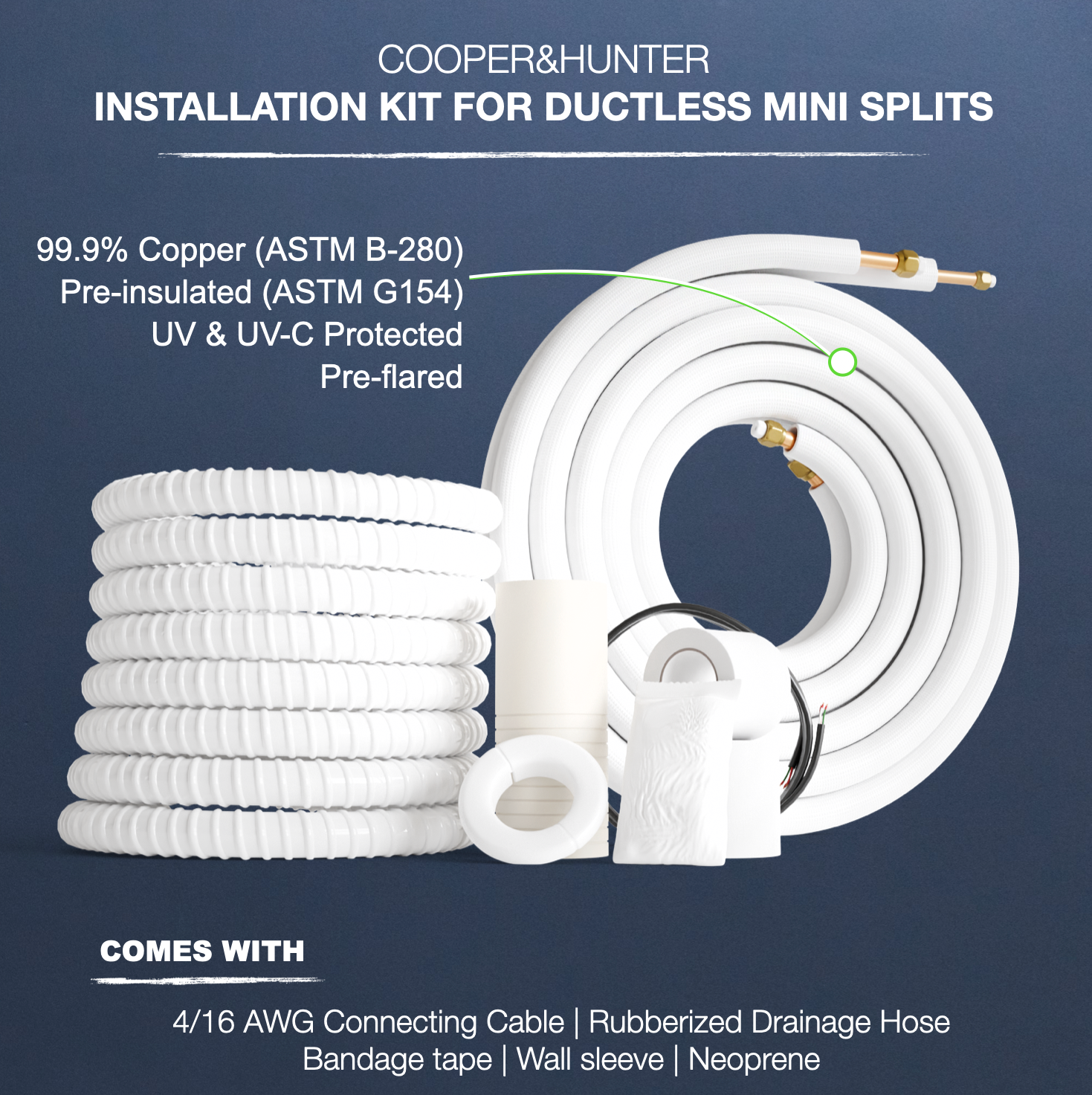

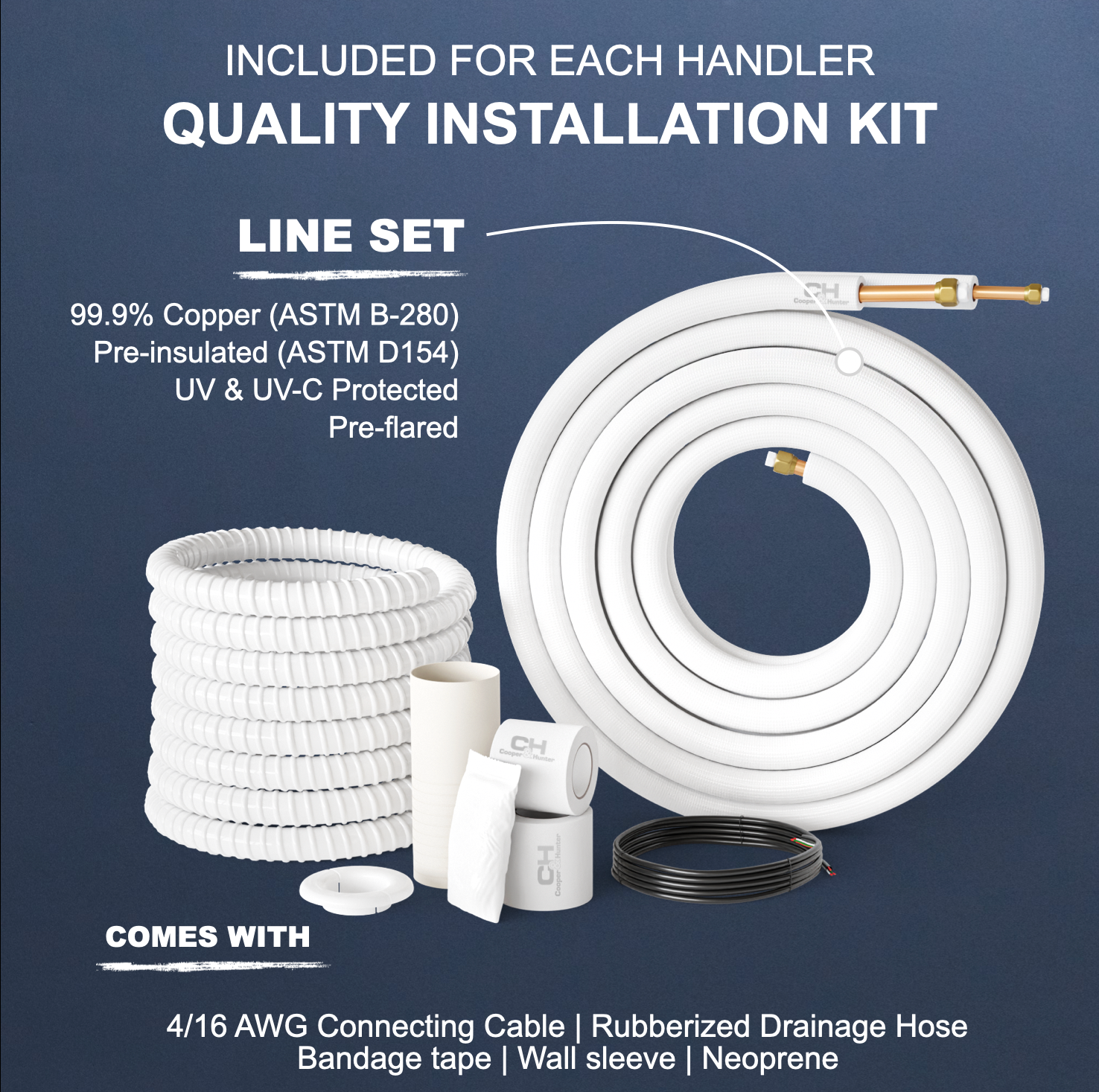

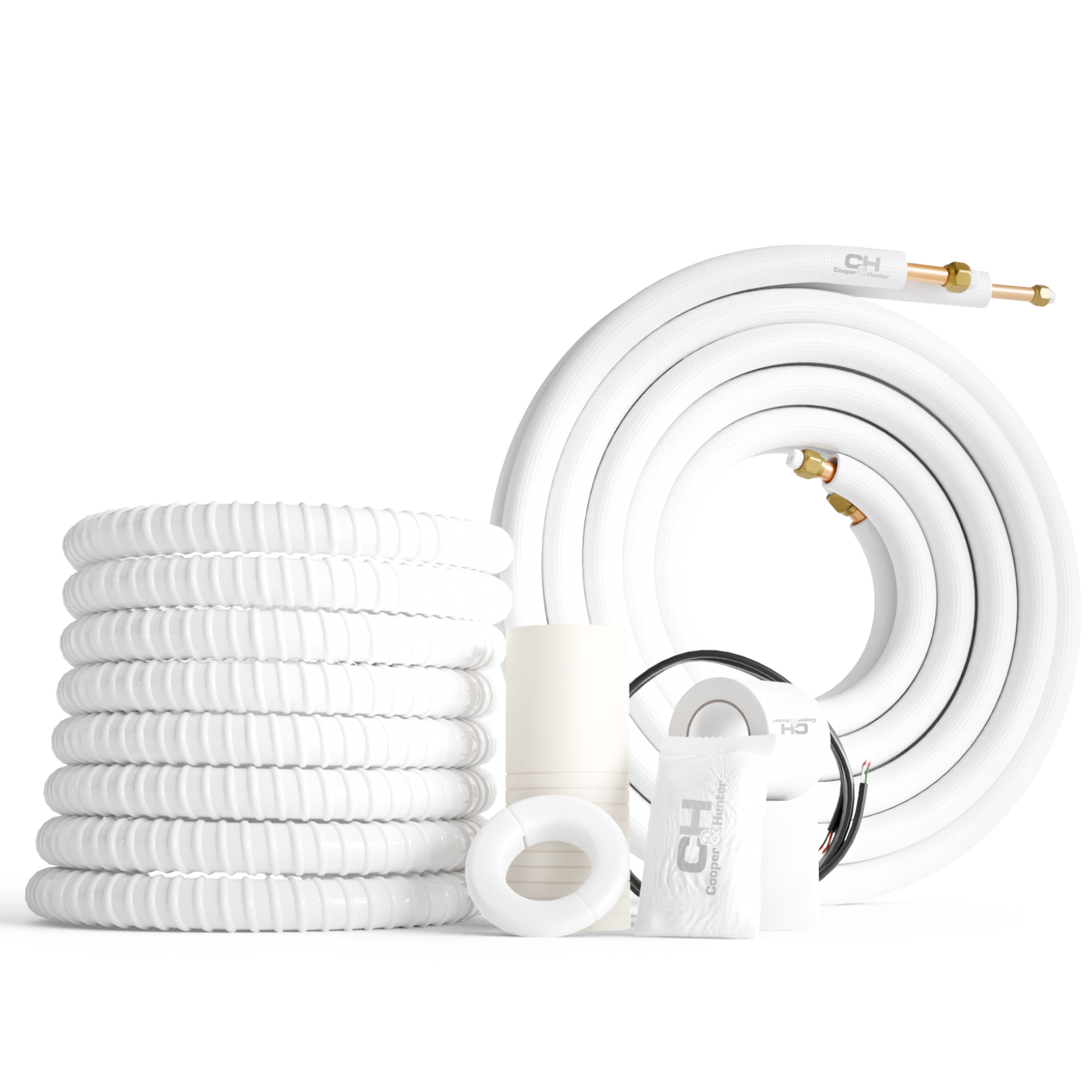

25ft Installation Kit (3pcs) with pre-flared copper linesets (1/4", 3/8", 1/2", 5/8")
Wireless Remote Controls (3pcs)
Complete installation manual
User operation manual
Full manufacturer warranty documentation
Key Features:
- Auto-Swing 3D louvers for optimal air distribution
- Genius Core inverter technology with 12Hz ultra-low operation
- Winter package with 46°F freeze protection
- Turbo mode delivers 110% capacity for rapid cooling/heating
- Self-cleaning function reduces maintenance
- Eco mode optimizes energy consumption
- Follow Me personalized comfort control
- Multi-zone independent temperature control
- Smart control via mobile app (with Wi-Fi adapter)
Important Information
Professional installation by a licensed HVAC technician is required for warranty validation. System registration must be completed within 60 days of installation. The included 25ft installation kits (3pcs) contain pre-flared copper lines (1/4", 3/8", 1/2", 5/8"), communication wires, drainage attachments, and all necessary components for professional installation.
Warranty Coverage
- 7-year compressor limited warranty
- 5-year parts limited warranty (with professional installation)
- 1-year remote control warranty
- 60-day registration requirement
Technical Specifications
Outdoor Unit: CH-HPR48M-230VO
Specification | Details |
---|---|
Power Supply | 208-230V, 1Ph, 60Hz (187-253V range) |
Cooling Capacity | 48,000 BTU (19,300-51,000 range) |
Heating Capacity | 49,000 BTU (11,500-58,000 range) |
Efficiency Ratings | 21.8 SEER2 / 11.7 EER2 / 8.7 HSPF2 |
Refrigerant | R410A (up to 125 oz charge) |
Operating Range | -22°F to 122°F (cooling), -22°F to 75°F (heating) |
Dimensions | 37.48"W x 52.48"H x 16.34"D |
Weight | 238.32 lbs (net) / 269.84 lbs (gross) |
Sound Level | 65 dB(A) at full operation |
Electrical Data | 42A MCA / 50A max fuse |
Refrigerant Lines | 5x1/4" liquid, 3x3/8"+2x1/2" gas |
Max Pipe Length | 262 feet total |
Max Height Difference | 49.21 feet between units |
Indoor Unit Specifications
Model | CH-09MOLVWM-230VI | CH-18MOLVWM-230VI | CH-24M0LVWM-230VI |
---|---|---|---|
Capacity (Cooling) | 9,000 BTU | 18,000 BTU | 24,000 BTU |
Capacity (Heating) | 10,000 BTU | 20,000 BTU | 26,000 BTU |
Noise Levels | 40/35/23.5 dB(A) | 46/40/25 dB(A) | 46.5/44/35 dB(A) |
Airflow (CFM) | 341/291/194/152 | 760/530/458/382 | 760/601/458/382 |
Dimensions (W×H×D) | 31.57×7.87×11.61" | 42.64×9.61×13.23" | 42.60×9.21×13.27" |
Weight | 18.96/24.25 lbs | 29.54/37.48 lbs | 29.98/38.14 lbs |
Refrigerant Lines | 1/4" / 3/8" | 1/4" / 1/2" | 3/8" / 5/8" |
Drain Size | 5/8" | 5/8" | 5/8" |
Power Input | 208-230V, 1Ph, 60Hz (3A MCA, 15A max fuse) |
Performance Features
- Precision temperature control (±1°F accuracy)
- Automatic defrost cycle for winter operation
- Memory function retains settings after power interruption
- 24-hour programmable timer
- Sleep mode with automatic temperature adjustment
- 3 fan speeds + auto fan mode
- Dust filter with cleaning reminder
- Auto-restart after power failure
Certifications
