Cooper&Hunter 3-Zone Mini Split AC & Heat Pump -- 48000 (4.0 Ton), One Way Ceiling Cassette Units (18K+18K+18K BTU), Inverter Technology, 230V, Heating & Cooling - R410A
Summary
Upgrade your indoor comfort with the new 3-Zone R410A One-Way Ceiling Cassette Mini Split System by Cooper&Hunter. Featuring a 48,000 BTU outdoor condenser paired with 3 one-way ceiling cassette indoor units, this system delivers premium aesthetics, energy-saving performance, and whisper-quiet operation down to -13°F.
The one-way ceiling cassette design offers unparalleled installation flexibility, making it the ideal choice for smaller spaces like homes, additions, conversions, or closets. Measuring just 13.19 inches in width and 9 inches in depth, these units fit snugly between structural ceiling beams and require only 3-inch holes for conduits, ensuring a sleek and seamless installation.
Included in Your Order:
Cooper & Hunter One-Way Ceiling Cassette Mini Split System

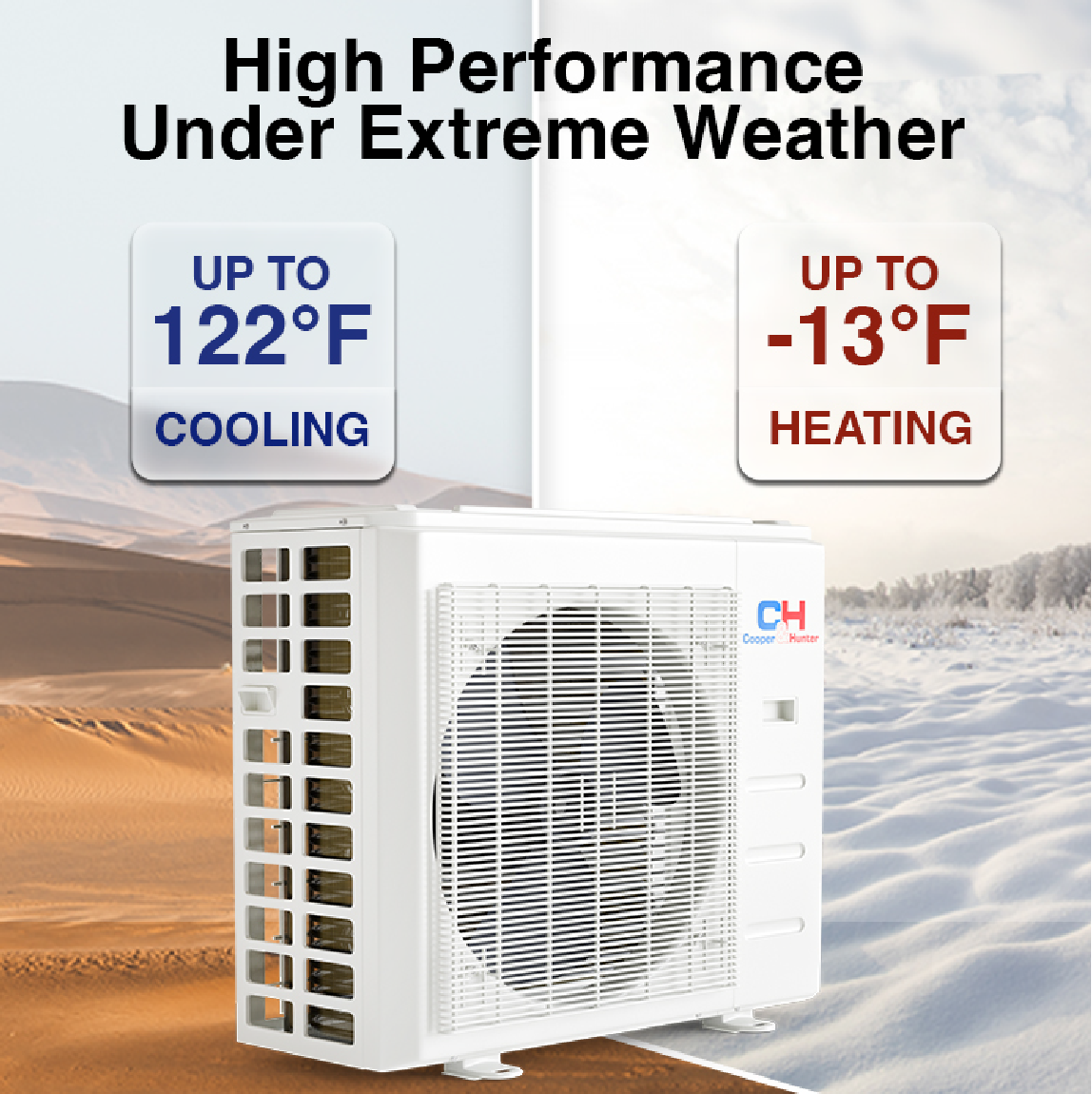

Outdoor Unit: 48,000 BTU (1 pc) - Model: CH-48MES-230VO
Indoor Units:
- 18,000 BTU (3 pcs) - Model: CH-18MCT1W-W
- Installation Kits options (No Installation / 16 ft / 25 ft / 50 ft)
- (INSTALLATION KIT SIZE MUST BE SELECTED)
- Wireless Remote Controls (3 remotes)
- Wi-Fi Thermostat
- Installation Manual
- User's Manual
- Manufacturer Warranty
Key Features:
- 3-zone independent temperature control
- High-efficiency performance (23.4 SEER2)
- Precise directional cooling and heating from one-way cassette design
- Quiet operation (as low as 64 dB)
- Reliable heating down to -13°F ambient
- Self-clean function
- Wi-Fi ready with downloadable Cooper&Hunter App
- Turbo mode for rapid cooling/heating
- Whisper Technology for quiet operation
- ETL Intertek Approved, AHRI Certified
Important
All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function. Ensure that you have selected the desired installation kit above. This kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.
Complete Technical Specifications
Indoor Units
Indoor Unit: CH-18MCT1W-W (18,000 BTU) x3
Outdoor Unit: CH-48MES-230VO (48,000 BTU)
| Refrigerant type | R410A |
|---|---|
| System type | Multi-zone unit |
| BTU Rated | 48,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 10.69 |
| Max. pipe length (ft) | 262 |
| Voltage range (V) | 187-253 |
| Packing dimensions (WxDxH) | 43.11x19.49x58.27 |
| Refrigerant piping Liquid/Gas side (inch) | 5x1/4" - 3x3/8"+2x1/2" |
| HSPF2-5 | 6.8 |
| HSPF2-4 | 8.7 |
| EER2 | 12.5 |
| Cooling capacity (Min/Max) (BTU/h) | 48,000(19,000~50,000) |
| SEER2 | 23.4 |
| Unit Net/Gross weight | 225.53/256.62 |
| Unit dimensions (W*H*D) | 37.48x16.34x52.48 |
| Refrigerant precharge | up to 125 |
| Outdoor Noise Level | 64 |
| Outdoor Air Flow | 4,500 |
| Minimum circuit ampacity | 40 |
| Max.fuse | 60 |
| Max height difference between Indoor and Outdoor unit | 49.21 |
| Heating capacity (Min/Max) (Btu/h) | 48,000(12,500~52,000) |
| COP | 3.57 |
| Ambient temperature - Heating (F) | -13~75 |
| Ambient temperature - Cooling (F) | 5~122 |
| Additional Refrigerant Charge 3/8 liquid line | 0.32 |
| Additional Refrigerant Charge 1/4 liquid line | 0.16 |
Sizing and Compatibility:
The capacity and number of systems can vary for each outdoor unit. Consult the combination chart for potential loading configurations. Ensure the total capacity of all connected indoor units aligns with the minimum and maximum loading range of the selected outdoor unit. It is not mandatory to utilize all circuits on an outdoor unit; some circuits may remain sealed without an attached indoor unit.
Our sales team meticulously reviews every order and will promptly contact you to make any necessary adjustments. For guidance in selecting the correct combination of indoor units, please contact us directly or refer to the Combination Chart provided above or located in the Custom tab.
Performance Data/Features
- Unparalleled installation flexibility for smaller spaces
- Precise directional cooling and heating
- Fits snugly between structural ceiling beams (13.19" width, 9" depth)
- Discreet one-way airflow design for optimal air distribution
- Heat Pump with Smart Wall Thermostat ready with downloadable Cooper&Hunter App
- Remote Control Included
- Heating capable down to -13°F (Standard) / -22°F (Hyper Units)
- Whisper Technology for quiet operation
- ETL Intertek Approved, AHRI Certified
Warranty Information
- 7-Year Compressor Warranty
- 5-Year Parts Warranty
- 1-Year Remote Control Warranty
Note: Warranty valid only when installed by a licensed HVAC technician and registered within 60 days of installation.
