28,000 BTU 3 Zone 9k+9k+12k Hyper Series Ductless Mini Split with Installation Kits, 22 SEER 2.3 Ton Tri Zone Air Conditioner System Wi-Fi Adapter Included

Name: 28,000 BTU 3 Zone 9k+9k+12k Hyper Series Ductle...
SKU: CH-HPR28M-230VO+CH-09MOLVWM-230VIx2+CH-12MOLVWM-230VI
Price: 3889.41 USD
Availability: OutOfStock
Rating: 4.5 (2 reviews)

SKU: CH-HPR28M-230VO + CH-09MOLVWM-230VI x2 + CH-12MOLVWM-230VI

Free Shipping on orders above $300

No Sales Tax in Select States

Up to 15% off on bulk orders - call for more details

Out of stock

Price

$3,889.41

$3,889.41 ~~$3,615.70~~

Sale Sold out

save $-273.71

Quantity

NOTE: The default selection does not include an installation kit. Upgrade your selection to add to your order.

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

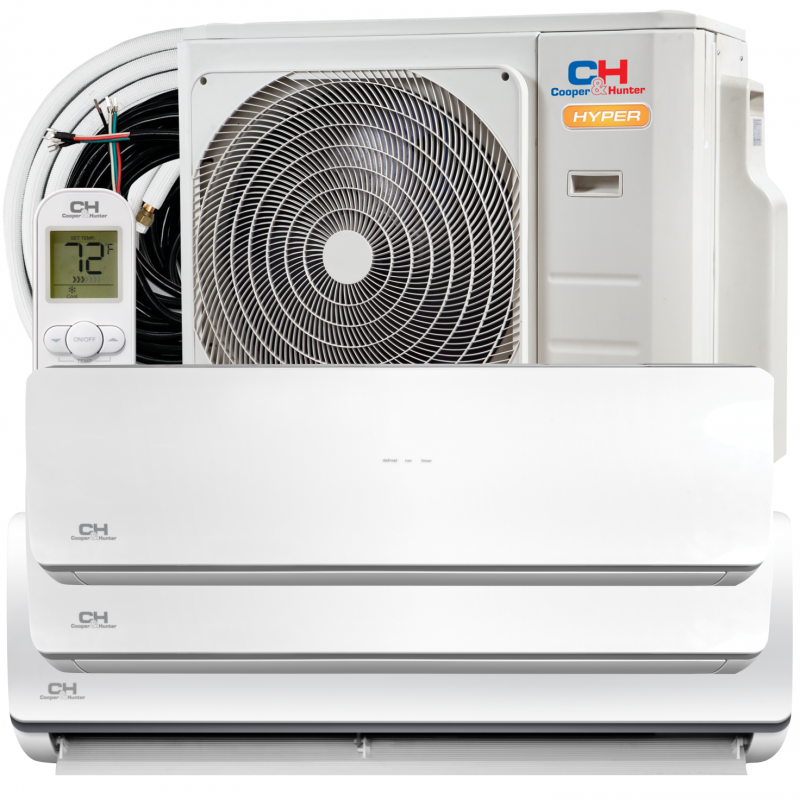

3 Zone Cooper & Hunter Hyper Heating Series, 2.3 Ton Air Conditioner, Ductless Mini Split with 9k+9k+12k BTU Wall Mounts, R410A, 24.6 SEER 28K BTU Inverter Heat Pump, 230V, Triple Head (3 Heads), Includes 25ft Installation Kits for Each Zone + Wi-Fi Adapter

Summary

The Cooper & Hunter 3 Zone Hyper Heating system features a high-efficiency 28,000 BTU outdoor unit (CH-HRP28M-230VO) paired with two 9,000 BTU and one 12,000 BTU wall-mounted indoor units. This DC inverter system delivers 24.6 SEER2 efficiency and can extract heat from outdoor air down to -22°F. Each zone includes a 25ft installation kit with pre-flared copper lines (3/8" and 1/4"), communication wires, and drainage attachments. The system comes pre-charged with R410A refrigerant and features Toshiba-GMCC inverter compressor technology for quiet operation (as low as 23.5 dB) and precise temperature control in all three zones.

Included in Your Order:

Cooper & Hunter 3 Zone Ductless Mini Split System (28,000 BTU Inverter with Heat Pump)

Outdoor Unit: 28,000 BTU (1pc) – Model: CH-HRP28M-230VO

Indoor Units:
- 9,000 BTU (2pcs with remotes) – Model: CH-09MOLVWM-230VI
- 12,000 BTU (1pc with remote) – Model: CH-12MOLVWM-230VI

Installation Kits: 25ft Kit (3pcs) - includes copper linesets, communication wires, 16ft PVC drainage attachments

Wireless Remote Controls (3pcs)

Wi-Fi Adapter (Model: 17310900A05963)

Installation Manual

User's Manual

Manufacturer Warranty

Key Features:

Triple zone independent temperature control (9k+9k+12k BTU configuration)
Hyper Heating technology operates down to -22°F ambient temperature
High 24.6 SEER2 efficiency rating for energy savings
Auto-Swing horizontal/vertical louvers on all indoor units
Turbo Mode for rapid cooling/heating (9k units: 341 CFM max airflow)
Self-Clean function prevents mold buildup
Wi-Fi ready (adapter included)
Quiet operation (12k unit: 25 dB on low setting)
208-230V operation with 187-253V voltage range
Toshiba-GMCC inverter compressor technology

Important Notes

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation. Each zone comes standard with a 25ft installation kit (3/8" and 1/4" linesets) - 16ft and 50ft options available upon request. Maximum piping length: 197ft with 49.21ft elevation difference.

Complete Technical Specifications

Indoor Unit: CH-09MOLVWM-230VI (9,000 BTU)

Specification	Details
BTU Capacity	9,000 BTU/h
Power Supply	208-230V, 1Ph, 60Hz
SEER2 Rating	26.4
EER2 Rating	15.8
Refrigerant Lines	1/4" (liquid) / 3/8" (gas)
Air Flow (CFM)	152-341 (4 speeds)
Noise Level	23.5-40 dB(A)
Dimensions (W×H×D)	31.57×11.61×7.87 in
Weight	18.96 lbs (net)
Drain Connection	5/8" PVC

Indoor Unit: CH-12MOLVWM-230VI (12,000 BTU)

Specification	Details
BTU Capacity	12,000 BTU/h
Power Supply	208-230V, 1Ph, 60Hz
SEER2 Rating	24.0
EER2 Rating	13.5
Refrigerant Lines	1/4" (liquid) / 1/2" (gas)
Air Flow (CFM)	200-450 (4 speeds)
Noise Level	25-46 dB(A)
Dimensions (W×H×D)	37.4×13.23×9.61 in
Weight	29.54 lbs (net)
Drain Connection	5/8" PVC

Outdoor Unit: CH-HRP28M-230VO

Model Number	CH-HRP28M-230VO
Cooling Capacity	28,000 BTU/h (9,838-30,438 range)
Heating Capacity	28,000 BTU/h (8,218-31,000 range)
SEER2	24.6
HSPF2	9.3
Refrigerant	R410A (75oz precharge)
Electrical Data	208-230V/60Hz/1Ph
Max Current	24.5A (30A fuse required)
Operating Range	Cooling: 5°F to 122°F Heating: -22°F to 75°F
Refrigerant Lines	3x1/4" (liquid) / 3x3/8" (gas)
Dimensions	37.24×31.89×16.14 in
Weight	139.77 lbs
Sound Level	61 dB(A)

Warranty Information

7-Year Compressor Warranty - Covers Toshiba-GMCC inverter compressor
5-Year Parts Warranty - Covers all components except remote
1-Year Remote Control Warranty

Note: Valid only when installed by licensed HVAC technician and registered within 60 days. System must use factory-provided installation kits.

Installation Kit Contents (per zone)

25ft Copper Lineset (3/8" gas + 1/4" liquid)
25ft Communication Wire
16ft PVC Drain Line
Insulation & Wrapping Bands
Wall Mount Bracket
Drain Connectors

Available Options: 16ft or 50ft linesets (specify at checkout)
