Cooper&Hunter Multi-Zone 36,000 BTU 230V Hyper Series Wall-Mount Air Conditioning Unit for Heat Pump, Mini Split Inverter System, 3 Ton with Wi-Fi, Installation Kits Included - CH-HPRM36-230VO + (2) CH-18MOLVWM-230VI
Summary
The Cooper & Hunter Hyper Series Multi-Zone Ductless Mini Split System features advanced DC inverter technology that operates efficiently down to -22°F. This system comes with optional installation kits for each zone (with options for 16ft or 50ft available). The auto-swing horizontal louvers ensure even air distribution throughout your space, while the high-efficiency compressor delivers exceptional performance with low energy consumption.
*ALL OF OUR MULTI ZONE SYSTEMS COME WITH AN OPTIONAL INSTALLATION KIT FOR EACH ZONE. WE CARRY 16FT AND 50FT. TO CUSTOMIZE, SEND US A MESSAGE OR GIVE US A CALL!
Included in Your Order:
Cooper & Hunter Hyper Series Multi Zone Ductless Mini Split System (36,000 BTU Inverter with Heat Pump)
Outdoor Unit: 36,000 BTU (1pc) – Model: CH-HPRM36-230VO
Indoor Units: 18,000 BTU (2pcs with remotes) – Model: CH-18MOLVWM-230VI

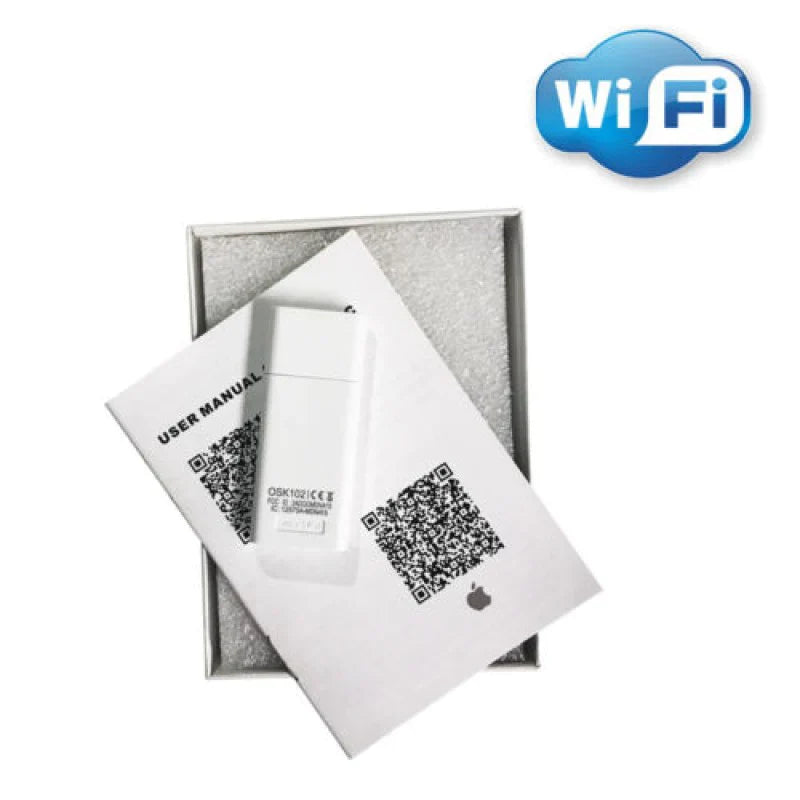

Wi-Fi Adapter (17310900A05963)
Wireless Remote Controls (2pcs)
Installation Manual
User's Manual
Manufacturer Warranty
Key Features:
- Hyper Heating technology works down to -22°F
- Auto-swing horizontal louvers for even air distribution
- High-efficiency DC inverter compressor (HSPF2-4: 10.3)
- Wi-Fi enabled with included adapter
- Turbo mode for rapid cooling/heating
- Self-cleaning function
- Follow-me temperature control
- Sleep mode for quiet nighttime operation
- 24-hour timer function
- Low ambient cooling capability (down to 5°F)
- Energy efficient operation (SEER2: 22.2)
System Specifications
Outdoor Unit: CH-HPRM36-230VO
| Specification | Details |
|---|---|
| Cooling Capacity | 36,000 BTU (17,900~42,000 range) |
| Heating Capacity | 37,000 BTU (12,500~51,000 range) |
| Power Supply | 208-230V, 1Ph, 60Hz |
| SEER2 Rating | 22.2 |
| HSPF2-4 Rating | 10.3 |
| HSPF2-5 Rating | 8.3 |
| EER2 Rating | 13.6 |
| Refrigerant | R410A |
| Operating Range (Cooling) | 5°F to 122°F |
| Operating Range (Heating) | -22°F to 75°F |
| Max Pipe Length | 262 ft |
| Dimensions (WxHxD) | 37.48" x 16.34" x 52.48" |
| Packing Dimensions (WxDxH) | 43.11" x 19.49" x 58.27" |
| Net/Gross Weight | 223.11 lbs / 253.97 lbs |
| Sound Level | 63 dB(A) |
| Minimum Circuit Ampacity | 40A |
| Max Fuse Size | 60A |
| Refrigerant Piping | 4x1/4" - 2x3/8"+2x1/2" |
| Refrigerant Precharge | up to 100 ft |
| Additional Charge (3/8" line) | 0.32 oz/ft |
| Additional Charge (1/4" line) | 0.16 oz/ft |
| Max Height Difference | 49.21 ft |
| Outdoor Air Flow | 4500 CFM |
| Dehumidification | 4.06 pints/day |
Indoor Unit: CH-18MOLVWM-230VI (x2)
| Specification | Details |
|---|---|
| Cooling Capacity | 18,000 BTU |
| Heating Capacity | 18,000 BTU |
| Power Supply | 208/230V, 1Ph, 60Hz |
| Air Flow (Turbo/Hi/Mi/Lo) | 760/530/458/382 CFM |
| Noise Level (Hi/Mi/Lo) | 46/40/25 dB(A) |
| Dimensions (WxHxD) | 42.64" x 13.23" x 9.81" |
| Packing Dimensions | 45.47" x 16.34" x 12.40" |
| Net/Gross Weight | 29.54 lbs / 37.48 lbs |
| Refrigerant Lines | 1/4" (liquid) / 1/2" (gas) |
| Operation Temp (Cooling) | 60-90°F |
| Operation Temp (Heating) | 32-86°F |
| Minimum Circuit Ampacity | 3A |
| Max Fuse Size | 15A |
Warranty Information
- 7-year compressor limited warranty
- 5-year parts limited warranty (professional installation required)
- 1-year remote control warranty
Cooper&Hunter Limited Warranty terms are available if the product is registered within 60 days of installation. THE UNIT(S) MUST BE INSTALLED BY A LICENSED HVAC PROFESSIONAL FOR VALID WARRANTY. Registration can be completed online or by phone.
Professional Installation Required
This system must be installed by a licensed HVAC technician to validate the warranty. The installation requires proper refrigerant piping and electrical connections for optimal performance.
Why Choose Cooper & Hunter Hyper Series?
- Ultra-low temperature operation (-22°F heating capability)
- Premium DC inverter technology for energy savings
- Advanced defrost system for reliable winter operation
- Smart controls via included Wi-Fi adapter
- Quiet operation (as low as 25 dB indoors)
- Durable construction with corrosion-resistant components
