ACiQ Extreme Series 9,000 BTU 27.4 SEER2 Single Zone Ceiling Cassette Mini Split System with Hyper Heat (R454B) - ACIQ-09ZPL-HP230C + ACIQ-09CC-HH-MC

Name: ACiQ Extreme Series 9,000 BTU 27.4 SEER2 Single Zone Ceiling Cassette Mini Split System with Hyper Heat (R454B) - ACIQ-09ZPL-HP230C + ACIQ-09CC-HH-MC
Brand: ACiQ
SKU: ACIQ-09ZPL-HP230C + ACIQ-09CC-HH-MC

SKU: ACIQ-09ZPL-HP230C + ACIQ-09CC-HH-MC

Free Shipping on orders above $300

No Sales Tax in Select States

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Price

$2,196.00

$2,196.00 ~~$3,503.50~~

save $1,307.50

Sold out

Size NO INSTALLATION KIT 16ft 25ft 50ft

save $1,307.50

save $607.38

save $-360.28

save $-1,211.32

Quantity

NOTE: The default selection does not include an installation kit. Upgrade your selection to add to your order.

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 855-492-4822 FOR ANY QUESTIONS

ACiQ Extreme Series 9,000 BTU 27.4 SEER2 Single Zone Ceiling Cassette Mini Split System with Hyper Heat (R454B) - ACIQ-09ZPL-HP230C + ACIQ-09CC-HH-MC

Summary

The ACiQ Extreme series makes ultra-high efficiency heating and cooling affordable for everyone. With SEER as high as 25 and HSPF as high as 13, you can experience the high performance and maximum efficiency that usually costs much more. The ceiling cassette air handler provides a hidden appearance with centralized air distribution, delivering conditioned air in all four directions while only showing a decorative grille.

This system features Extreme Heat technology that enables continuous heating all the way down to -22°F outside. With high SEER2 and high HSPF, you get maximum efficiency whether you are cooling or heating your space. The ceiling cassette includes a factory-installed condensation pump and comes with a handheld remote control.

Key Features:

27.4 SEER2 / 12.5 HSPF2 Efficiency: Ultra-high energy savings with powerful performance
Extreme Heat Technology: Heats down to -22°F outdoor temperatures
Four-Way Airflow Distribution: Balanced comfort throughout the room
Flush-Mounted Design: Only the decorative grille remains visible
Quiet Operation: As low as 32.5 dB(A) for peaceful environments
Built-In Condensate Pump: Lifts condensation up to 14"
Gold Fin Condenser Coating: Full-protection against corrosion
Variable Inverter Technology: Precise temperature control and energy savings
Wireless Remote Included: Easy operation from anywhere in the room
AHRI Certified: 210857315

Important

Professional installation required for warranty validation. Registration must be completed within 60 days of installation at ACiQ.com. Installation materials (line sets, control wire, drain hose, whip, and disconnect) are not included but available separately. This system uses R454B refrigerant.

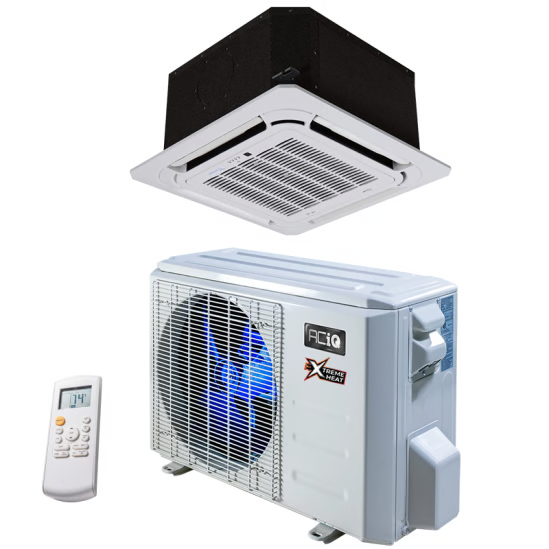

What's Included

Outdoor Unit: ACIQ-09ZPL-HP230C (9,000 BTU Hyper Heat Condenser)

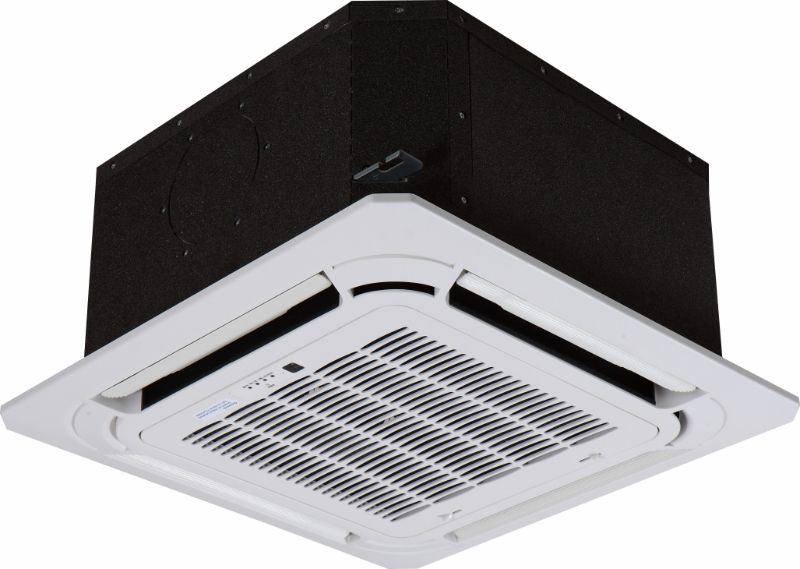

Indoor Unit: ACIQ-09CC-HH-MC (9,000 BTU Ceiling Cassette Air Handler)
Decorative Grille: ACIQ-CC-GRILLE-C
Wireless Remote Control
Installation Manual
User's Manual
Manufacturer Warranty

Technical Specifications

Outdoor Unit: ACIQ-09ZPL-HP230C

Category	Specification	Unit	Value
Power Supply	Rated	V, Ph, Hz	208/230, 1, 60
Power Supply	Voltage Range	V	187-253
Cooling	Rated Capacity (Range)	Btu/h	9,000 (4,900-9,500)
	Rated Current	A	3.1
	EER2	Btu/Wh	16.5
	SEER2	Btu/Wh	27.4
Heating at 47°F	Rated Capacity (Range)	Btu/h	12,000 (4,500-12,500)
	Rated Current	A	3.5
	COP	W/W	4.2
	HSPF2		12.5
	Heating at 5°F	Btu/h	7,500
Electrical	Minimum Circuit Ampacity (MCA)	A	15
	Max. Fuse	A	15
Performance	Max. Air Flow	CFM	1,470.6
	Sound Pressure Level	dB(A)	56
Dimensions	Unit (H×W×D)	inch	21.81×31.69×12.99
	Packing (H×W×D)	inch	24×34×16
	Net/Gross Weight	lbs	78.7/85
Refrigerant	Type / Charge	oz	R454B/25.4
	Precharge Length	ft	16
	Additional Charge/ft	oz/ft	0.5
	Design Pressure	PSIG	551/319
Connections	Liquid Line / Gas Line	inch	1/4" / 3/8"
	Max. Pipe Length	ft	82
	Max. Elevation Difference	ft	49
Operating Range	Cooling	°F	-22~122
Operating Range	Heating	°F	-22~75
Certifications		Energy Star, AHRI 210857315, UL, NEEP

Indoor Unit: ACIQ-09CC-HH-MC

Category	Specification	Unit	Value
Power Supply	Rated	V, Ph, Hz	208/230, 1, 60
Capacity	Cooling	Btu/h	9,000
Capacity	Heating	Btu/h	9,800
Air Flow	Maximum	CFM	352.94
Noise Level	Min/Max	dB(A)	32.5/42
Refrigerant	Type		R454B
Connections	Liquid Line / Gas Line	inch	1/4" / 3/8"
Drainage	Pump Lift Capacity	inch	14
Dehumidification	Rate	gal/hr	0.272
Dimensions	Unit (H×W×D)	inch	10.24×22.44×22.44
	Packing (H×W×D)	inch	12×24×24
	Net/Gross Weight	lbs	38.14/42
Electrical	Breaker Size	A	15

Warranty

12 year compressor limited warranty (with online registration)
7 year parts limited warranty (with online registration and professional installation)
1 year remote control warranty

Installation Considerations

Requires 24" ceiling cavity (modification needed for 16" on-center joists)
Minimum 8" clearance above ceiling for unit installation
PVC drain system required beyond built-in pump's 14" lift capacity
Professional installation required for warranty validation
Additional refrigerant charge may be needed based on line set length
Electrical disconnect required within sight of outdoor unit

Certifications

Performance Features

Auto-restart after power failure
Sleep mode for quiet nighttime operation
Turbo mode for rapid cooling/heating
Self-diagnosis system with error codes
Follow Me mode (remote temperature sensing)
24-hour timer function
4 fan speeds plus auto mode
Auto swing louvers with memory
Intelligent defrost cycle
Base pan heater for cold weather operation
