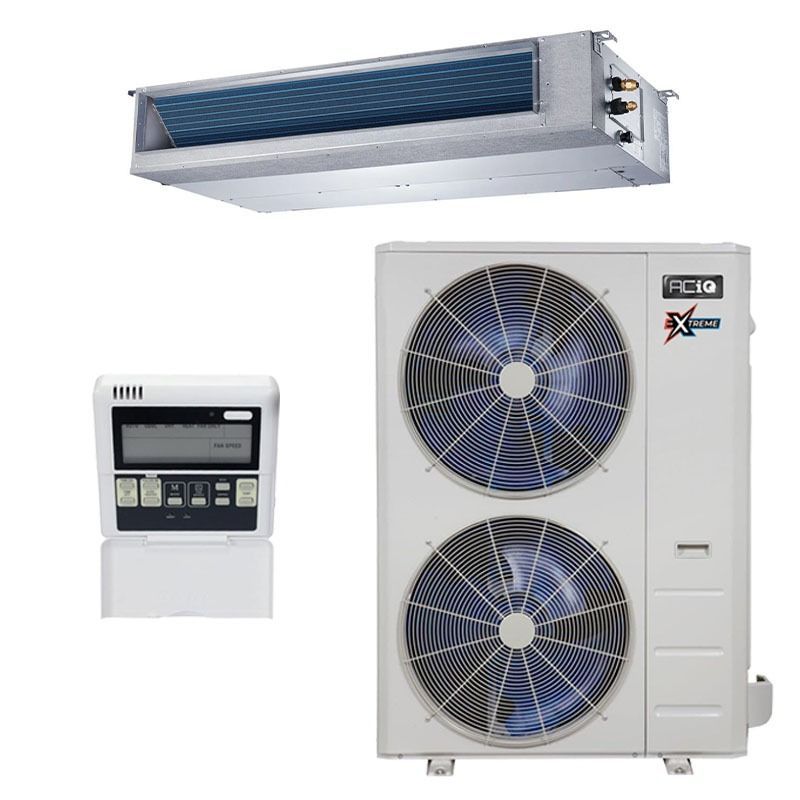

60,000 BTU 23 SEER ACiQ Single Zone Concealed Duct Mini Split System | Extreme Series

SKU:

Free Shipping on orders above $300

No Sales Tax in Select States

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Price

$7,322.47

Sold out

Include Installation Kit? No thanks 50 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set

Quantity

NOTE: The default selection does not include an installation kit. Upgrade your selection to add to your order.

View full details

The ACiQ Extreme series makes ultra-high efficiency heating and cooling affordable for everyone. With SEER as high as 25 and HSPF as high as 13 you can experience the high performance and maximum efficiency that usually costs much more.

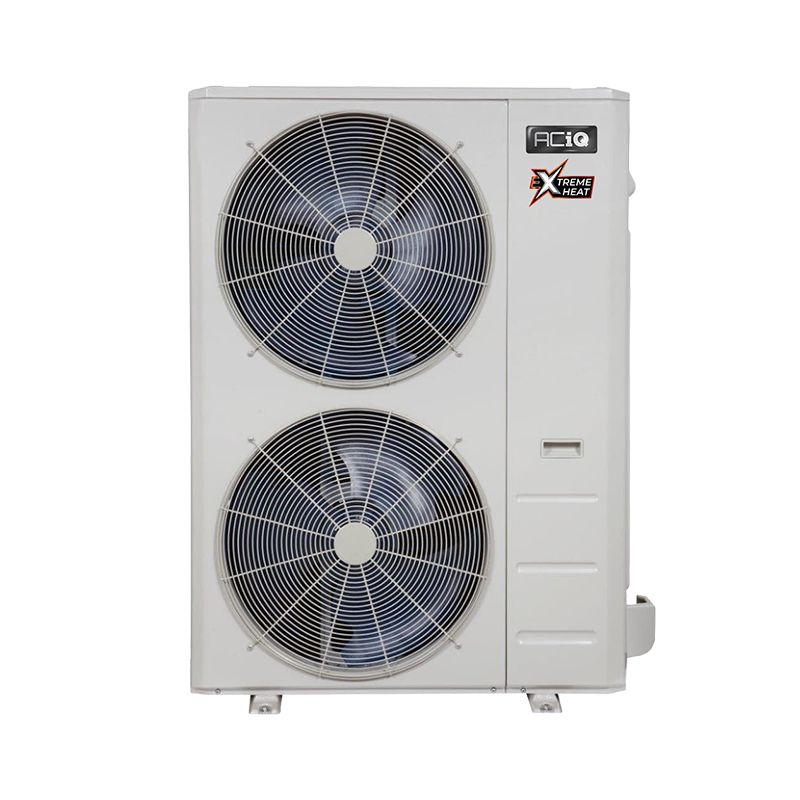

60,000 BTU ACiQ Single Zone Condenser | Extreme Series

OVERVIEW

The ACiQ Extreme series features hyper heat technology that enables continuous heating all the way down to -22 degrees outside. With high SEER2 and high HSPF, you get maximum efficiency whether you are cooling or heating your space.

QUICK FACTS

Maximum performance at an affordable cost
Ideal for large rooms (depending on climate)
Efficient cooling from 5°F to 122°F outdoor temperatures
Efficient heating from -22°F to 75°F outdoor temperatures
Gold fin condenser full-protection coating
Quiet operation at even the highest workloads

High capacity, high efficiency

The ACIQ-60ZPL-HP230B Condenser, when matched with the a wall mounted, ceiling cassette, concealed duct or floor mount air handler, has enough capacity for large rooms. The dual rotary compressor and variable inverter technology give this system exceptionally high efficiency ratings.

Please note that this model of equipment does not have quick connect line set connectors and is not a DIY unit. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section on this page. You will need a professional to add more refrigerant and vacuum the lines as needed. The automated cleaning function will clean your system, but it is recommended to periodically clean the unit's filters manually.

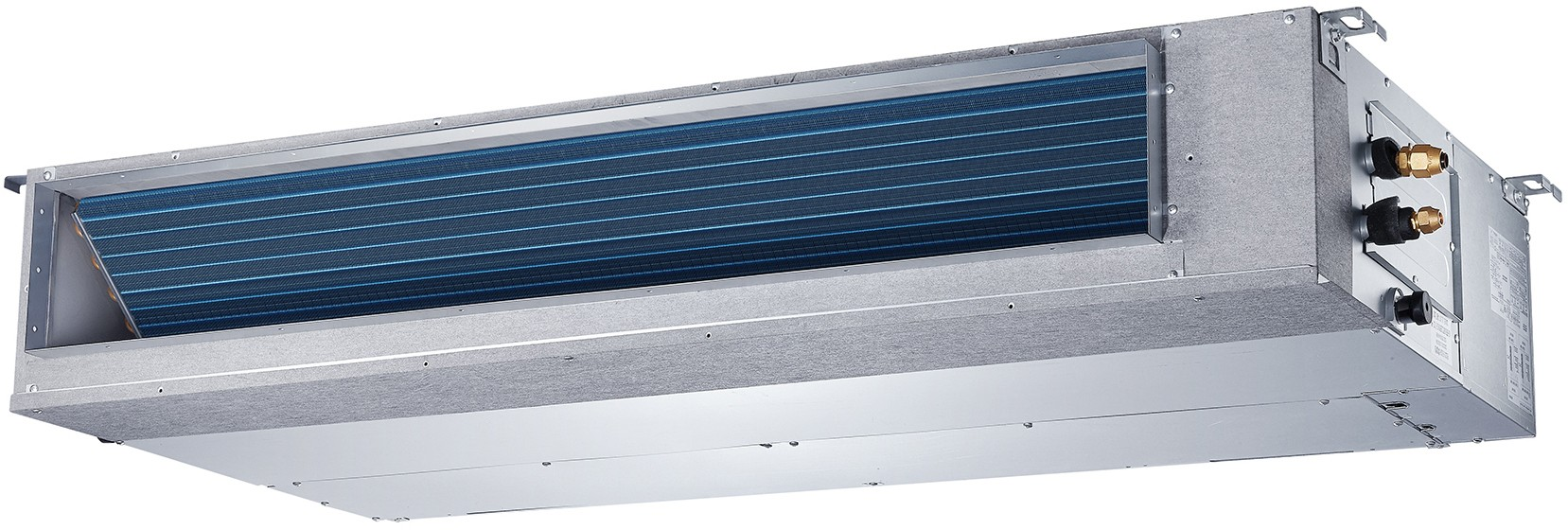

60,000 BTU Concealed Duct ACiQ Mini Split Air Handler

Concealed Duct air handlers give you all the advantages of a multi zone mini split, without any visible air handlers on your walls or ceilings. These flexible units are designed to be concealed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling or behind a soffit. You run flex ducting from the concealed duct air handler to ceiling or wall registers in your desired location. Depending on the capacity of the unit, up to 4 flex duct runs can be connected, perfect for a pair of small bedrooms or a master suite.

The design is extremely simple return air is brought in at the rear of the unit and supply (cooled or heated) air is pushed out the front by an almost-silent squirrel cage fan. You attach a pre-made manifold takeoff or field-fabricate plenums using ductboard. Using readily available supplies, the customization possibilities are endless.

Installation Considerations

Concealed duct system installations require a certain amount of pre-planning, and are similar in scope to a standard home HVAC installation. They are best used in new construction projects or additions. Installation will require flex ducting, register vents, plenums and installation supplies in addition to the equipment components. The Concealed Duct units have a factory-installed pump to lift the condensation. From there you will use PVC to construct a drain system to a safe wastewater location.

FEATURES

60,000 btu of Heating or Cooling
Dry and Fan modes also available
Good for a medium room in most climates
Wall mounted thermostat included

Product Specifications

More Information
60,000 BTU ACiQ Single Zone Condenser \| Extreme Series
SKU	ACIQ-60ZPL-HP230C
Refrigerant Charge	25'
Weight	248.900000
Manufacturer	ACiQ
Product Features	Low Ambient Heating
HSPF	10
HSPF2	8.7
Cooling BTU	36000 BTU
Heating BTU	36000 BTU
Decibel Level (dBA)	63.5
Electric Heat	Heat Pump
Refrigerant	R454B
SEER	16-17
SEER2	17.5
EER	8.5
Compressor Type	Rotary
Liquid Line	3/8"
Suction Line	7/8"
Electrical	208/230V 1 Phase 60 Hz
Max Breaker Size	60
Min. Breaker Size	47
Tonnage	5 Ton
BTU/Tonnage	60,000 BTU/5 Ton
Mini Split Type	Wall Mounted
Zone Compatibility	Single Zone
Height	52.48"
Width	37.48"
Depth	16.34"
Warranty	12 year compressor, 7 year parts with online registration
Resources	Submittal with 60K Concealed Duct Submittal with 60k Floor Mount You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING
60,000 BTU Concealed Duct ACiQ Mini Split Air Handler
SKU	ACIQ-60CD-HH-MC
Weight	200.400000
Manufacturer	ACiQ
Cooling BTU	55000 BTU
Heating BTU	57000 BTU
Maximum CFM	2302.94
Decibel Level (dBA)	54
Electric Heat	Heat Pump
Refrigerant	R454B
Liquid Line	3/8"
Suction Line	7/8"
Electrical	208/230V 1 Phase 60Hz
Electric Phase Filter	Single Phase
Max Breaker Size	60
Min. Breaker Size	47
Tonnage	5 Ton
Tonnage Bundle	5 Ton
BTU/Tonnage	60,000 BTU/5 Ton
Mini Split Type	Concealed Duct
Zone Compatibility	Single Zone, Multi Zone
Height	18.11"
Width	55.12"
Depth	33.78"
Warranty	12 year compressor, 7 year parts with online registration
Resources	Installation & Owner's Manual Remote Controller Manual Submittal Warranty Information
Safety Information	PROPOSITION 65 WARNING
