28,000 or 36,000 BTU 2 Zone 12k+12k High Efficiency, Hyper Wall Mounts with Installation Kits, R410A, 22.9 SEER 1.5 TON Dual Zone Ductless Multi Mini Split Air Conditioners Wi-Fi Adapter Included

28,000 or 36,000 BTU 2 Zone 12k+12k High Efficiency, Hyper Wall Mounts with Installation Kits, R410A, 22.9 SEER 1.5 TON Dual Zone Ductless Multi Mini Split Air Conditioners Wi-Fi Adapter Included

SKU: CH-12MOLVWM-230VI + CH-18MOLVWM-230VI + CH-HPR28M-230VO

Free Shipping on orders above $300

No sales tax except in TX, FL, & PA!

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Price
Regular price $4,738.14
Sale price $4,738.14 Regular price
Sold out
12,000 BTU Installation Kit - 1
12,000 BTU Installation Kit - 2
CONDENSER SIZE

NOTE: The default selection does not include an installation kit. Upgrade your selection to add to your order.

View full details
Cooper & Hunter Hyper Series Mini Split

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

Cooper & Hunter Hyper Series Mini Split
ALL OF OUR MULTI ZONE SYSTEMS COME PRE-BUNDLED WITH A 25FT INSTALLATION KIT FOR EACH ZONE. WE CARRY 16FT, 25FT, AND 50FT. SEND US A MESSAGE OR GIVE US A CALL TO CUSTOMIZE! (737)-738-6329
This is the NEWEST model from Cooper & Hunter, produced in 2022!
Wifi Ready* indicates that you will need to purchase a C&H USB Wifi

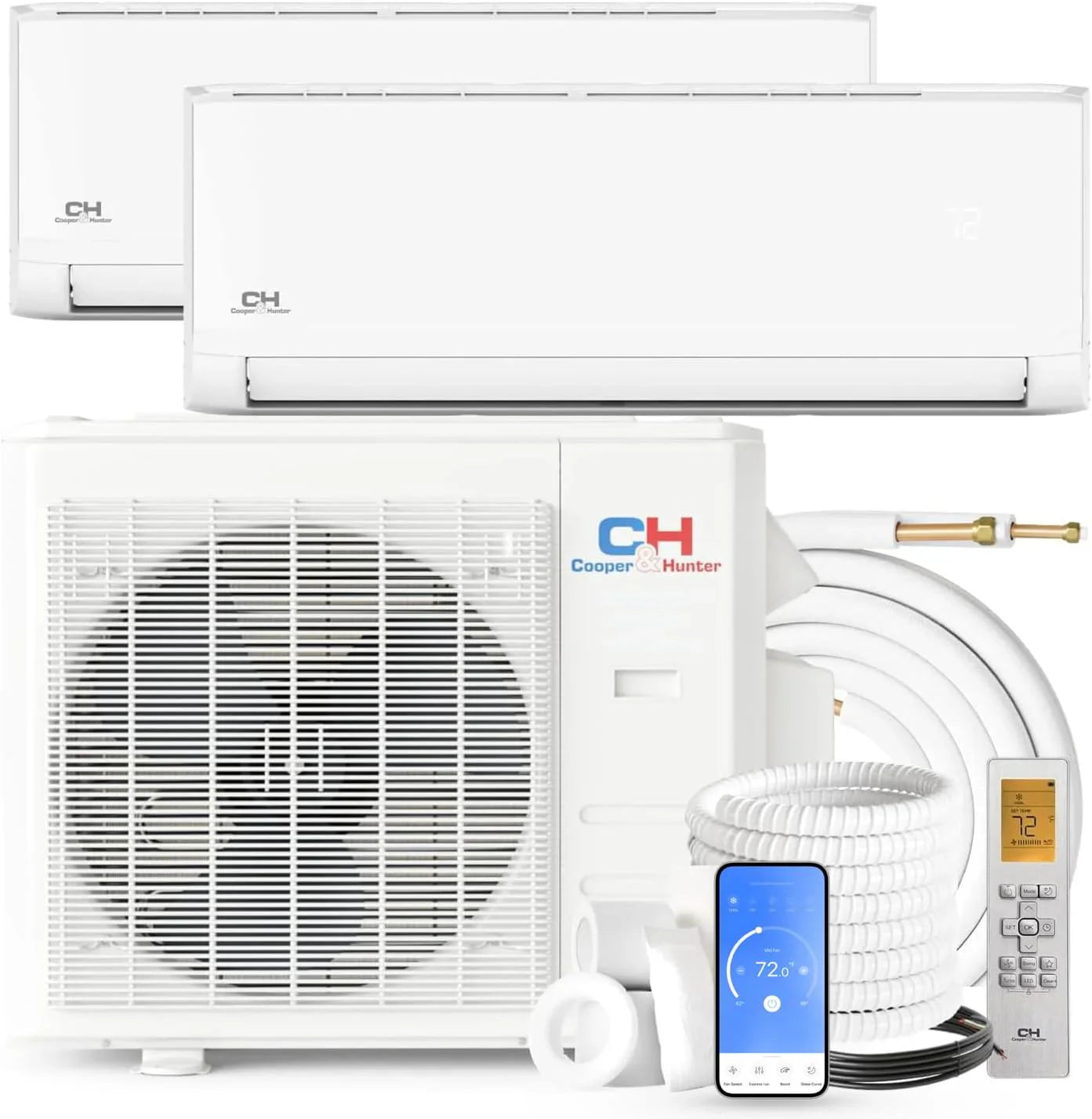

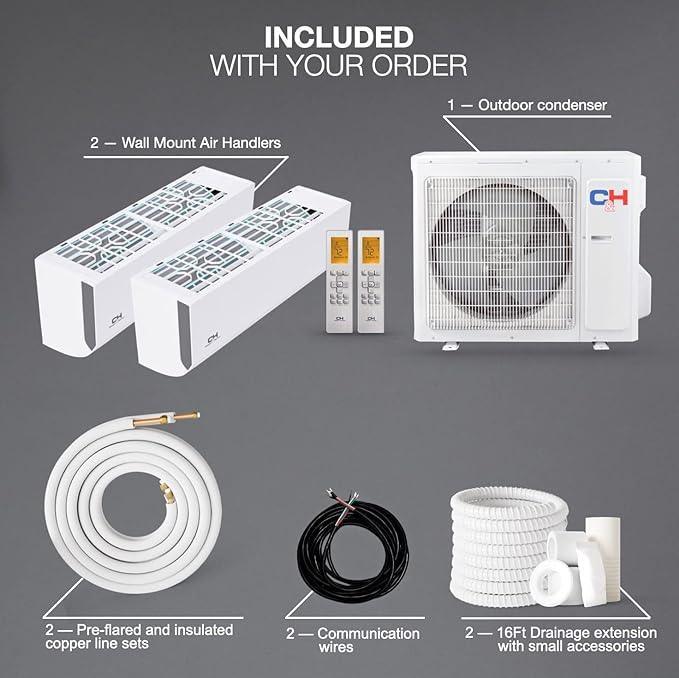

INCLUDED IN YOUR ORDER:
Cooper & Hunter Multi Zone Ductless Mini Split System 28,000 BTU Inverter with Heat Pump

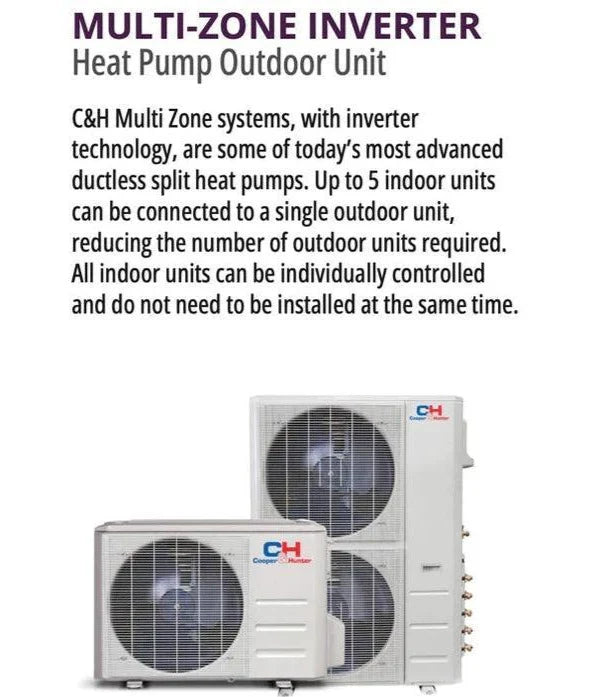

* OUTDOOR UNIT = 28,000 BTU (1pc) (CH-HPRM28-230VO)
OR
* OUTDOOR UNIT = 36,000 BTU (1pc) (CH-HPR36M-230VO)
* INDOOR UNIT (with remotes) = 12,000 BTU (2pcs) (CH-12MOLVWM-230VI)
(Two Heads)
*WI-FI ADAPTER (17310900A05963)

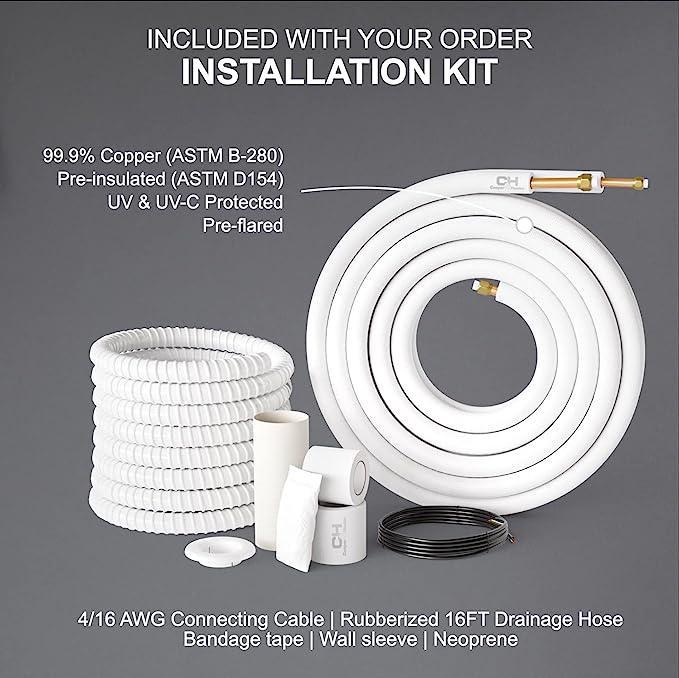

* INSTALLATION KITS = 25ft Installation Kit (2pcs) with 25ft Copper Lines, 25ft Data Communication Wires, 16ft PVC Drainage Attachment, Wrapping Bands, etc.

Product Description

With its high efficiency/high SEER compressor and auto swing louvers, this newest model Cooper & Hunter ductless mini split will both heat and cool your home or office. The DC inverter heat pump pulls heat from the air down to temperatures as low as -22°F!

You are well protected by a seven year warranty on the compressor, a five year parts warranty (must be installed by a licensed HVAC technician), abundant parts availability and smart, experienced technicians should you ever need assistance. This model features a safe and rugged Toshiba-GMCC inverter compressor.

Cooper&Hunter Limited Warranty terms are available if the product is registered within 60 days of installation. THE UNIT(S) MUST BE INSTALLED BY A LICENSED HVAC PROFESSIONAL FOR VALID WARRANTY. Registration can be completed online or by phone.


Technical Specifications

Outdoor Unit: CH-HPRM28-230VO (Hyper Series)

Power Supply 208-230V, 1Ph, 60Hz
Voltage Range 187-253V
Cooling Capacity (Min/Max) 28,000 (8,000-32,800) BTU/h
Heating Capacity (Min/Max) 28,000 (5,000-38,500) BTU/h
SEER2 23
EER2 12.5
HSPF2-4 10.6
HSPF2-5 8.1
COP 3.66 W/W
Dehumidification 5.41 pints/day
Minimum Circuit Ampacity 25 A
Max Fuse 40 A
Refrigerant Type R410A
Refrigerant Precharge Up to 75 oz
Additional Refrigerant Charge (3/8" line) 0.32 oz/ft
Additional Refrigerant Charge (1/4" line) 0.16 oz/ft
Refrigerant Piping (Liquid/Gas) 3x1/4" - 2x3/8"+1x1/2"
Max Pipe Length 197 ft
Max Height Difference 49.21 ft
Outdoor Air Flow 2,147.06 CFM
Outdoor Noise Level 63 dB(A)
Ambient Temperature (Cooling) 5°F to 122°F
Ambient Temperature (Heating) -22°F to 75°F
Unit Dimensions (W×H×D) 37.24×16.14×31.89 in
Packing Dimensions (W×D×H) 42.91×19.69×34.84 in
Net/Gross Weight 167.99/179.67 lbs

Indoor Unit: CH-12MOLVWM-230VI (12,000 BTU Wall Mount) - Unit 1

Power Supply 208/230V, 1Ph, 60Hz
Rated Capacity 12,000 BTU
Minimum Circuit Ampacity (MCA) 3 A
Max. Fuse 15 A
Indoor Air Flow (Turbo/High/Medium/Low) 341/291/194/152 CFM
Indoor Noise Level (High/Medium/Low) 41.5/36/24 dB(A)
Dimensions (W×D×H) 31.57×7.87×11.61 in
Packing Dimensions (W×D×H) 34.45×11.22×14.96 in
Net/Gross Weight 18.74/24.25 lbs
Room Temperature (Cooling) 60-90°F
Room Temperature (Heating) 32-86°F
Refrigerant Piping (Liquid/Gas) 1/4" / 1/2"

Indoor Unit: CH-12MOLVWM-230VI (12,000 BTU Wall Mount) - Unit 2

Power Supply 208/230V, 1Ph, 60Hz
Rated Capacity 12,000 BTU
Minimum Circuit Ampacity (MCA) 3 A
Max. Fuse 15 A
Indoor Air Flow (Turbo/High/Medium/Low) 341/291/194/152 CFM
Indoor Noise Level (High/Medium/Low) 41.5/36/24 dB(A)
Dimensions (W×D×H) 31.57×7.87×11.61 in
Packing Dimensions (W×D×H) 34.45×11.22×14.96 in
Net/Gross Weight 18.74/24.25 lbs
Room Temperature (Cooling) 60-90°F
Room Temperature (Heating) 32-86°F
Refrigerant Piping (Liquid/Gas) 1/4" / 1/2"

Brackets and Concrete Pads

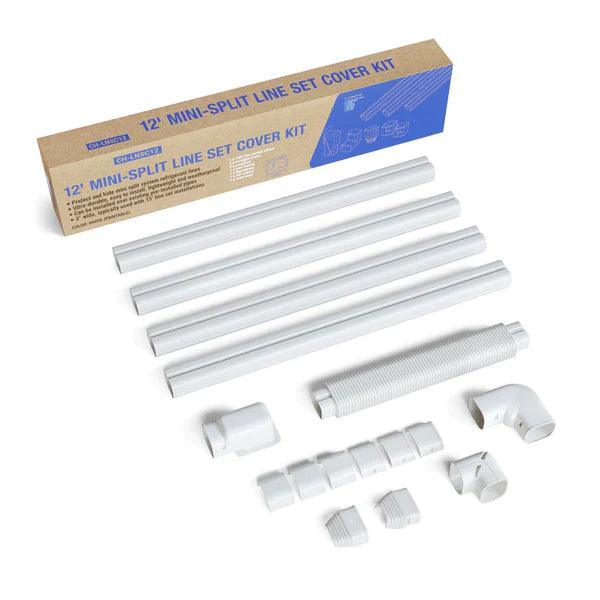

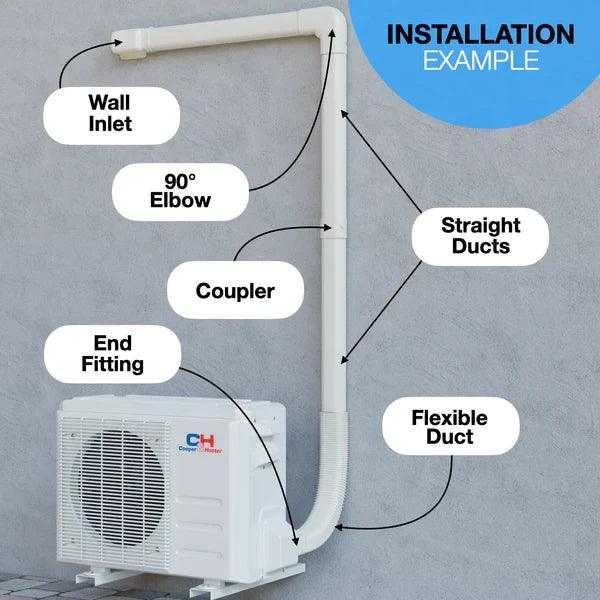

Line covers

We will prepare your order within 24 hours if it’s received on a weekday (before noon). Orders are shipped in one to two business days. Transit time is between 3 to 6 business days, although exceptions apply. We email tracking information once your purchase is shipped.

Delivery Map

IMPORTANT DELIVERY INFORMATION: Please be kindly informed that this air conditioner, due to its weight and shipping restrictions, is shipped palletized with an arranged freight service and requires an appointment for delivery. To AVOID delays, please check if the provided phone number in the order details is a current number where you can be reached. You can also contact the carrier directly and refer to your tracking number to set up a date and time for your appointment. It is your responsibility to ensure a safe and secure environment for delivery. Please note that we cannot be held liable for any packages that are stolen or lost after delivery has been confirmed. PLEASE verify your shipping address, as changes to the address after freight has shipped can result in an additional 15% or higher fee depending on freight weight and dimensions.

SMALLWARES INFORMATION: Please be informed that for smaller items, such as Installation Kits, Smart Connectivity Dongles, and TTW Sleeves, when these items are ordered individually, they may be shipped via FedEx without a signature requirement. It is your responsibility to ensure a safe and secure environment for delivery. Please note that we cannot be held liable for any packages that are stolen or lost after delivery has been confirmed. Thank you for your understanding and cooperation.

INSPECT YOUR MERCHANDISE BEFORE SIGNING: Please inspect your boxes thoroughly when you receive them. They should arrive shrink-wrapped and on a pallet. If you notice any damages or imperfections (e.g. crushed box or forklift hole), please write comments on the receipt before signing for delivery, no matter how small damages seem. Contact us immediately to assist you.

We will prepare your order within 24-48 hours if it’s received on a weekday (before noon). Orders are shipped in one to two business days. Transit time is between 3 to 6 business days, although exceptions apply. We email tracking information once your purchase is shipped.

Delivery Map.



IMPORTANT DELIVERY INFORMATION: Please be kindly informed that this air conditioner, due to its weight and shipping restrictions, is shipped palletized with an arranged freight service and requires an appointment for delivery. To AVOID delays, please check if the provided phone number in the order details is a current number where you can be reached. You can also contact the carrier directly and refer to your tracking number to set up a date and time for your appointment. It is your responsibility to ensure a safe and secure environment for delivery. Please note that we cannot be held liable for any packages that are stolen or lost after delivery has been confirmed. PLEASE verify your shipping address, as changes to the address after freight has shipped can result in an additional 15% or higher fee depending on freight weight and dimensions.



SMALLWARES INFORMATION: Please be informed that for smaller items, such as Installation Kits, Smart Connectivity Dongles, and TTW Sleeves, when these items are ordered individually, they may be shipped via FedEx without a signature requirement. It is your responsibility to ensure a safe and secure environment for delivery. Please note that we cannot be held liable for any packages that are stolen or lost after delivery has been confirmed. Thank you for your understanding and cooperation.



INSPECT YOUR MERCHANDISE BEFORE SIGNING: Please inspect your boxes thoroughly when you receive them. They should arrive shrink-wrapped and on a pallet. If you notice any damages or imperfections (e.g. crushed box or forklift hole), please write comments on the receipt before signing for delivery, no matter how small damages seem. Contact us immediately to assist you.

Southminisplits exclusively distributes Cooper & Hunter and OLMO products, you can always find the most technical information on the manufacturer's website:
Cooper & Hunter
DETAILED PRODUCT BOOKLETS FOR THIS PRODUCT:
Olivia Series Booklet
Multi-Zone Booklet
Specification Table
Quick-Start Guide
Installation Manual
General Manufacturing Information
